Shure PGXD14 Bodypack Guitar Wireless System

Set your guitar free with this Shure wireless system. It delivers accurate sound via 24-bit digital technology and 26 dB of continuously adjustable gain.

The Shure PGX-Digital PGXD14 Bodypack Guitar Wireless System adds the clarity of 24-bit digital audio to the legacy of trusted Shure microphone options for wireless performance. This system includes the PGXD1 bodypack transmitter, which easily clips onto a belt or guitar strap, and the WA302 instrument cable to plug into guitar, bass, or any other 1/4-inch line-level instrument output.

Transmitter Features:

- Rugged, compact bodypack with belt clip and instrument cable
- 20 Hz - 20 kHz frequency range captures every nuance of your tone
- Power, mute, and battery status LED
- Up to 10 hours of continuous use from 2 AA batteries
- 200 ft (60 m) operating range
- 26 dB of continuously adjustable gain to match variable input levels

Receiver Features:

- 24-bit / 48 kHz digital technology for incredibly accurate sound
- Automatic frequency selection locates a clear channel instantly
- One-touch sync automatically syncs the transmitter and receiver
- Rugged construction for reliable performance show after show
- True digital diversity for rock-solid wireless signal reliability
- Up to 10 compatible channels per frequency band
- 1/4-inch and XLR audio outputs
- Included padded carrying case for portability and protection

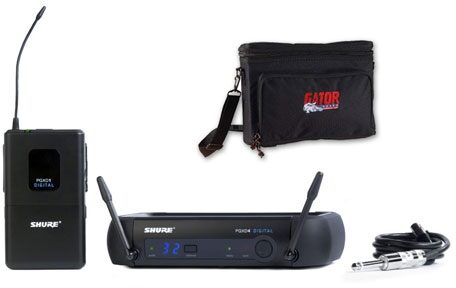

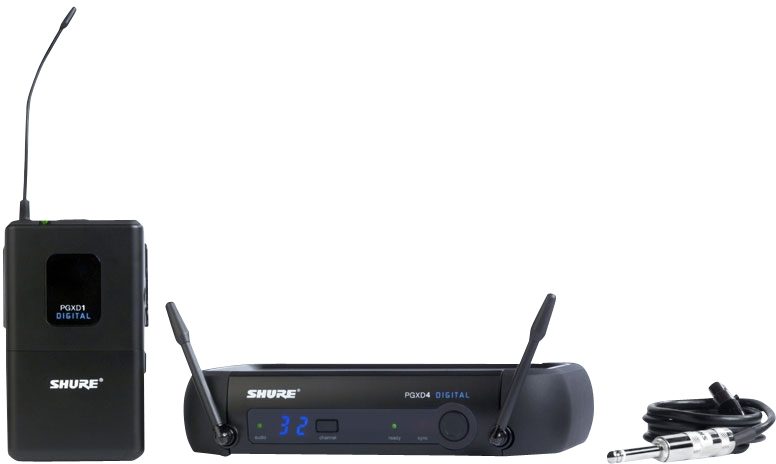

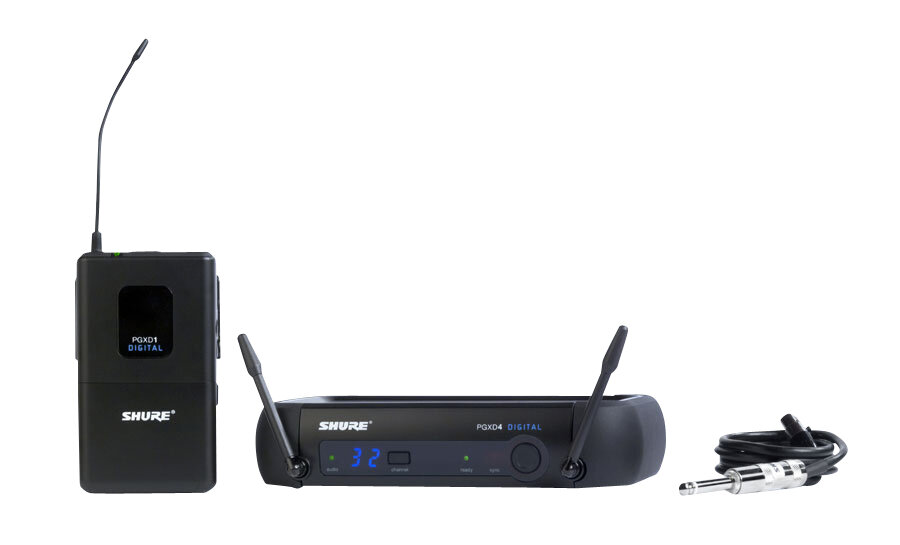

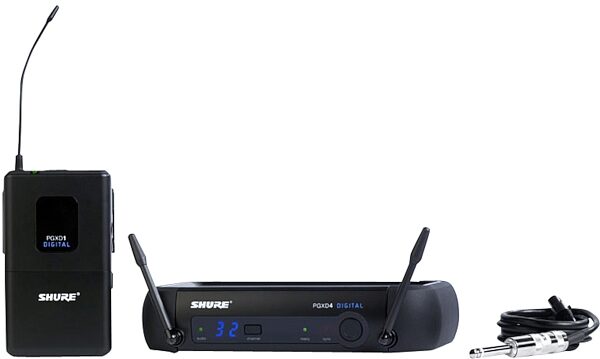

Included in the Box:

- PGXD4 wireless receiver
- PGXD1 bodypack transmitter
- WA302 instrument cable
- Padded carrying case
WARNING: Cancer and Reproductive Harm -

PGXD1 Bodypack Transmitter Specifications

- Audio Input Level:
- - +10 dBV maximum, at minimum gain setting
- - -16 dBV maximum, at maximum gain setting
- Gain Adjustment: Range 26 dB
- Input Impedance: 1 M ohms
- RF Output Level: 10 mW maximum (dependent on applicable country regulations)
- Dimensions(HxWxD): 108 mm x 64 mm x 19 mm (4.25 x 2.50 x 0.75 in.)
- Weight: 128 grams (4.5 oz.) without batteries
- Housing: Molded polycarbonate case
- Power Requirements: 2 "AA"size batteries
- Battery Life: Up to 10 hours

PGXD4 Wireless Receiver Specifications

- Housing: ABS
- Audio Output Level (ref. +/- 38 kHz deviation, 1 kHz tone):
- - XLR connector (into 3000 Ohm load): -2.5 dBV
- - 1/4 inch connector (into 10000 Ohm load): +10 dBV
- Impedance:
- - XLR: 50 ohms
- - 1/4 inch: 50 ohms
- Sensitivity: -102 dBm at 10-5 BER
- Image Rejection: > 70 dB, typical
- Audio Outputs:
- - XLR Balanced
- - 1/4 inch Unbalanced
- Audio LED:
- - Red: 2 dB below clip
- - Amber: 12 dB below clip
- - Green: 50 dB below clip
- Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
- Dimensions (HxWxD): 40 mm X 181 mm X 104 mm (1.6 x 7.125 x 4.1 in.)
- Weight: 289 g (10.2 oz.)
Dimensions and Weight in Packaging
Group X8, Frequencies 902 - 928 MHz
Shipping Weight: 3.5 lbs
Shipping Dimensions: 17 x 13 x 4 in
Manufacturer Part Number (MPN): PGXD14-X8

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

For support or warranty questions, please contact the manufacturer:
Phone: 800-516-2525

Reviewers gave this product an overall rating of 4 out of 5 stars. (3 ratings)
Submitted October 31, 2013 by William R in Madison, AL
"Shure PGX Digital -- Good, Clean Wireless Connection"
Overall: 4 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
Was originally shopping for a Samson Airline unit so I didn't to deal with a body pack unit, but then stumbled upon the Shure PGX Digital system, and after comparing digital to the UHF of the Airline unit, I decided to go with the Shure unit for cleaner, more accurate sound. So far, I'm very happy with my choice!The system is quick and easy to set up, extremely simple to operate (unless you WANT to get more complicated, then it offers those options), has surprisingly good battery life on the body pack transmitter, excellent range, and so far has been free of any kind of interference.One of my many reasons for choosing this unit is the use of two AA batteries for the body pack. They're cheap, readily available most anywhere you go, and you don't have to deal with remembering to keep anything charged up! While I was tempted by one unit that was powered by a built-in rechargeable LiIon battery, I realized it was just one more thing to remember. Now I just throw a handful of fresh AA alkaline batteries in the bag and not worry about it. So far I'm still on the original two, and this after an extended practice session at home to test the unit out and make sure I knew how it worked, three rehearsal sessions, and three gigs. Shure claims at least 10 hours of battery life... so far that is definitely true as I still haven't hit the low battery warning!Regarding the most important thing: Sound Quality! I can't hear any difference in the sound quality whether my bass is running corded read more or through the Shure PGX unit; it is that clean and natural. No loss of lows, clarity, or anything else. I'm extremely happy with it!If I had to pick on something, it would be the fact that I need to manually change to a new channel (frequency) in the event interference is encountered instead of it changing automatically. For a $400 unit, I'd much rather it scan and automatically change to a clear channel itself. Oh, and if a channel change is required, you have to sync the body pack manually. It only takes a few seconds to do, but it does not happen automatically! Just be aware of that fact when making a purchase decision!

Musical Background:
Church Musician 12+ years

Musical Style:
Contemporary Christian
read less
13 of 13 people (100%) people found this review helpful. Did you?
