Shure GLXD14+ / WL93 Digital Lavalier Wireless System

open zoom image for Shure GLXD14+ / WL93 Digital Lavalier Wireless System, Band Z3 (2.4/5.8 GHz), Action Position Back

Shure GLXD14+ / WL93 Digital Lavalier Wireless System, Band Z3 (2.4/5.8 GHz), Main

Shure GLXD14+ / WL93 Digital Lavalier Wireless System, Band Z3 (2.4/5.8 GHz), View

Shure GLXD14+ / WL93 Digital Lavalier Wireless System, Band Z3 (2.4/5.8 GHz), Action Position Back

zZounds Gear Experts Say...

For quick and reliable audio solutions for speaking engagements, look no further than this digital wireless system, complete with a low-profile lavalier mic.

Overview

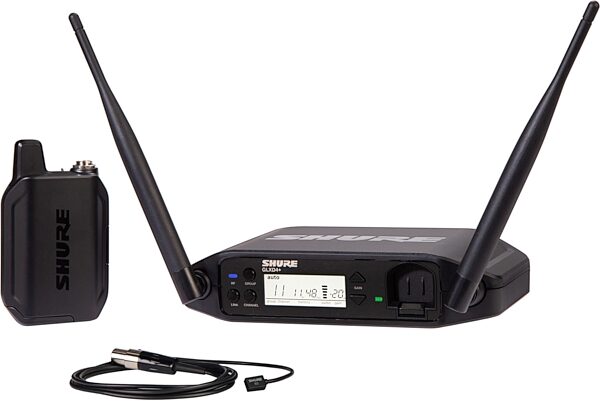

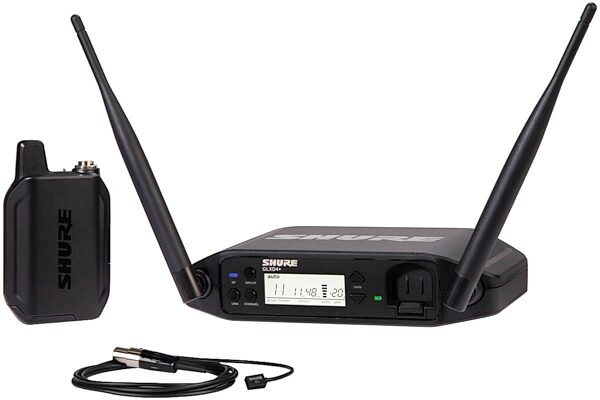

The GLX-D+ Dual Band Wireless Presenter System features the miniature wearable WL93 lavalier microphone for spoken word applications and the GLXD4+ tabletop receiver. The perfect combination of the automatic frequency management with Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.

With Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio. Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities.

Available with multiple legendary microphone options (including the SM58(R)) in tabletop, half-rack and guitar pedal system configurations. When combined with Frequency Manager and directional antenna accessories (both sold separately), the rack-mount receiver systems are ideal for small and medium installations where a larger number of channels is needed.

Features:

- Tabletop GLXD+ Dual Band receiver + bodypack transmitter
- Dual Frequency operation (2.4GHz and 5.8GHz)
- Very similar look and same features available in prior GLX-D version
- Includes WA302 Guitar Cable
- Dual frequency band operation (2.4GHz and 5.8GHz)

Specs

- Microphone Type: Electret Condenser Lavalier
- Polar Pattern: Omnidirectional
- Frequency Response: 50 Hz to 20 kHz
- Operating Frequency Range: 2.4 GHz and 5.8 GHz (Dual Band)
- Number of Channels: Up to 11 compatible systems typically, up to 16 under ideal conditions with Frequency Manager
- Transmission Range: 100 feet (30 m) typical indoors, 65 feet (20 m) typical outdoors
- Signal-to-Noise Ratio: 94 dB
- Dynamic Range: 120 dB
- Total Harmonic Distortion: 0.2% typical (system), 1% max (microphone)
- Latency: 4.5 to 8 ms

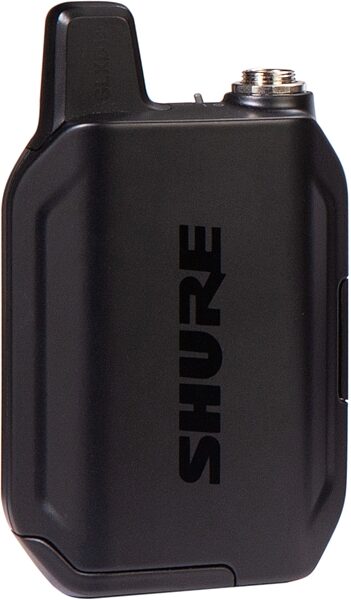

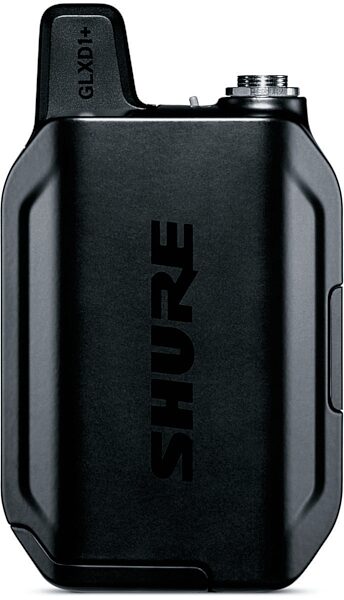

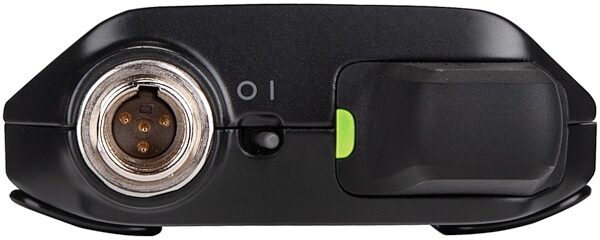

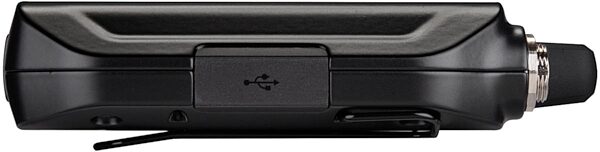

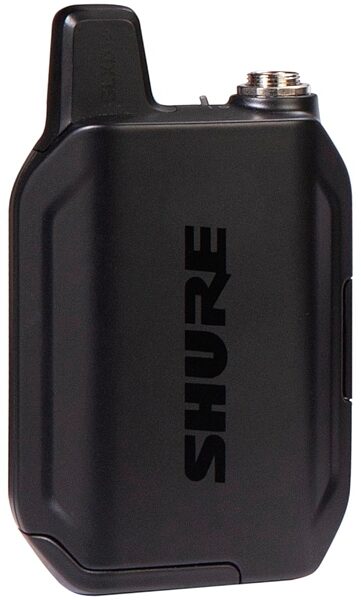

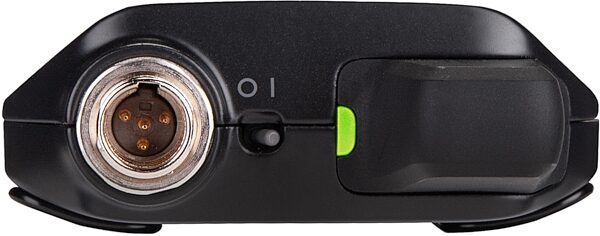

- Transmitter Type: Bodypack
- Transmitter RF Output Power: 10 mW E.I.R.P. maximum
- Transmitter Battery Type: SB904 Lithium-Ion Rechargeable
- Transmitter Battery Life: Up to 12 hours

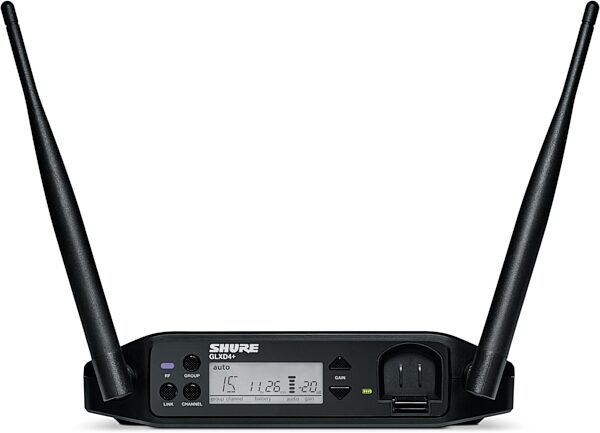

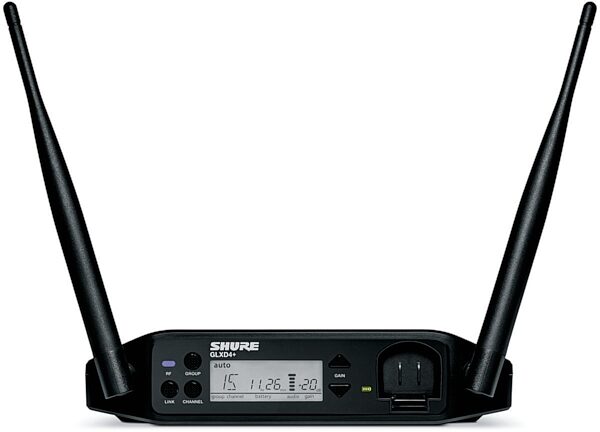

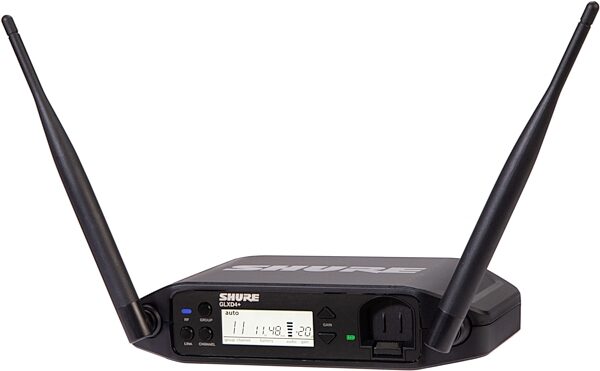

- Receiver Type: Tabletop
- Receiver Outputs: XLR (balanced mic/line) and 1/4 inch TRS (balanced/unbalanced)
- Receiver Antenna Type: Fixed front-panel antennas (dual diversity)
- Receiver Power Requirements: 14.5 to 17 V DC, 600 mA
- Audio Frequency Response: 20 Hz to 20 kHz
- Operating Temperature Range: -18°C to 57°C (0°F to 135°F)

Dimensions and Weight in Packaging

Band Z3 (2.4/5.8 GHz)

Shipping Weight: 4.47 lbs
Shipping Dimensions: 18 x 13 x 4 in
Manufacturer Part Number (MPN): GLXD14+/93-Z3

Consumer Alert

Most users do not need a license to operate this wireless system. Nevertheless, operating this system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
