Shure GLXD14+/SM35 Digital Wireless System

Shure GLXD14+/SM35 Digital Wireless System, Band Z3 (2.4/5.8 GHz), Main

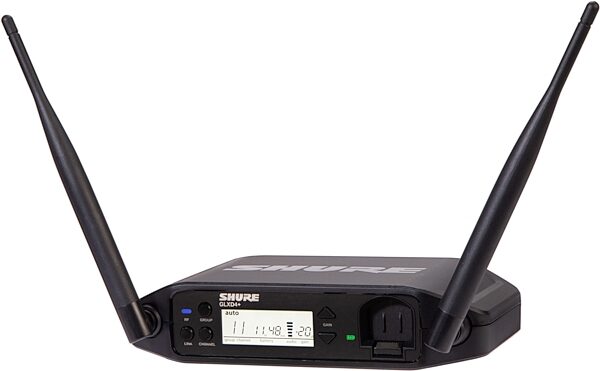

Shure GLXD14+/SM35 Digital Wireless System, Band Z3 (2.4/5.8 GHz), Action Position Back

zZounds Gear Experts Say...

This headset SM35 mic and GLX-D+ combination wireless system makes any speaking engagement a breeze, taking the guesswork out of wireless setup and tuning.

Overview

The Shure GLX-D+ Dual Band Wireless Headset System features the durable SM35 Headset Microphone for high-quality headworn vocal performance applications and the GLXD4+ tabletop receiver. Go wireless without complication.

GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. Every aspect of its operation is managed automatically and with total reliability, allowing you to focus on your performance. With Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio. Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities.

Available with multiple legendary microphone options (including the SM58(R)) in tabletop, half-rack and guitar pedal system configurations. When combined with Frequency Manager and directional antenna accessories (both sold separately), the rack-mount receiver systems are ideal for small and medium installations where a larger number of channels is needed.

Features:

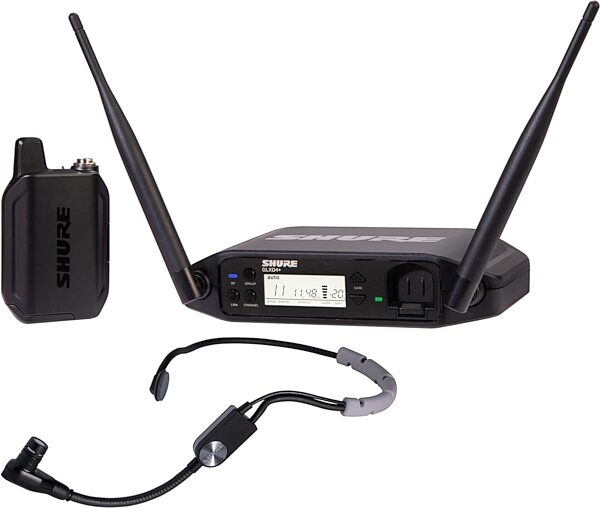

- Tabletop GLXD+ Dual Band receiver, GLXD1+ bodypack transmitter, SM35 Headset Microphone
- Dual Frequency operation (2.4GHz and 5.8GHz)
- Very similar look and same features available in prior GLX-D version

WHAT'S NEW… read more VERSUS PRIOR VERSION:
- Dual frequency band operation (2.4GHz and 5.8GHz)

Specs

- Microphone Type: Electret Condenser
- Polar Pattern: Unidirectional (Cardioid)
- Frequency Response: 40 Hz to 20,000 Hz
- Sensitivity: -57.8 dBV/Pa at 1 kHz, 1000 Ω load
- Maximum SPL: 151.3 dB (1% THD, 1000 Ω load)
- Equivalent Noise Level: 34.8 dB SPL-A, 1000 Ω load

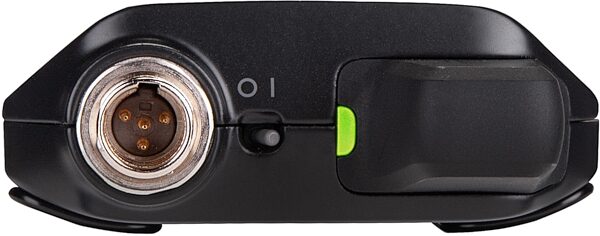

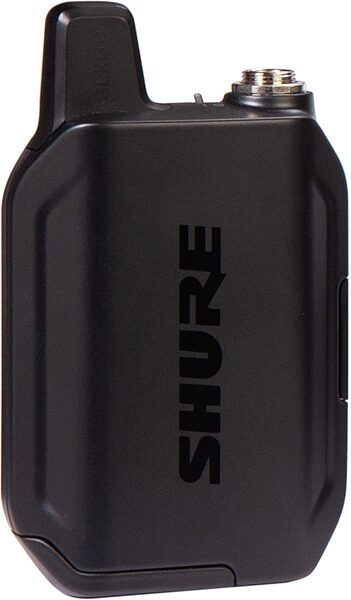

- Transmitter Type: Bodypack (GLXD1+)
- RF Output Power: 10 mW E.I.R.P. max
- Operating Frequency Range: 2400-2483.5 MHz and 5725-5850 MHz (Z3 band)
- Number of Channels: Up to 11 compatible systems (typical setting with Frequency Manager), Up to 4 compatible systems (typical setting without Frequency Manager)
- Switching Bandwidth: 208.5 MHz total bandwidth (dual band)
- Audio Frequency Response: 20 Hz to 20 kHz
- Signal-to-Noise Ratio: 59.2 dB at 1 kHz
- Total Harmonic Distortion: 0.2% typical
- Battery Type: SB904 Lithium-Ion rechargeable
- Battery Life: Up to 12 hours (5.8 GHz operation), Up to 17 hours (2.4 GHz operation)

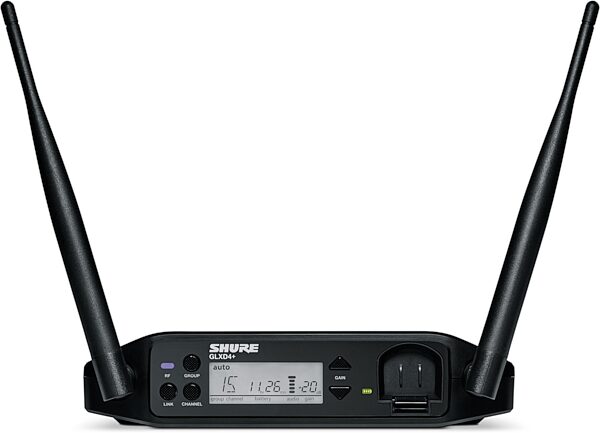

- Receiver Type: Tabletop (GLXD4+)
- Diversity: True digital diversity with dual antennas
- Audio Outputs: Microphone output and Instrument output (1/4" and XLR)
- Power Supply: External power adapter (included)
- Operating Range: Up to 100 ft (30 m) indoors typical, Up to 65 ft (20 m) outdoors typical

Dimensions and Weight in Packaging

Band Z3 (2.4/5.8 GHz)

Shipping Weight: 4.65 lbs
Shipping Dimensions: 18 x 13 x 4 in
Manufacturer Part Number (MPN): GLXD14+/SM35-Z3

Consumer Alert

Most users do not need a license to operate this wireless system. Nevertheless, operating this system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
