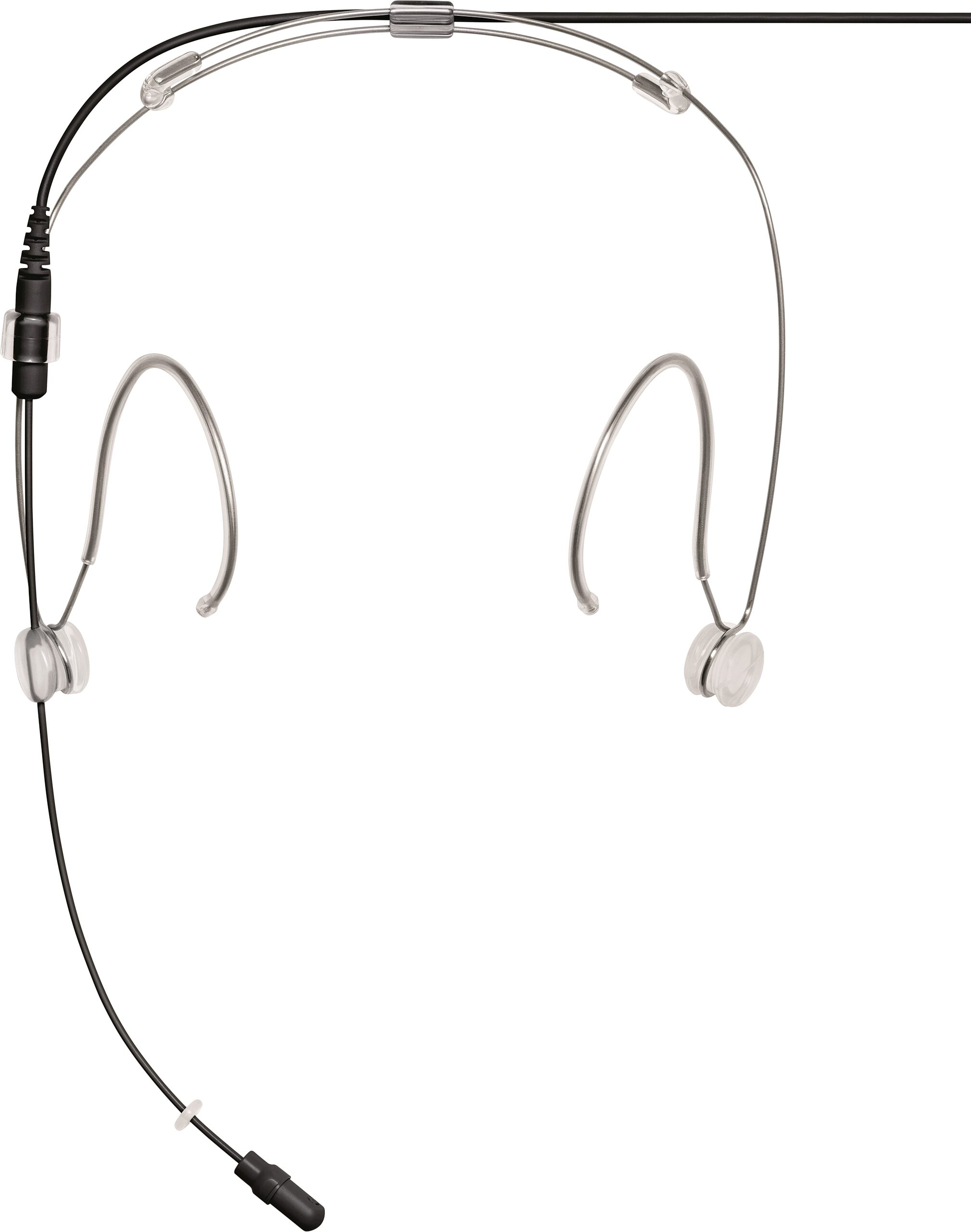

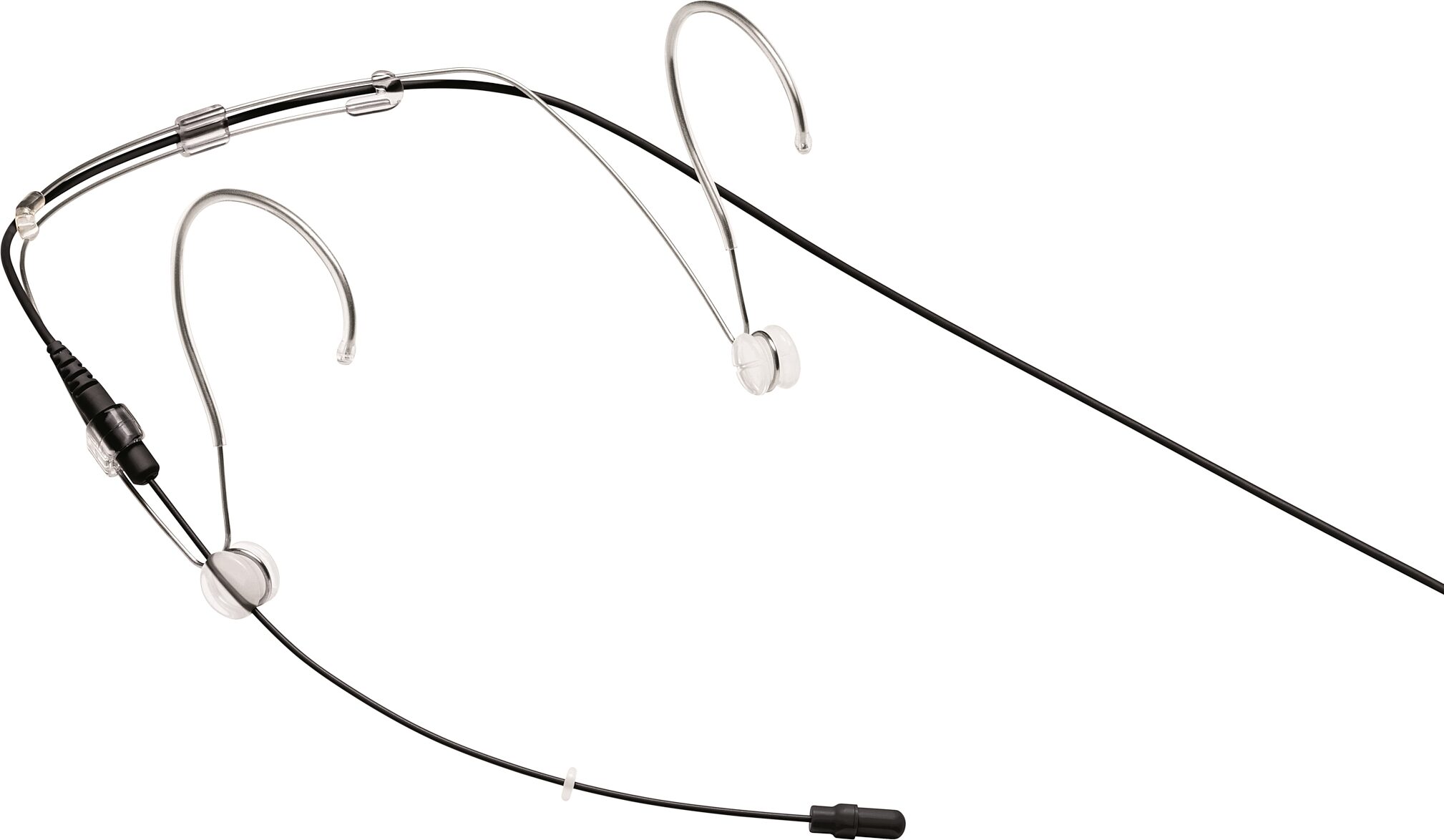

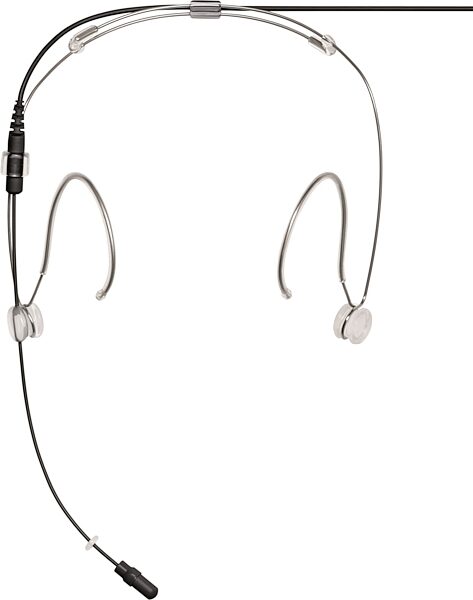

Shure DH5 Omni Condenser Headset Microphone

Microphone Capsule: MEMS
Polar Pattern: Omnidirectional
Frequency Response: 20 Hz to 20 kHz
Sensitivity: -42.5 dBV (7.5 mVRMS) @ 1 kHz, 31 dB SPL-A
Self-Noise: A-weighted, Equivalent Acoustical
Signal-to-Noise Ratio: 63.0 dB, 132.0 dB SPL
Maximum SPL: 1 kHz @ 1% THD, typical, 101.0 dB
Dynamic Range: Typical
Microphone Current:
Draw: 220 micro A, maximum
Bias Voltage:
Recommended Operating Voltage: 5 VDC
Housing: Molded ABS
Polarity:
MTQG: Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
LEMO: Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
Cable Diameter: 1.6 mm
Cable Length: 66.0 in (1.67 m)
Net Weight: 20 g (0.7 oz)
Capsule Dimensions: 14.5 mm x 5.2 mm (L x D)
Boom Length: 13.6 cm
Dimensions and Weight in Packaging
Black, MTQG Connector
Shipping Weight: 0.69 lbs
Shipping Dimensions: 6 x 6 x 2 in
Manufacturer Part Number (MPN): DH5B/O-MTQG
Cocoa, MTQG Connector
Shipping Weight: 0.69 lbs
Shipping Dimensions: 6 x 6 x 2 in
Manufacturer Part Number (MPN): DH5C/O-MTQG
Tan, MTQG Connector
Shipping Weight: 0.69 lbs
Shipping Dimensions: 6 x 6 x 2 in
Manufacturer Part Number (MPN): DH5T/O-MTQG
Black, LEMO3 Connector
Shipping Weight: 0.67 lbs
Shipping Dimensions: 6 x 6 x 2 in
Manufacturer Part Number (MPN): DH5B/O-LM3
Cocoa, LEMO3 Connector
Shipping Weight: 0.67 lbs
Shipping Dimensions: 6 x 6 x 2 in
Manufacturer Part Number (MPN): DH5C/O-LM3
Tan, LEMO3 Connector
Shipping Weight: 0.67 lbs
Shipping Dimensions: 6 x 6 x 2 in
Manufacturer Part Number (MPN): DH5T/O-LM3
