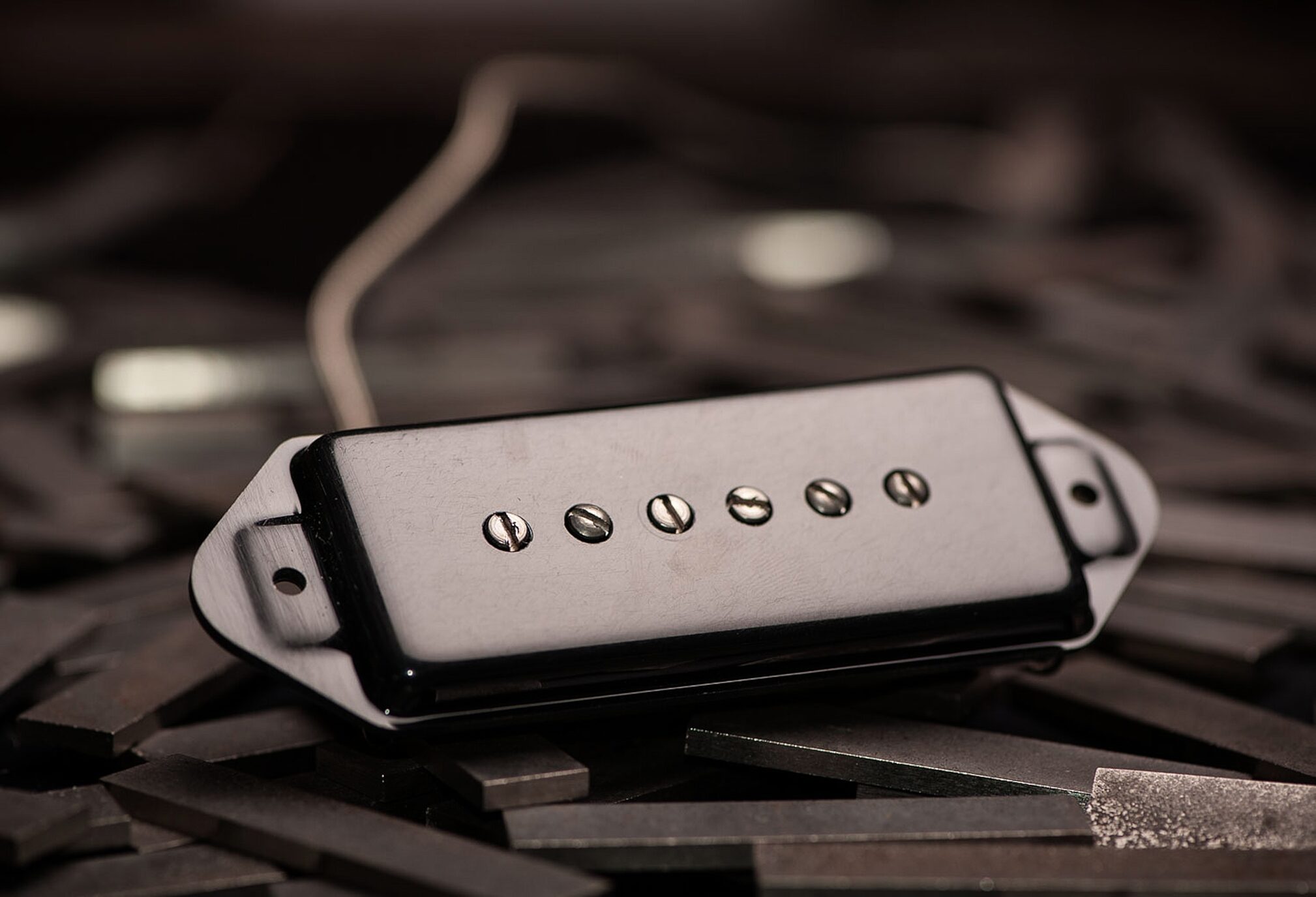

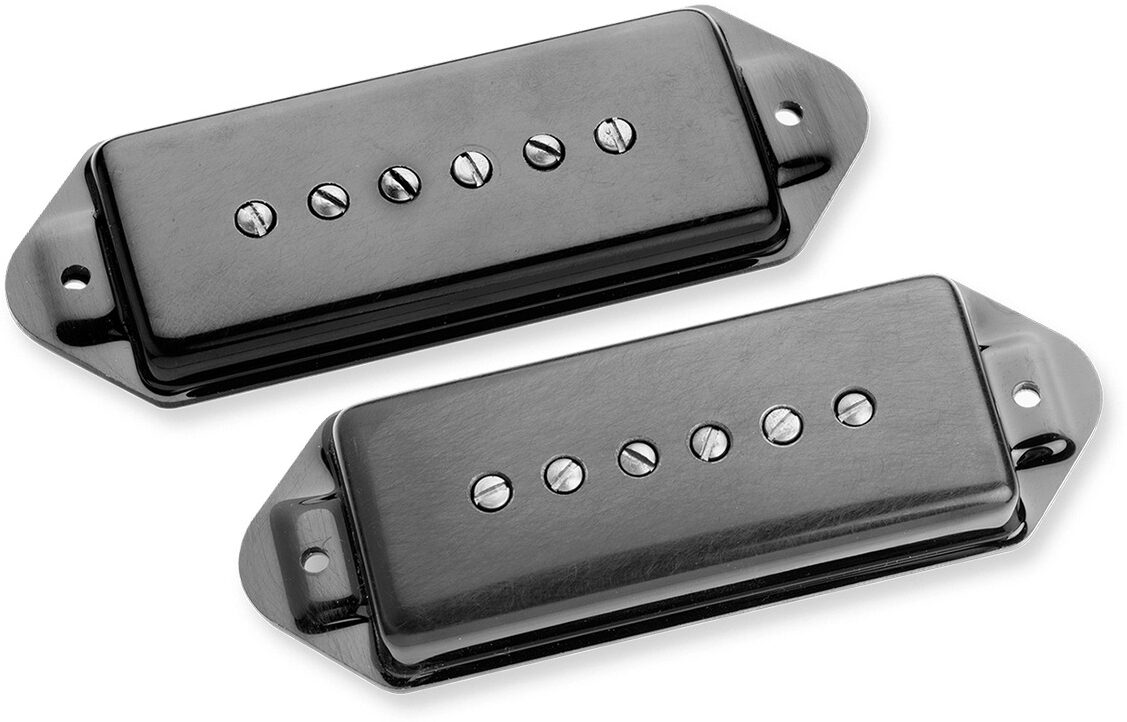

Seymour Duncan Antiquity P90 Dog Ear Electric Guitar Pickup

zZounds Gear Experts Say...
Treat your P90-equipped guitar to some fresh tone with these Duncan Antiquities. Alnico 2 magnets and custom winds deliver that classic single-coil snarl.

Seymour Duncan's Antiquity P90 Dog Ear pickups use two specially calibrated alnico 2 bar magnets, and custom neck and bridge coil winds to deliver the sweet, vintage correct growl of late 50s ES-330 P90 pickups. In the neck position, chords are full and round sounding, and single notes have a sweet, bouncy quality. In the bridge, chords have a gritty, honky midrange, and single notes are nice and articulate without sounding harsh.

The neck pickup is also wound RW/RP to be hum-cancelling when paired with the bridge position model. If you remove the hand aged dog-ear cover, you'll find the same hand fabricated bobbin, plain enamel mag wire, and flatback tape that was made in Kalamazoo during the early days. These pickups are drop-in replacements for any standard Gibson P90 Dog Ear sized route, and come with aged black covers.

Dimensions and Weight in Packaging

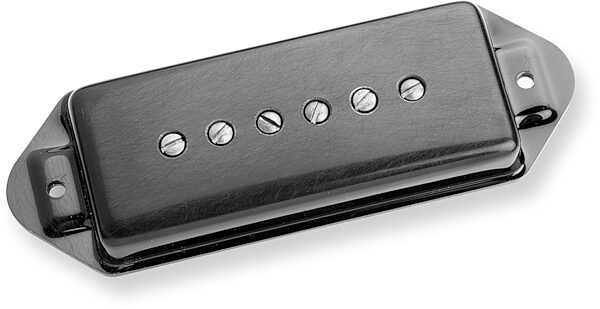

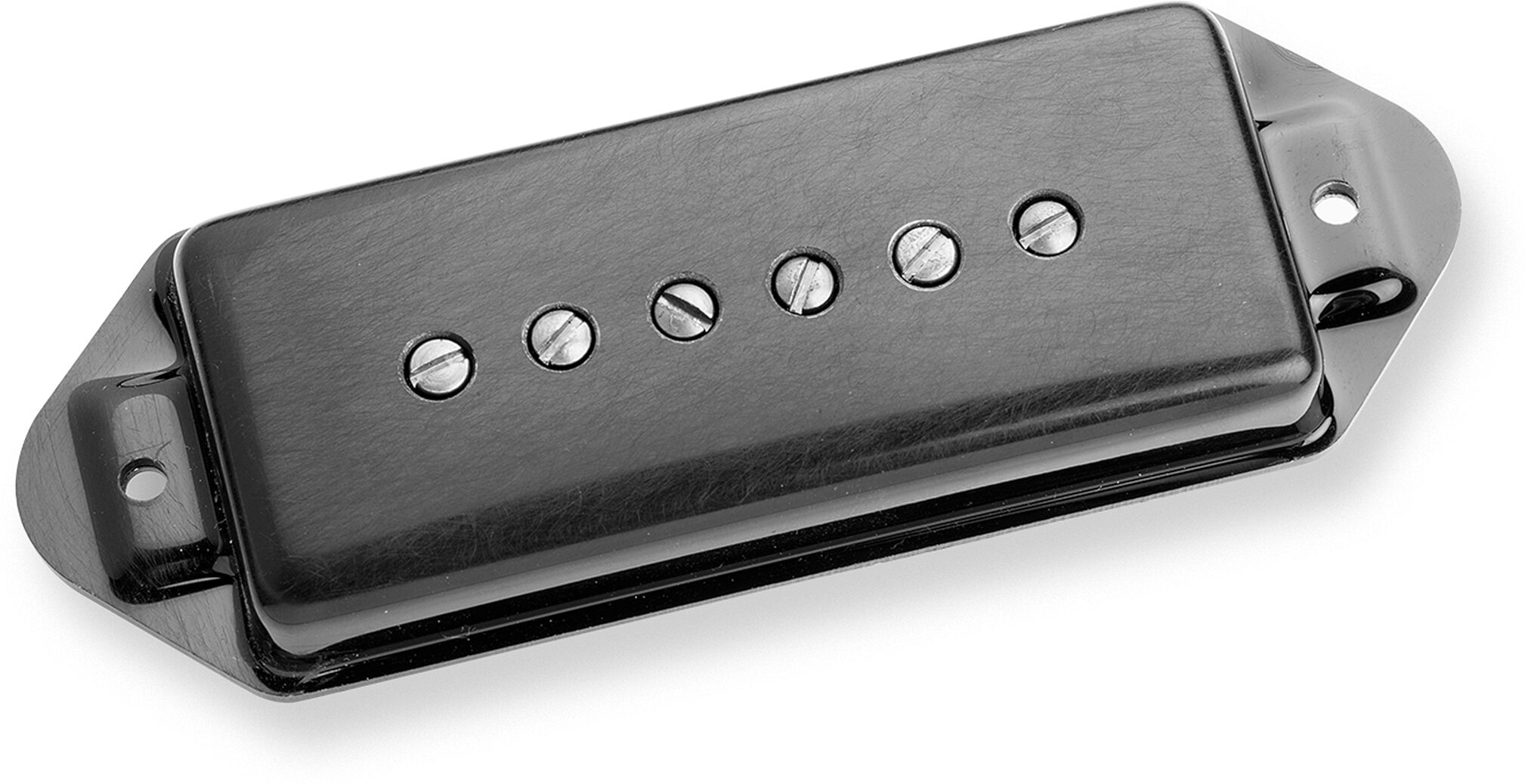

Bridge
Shipping Weight: 0.5 lbs
Shipping Dimensions: 5 x 4 x 2 in
Manufacturer Part Number (MPN): 11034-66
Neck
Shipping Weight: 0.46 lbs
Shipping Dimensions: 5 x 4 x 2 in
Manufacturer Part Number (MPN): 11034-65

For support or warranty questions, please contact the manufacturer:
Phone: 805-964-9610
Email: support@seymourduncan.com
Web: https://seymourduncan.zendesk.com

Reviewers gave this product an overall rating of 5 out of 5 stars. (1 ratings)
Submitted October 26, 2024 by Scott S in Accident, MD, MD

"Wow!!!"

Overall: 5 out of 5 stars
(see rating details)
Verified Purchaser zZounds has verified that this reviewer purchased this specific product from us.
I put this in a LP Double Cut I built. This pickup is the absolute best sounding P90 I have ever heard. It is not noisy at all. I used a .022 Orange Drop Cap and 250k CTS pots, when I hooked it up. It has bread wire so it make it nice to hook up.
Sound
It is a very raw aggressive sounding pickup.
Quality
It is very well made.
Value
YEs, it is well wort the money.
Manufacturer Support
I have been using SD pickups in guitars for 40 years.

Musical Background:

Guitar Tech 45+ years, Play Guitar,Bass, Mandolin, Piano

Musical Style:

Rock, alternative, metal.
1 of 1 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
