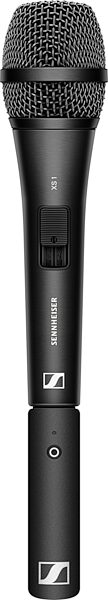

Sennheiser XSW-D Vocal Set Digital Wireless Handheld Microphone System

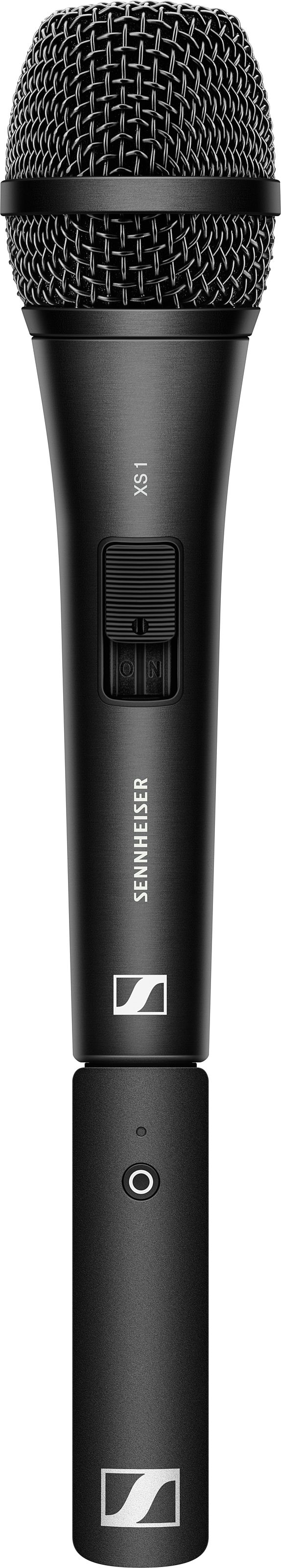

Sennheiser's easy-to-use XSW-D Vocal Set gives you an XS1 cardioid dynamic mic, XSW-D XLR plug-on wireless transmitter and receiver, and a USB charger cable.
One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. Equipped with an XS 1 microphone, the Sennheiser XSW-D Digital Wireless Vocal Handheld Microphone System makes wireless vocals easier than ever before while maintaining a reliable connection.

Features:

- One touch ease-of-use
- 2.4 GHz digital transmission for worldwide operation
- 75 m range (250 ft) in optimal conditions
- Up to 5 hours battery life on a single charge
- Switch between multiple transmitters linked to one receiver
- Mix and match different connector types
- Mute from either transmitter or receiver

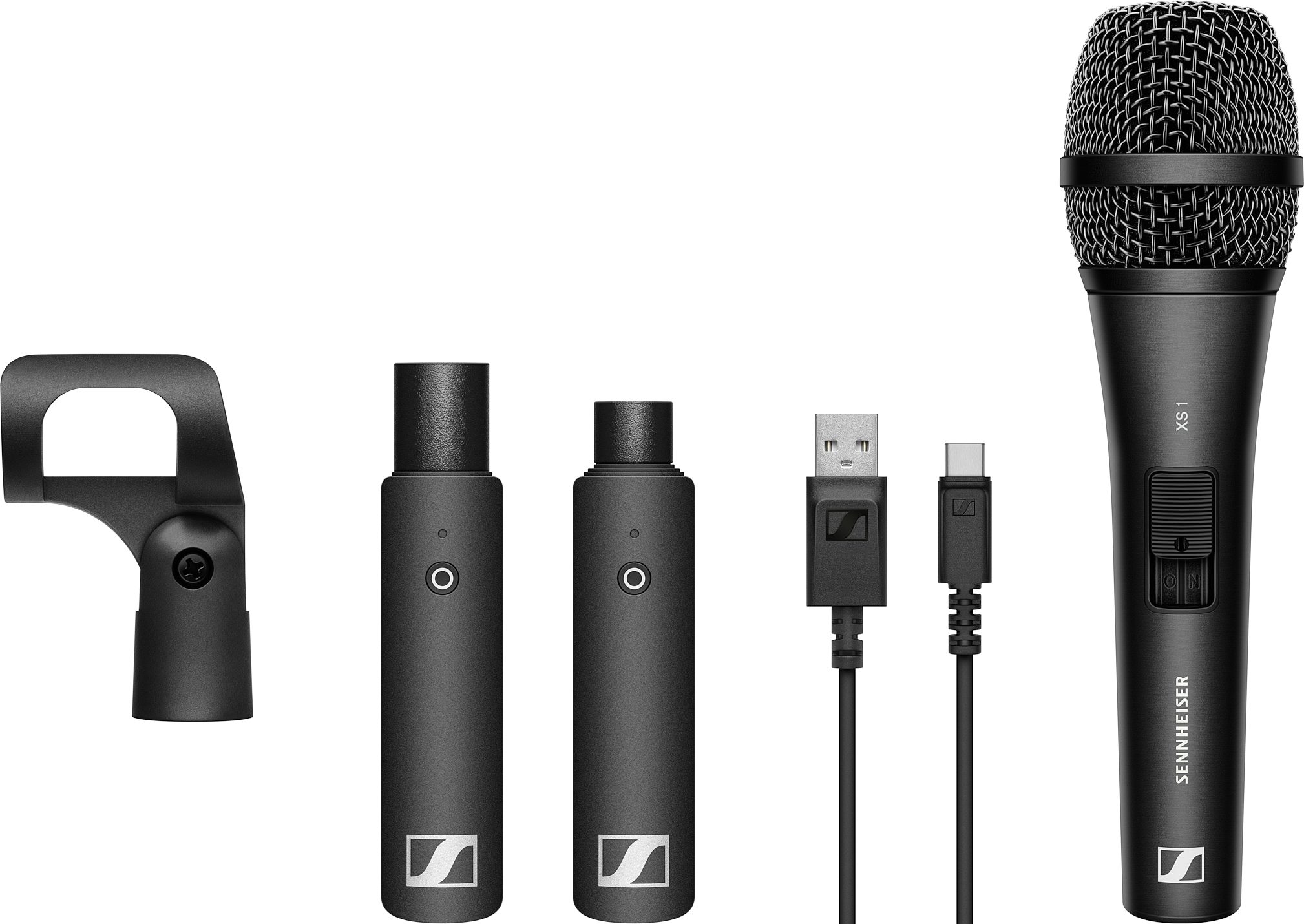

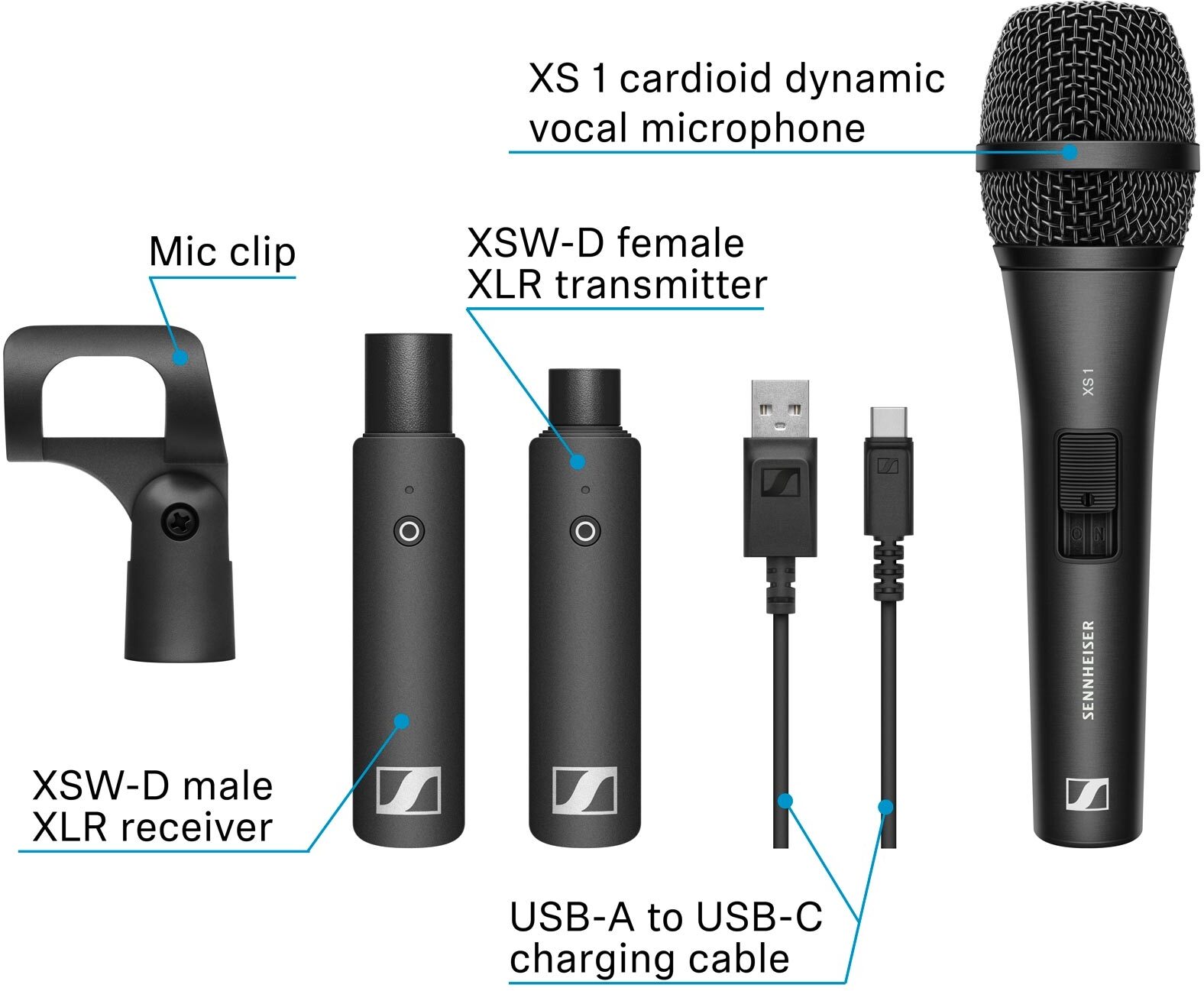

XSW-D Vocal Set includes:

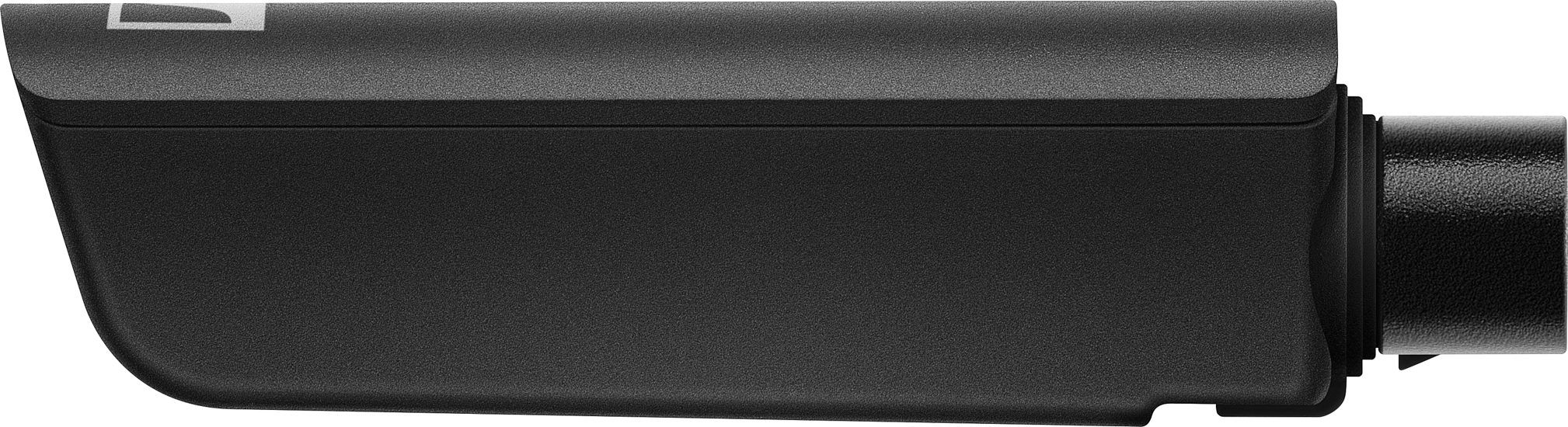

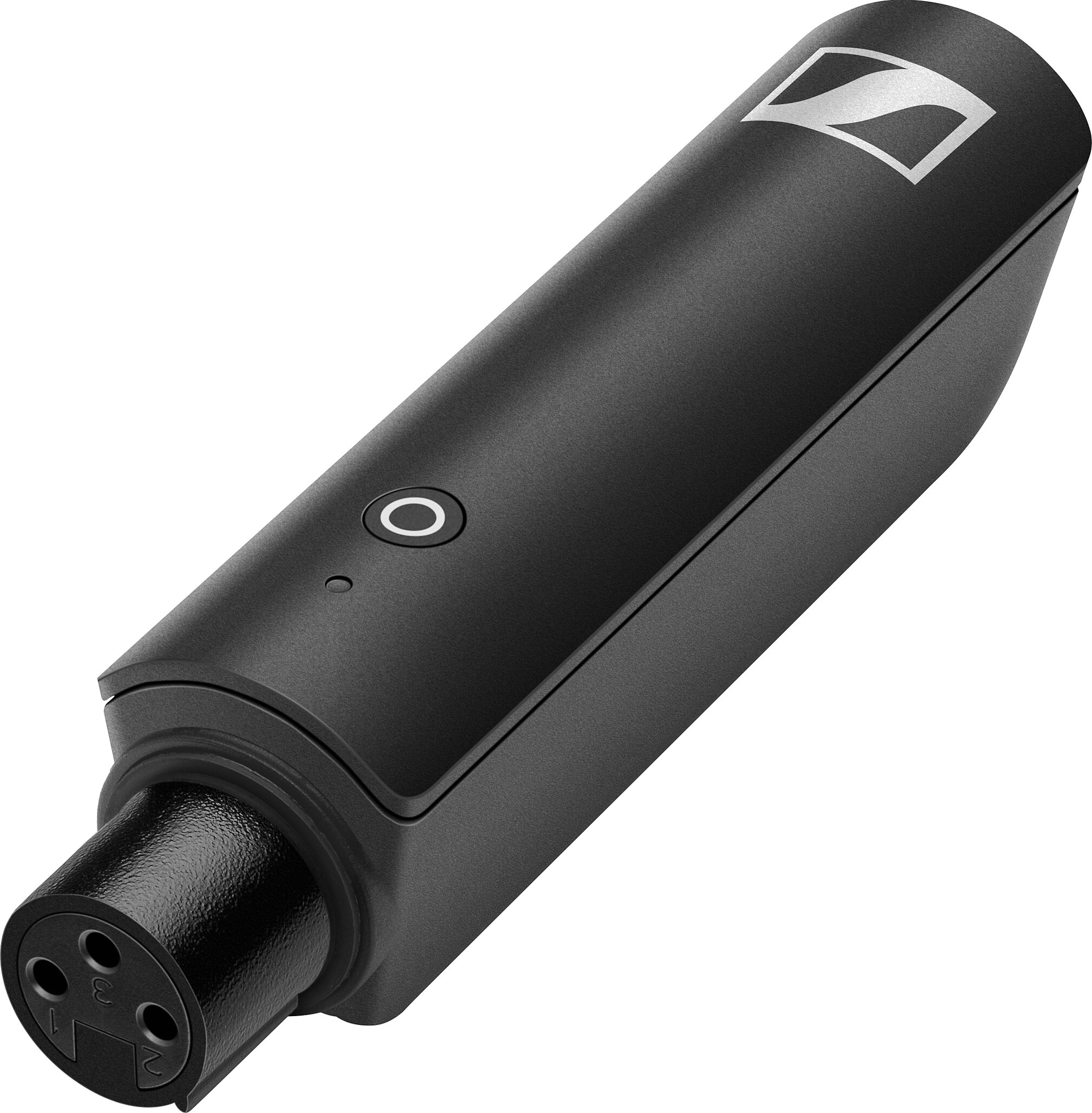

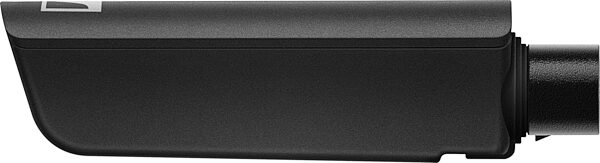

- XSW-D female XLR transmitter

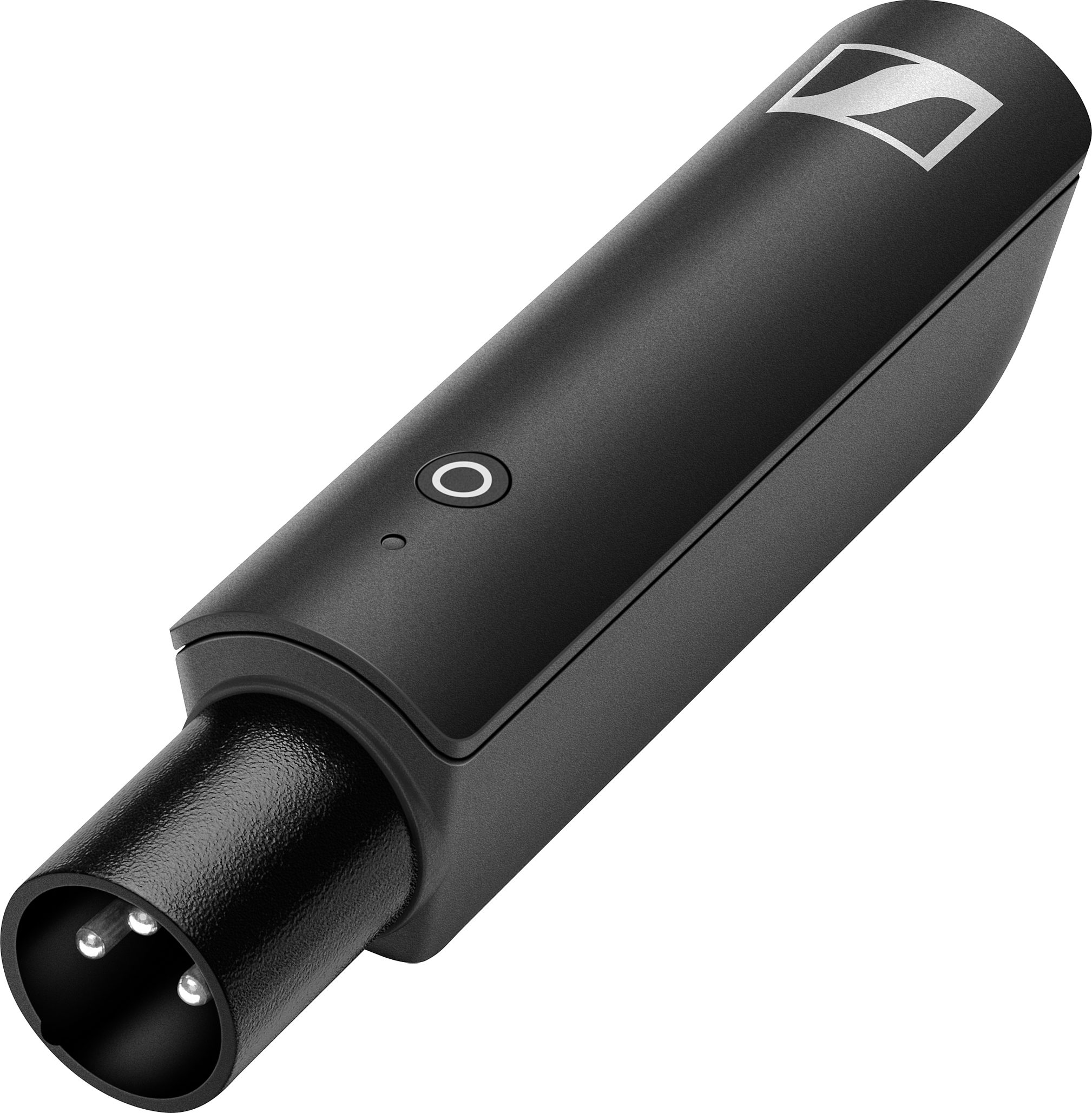

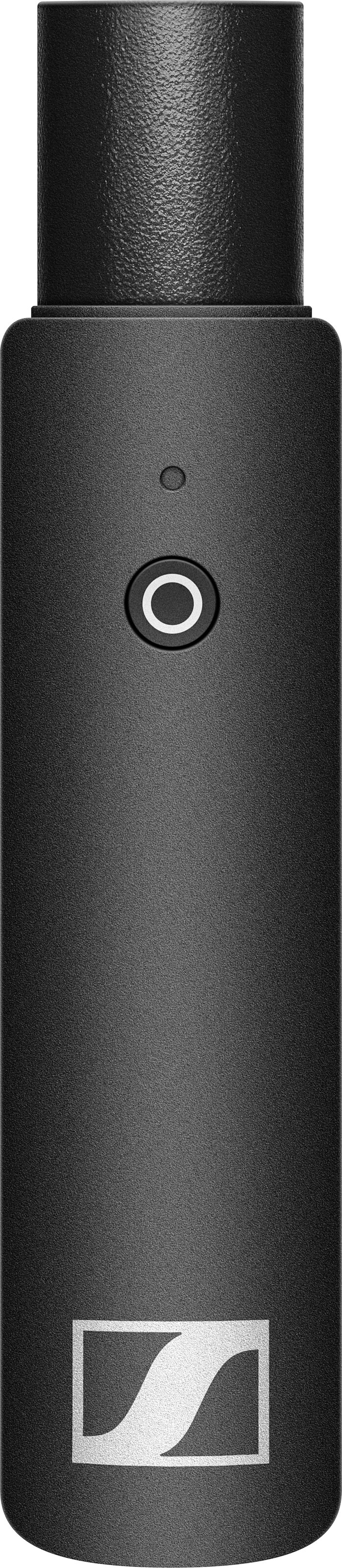

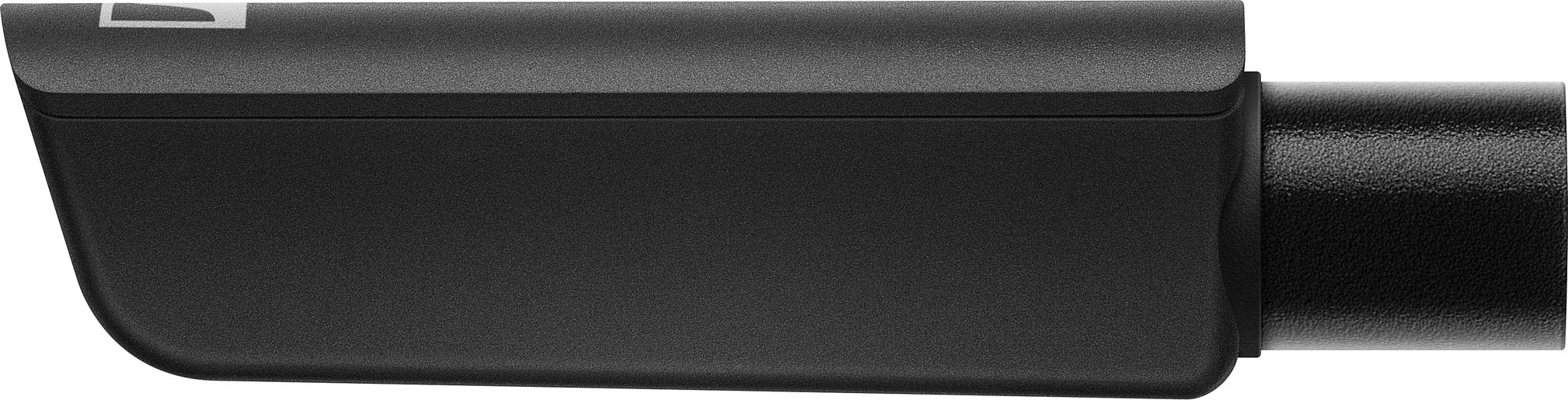

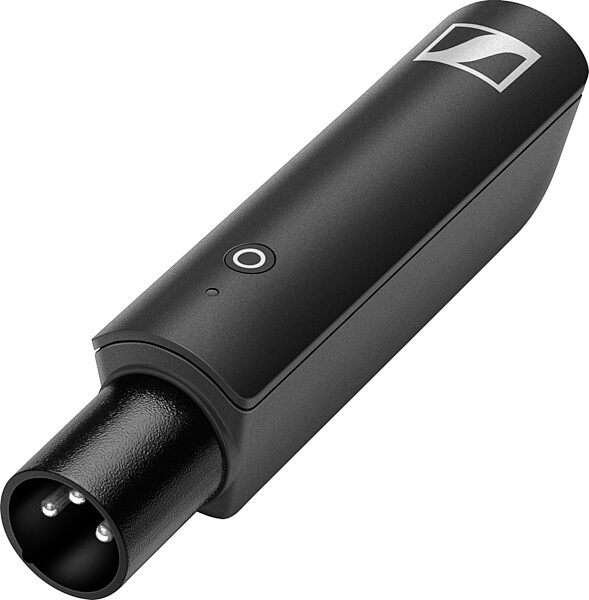

- XSW-D male XLR receiver

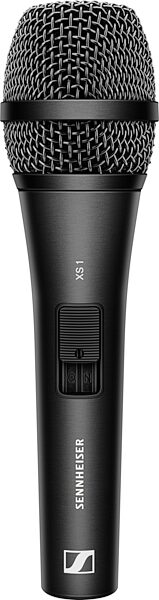

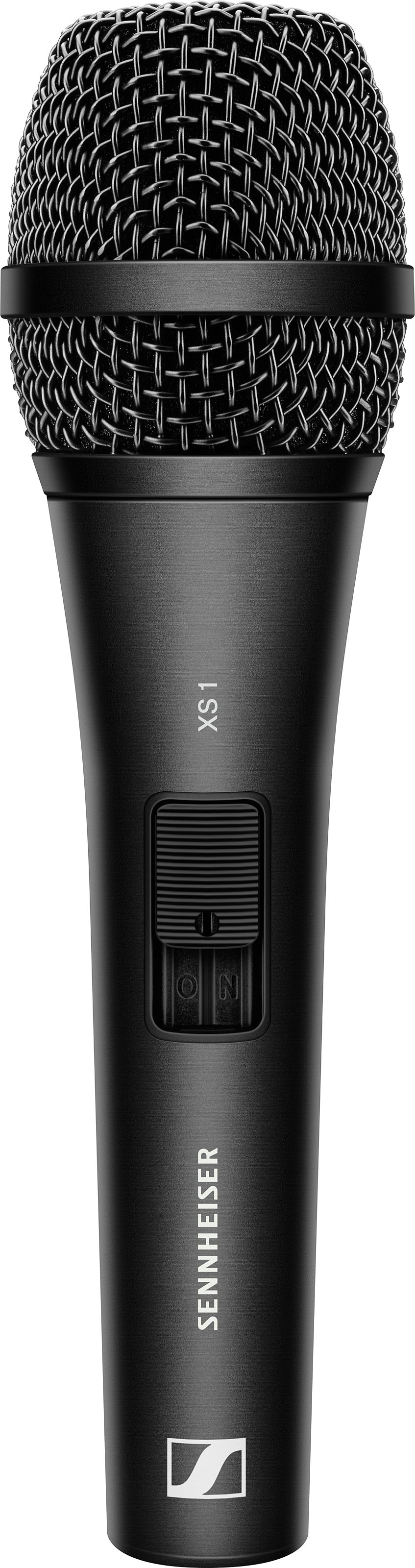

- XS 1 cardioid dynamic vocal microphone

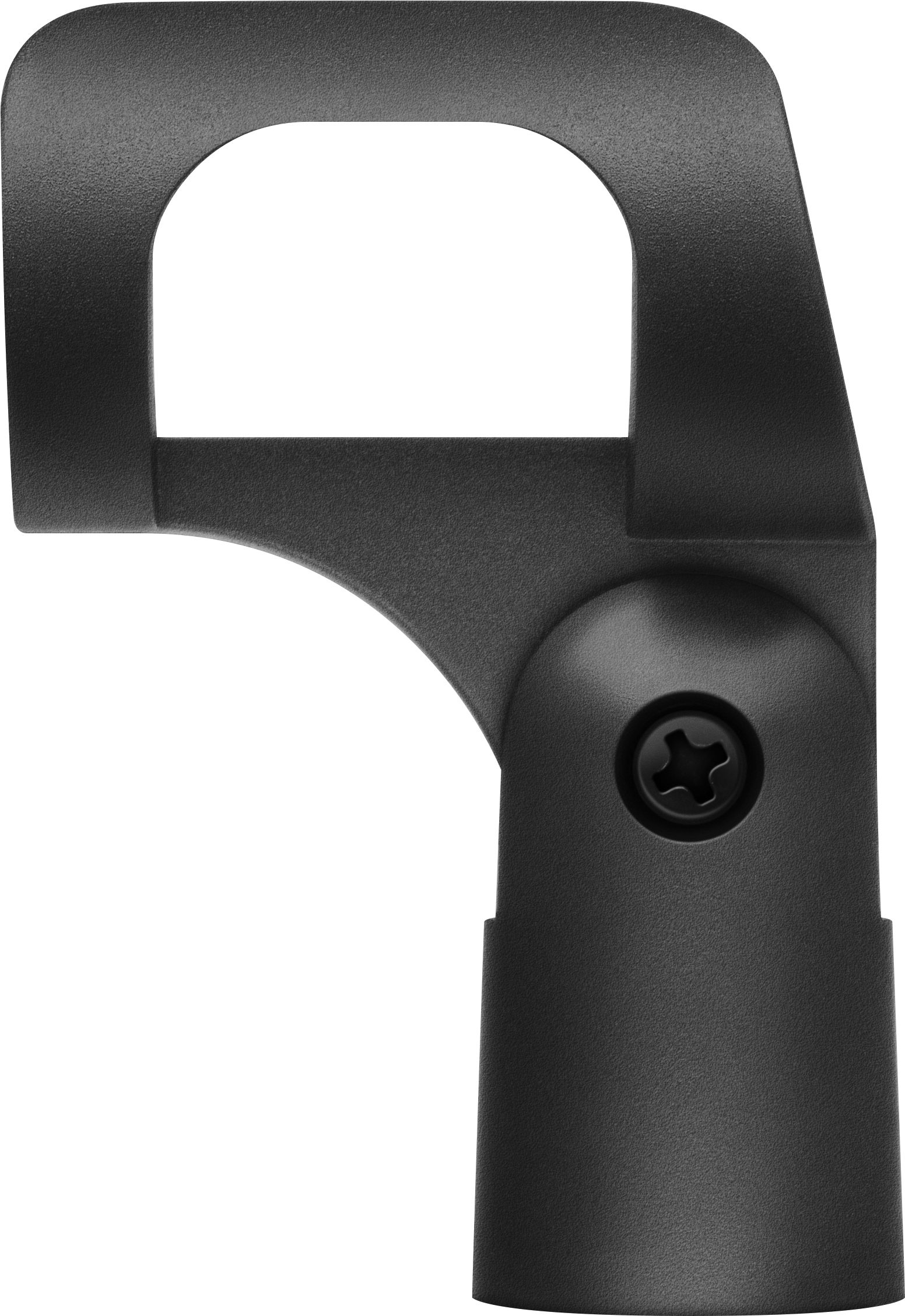

- Mic clip

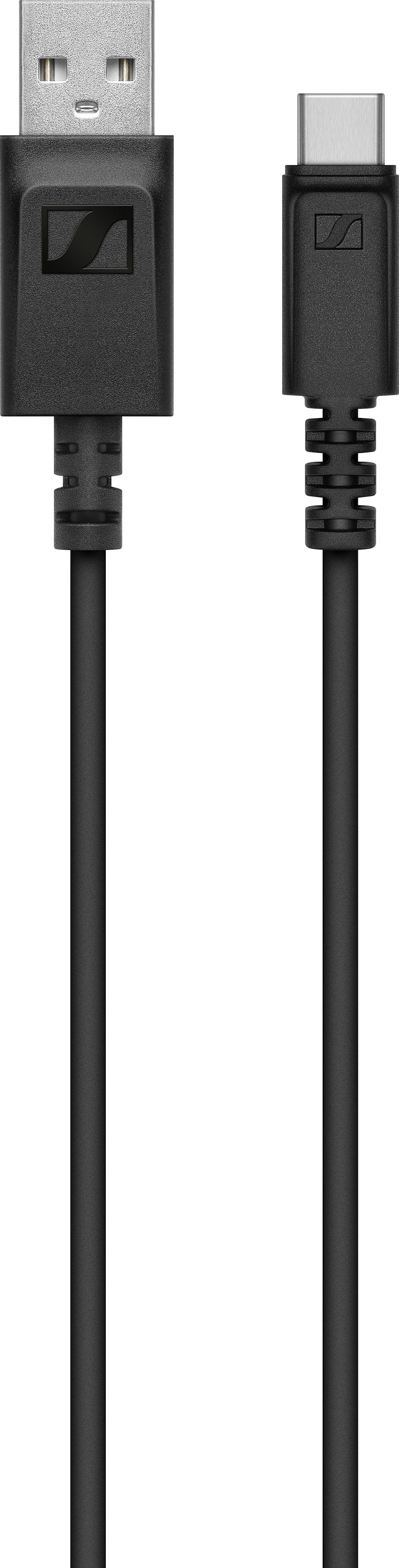

- USB-A to USB-C charging cable
- Colored stickers for labeling
- Quick guide
- Safety guide
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

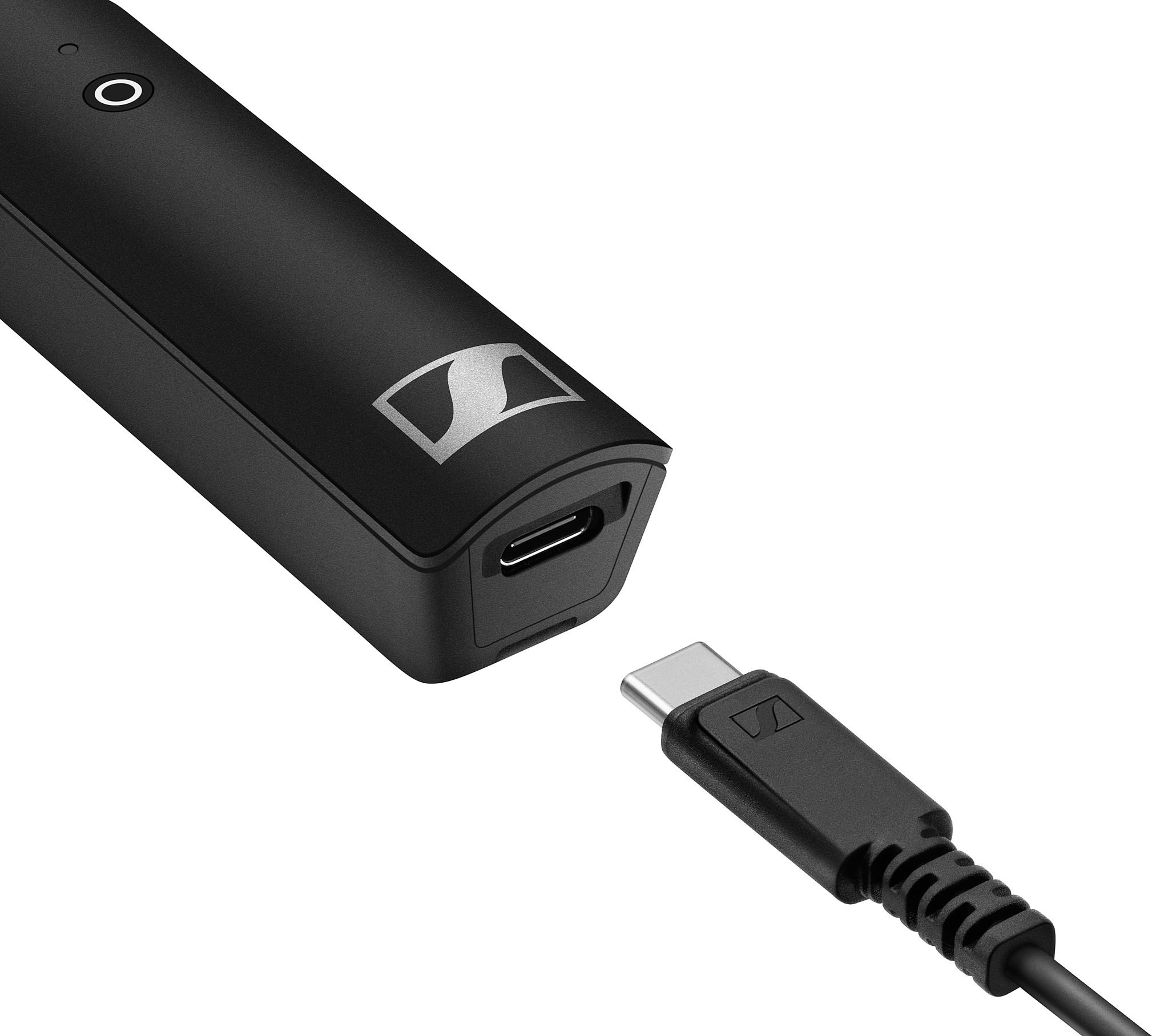

USB C interface for charging:
- Input voltage typ 50 V
- Charging temperature 0 °C - 60 °C (32 °F - 140 °F)
- Charging time typ 3 h
Battery pack:
- Cell type Li-Ion
- Nominal voltage 37 V
- Cell capacity 850 mAh
- Operating time up to 5 h
AF characteristics:
- Codec aptX Live
- Audio frequency response 35 mm Jack/XLR: 80 - 18,000 Hz
- 63 mm Jack: 10 - 18,000 Hz
- Audio output max 12 dBu
- Signal-to-noise ratio = 106 dB
- THD < 01 %
- Audio latency < 4 ms
Product properties/ Dimensions:
- XSW-D XLR FEMALE TX- approx 102 x 24 x 28 mm
- XSW-D MINI JACK TX- approx 86 x 24 x 28 mm
- XSW-D INSTRUMENT TX- approx 122 x 24 x 28 mm
- XSW-D XLR MALE RX- approx 109 x 24 x 28 mm
- XSW-D MINI JACK RX- approx 86 x 24 x 28 mm
- XSW-D INSTRUMENT RX- approx 122 x 24 x 28 mm
- XSW-D PEDALBOARD RX- approx 130 x 82 x 51 mm
Frequency range: 2,400 - 2,4835MHz
Transmission power (EIRP) max: 10 mW
Modulation: GFSK with TDMA
Environmental conditions:
- Operating temperature -10 °C to +55 °C (14 °F to 131 °F)
Relative humidity: 95 % (non-condensing)

Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1.75 lbs
Shipping Dimensions: 10 x 9 x 3 in
Manufacturer Part Number (MPN): SEN XSWDVOCAL
