Sennheiser XSW-D Instrument Base Set Digital Wireless Guitar System

Replace your 1/4" cable! This wireless set includes a rechargeable plug-on transmitter for your guitar, and a receiver that plugs into your amp/pedalboard.

The Sennheiser XSW-D Instrument Base Set digital wireless guitar system is a one-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. This elegant solution makes going wireless with instruments easier than ever before while maintaining a reliable connection.


- One touch ease-of-use
- 2.4 GHz digital transmission for worldwide operation
- 75 m range (250 ft.) in optimal conditions
- Up to 5 hours battery life on a single charge
- Switch between multiple transmitters linked to one receiver
- Mix and match different connector types
- Mute from either transmitter or receiver

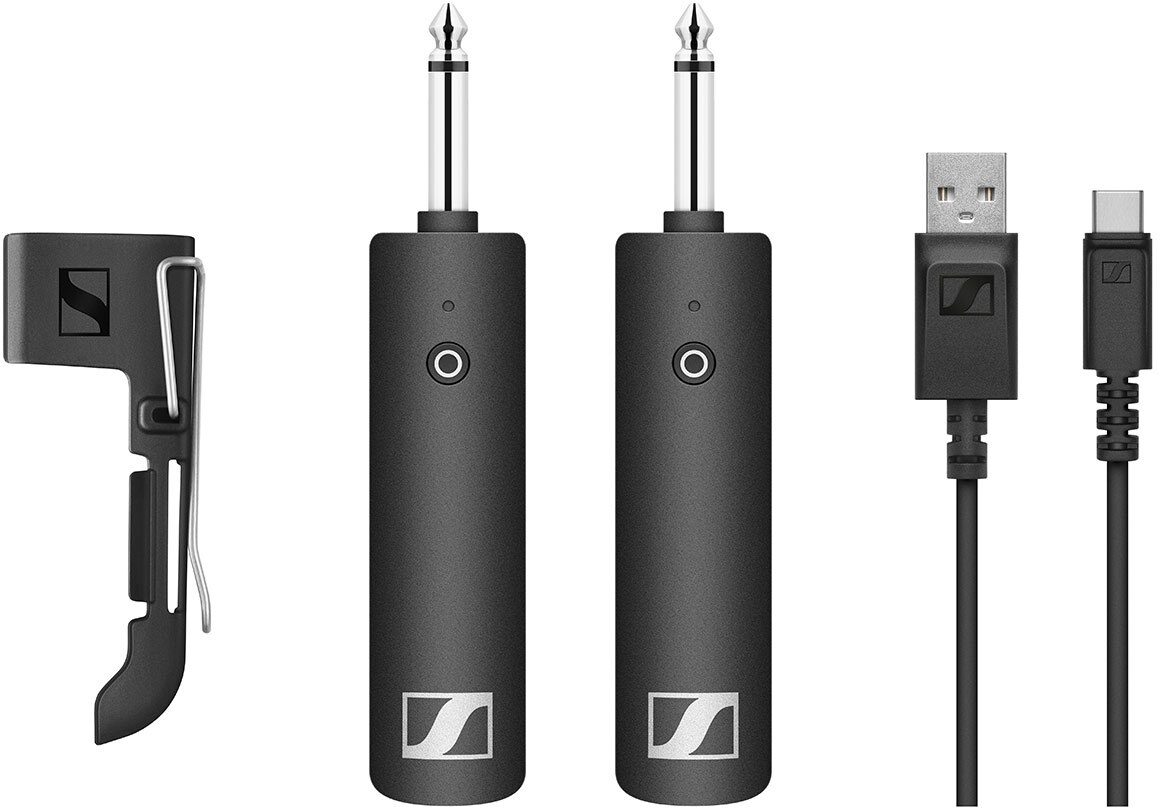

XSW-D Instrument Base Set includes:

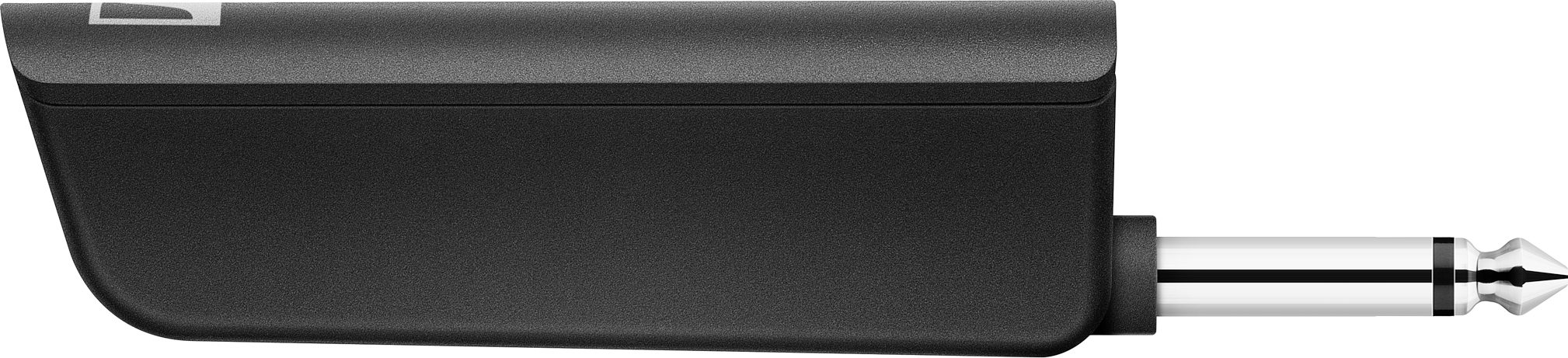

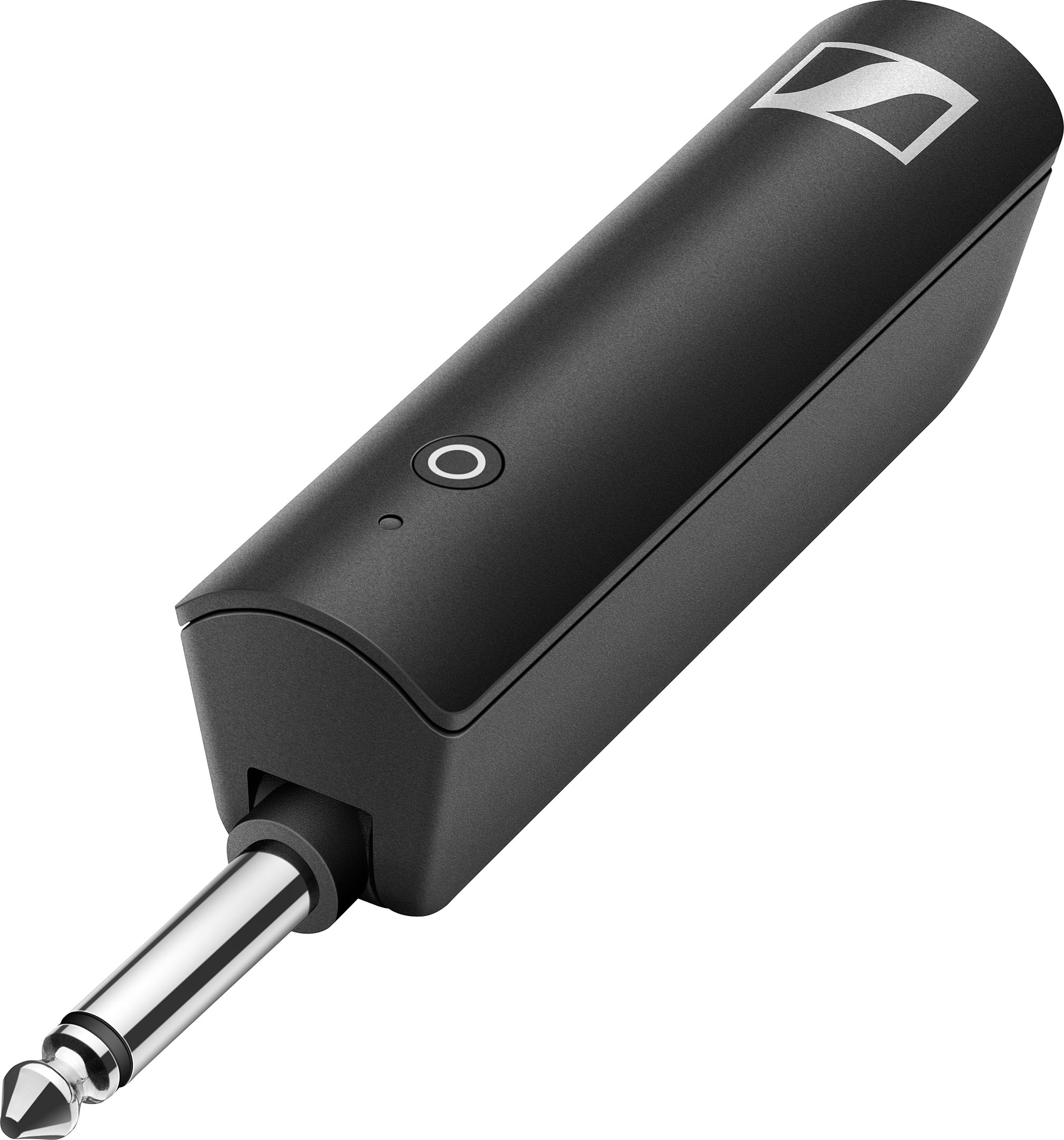

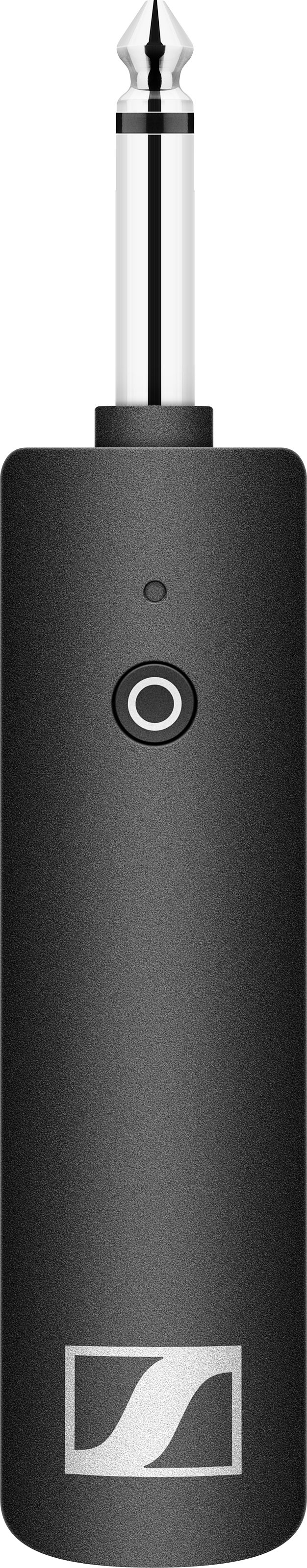

- XSW-D 6.3 mm (1/4") transmitter
- XSW-D 6.3 mm (1/4") receiver

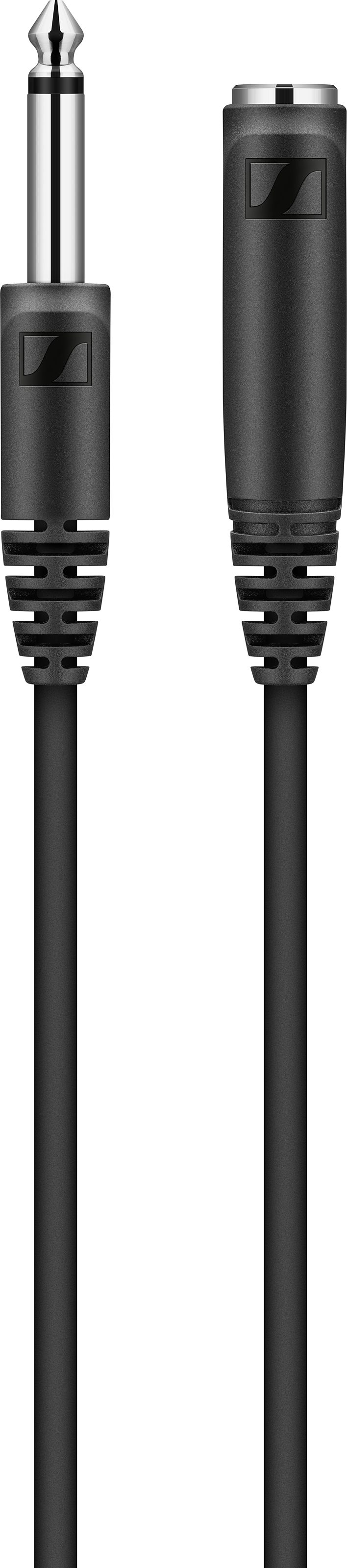

- Extension cable 6.3 mm (1/4")

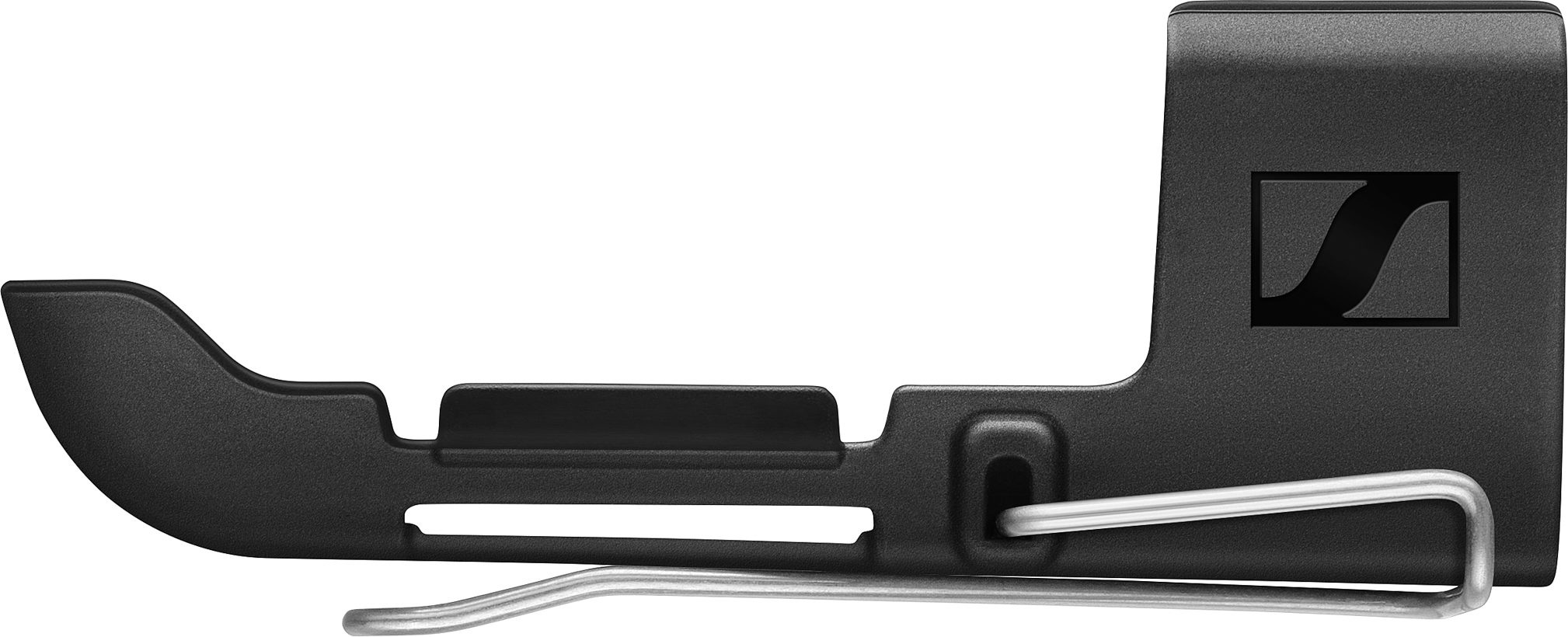

- Belt clip
- USB-A to USB-C charging cable
- Colored stickers for labelling
- Quick guide
- Safety guide
WARNING: Cancer and Reproductive Harm -

USB C interface for charging:
- Input voltage typ 50 V
- Charging temperature 0 °C - 60 °C (32 °F - 140 °F)
- Charging time typ 3 h
Battery pack:
- Cell type Li-Ion
- Nominal voltage 37 V
- Cell capacity 850 mAh
- Operating time up to 5 h
AF characteristics:
- Codec aptX Live
Audio frequency response:
- 35 mm Jack/XLR: 80 - 18,000 Hz
- 63 mm Jack: 10 - 18,000 Hz
Audio output max: 12 dBu
Signal-to-noise ratio: = 106 dB
THD: < 01 %
Audio latency: < 4 ms
Product properties/Dimensions:
- XSW-D XLR FEMALE TX- approx 102 x 24 x 28 mm
- XSW-D MINI JACK TX- approx 86 x 24 x 28 mm
- XSW-D INSTRUMENT TX- approx 122 x 24 x 28 mm
- XSW-D XLR MALE RX- approx 109 x 24 x 28 mm
- XSW-D MINI JACK RX- approx 86 x 24 x 28 mm
- XSW-D INSTRUMENT RX- approx 122 x 24 x 28 mm
- XSW-D PEDALBOARD RX- approx 130 x 82 x 51 mm
Frequency range: 2,400 - 2,4835MHz
Transmission power (EIRP) max: 10 mW
Modulation: GFSK with TDMA
Environmental conditions:
- Operating temperature -10 °C to +55 °C / (14 °F to 131 °F)
Relative humidity: 95 % (non-condensing)

Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.75 lbs
Shipping Dimensions: 10 x 5 x 3 in
Manufacturer Part Number (MPN): 508493

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

For support or warranty questions, please contact the manufacturer:
Phone: 877-736-6434
