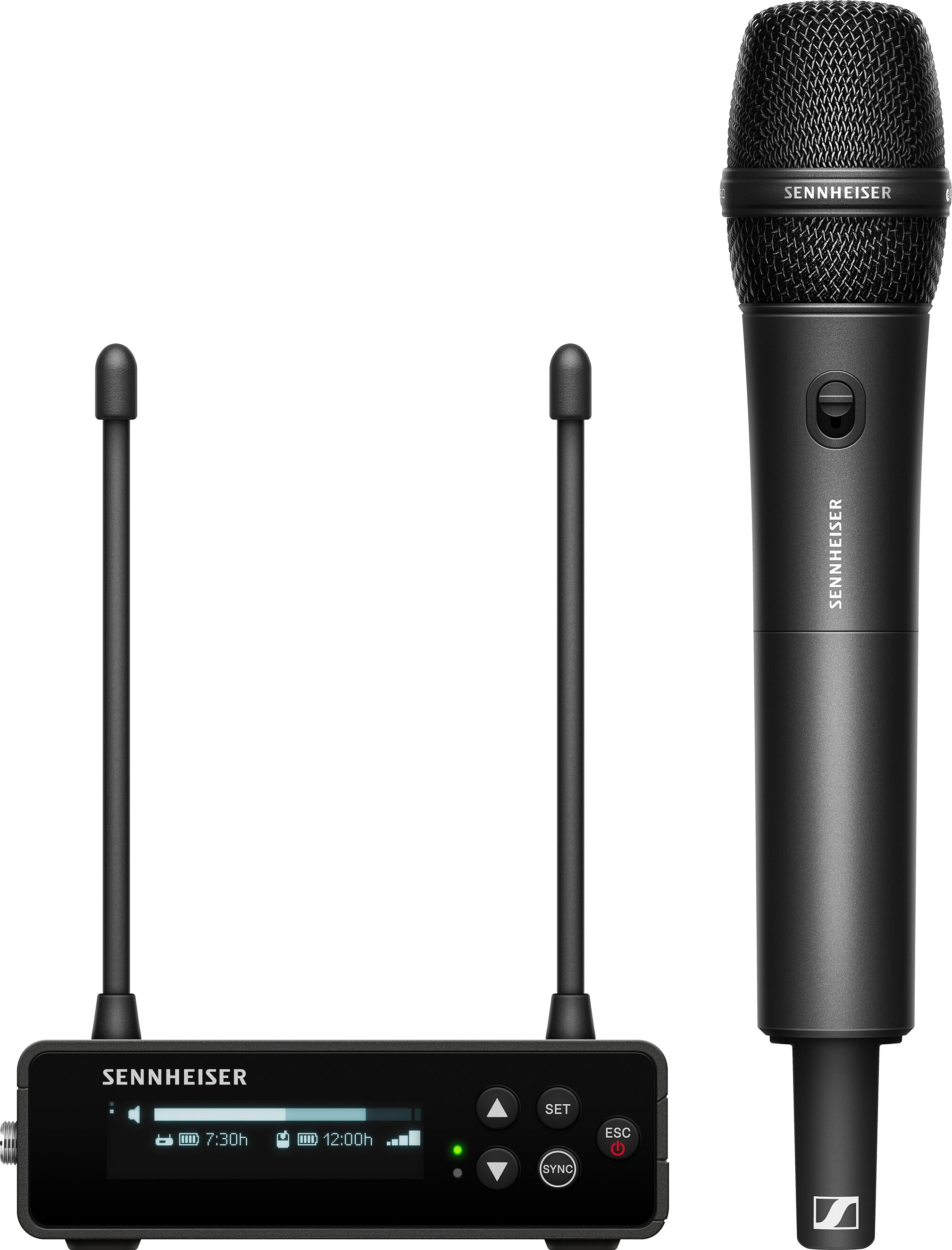

- System: Fully digital UHF wireless microphone system
- Operating Frequency Band: Multiple options: Q1-6 (470.2-526 MHz), R1-6 (520-576 MHz), R4-9 (552-607.8 MHz), S1-7 (606.2-662 MHz), S4-7 (630-662 MHz), S7-10 (662-693.8 MHz), U1/5 (823.2-831.8 MHz & 863.2-864.8 MHz), V3-4 (925.2-937.3 MHz), Y1-3 (1785.2-1799.8 MHz)
- Number of Channels: 2240 selectable frequencies, up to 56 MHz bandwidth
- Frequency Response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
- Audio Frequency Range: 20 Hz - 20 kHz
- Total Harmonic Distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Dynamic Range: 134 dB
- Operating Range: Up to 330 feet (100 meters) typical

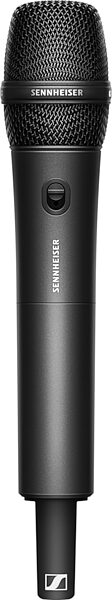

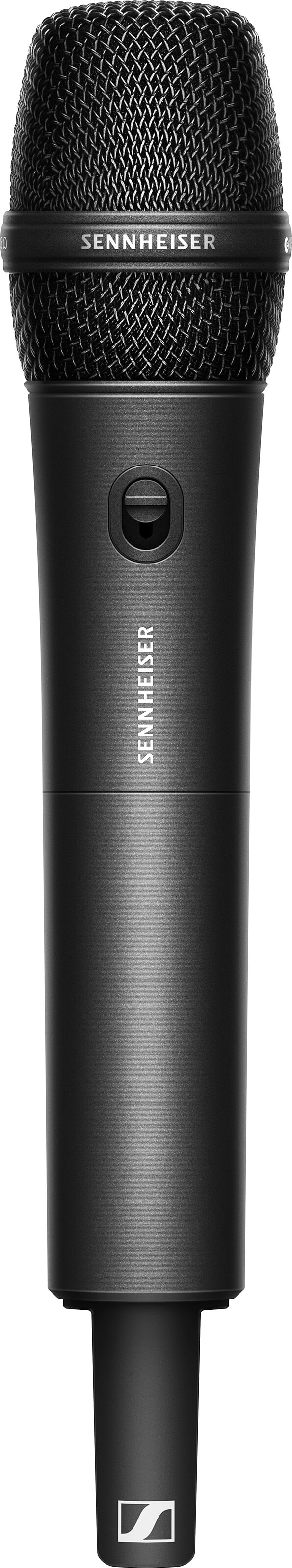

- Transmitter Type: EW-D SKM-S handheld transmitter with interchangeable capsules
- Microphone Element: MMD 835 dynamic cardioid microphone capsule
- Polar Pattern: Cardioid
- Transmitter RF Output Power: 10 mW ERP (Y1-3: 12 mW ERP)
- Transmitter Battery Type: 2 x AA batteries (1.5V alkaline) or BA 70 rechargeable battery pack
- Transmitter Battery Life: 8 hours (AA batteries), 12 hours (BA 70 rechargeable battery pack)

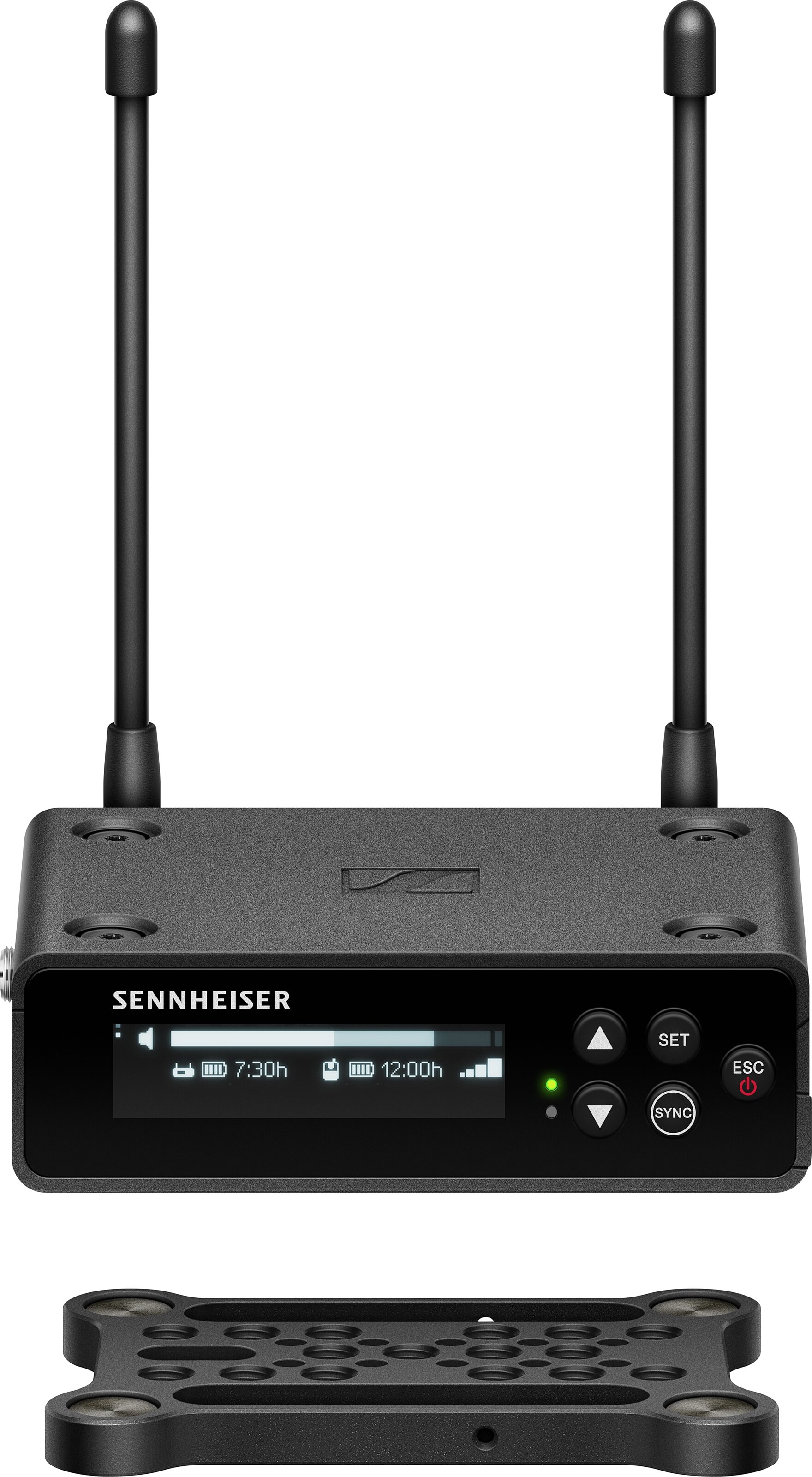

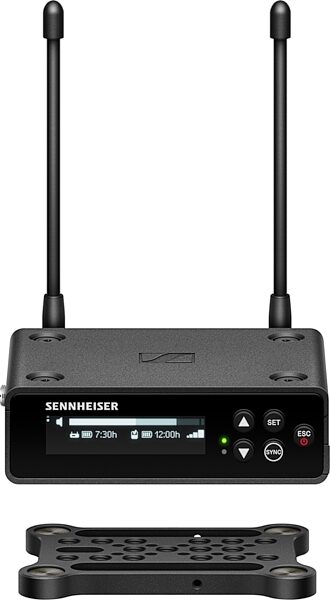

- Receiver Type: EW-DP EK single-channel portable receiver
- Receiver Diversity: Intelligent switching diversity with dual antennas
- Receiver Audio Output Level: < 2 dBV max (high level) / < 4dBU max (high level)

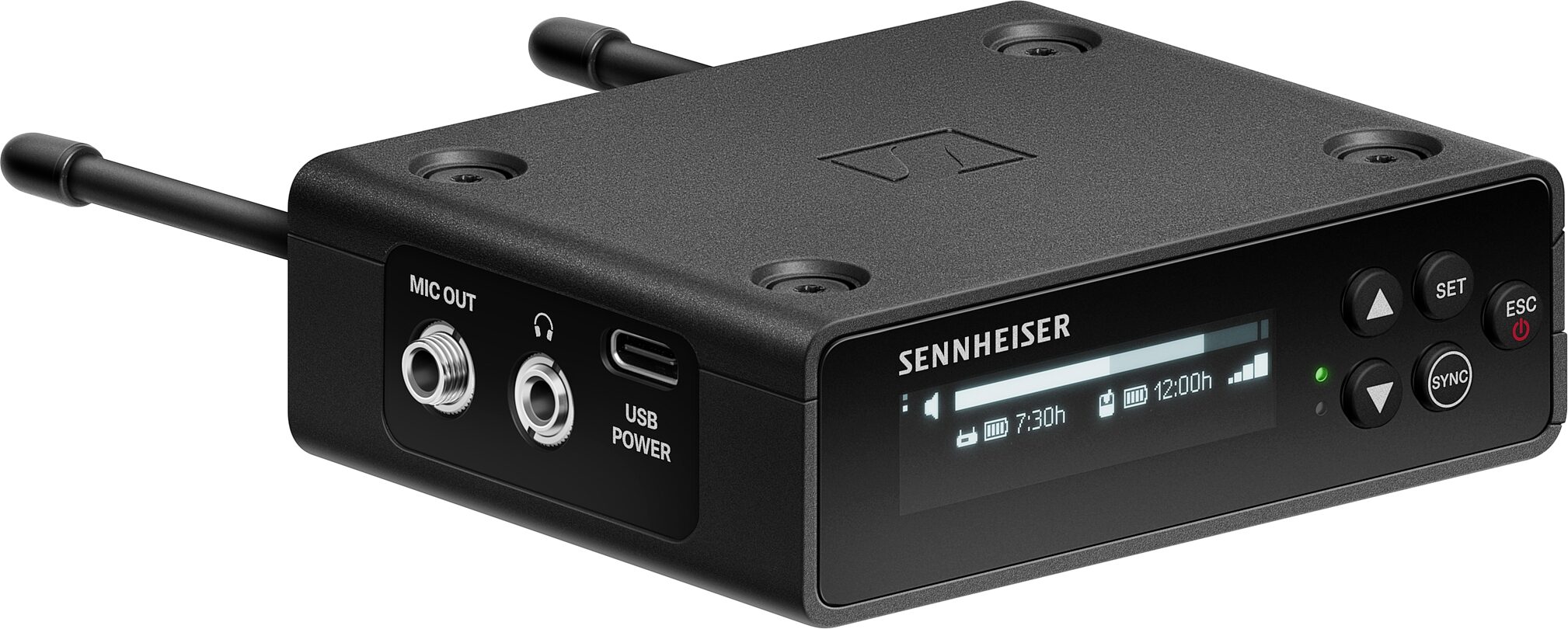

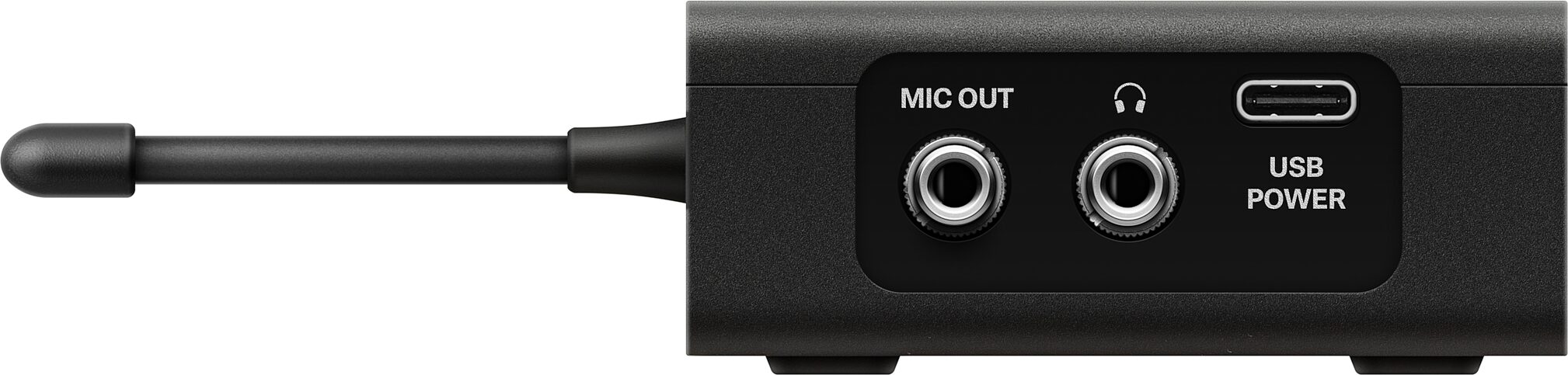

- Receiver Output Connectors: 3.5mm TRS locking connector, XLR connector (via cable)
- Receiver Power Supply: 2 x AA batteries (1.5V) or BA 70 rechargeable battery pack or USB-C PD power supply (5V/1500mA, 9V/900mA, 12V/700mA)
- Receiver Antenna Type: Dual internal antennas with intelligent switching diversity
- Modulation Type: Digital UHF transmission
- Operating Temperature Range: -10°C to +55°C (14°F to 131°F)
- Occupied Bandwidth: 200 kHz
- System Latency: 1.9 ms

Dimensions and Weight in Packaging

Band Q1-6 (470.2 - 526 MHz)

• Shipping Weight: 2.17 lbs
• Shipping Dimensions: 13 x 8 x 3 in
• Manufacturer Part Number (MPN): 700030

Band R1-6 (520 - 576 MHz)

• Shipping Weight: 2.22 lbs
• Shipping Dimensions: 12 x 8 x 3 in
• Manufacturer Part Number (MPN): 700031

Band R4-9 (552 - 607.8 MHz)

• Shipping Weight: 2.2 lbs
• Shipping Dimensions: 13 x 8 x 3 in
• Manufacturer Part Number (MPN): 700032

Consumer Alert

Most users do not need a license to operate this wireless system. Nevertheless, operating this system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
