Sennheiser ew112G2 Evolution G2 100 Series UHF Lavalier Wireless

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

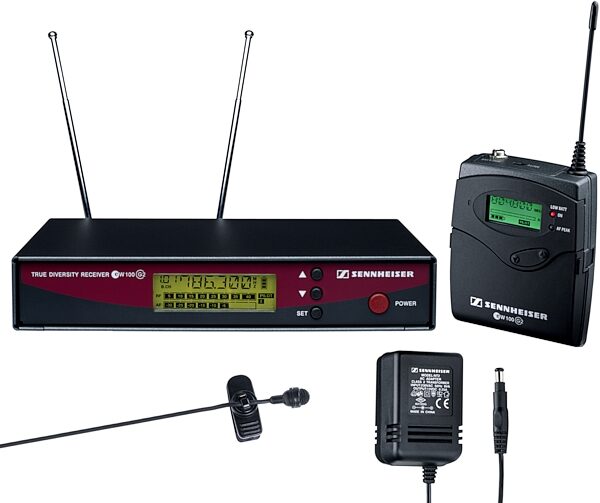

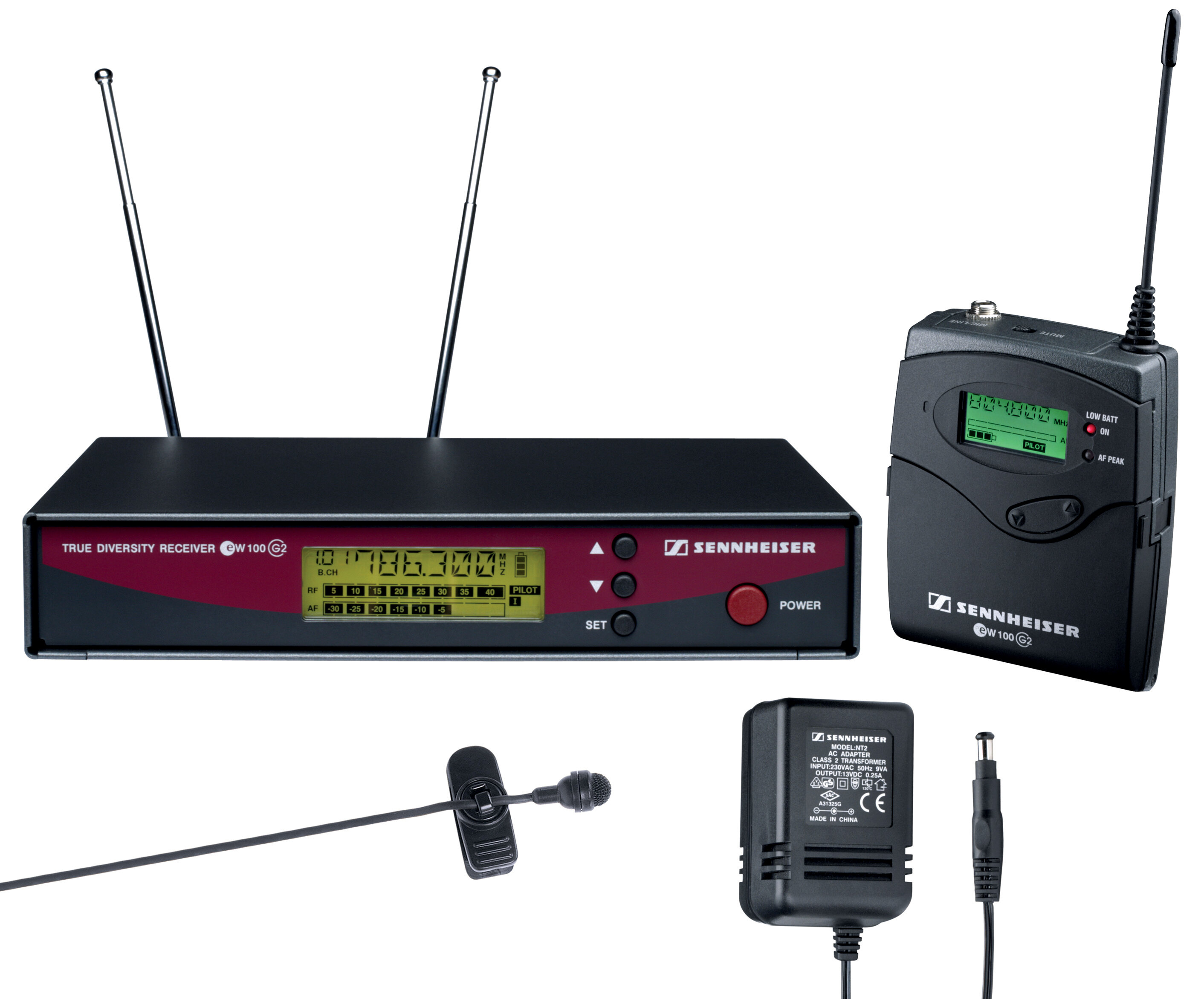

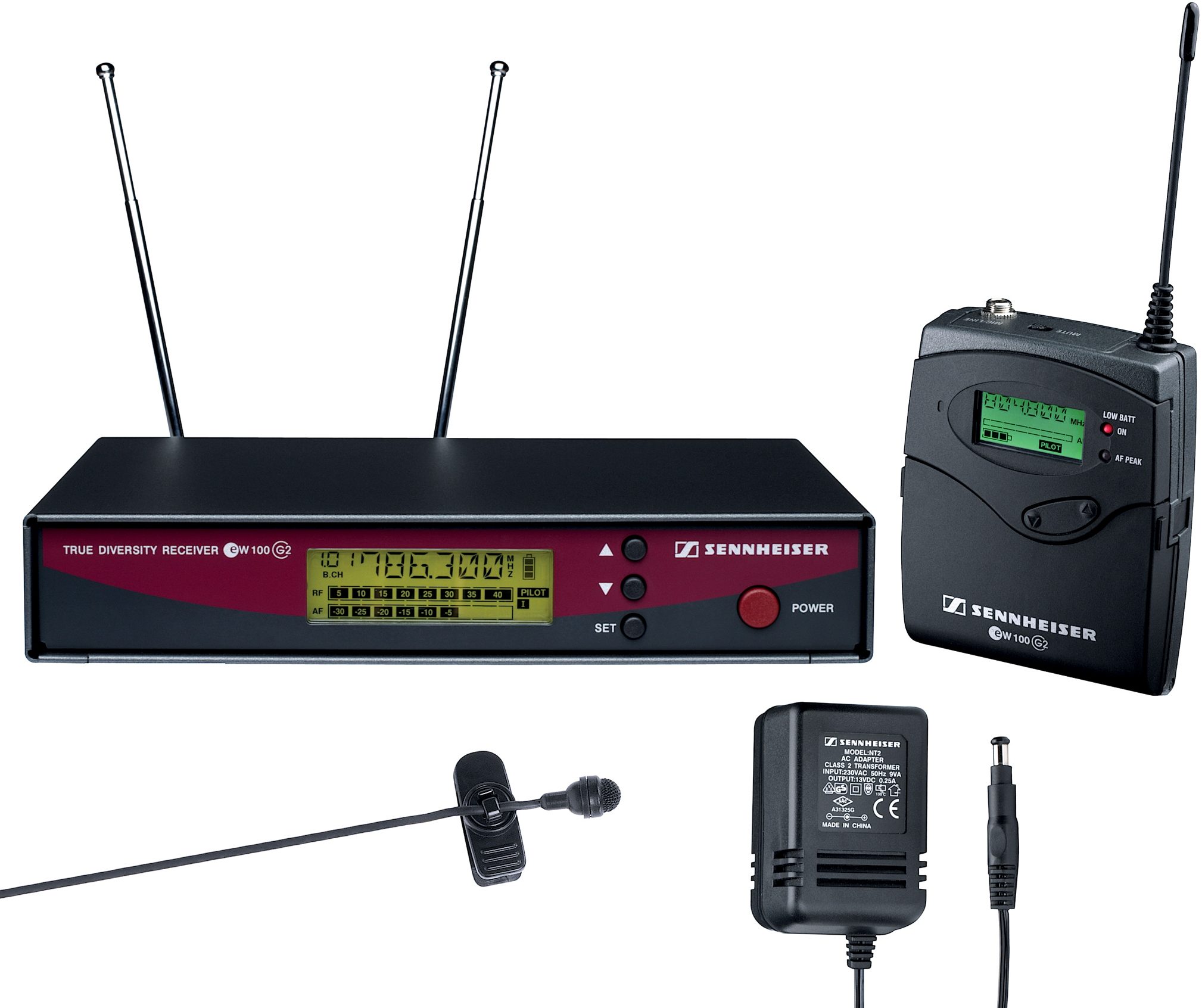

Sennheiser ew112G2 Evolution G2 100 Series UHF Lavalier Wireless, Main
Sennheiser ew112G2 Evolution G2 100 Series UHF Lavalier Wireless, Main
zZounds Gear Experts Say...
True diversity. Omni lavalier. See below for channel frequencies.

Simply the best, most affordable way to get professional caliber UHF wireless! Sennheiser's original evolution series introduced startling new technology and innovative design. Now, they're again pushing the limits of performance, audio quality, ruggedness and ease of use.

With redesigned features such as much smaller body packs, larger backlit LCD displays, AutoScan function on all receivers, 36MHz switching bandwidth, and more, evolution G2 is today's most advanced, best sounding, easy-to-use, road-worthy wireless system. The amazing 100 Series offers 4 switchable presets (reprogrammable to any of 1,440 available frequencies), a true diversity, and - unlike other wireless systems at this price - metal construction that will stand up to the rigors of life on the road. The system features variable-level 1/4" TRS and XLR balanced connectors.

Features:
Autoscan on all receivers for simple and secure frequency selection

1440 frequencies within a 36MHz switching bandwidth for greater tuning flexibility

Robust metal construction for durability

Smaller bodypack transmitters and receivers (30% smaller than previous Evolution Wireless)

Pilot tone squelch(defeatable for backwards compatibility with original EW systems)

New battery concept(AA cells and rechargeable battery accessories)

Transmitter battery status telemetry on all models

Audio signal metering on transmitter LCD display

External charging contacts on 300 and 500 series bodypacks

XLR jacks on all rack-mountable… read more units read less

Channel Frequencies
Channel A: 519.600 to 549.325 MHz (TV Channels 22-27)
Channel B: 630.300 to 661.400 MHz (TV Channels 40-45)
Channel C: 740.100 to 768.400 MHz (TV Channels 59-64)

Number of Compatible Frequencies per Bank: 4

Displays of EM, SR: Standard LCD segment Display

Battery Status Indication: 4 status signals at transmitter, Low Battery on receiver

Scan Function: Receiver scans one channel bank

Frequency Ranges: 518 - 554, 626 - 662, 740 - 776, 786 - 822, 830 - 866 MHz

Number of Switchable Frequencies: 1440

Compander System: HDX

AF-frequency Range: 40 - 18,000 Hz

Pilot Tone (frequency) 32,768 kHz, defeatable

Signal to Noise Ratio: > 110 dB Receiver

Receiver Sensitivity (with HDX, peak deviation, 52 dBAeff S/N: < 2.5 mV

Rejection of Adjacent Channels: > 65 dB

Intermodulation Attenuation: > 65 dB

Blocking: > 70 dB

Squelch
o Off
o Low: dBmV
o Mid: 15 dBmV
o Hi: 25 dBmV

AF Output Level (peak deviation, 1kHz):
o XLR: Balanced: -24 to +18 dBu
o Jack: Unbalanced: -30 to +12 dBu
o Adjustable in 6 dB steps

For support or warranty questions, please contact the manufacturer:
Phone: 877-736-6434
Email: support@sennheiser.com
Web: https://en-us.sennheiser.com/service-support
G2 100 Spec Sheet
Owner's Manual

Submitted September 9, 2007

Sennheiser Evolution100G2 Customer Review

Overall: 4.5 out of 5 stars
(see rating details)
The operation i.e. tuning and settings are a little tough at first but once you learn the system it is quite user friendly. I use them (9) for live theater performances. They are superior to the Shure "ULX" series microphones and a lot less expensive.
