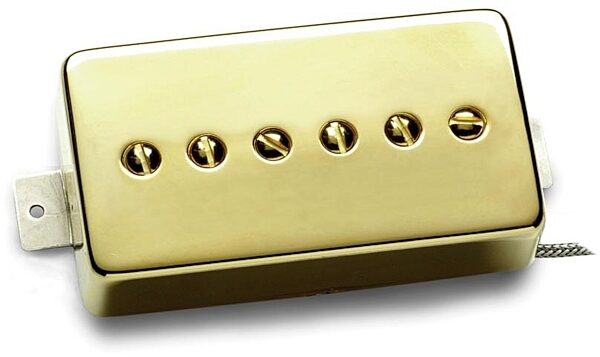

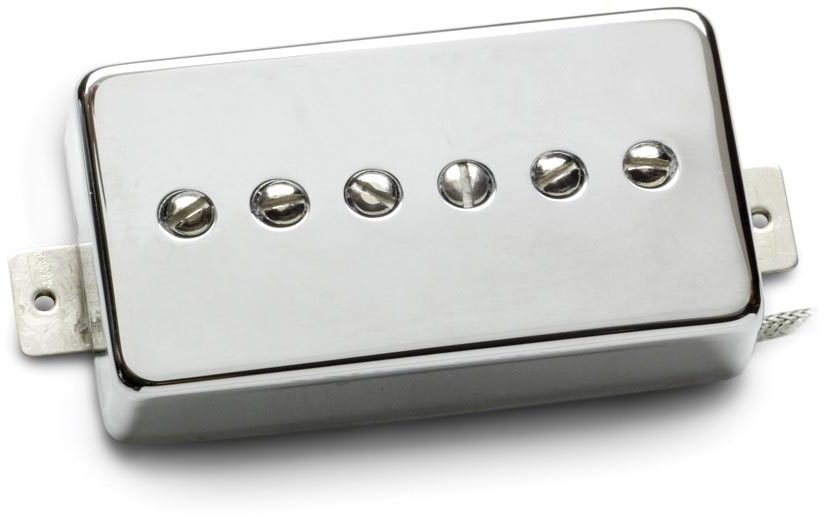

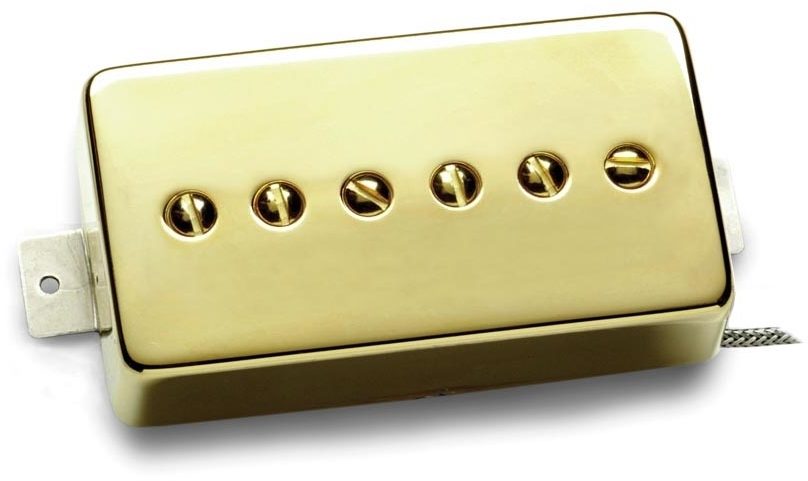

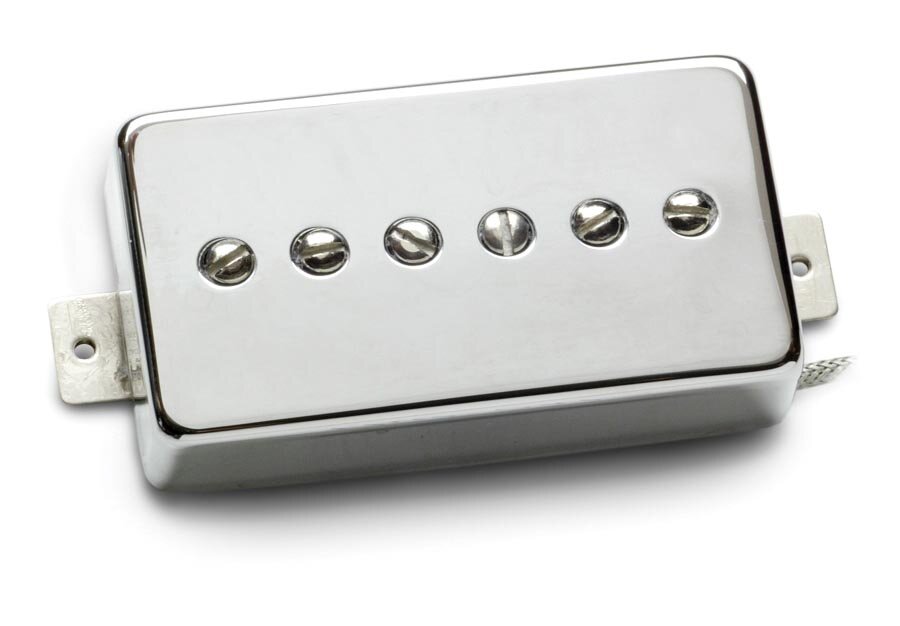

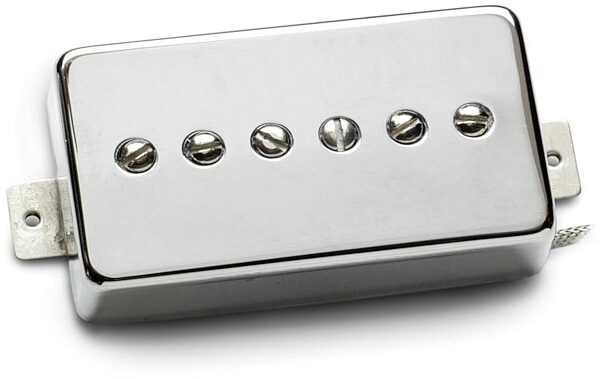

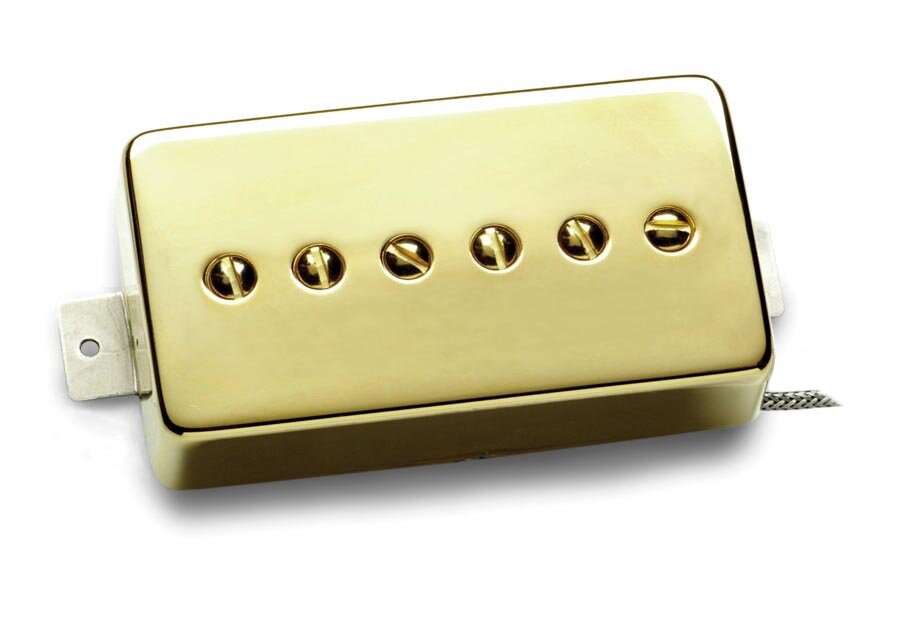

Seymour Duncan SPH90-1 Phat Cat P90 Single-Coil Pickup

The Seymour Duncan SPH90-1 offers fat, punchy tone. Also known as the Phat Cat P90, the Seymour Duncan SPH90-1 is a fantastic choice for rock.

In the past, if a guitar player wanted true P-90 soapbar tone from a humbucker-equipped guitar, he or she would have to physically alter the guitar: Usually irreparably and often destroying the re-sale value of the instrument.

Those days are over as Seymour Duncan announces the release of the Phat Cat pickup. Phat Cats are true P-90 soapbar pickups squeezed into a humbucker cover. They are direct retrofits for most humbucker-equipped guitars, without need for permanent modification to the instrument.

Phat Cats were created as a collaborative effort between Hamer founder, Jol Dantzig and Seymour W. Duncan. They were originally built in Seymour's Custom Shop for Hamer Guitars where they were used exclusively on their Newport series of USA-made instruments. Now, Phat Cats will be built on Duncan's regular production line, which will increase production capacity and decrease the selling price. Says Dantzig, "We worked with Seymour Duncan to conceive Phat Cats, and now we're happy to see the opportunity for all of Duncan's customers to enjoy their great sound."

Phat Cats are the call for the player looking for a great combination of output and high-end response. The tone is big, fat, and punchy with enhanced upper-mids for extra "cut." Like traditional P-90s, Phat Cats embody a true single-coil design with 2 sand cast Alnico magnets and single conductor, braided shield, hookup cable. The short, flat bobbins account for the fatter, midrange-intensive tone; and the nickel-silver read more cover reduces 60-cycle hum and tames the raggedness sometimes associated with P-90s. The result is a pickup with a unique sonic signature. Phat Cats are available in neck and bridge calibrated positions, and with either nickel or gold plating on their nickel-silver cover. When used together in the neck-plus-bridge position, both pickups will be hum-canceling.

Phat Cats are vacuum wax potted for squeal-free performance. Mounting hardware (screws and springs) is included, as is a detailed wiring diagram. Phat Cats are hand-built in Santa Barbara, California.

Which pickup is right for you? Find out through this Pickup Selector video:
read less

- Magnet: Alnico 2
- D.C. resistance: 7.98K Ohms (n) 8.49K Ohms (b)
- E.Q.: 4/6/7 Low/Mid/High
- Cable: Single Conductor
- Output: Moderate
Dimensions and Weight in Packaging
Nickel, Bridge
Shipping Weight: 0.5 lbs
Shipping Dimensions: 4 x 3 x 2 in
Manufacturer Part Number (MPN): 11302-16-NC
Nickel, Neck
Shipping Weight: 0.5 lbs
Shipping Dimensions: 4 x 3 x 2 in
Manufacturer Part Number (MPN): 11302-15-NC
Gold, Bridge
Shipping Weight: 0.48 lbs
Shipping Dimensions: 4 x 3 x 2 in
Manufacturer Part Number (MPN): 11302-16-GC
Gold, Neck
Shipping Weight: 0.48 lbs
Shipping Dimensions: 4 x 3 x 2 in
Manufacturer Part Number (MPN): 11302-15-GC

For support or warranty questions, please contact the manufacturer:
Phone: 805-964-9610

Reviewers gave this product an overall rating of 5 out of 5 stars. (34 ratings)
Submitted March 20, 2011 by a customer from

"Wish I had kept them"

Overall: 5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
Not looking these are permanent
I purchased & tried these in a guitar I had put together swamp ash body & maple neck they were installed in both neck & bridge position with a Seymour Duncan classic stack in the middle I play Blues & Country they sound fantastic they can be used in any style I made the mistake of switching them out under Seymour Duncans 21 day exchange policy after I had removed them & sent them for exchange & temporarily reinstalled my old pickups I had a change of heart wished I had kept them I am going to build another guitar and Phat cats are deinitely going in it you can't go wrong with them very versatile
Great Pickups
Ease of Use
Install them adjust height & enjoy
I give them a 10 one hint about installing leave the tape cover on until you have them at least installed & the height approximately set then remove the tape and do your final adjustment I slipped with the screw driver and scratched one of them
Great price
Manufacturer Support
Seymour Duncan has the best warranty hands down it absolutely can not be matched everyone I had the pleasure of talking to was great even after I told them I had scratched one of them they still switched them out for me I was amazed at how fast & friendly they were about taking care of the exchange. By the way my new Seymour Duncan SH1 MODEL 59 are also great pickups got to say THANKS to James at seymour Duncan best service I have ever received anywhere.
The Wow Factor
Great looking

Musical Background:

Play at home mostly

Musical Style:

Blues & Country
13 of 13 people (100%) people found this review helpful. Did you?
