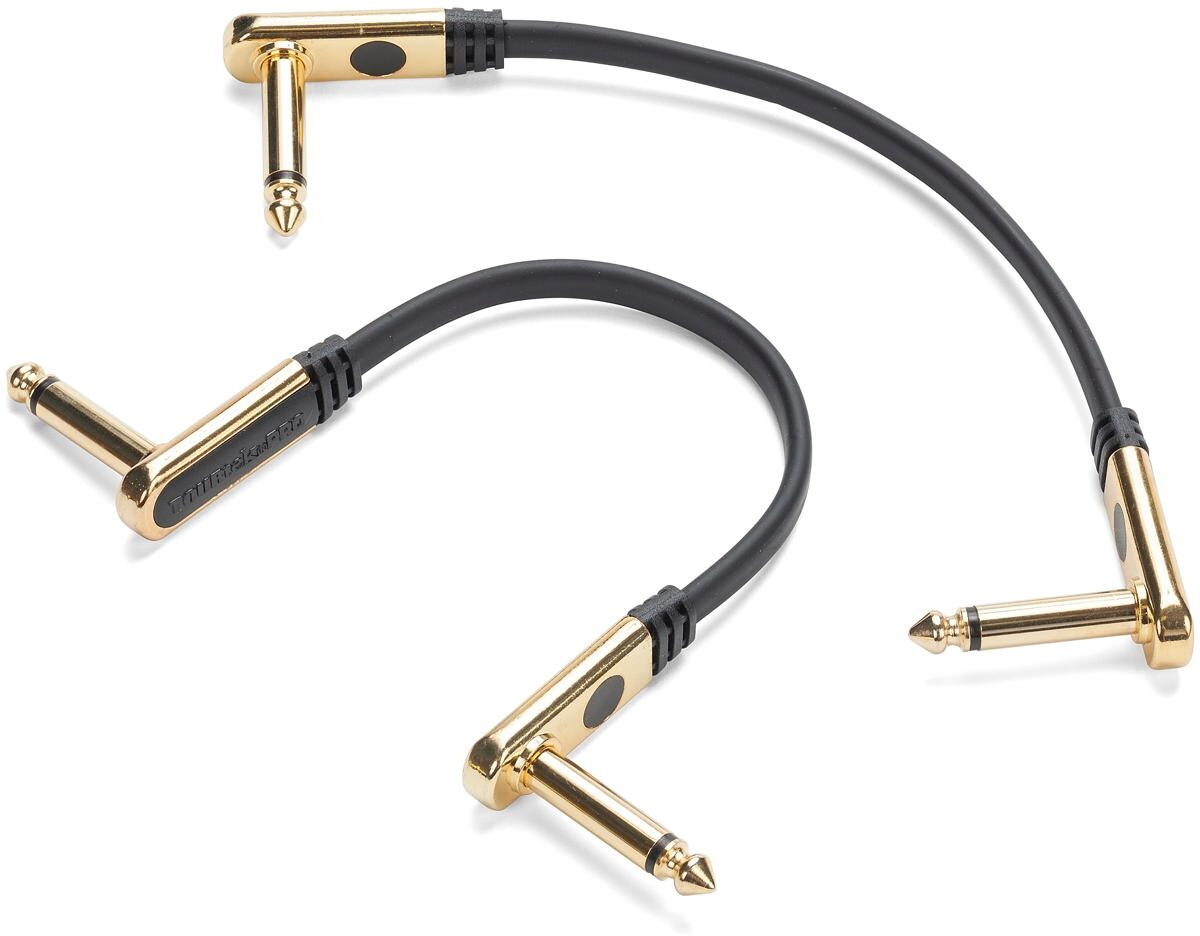

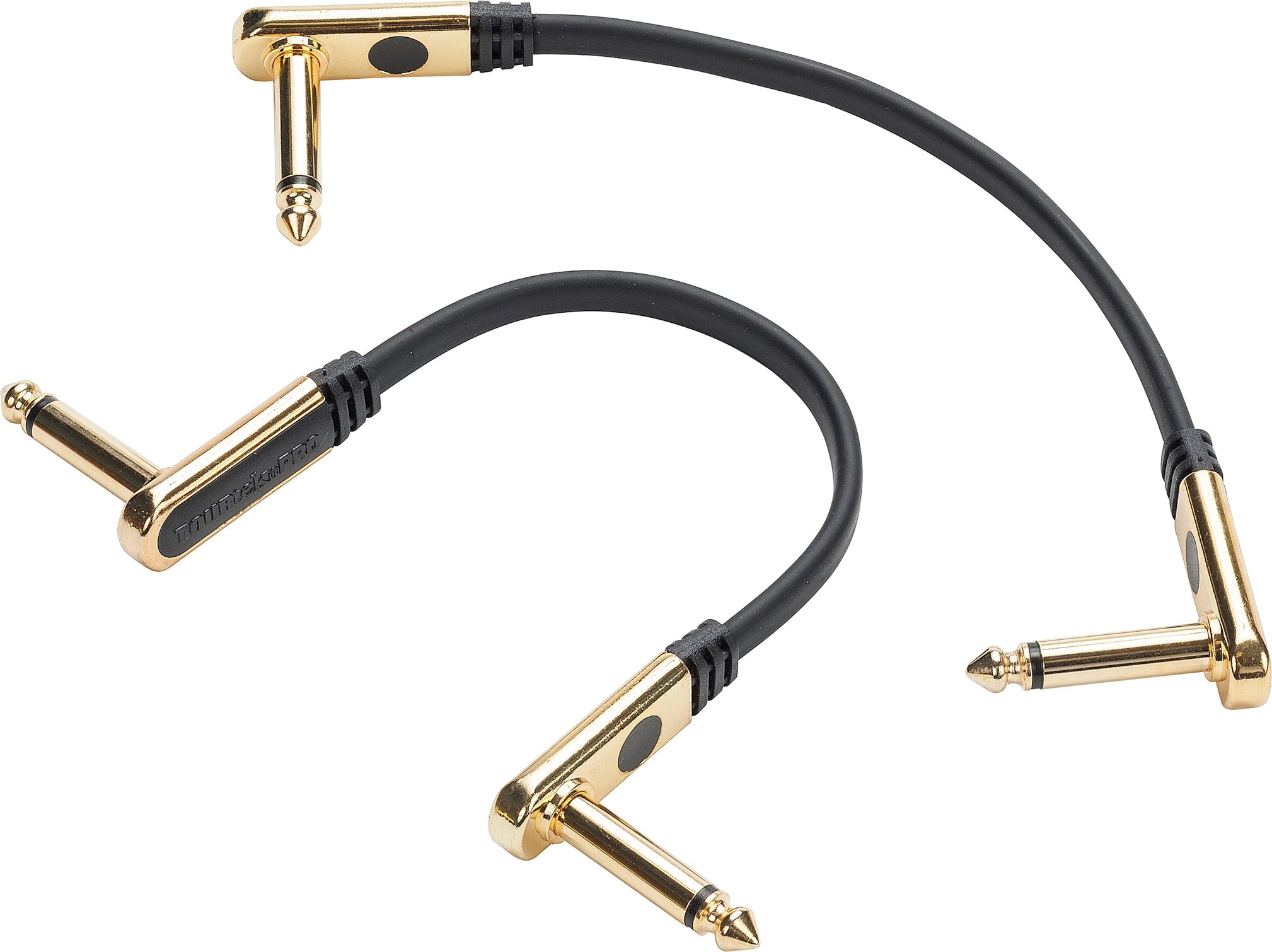

Samson Tourtek Pro Flat Patch Cable


Wire up your pedalboard with Tourtek Pro! These flat patch cables are made with 99.99% oxygen-free copper conductors for a clear, uncolored sound.
Overview
Tourtek Pro TPFAP Flat Patch Cables are designed to withstand the demands of sound engineers and touring musicians. These rugged cables features 90* 24k gold-plated connectors on both ends and 4mm thick outer diameter, perfect for connecting effects pedals, saving valuable space on pedalboards. Constructed with 99.99% OFC (Oxygen Free Copper), Tourtek Pro TPFAP low-capacitance cables deliver consistent performance while delivering an uncolored sound. Each cable features a 95% braided shield and carbon-impregnated conductive PVC insulation, offering extremely low noise and excellent rejection of RF/EMI interference.
Tourtek Pro TPFAP Flat Patch Cables are available in 6" and 1" lengths.
Tourtek Pro TPFAP Flat Patch Cables are available in 6" and 1" lengths.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
- Conductor:
- AWG Size & Stranding: 24 AWG / 0.12x20
- Capacitance Conductor to Shield: 34.5pF/ft @1kHz
- Material: 99.99% Oxygen Free Copper
- Insulation:
- Material: Polyethylene
- Diameter: 2mm +/-0.05mm
- Braided Shield:
- Material: Bare Annealed Copper
- Coverage: 95%
- Jacket:
- Material: PVC, Matte Finish
- Diameter: 6.5mm/4mm +/-0.1mm
- AWG Size & Stranding: 24 AWG / 0.12x20
- Capacitance Conductor to Shield: 34.5pF/ft @1kHz
- Material: 99.99% Oxygen Free Copper
- Insulation:
- Material: Polyethylene
- Diameter: 2mm +/-0.05mm
- Braided Shield:
- Material: Bare Annealed Copper
- Coverage: 95%
- Jacket:
- Material: PVC, Matte Finish
- Diameter: 6.5mm/4mm +/-0.1mm
- Dimensions and Weight in Packaging
- 12 inch
- Shipping Weight: 0.16 lbs
- Shipping Dimensions: 5 x 5 x 1 in
- Manufacturer Part Number (MPN): SATPFAP1
- 6 inch
- Shipping Weight: 0.15 lbs
- Shipping Dimensions: 8 x 5 x 1 in
- Manufacturer Part Number (MPN): SATPFAP
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 516-870-7200
Web: http://www.samsontech.com/contact/
Phone: 516-870-7200
Web: http://www.samsontech.com/contact/
