Samson UHF Synth 32 Wireless Lavalier with Audio Technica MT350

No longer available at zZounds

zZounds Gear Experts Say...

32 selectable frequencies. LCD display. System Includes: R32 Receiver, T32 Beltpack Transmitter, and Audio Technica MT-350 Lavalier Microphone.

Overview

Featuring groundbreaking wireless technology, Samson's new UHF Synth 32 system provides 32 selectable UHF frequencies in both the receiver and transmitter. The system's compact half-rack receiver features a large front-panel LCD display on the front panel and a comprehensive feature set. The system includes patent-pending PLL synthesized VCO circuitry in the transmitters along with SAW (Surface Acoustic Wave) filters in the receiver. The system also includes built-in Noise Squelch circuitry.

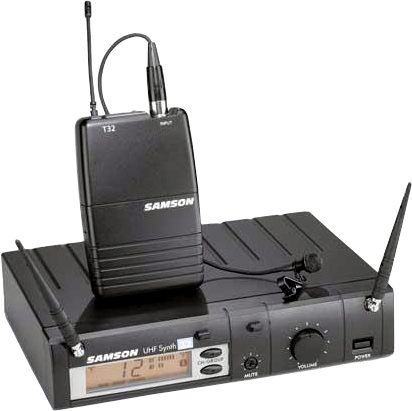

System Includes: R32 Receiver, T32 Beltpack Transmitter, and Audio Technica MT-350 Lavalier Microphone.

Features
Synthesized UHF wireless system with 32 selectable frequencies in both receiver and transmitter

LCD display indicates Channel, Group, Audio Level/RF Level, Diversity A/B antenna, and Mute

SAW (Surface Acoustic Wave) filters for discriminating wireless reception

Built-in Noise Squelch circuitry mutes system wide-band noise

Balanced XLR output and 1/4 in. output. Compact half-rack receiver design with optional rack-mount kit

Transmitters feature PLL synthesized VCO technology to eliminate spurious emissions in multi-user venues

Transmitter features battery life indicator and full complement of controls

Tuned molded antennas for enhanced reception

9V battery operation

3-pin mini-XLR connector

About Samson Audio
Samson's mission is to create precision audio tools for professionals, all with exceptional sound, a wealth of practical features, and rugged construction to ensure… read more consistent performance and long life in all kinds of applications. Their power amplifiers, equalizers, powered mixers, mixers, specialized products, racklight/power distribution systems, microphones, and other unique products to come, are all dedicated to one idea: the art of high technology is best served by making excellence more accessible to everyone.

Specs

System Includes: R32 Receiver, T32 Beltpack Transmitter, and Audio Technica MT-350 Lavalier Microphone.

System
Channels: 32 Per Band (3 Bands)

Modulation Type: FM

Noise Reduction Type: Compander

Distance: 100 m

System Transmitters (T32 and H32)

Oscillation Type: PLL Synthesized Control OSC

Pre-Emphasis: 50 µSec

Antenna Type:
T32: Wire (permanently attached)
H32: Integral Dipole

Input (T32): TB3M QG (Mini-XLR) Connector

Maximum Input Level:
T32: 0 dBv
H32: -20 dBv

Battery: MN1604 9-volt alkaline

Controls:
T32: Power On/Off, Mute On/Off, Level Control (Trimpot), Group, Channel
H32: Power On/Off, Audio On/Off, Level Control (Trimpot), Group, Channel
LED Indicator: Battery status, Frequency availability

Operating Voltage: 9 Volts

Frequency Range:
Low Band: 778.125 MHz - 782.000 MHz
Middle Band: 801.125 MHz - 805.000 MHz
High Band: 854.900 MHz - 858.850 MHz

Current Consumption: 32 mA (typical)

RF Power: 10 mW

Frequency Stability: ± 15 kHz

Spurious Ratio: 1 uW

Deviation: 15 kHz

T.H.D.: 2% max. @ 1 kHz

Signal to Noise Ratio: > 100 dB

Audio Frequency Response: 50 Hz to 15 kHz ± 3.5 dB

Battery Life: 14 hours (typical)

Approvals: Complies with ETS 300 422, ETS 300 445 and FCC Part 74

Dimensions:
T32 (W x H x D): 102 x 66 x 24mm Ý 4 x 2.6 x .9 in. (without antenna)
H32 (diameter x H): 37 x 151mmÝ 1.4 x 5.9 in. (without mic element)

Weight:
T32: 80 g Ý 2.8 oz. (without battery, mic element)
H32: 65 g Ý 2.3 oz. (without battery, mic element)

Receiver (R32)
Oscillation Type: PLL Synthesized Control OSC

De-emphasis: 50 µsec

IF Frequency: 10.7 MHz

Antennas: Dual 1/4 Wavelength

In/Out: 5.5mm DC Inlet, Unbalanced Output (1/4" phone jack), Balanced Output (female XLR connector)

Display: LCD Display (with backlit amber color)

Display Contents: Frequency Group/Channel (7 segments, 2 digits), Frequency Band (High, Mid, Low), Antenna A/B, MUTE display, RF Level Meter (6 points), AF Level Meter (6 points)

Controls: Power On/Off Switch (Front), Frequency Up/Down Switch (Front), Audio Level Volume (Front), Squelch Level Volume (Front), Balanced Output Level Switch (Rear)

Operating Voltage: 9 VDC, 65 mA (min.) - 140 mA (max.) @ 9 V Battery or supplied AC adapter

Frequency Range:
Low Band: 778.125 MHz - 782.000 MHz
Middle Band: 801.125 MHz - 805.000 MHz
High Band: 854.900 MHz - 858.850 MHz

Squelch Sensitivity: 10 dBuV to 40 dBuV adjustable

Sensitivity: (AF = 1 kHz, dF = 20 kHz) = < 6 dBuV @ 20 dB S/N

Selectivity: ± 150 kHz (AF Out Ratio -60 dB)

T.H.D.: < 1% @ 1 kHz

Signal to Noise Ratio: > 95 dB (overall)

Audio Frequency Response: 50 Hz - 15 kHz (± 3.5 dB)

AF output level: -10/-20/-40 dBv

Audio Output Impedance: Unbalanced (1/4 in. Jack): 10 k 1/2

Balanced (XLR Jack): 600 1/2

Dimensions (W x H x D): 198 x 42 x 140mm (7.8 x 1.7 x 5.5 in.), without antennas

Weight: 13.6 oz. (385 g)
