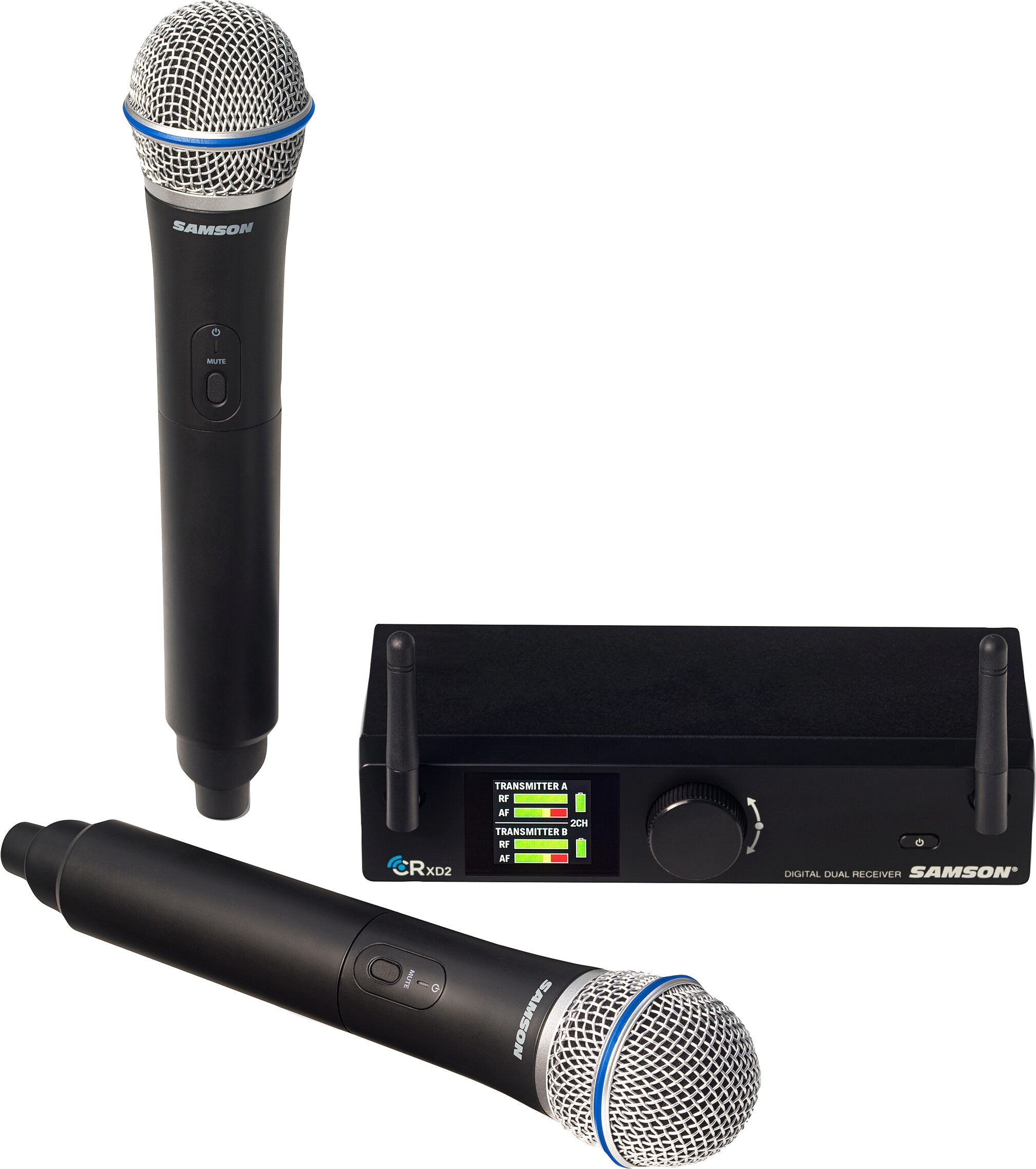

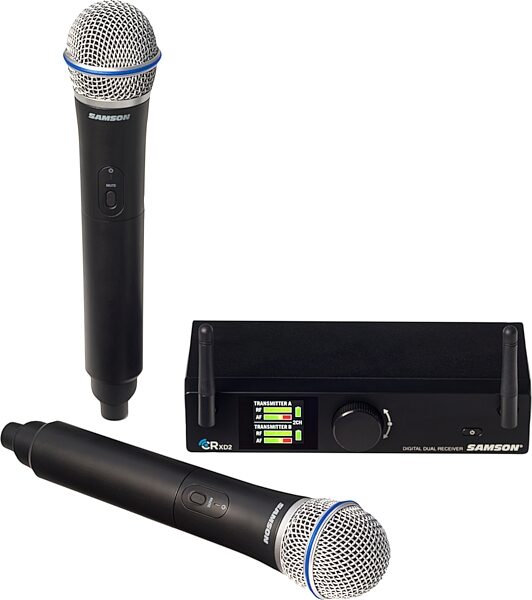

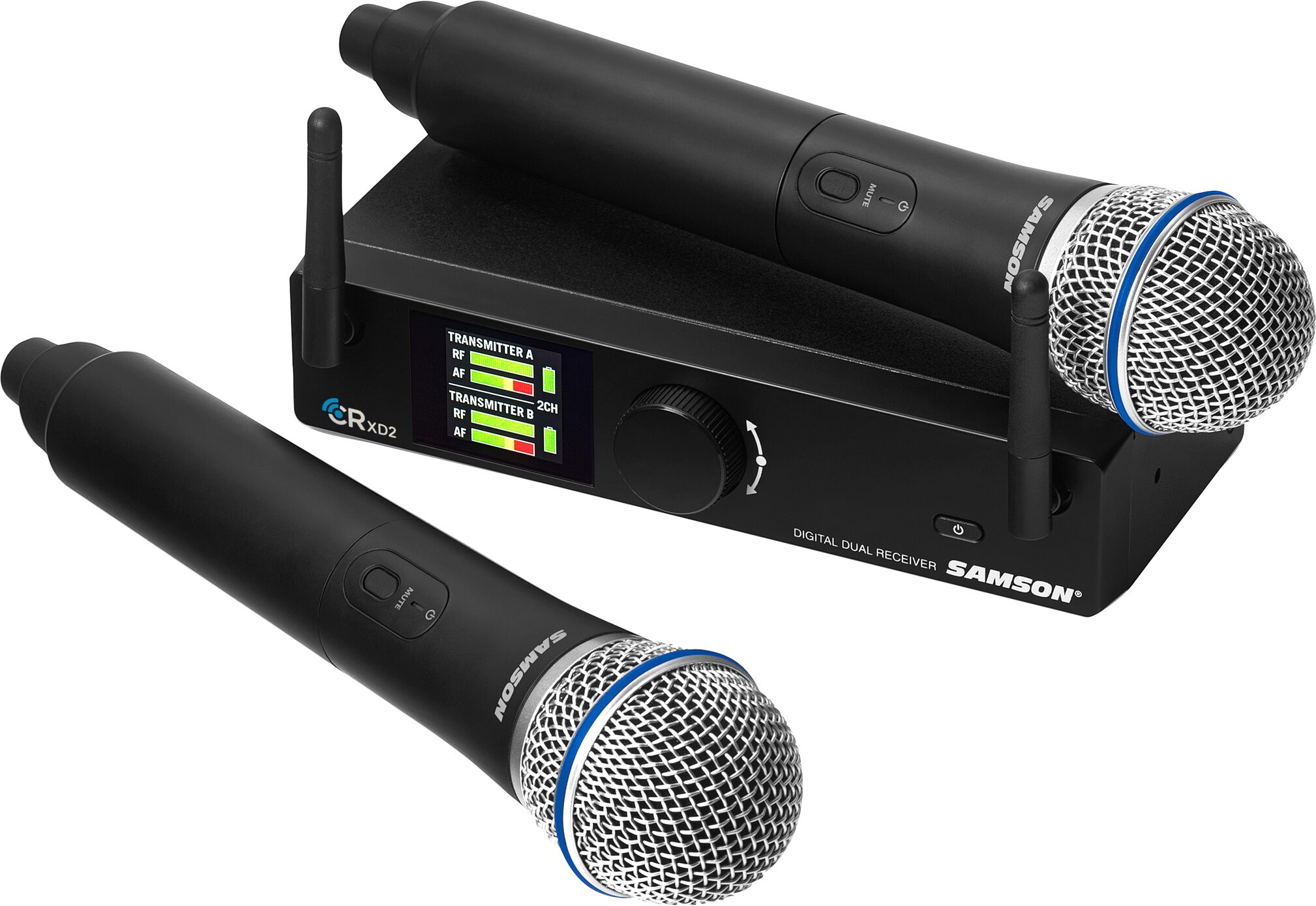

Samson Concert XD2 Two-Channel Digital Vocal Wireless System

zZounds Gear Experts Say...

Let your voice be heard! This wireless mic system features two handheld mics, a rack-mountable reciever, and operates in license-free 1.9 GHz frequency band.

Overview

TWO-CHANNEL DIGITAL WIRELESS HANDHELD SYSTEM

DIGITAL WIRELESS SYSTEMS
Discover unparalleled wireless performance and crystal clear sound with the Samson Concert XD2 Two-Channel Digital Handheld wireless system. Designed for vocal and multi-performer presentations, the Concert XD2 features advanced digital wireless technology with ultra-low latency audio performance for superior sound quality over analog wireless microphones. Operating in the 1.9 GHz frequency band, it avoids interference from TV broadcasts, WiFi and Bluetooth for reliable, drop-free audio.

Features:- Two-channel digital wireless system for vocal performances
- Operates in the license-free 1.9 GHz frequency band, away from TV, Bluetooth and WiFi interference

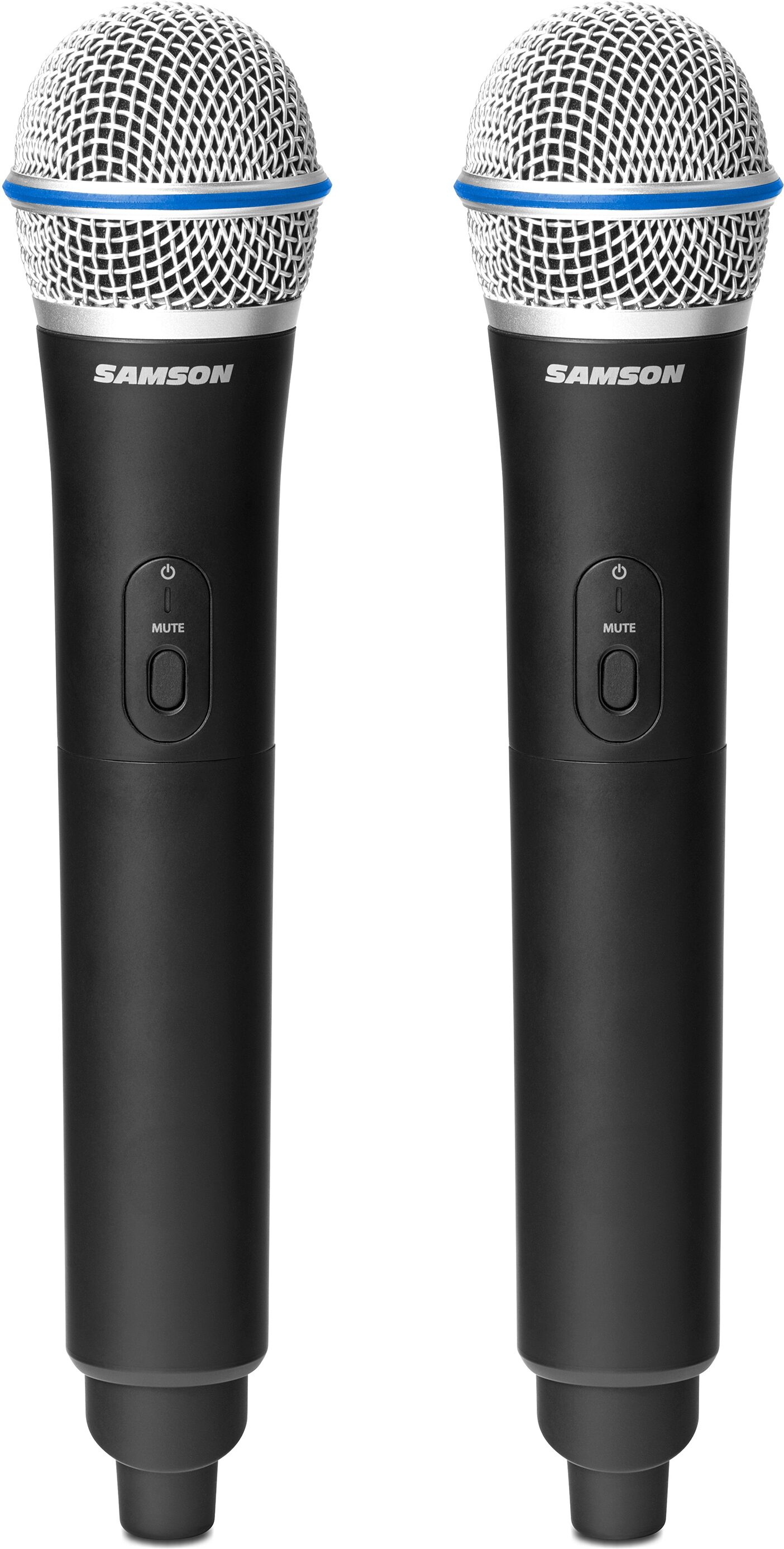

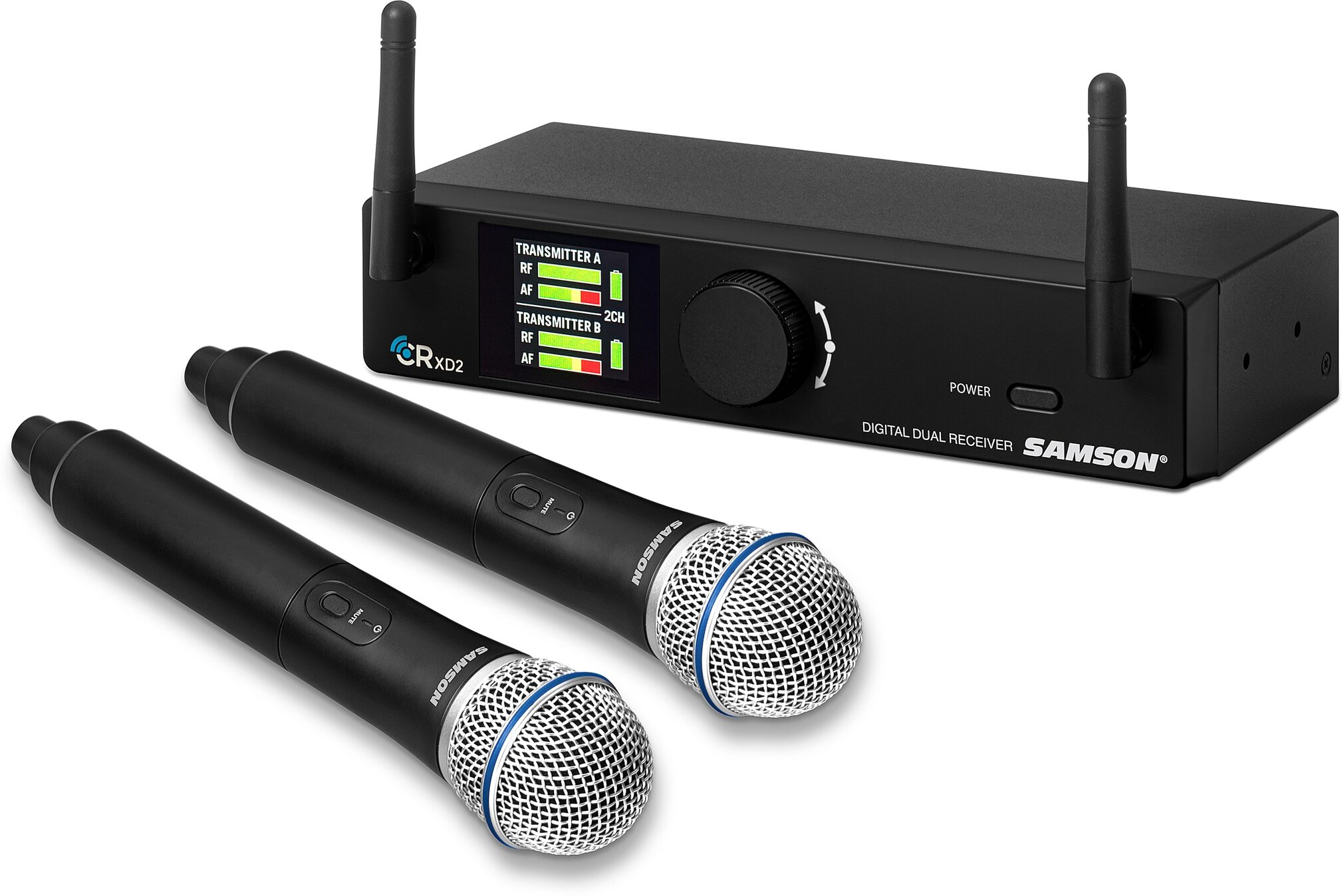

- Two handheld transmitters with Samson Q8 dynamic capsules

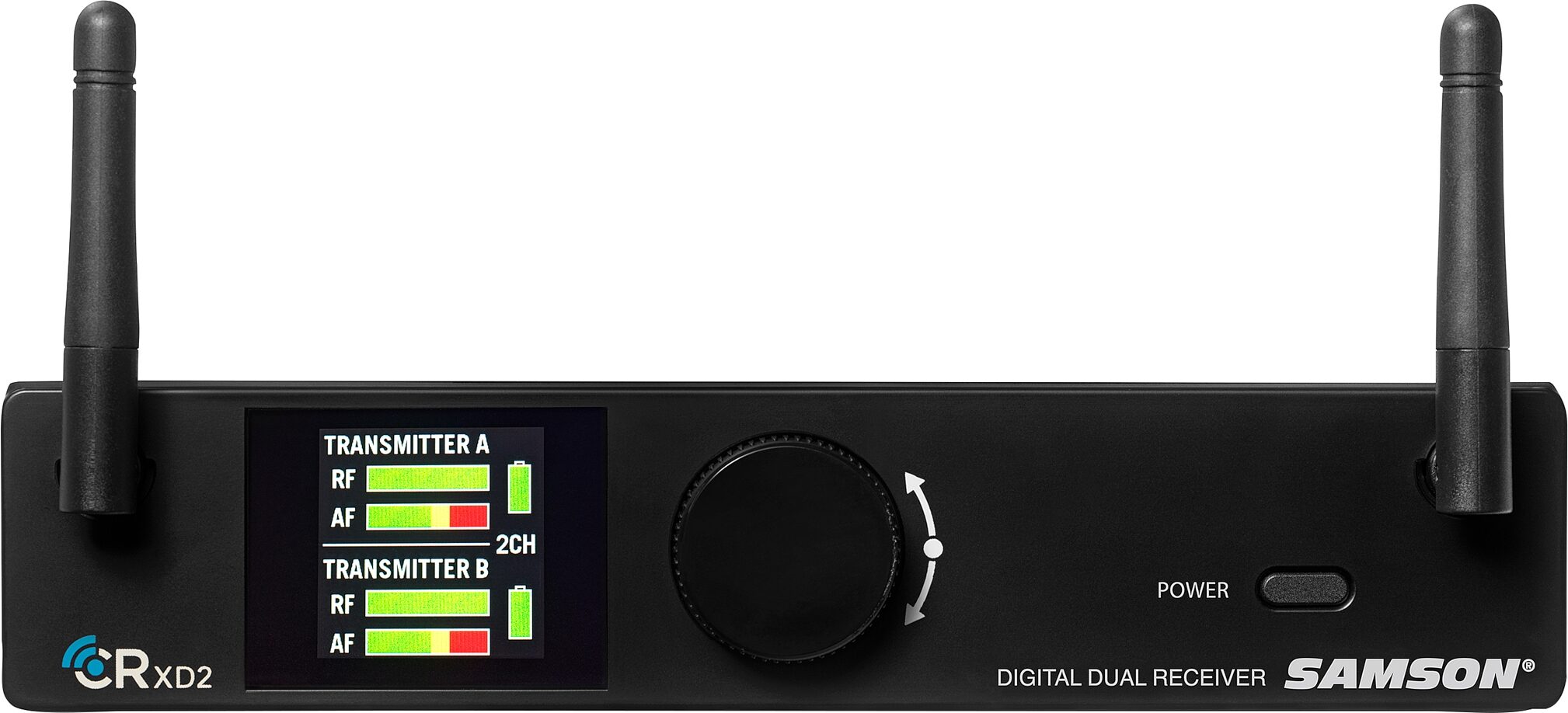

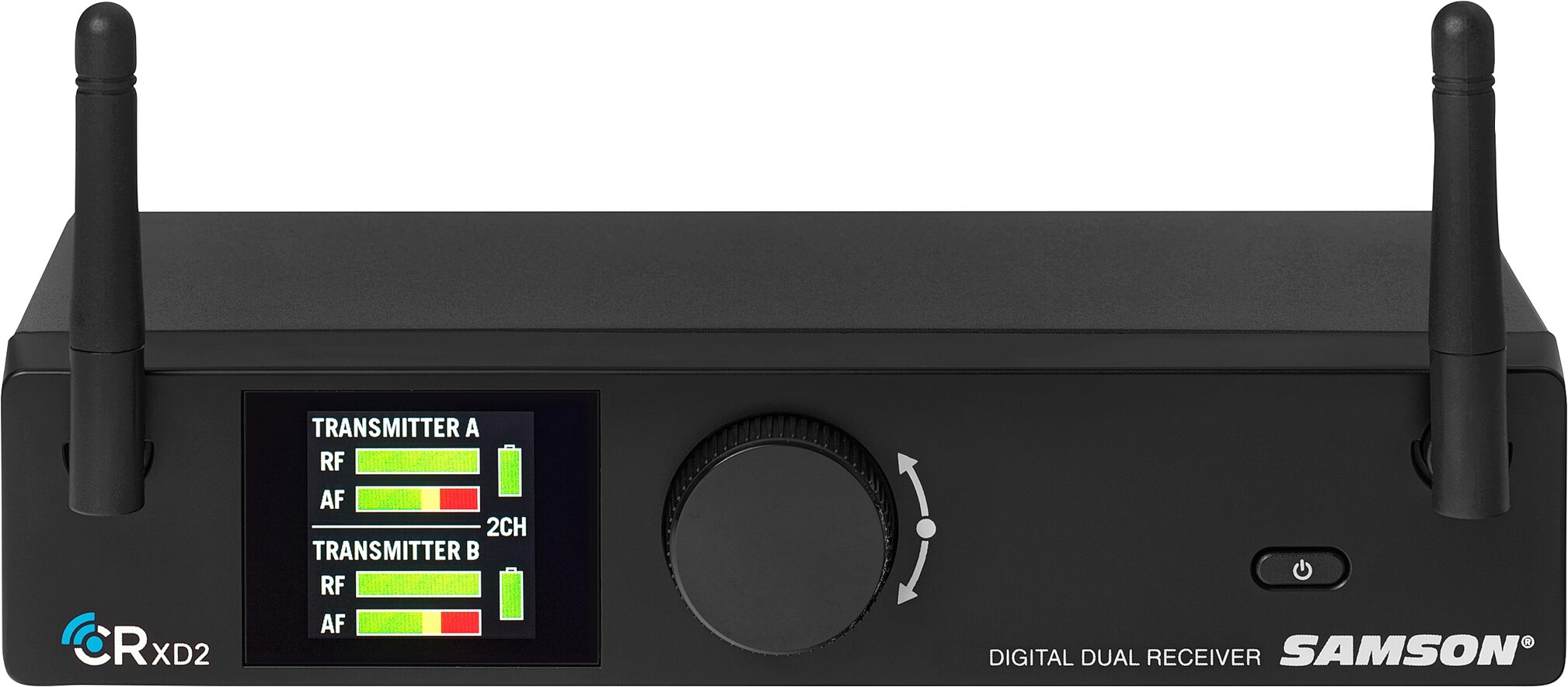

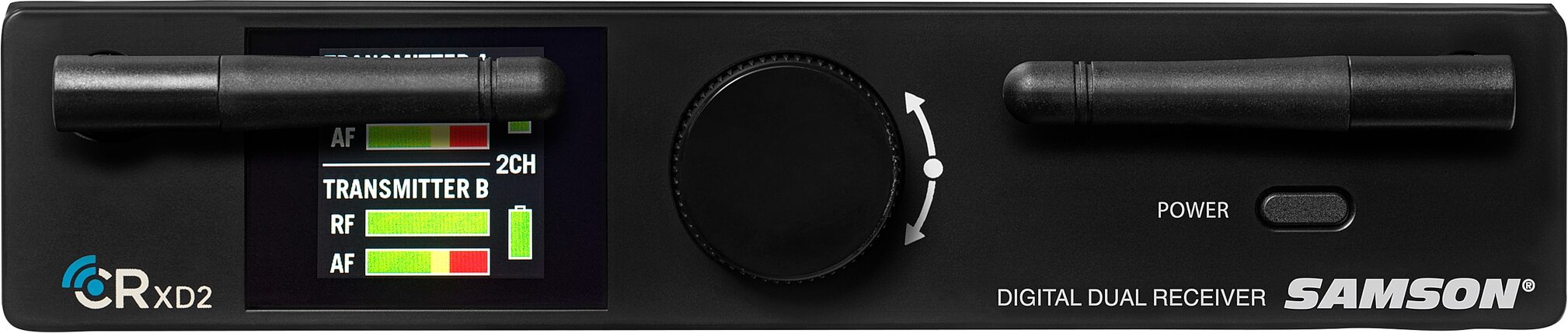

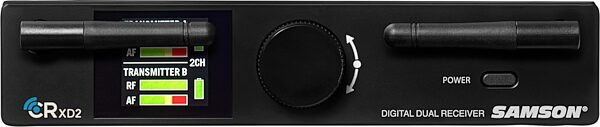

- Metal half-rack receiver with large color display

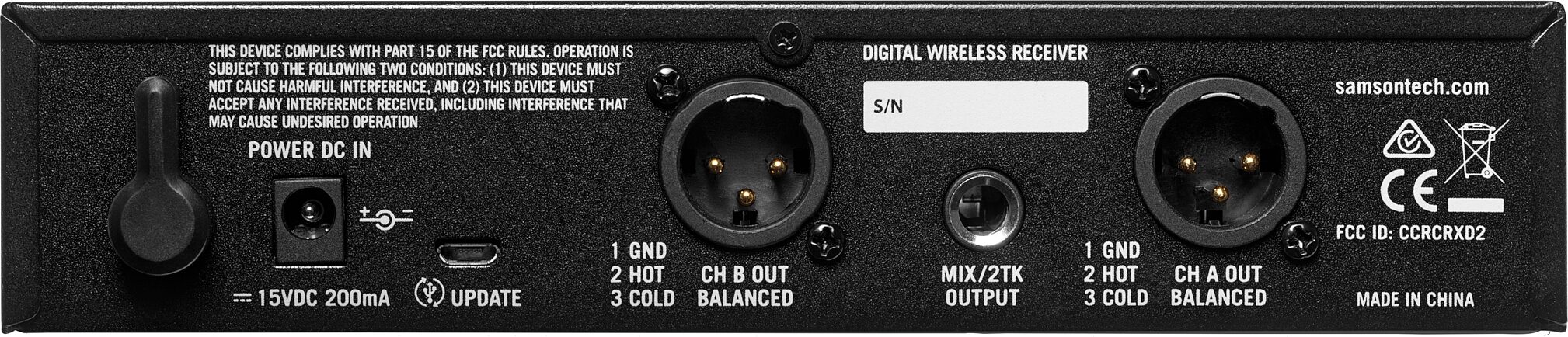

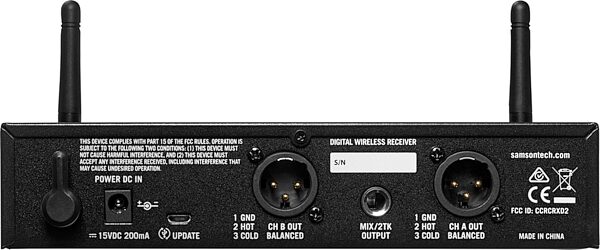

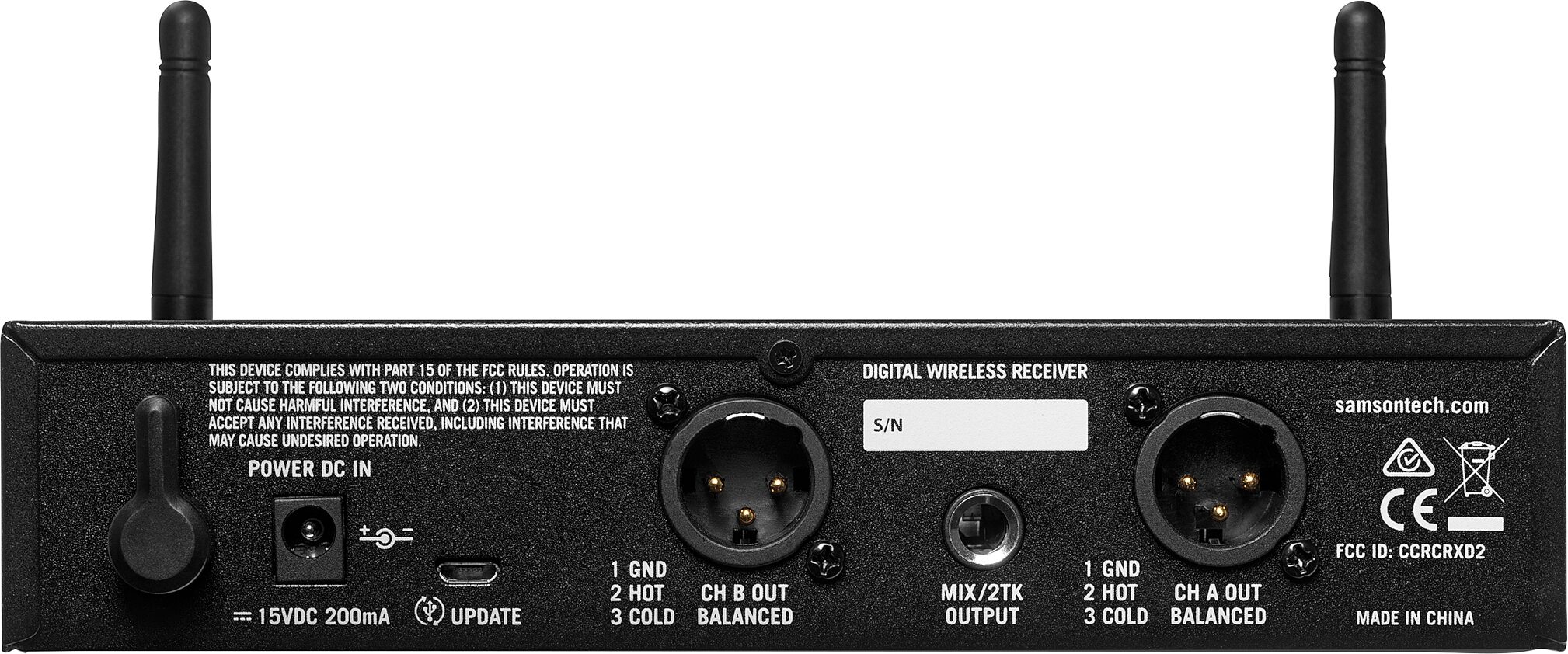

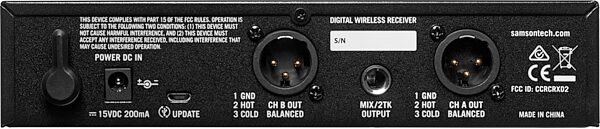

- Includes two balanced XLR outputs for each channel and one 1/4" TRS 2-Track/mix output
- Auto scan and wireless pairing for easy setup
- Up to 8 hours of battery life using two AA batteries (not included)
- 300' operating range (line-of-sight)
- Up to four compatible systems (eight transmitters) can operate in one location

Advanced Digital Wireless Precision
The Concert XD2 delivers unparalleled sound quality through advanced digital wireless technology. With a higher signal-to-noise ratio than analog wireless systems, this system minimizes unwanted background noise, ensuring a clear and pristine audio signal. The increased dynamic range… read more also allows the Concert XD2 to capture a wider range of vocal nuances, preserving the softest whispers and loudest crescendos. The Concert XD2 features the Sheersound audio codec, which enables wireless transmission of live audio with unprecedented low latency and superior quality.

Superior Wireless Clarity
Operating in the 1.9 GHz frequency band, the Concert XD2 provides an environment of unparalleled reliability and clarity. Unlike more crowded frequency bands such as 2.4 GHz or 5.8 GHz, 1.9 GHz is free from interference from TV signals, Bluetooth devices, Wi-Fi networks or even microwaves. This uncluttered spectrum ensures that performers, presenters, and users in a variety of environments can enjoy seamless, uninterrupted communication without the risk of signal degradation.

Versatile Multi-Performer Wireless
The Concert XD2 two-channel digital wireless system is ideal for multiple performers who want a superior audio experience. Its simple design makes it easy to use. Featuring a high-contrast OLED display for clear information, the system offers quick setup with auto-scan and wireless pairing between receiver and transmitter. Powered by AA batteries, the transmitters provide up to 8 hours of operation. The half-rack receiver provides individual outputs and a mixed output for flexible routing in a variety of audio setups. The system includes a rack mount for added convenience.

APPLICATIONS:
- Vocal performance
- Karaoke
- Presentations
- Education
- House of worship
- Interviews and Q&A

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

System Specifications:
-Model: Concert XD2
-Working Range: 300' (100m) line of sight
-RF Frequency Range:
- EU: 1881.792~1897.344 MHz
- US: 1921.536~1928.448 MHz
- JP: 1895.616-1904.256 MHz
-Audio Sampling Rate: 48 kHz
-Audio Frequency Response: +/-1 dB from 20 Hz - 21 kHz
-System Latency: 7.7 ms

CHXD2 Transmitter:
-Microphone Element: Q8 Dynamic
-Audio THD: -74 dB (0.02%)
-RF Power: 20 dBm (FCC) 23 dBm (RED)
-Power: Two AA batteries NiMH or Alkaline
-Battery Life: Up to 8 hours
-Dimensions (HxO): 10.23" x 2.1" / 260 mm x 54 mm
-Weight: 0.60 lb (274 g)

CRXD2 Receiver:
-Audio Output Level:
- 1/4" (6.3mm): +12dBu
- XLR: +9dBu
-Audio Output Impedance:
- 1/4" (6.3mm): 100 Ohm
- XLR: 317 Ohm
-Dimensions (LxWxH): 7.79 " x 3.38" x 1.69" (198 x 86 x 43 mm)
-Weight: 1.12 lb (509.5 g)

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 4.16 lbs; Shipping Dimensions: 14 x 12 x 3 in; Manufacturer Part Number (MPN): SWSCRXDHH

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
