Samson CR88a Wireless Headset Module for XP310w/312w System

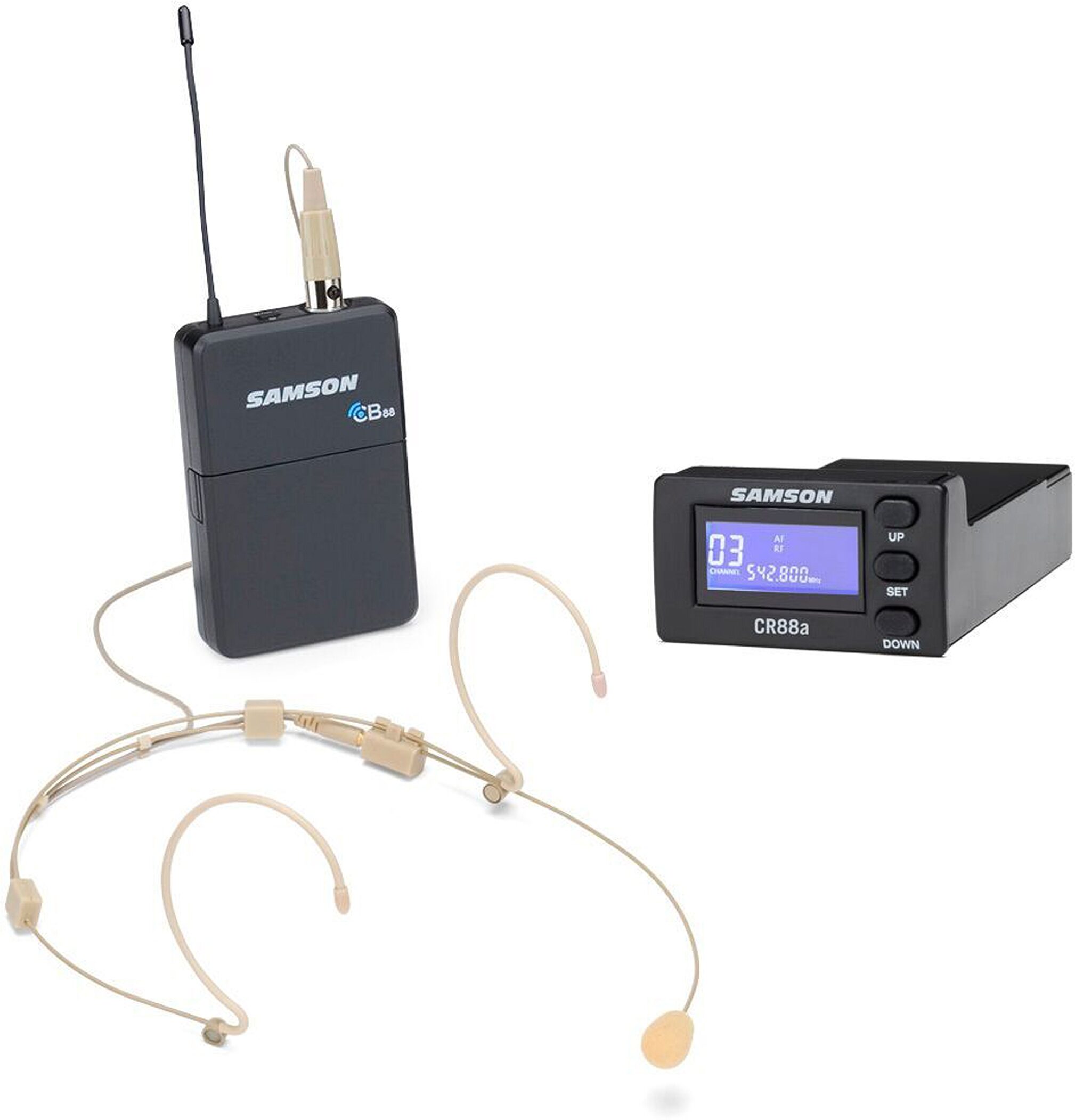

Add a wireless headset to your Samson Expedition XP310w or XP312w with the CR88a. Includes DE5 headset mic, CB88 beltpack transmitter, and CR88a receiver.

Looking to add another frequency-agile UHF wireless system to your Expedition XP310w or XP312w Rechargeable Portable PA? The Concert 88a Series features a DE5 headset wireless transmitter and the unique CR88a Receiver Module, which is specifically designed to slide/lock into the back panel of your XP310w or XP312w.

Features:

- Frequency-agile UHF wireless system D Band 542-566 MHz
- CR88a Receiver Module designed specifically for use with Samson Expedition XP310w and XP312w Rechargeable Portable PAs
- Up to 100 available operating channels
- IR sync wirelessly matches receiver and transmitter frequency
- Tone key prevents unwanted noise when transmitter is off/out of range
- Headset: CB88 Beltpack Transmitter with DE5 Headset Microphone
- Multifunctional backlit LCD
- Transmitter offers up to eight hours of battery life using two AA batteries
- 100' operating range (line-of-sight)
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Frequency Band Type: UHF
- Available Frequency Bands: D, G and K
- Channels: Up to 100 frequency presets per frequency band
- Receiver Type: Receiver and PLL UHF Synthesized
- Frequency Response: 50Hz-15KHz (+/-3dB)
- Frequency Stability: +/-0.005%
- T.H.D.: <1% (@AF 1KHz, RF 46dBu)
- Tone Key Frequency: 35KHz
- Dynamic: >100dB A-weighted
- Modulation Mode: FM (F3E)
- Max. Output: 0dBu
- Signal to Noise: >90dB
- RF Sensitivity: -100dBm/30dB sinad
- Power Supply: 10~12VDC 170mA
- Display: LCD
- Receiver Dimensions: 1.26" (32mm) x 2.24" (57mm) x 4.41" (112mm)
- Receiver Weight: 1.59lb (0.72kg)
Dimensions and Weight in Packaging
Channel D
Shipping Weight: 0.5 lbs
Shipping Dimensions: 6 x 6 x 2 in
Manufacturer Part Number (MPN): SWMC88BDE5-D
Channel K
Shipping Weight: 1 lbs
Shipping Dimensions: 6 x 6 x 2 in
Manufacturer Part Number (MPN): SWMC88BDE5-K

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
