Samson Concert 288 All-In-One Wireless Microphone System

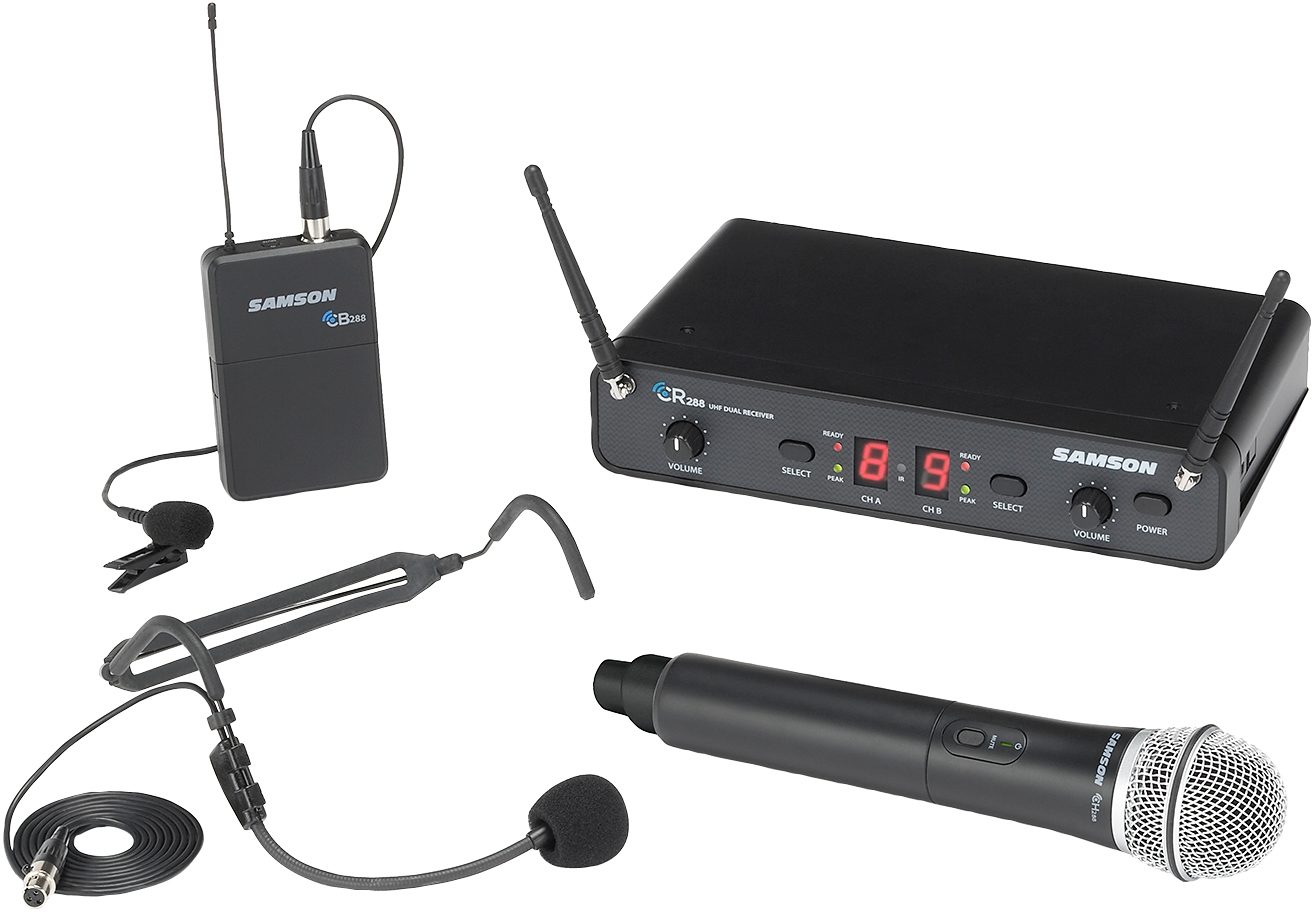

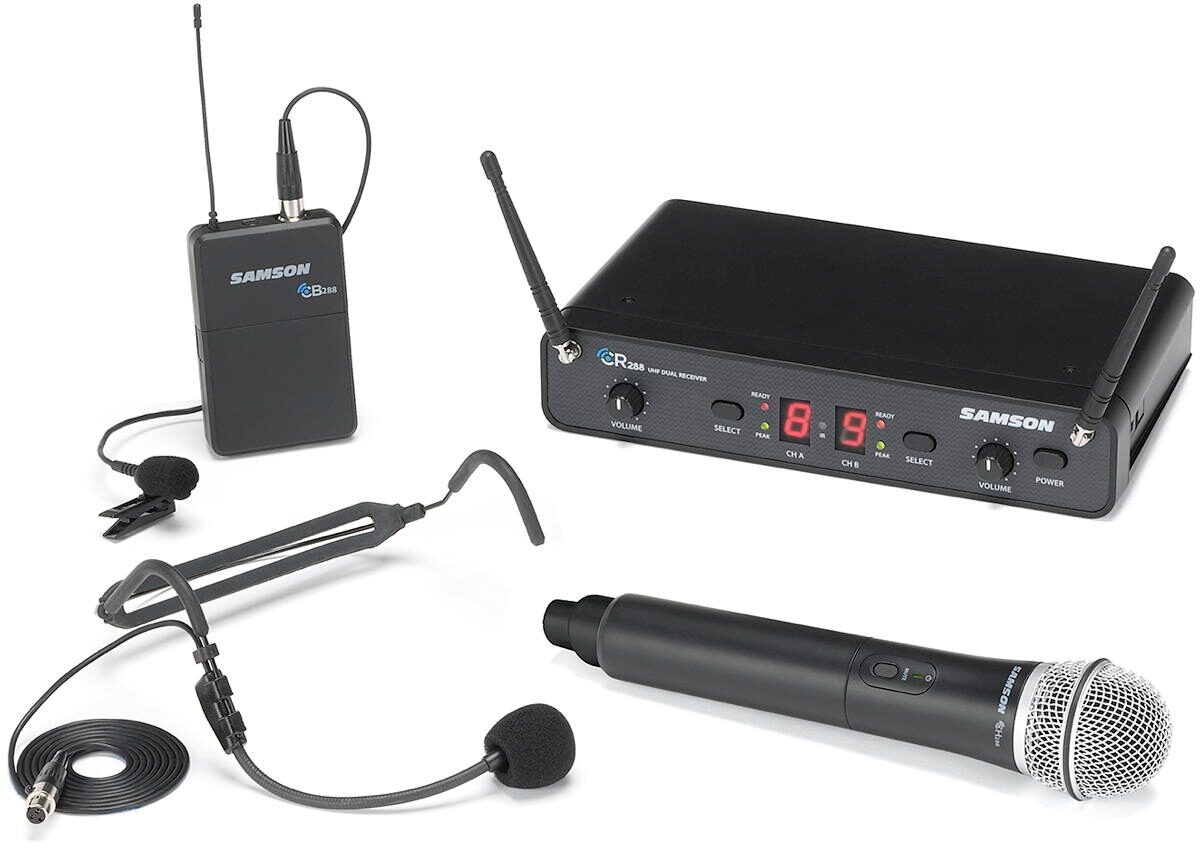

Samson Concert 288 All-In-One Wireless Microphone System, Band H, Main

zZounds Gear Experts Say...

Be prepared for any live sound scenario. This dual-channel wireless system includes a handheld microphone, a headset microphone, and a clip-on lavalier mic.

Overview

Samson takes the worry out of wireless with the Concert 288 All-In-One Wireless System. Offering easy setup, flawless operation and premium sound, it's the ideal high-performance UHF wireless solution for vocal performances, presentations, Q&A sessions, house of worship, educational applications and more where two users are needed.

The dual-channel Concert 288 All-In-One allows for up to 24 systems (48 performers) to operate simultaneously across two frequency bands (region dependent). The Concert 288 All-In-One gives both performers an impressive 300' range of wireless operation between the transmitters and receiver, making the system ideal for large stages and crowd participation. To ensure interference-free performance, the Concert 288 All-In-One features a true diversity design. If a drop out does occur, the receiver's tone key triggers an Auto Mute function to eliminate any background noise until the signal is restored.

Featuring a user-friendly front panel, the CR288 Wireless Receiver provides the system with fast and easy setup. To find your optimal channel, the CR288 provides two Select buttons for auto syncing the receiver and transmitter channels via an infrared signal. The panel also contains a dual 7-segment LED for the operating channels, two Volume knobs, two tuned antennas, as well as Ready and Peak indicators for optimal functionality and monitoring. The back of the receiver features two separate balanced XLR outputs for routing signals to two separate mixer… read more channels, as well as a 1/4" unbalanced mix output that condense both signals to a single channel for a direct connection into a PA speaker.

The Concert 288 All-In-One features a CH288 Handheld Transmitter with a Q6 Dynamic Microphone capsule, as well as a CB288 Beltpack Transmitter. To pair with the CB288, system also includes both an LM5 Lavalier Microphone and an HS5 Headset Microphone (both with locking connectors). These mic options bring maximum versatility to any dual-user application, particularly duet performances, as well as audience participation and interview situations. The transmitters, which can operate for up to eight hours on two AA batteries each, are engineered to the finest detail to provide the ultimate in sound reproduction.

With Samson's Concert 288 All-In-One Wireless System, advanced technology and total versatility combine to provide high-quality wireless performance wherever singers, presenters, educators and others need it.

Features:

- Dual-channel, high-performance UHF wireless system
- 1/4" audio cable, AC adapter and rackmount kit included

CR288 Wireless Receiver:
- Multiple frequency options for interference-free performance in any environment
- Up to 24 systems can be operated simultaneously across two frequency bands
- Separate Volume controls for each wireless signal
- Dual balanced XLR outputs for routing signals to two separate mixer channels
- 1/4" unbalanced mix output to combine signals to one output channel

CH288 Handheld Transmitter:
- Q6 Dynamic Microphone capsules
- Offers up to eight hours of battery life using two AA batteries
- 300' operating range

CB288 Beltpack Transmitter:
- LM5 Lavalier Microphone with locking connector
- HS5 Headset Microphone with locking connector
- Offers up to eight hours of battery life using two AA batteries
- 300' operating range

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- System Type: Dual-channel UHF wireless system
- Frequency Band: UHF (varies by band - H-Band: 470-518 MHz, I-Band: 518-566 MHz)
- Number of Channels: 16 selectable frequencies per receiver
- Operating Range: 300 feet (100m) line of sight
- Transmitter Type: CH288 handheld and CB288 beltpack transmitters
- Transmitter Power Output: 10 mW EIRP
- Receiver Type: CR288 dual-channel tabletop receiver
- Receiver Sensitivity: -100 dBm / 20 dB sinad
- Microphone Type: Q6 dynamic (handheld), LM5 lavalier, HS5 headset
- Polar Pattern: Supercardioid (Q6 dynamic capsule)
- Audio Frequency Response: 50 Hz - 15 kHz
- Signal-to-Noise Ratio: >85 dB
- Total Harmonic Distortion: <1% (@AF 1 kHz, RF 46 dBu)
- Dynamic Range: >100 dB A-weighted
- Battery Type for Transmitter: Two AA (LR6) alkaline batteries
- Battery Life: 8 hours
- Output Connectors: Dual balanced XLR outputs, 1/4" unbalanced mix output
- Power Requirements: 15 VDC 300mA
- Antenna Type: Two tuned antennas (dual antenna design)
- Diversity Type: True diversity design

Dimensions and Weight in Packaging

Band H

Shipping Weight: 4 lbs
Shipping Dimensions: 15 x 12 x 3 in
Manufacturer Part Number (MPN): SWC288ALL-H

Band I

Shipping Weight: 4 lbs
Shipping Dimensions: 14 x 13 x 4 in
Manufacturer Part Number (MPN): SWC288ALL-I

Open Box (Like New), Band I

Shipping Weight: 4 lbs
Shipping Dimensions: 14 x 13 x 4 in
Manufacturer Part Number (MPN): SWC288ALL-I

Consumer Alert

Most users do not need a license to operate this wireless system. Nevertheless, operating this system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
