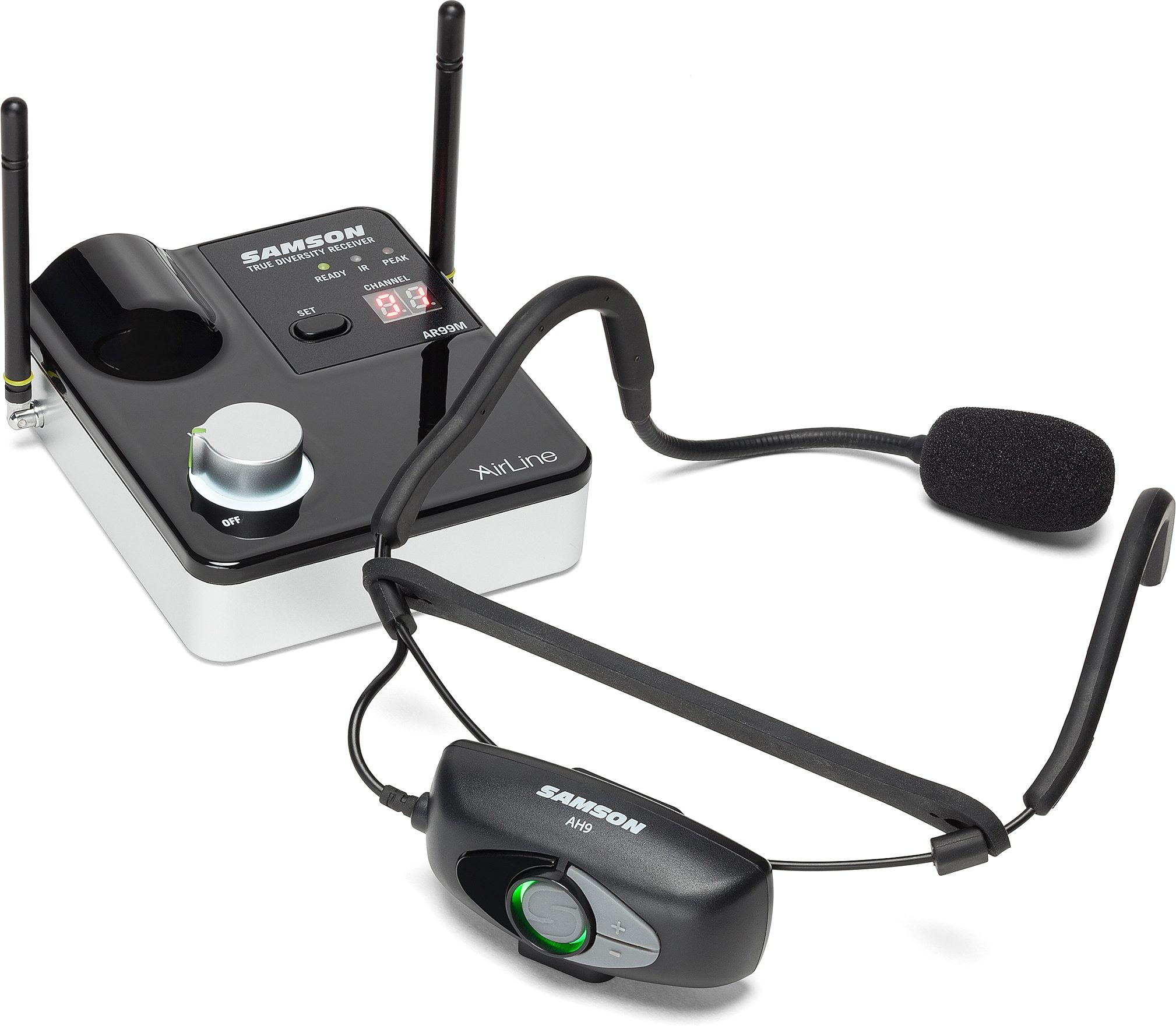

Samson AirLine 99M AH9/QE Fitness Wireless Microphone System

Working Range: 300' (100m)
Audio Frequency Response: 50Hz-15kHz
T.H.D. (Overall): <1% @ AF 1kHz, RF 46dBu
Operating Temperature: -10 to +60 degrees Celsius
Tone Key Frequency: 35 kHz

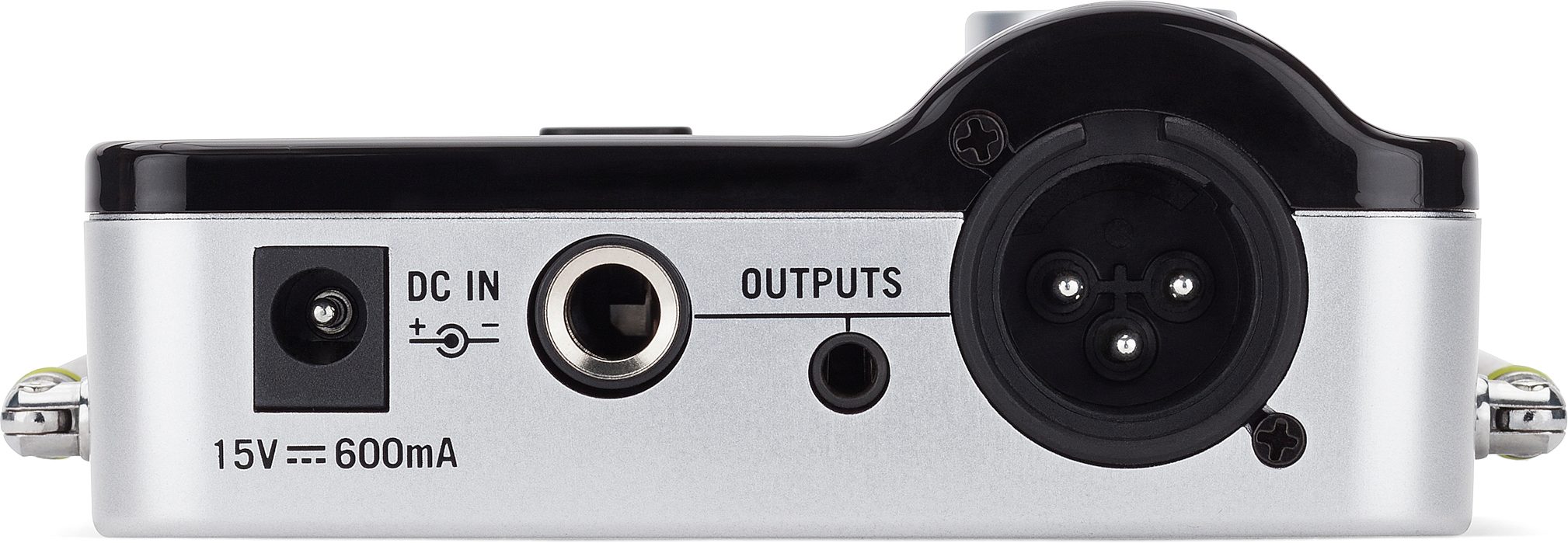

Audio Output Level:
- From F3.5 & F6.3 Jack (unbalanced): +14dBu
- From XLR Jack (balanced): +9dBu

Audio Output Impedance:
- From F3.5 & F6.3 Jack (unbalanced): 810O
- From XLR output jack (balanced): 240O

Sensitivity: 100dBm/30dB SINAD
Image Rejection: >50dB
Operating Voltage: 15VCC 600mA

Dimensions: 4.25" x 3.75" x 1.5" (110 x 95 x39 mm)
Weight: 0.42 lb (0.19 kg)
Dimensions and Weight in Packaging
Band D (542-566 MHz)
Shipping Weight: 1.75 lbs
Shipping Dimensions: 10 x 9 x 4 in
Manufacturer Part Number (MPN): SW9A9SQE-D
If you have additional warranty questions, please contact the manufacturer at 631-784-2200
