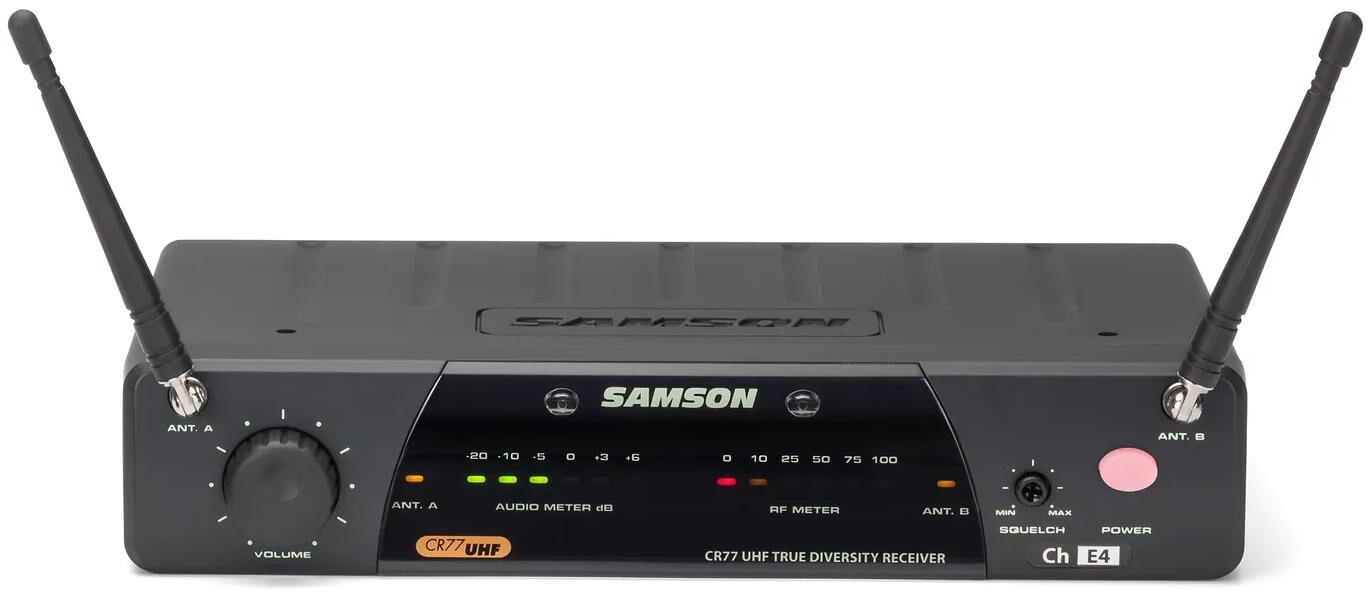

Samson CR77 Wireless System Receiver

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for Samson CR77 Wireless System Receiver, Band K4 (477.525 MHz), Main
open zoom image for Samson CR77 Wireless System Receiver, Band K4 (477.525 MHz), Action Position Back
open zoom image for Samson CR77 Wireless System Receiver, Band K4 (477.525 MHz), Action Position Back
open zoom image for Samson CR77 Wireless System Receiver, Band K4 (477.525 MHz), Action Position Back
open zoom image for Samson CR77 Wireless System Receiver, Band K4 (477.525 MHz), Action Position Back
Samson CR77 Wireless System Receiver, Band K4 (477.525 MHz), Main Samson CR77 Wireless System Receiver, Band K4 (477.525 MHz), Action Position Back Samson CR77 Wireless System Receiver, Band K4 (477.525 MHz), Action Position Back Samson CR77 Wireless System Receiver, Band K4 (477.525 MHz), Action Position Back Samson CR77 Wireless System Receiver, Band K4 (477.525 MHz), Action Position Back
zZounds Gear Experts Say...
Build your wireless system with the CR77, a UHF receiver with 300 feet of range, and a perfect match for Samson's AirLine AH7 Fitness Headset Transmitter.

The CR77 offers reliable performance with up to 300' (90m) of wireless operation. Its half-rack chassis is light enough to toss in your pocket, or it can be permanently installed with a rackmount kit (sold separately). The rear panel features balanced XLR and unbalanced 1/4" outputs for flexible connectivity.

Features:

- Up to 300' (90m) of wireless operation
- Balanced XLR and unbalanced 1/4" outputs for flexible connectivity
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Frequency Band: UHF
- Number of Channels: 1
- Receiver Sensitivity: 18 dBm (@ THD 2%)
- Audio Frequency Response: 50 Hz - 15 kHz (±3 dB overall)
- Signal-to-Noise Ratio: 90 dB (w/IHF-A Filter)
- Total Harmonic Distortion (THD): 1% Max (@AF 1 kHz, RF 46 dBu)
- Dynamic Range: 90 dB
- Diversity Type: True Diversity
- Antenna Inputs: 1/4 Wavelength Rod (A/B)
- Output Connectors: XLR (Balanced), 1/4" Phone (Unbalanced)
- Audio Output Level: Unbalanced: 0 dBv; Balanced: -20 dBm (Line), -40 dBm (Mic)
- Power Requirements: 12 Volts ±10%
- Modulation Type: PLL
- Squelch Level: 0 - 40 dBm (Adjustable)

Dimensions and Weight in Packaging

Band K4 (477.525 MHz)

  • Shipping Weight: 2.2 lbs
  • Shipping Dimensions: 12 x 10 x 4 in
  • Manufacturer Part Number (MPN): SAM SW77R00 K4

Band K5 (479.100 MHz)

  • Shipping Weight: 2.3 lbs
  • Shipping Dimensions: 12 x 9 x 4 in
  • Manufacturer Part Number (MPN): SAM SW77R00 K5

Band K6 (480.475 MHz)

  • Shipping Weight: 2.3 lbs
  • Shipping Dimensions: 12 x 9 x 4 in
  • Manufacturer Part Number (MPN): SAM SW77R00 K6

Band K1 (489.050 MHz)

  • Shipping Weight: 1.6 lbs
  • Shipping Dimensions: 10 x 7 x 3 in
  • Manufacturer Part Number (MPN): SW77R00 K1

Band K2 (490.975 MHz)

  • Shipping Weight: 1.6 lbs
  • Shipping Dimensions: 10 x 8 x 3 in
  • Manufacturer Part Number (MPN): SW77R00 K2

Band K3 (492.425 MHz)

  • Shipping Weight: 1.6 lbs
  • Shipping Dimensions: 10 x 7 x 3 in
  • Manufacturer Part Number (MPN): SW77R00 K3

Consumer Alert

Most users do not need a license to operate this wireless system. Nevertheless, operating this system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

For support or warranty questions, please contact the manufacturer:
Phone: 516-870-7200
Web: http://www.samsontech.com/contact/
Samson AirLine 77 Wireless System Owners Manual
Samson AirLine 77 AH1 CR77 Owners Manual
