Samson S-Zone Stereo 4-Zone Mixer

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

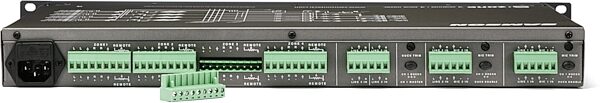

open zoom image for Samson S-Zone Stereo 4-Zone Mixer, New, Action Position Back
open zoom image for Samson S-Zone Stereo 4-Zone Mixer, New, Action Position Back
Samson S-Zone Stereo 4-Zone Mixer, New, Action Position Back Samson S-Zone Stereo 4-Zone Mixer, New, Action Position Back
zZounds Gear Experts Say...

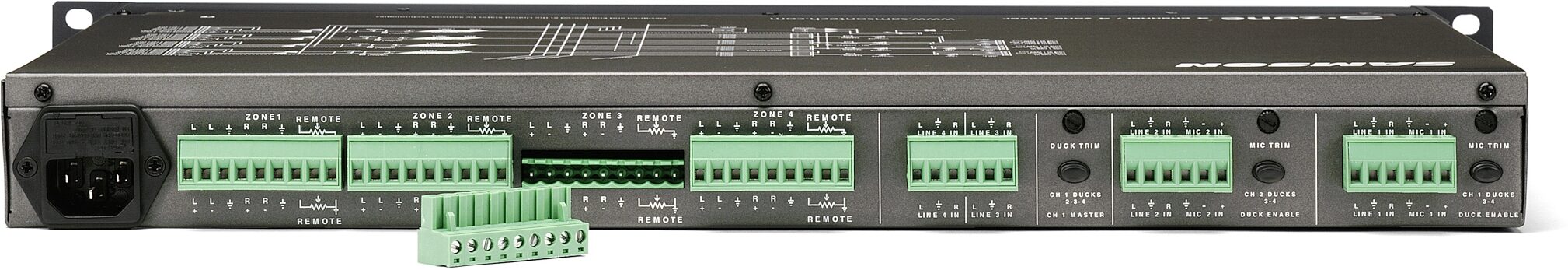

Mix four channels with this uber-minimal rack mixer, ideal for venue installations with multiple zones, with I/O on Euroblock connectors on the rear panel.

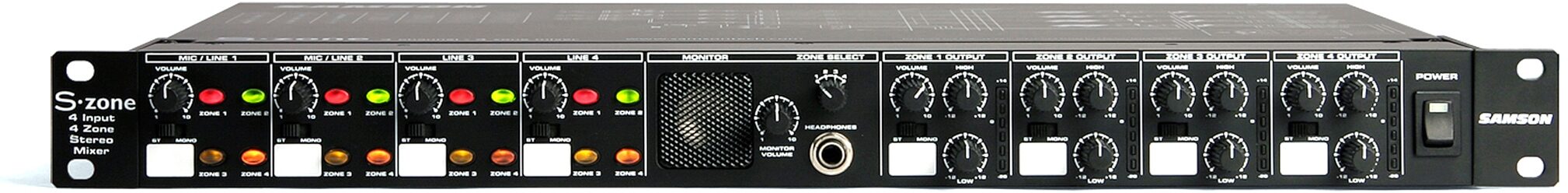

The S-Zone gives system installers all the features they need to control up to four zones of audio with a compact, single rack space unit. It features two balanced mic and four stereo aux/line inputs with a unique front panel control section that allows you to assign any of the four inputs to any of the four zones with just the push of a button. The front panel layout also has input and output volume controls, independent 2-band equalization, and an on-board speaker for selectable zone monitoring.

Features:

- 4-channel/4-zone stereo mixer
- Two Mic/Stereo Line inputs with ducking
- Two Stereo CD/Line inputs
- Onboard Speaker and Headphone monitoring
- Euroblock output connectors
- Remote Volume Control
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Channels: 4
- Mic Inputs: 2 balanced XLR
- Line Inputs: 2 balanced aux/line (Channels 1 & 2) + 2 stereo aux/line (Channels 3 & 4)
- Outputs: 4 balanced zone outputs
- Total Harmonic Distortion (THD): <0.02%
- Signal-to-Noise Ratio (SNR): 96 dB
- Phantom Power: +15 V
- EQ Bands: 2-band (High: ±15 dB at 10 kHz, Low: ±15 dB at 100 Hz)
- Maximum Input Level: Mic: -11.7 dBu balanced, Line: +26 dBu
- Maximum Output Level: +21 dBu
- Power Requirements: USA/Canada: ~120 V AC, 60 Hz; Europe: ~230 V AC, 50 Hz; U.K./Australia: ~240 V AC, 50 Hz
- Connector Types: Inputs: 6-pin Euroblock, Outputs: 9-pin Euroblock

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 9.35 lbs
  • Shipping Dimensions: 21 x 14 x 4 in
  • Manufacturer Part Number (MPN): SA SZONE

For support or warranty questions, please contact the manufacturer:
Phone: 516-870-7200
Web: http://www.samsontech.com/contact/
