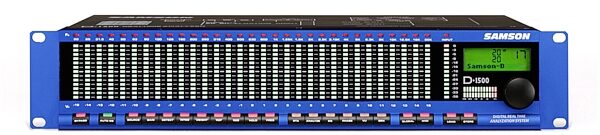

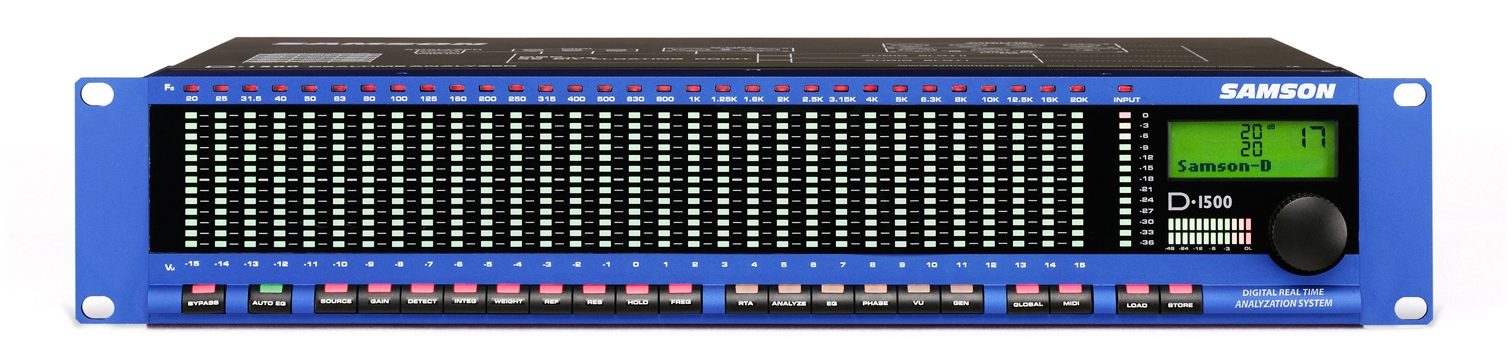

Samson D1500 Digital Real Time Analyzer

The Samson D1500 Real Time Analyzer optimizes your sound environment ensuring you have great detail and presence. The easy to use D1500 Real Time Analyzer features 31 bands of EQ analysis, what could have once taken you hours to do can now be performed in minutes, giving your audio output a true sonically flat frequency response.

Features
- 31-band, multi-parameter, Digital Real Time Analyzer accurately measures the frequency response of any sound system.

- Large frequency LED display plus custom, back-lit Liquid Crystal Display for easy readability in any live sound environment.

- The RTA has adjustable meter Resolution that lets you zoom in and out on your measurement, and adjustable

- Frequency range for RTA allowing you to make tighter measurements.

- On-board Phase Correlation meter.

- The D1500's display can be converted to a large VU Level meter that simultaneously displays both Peak and VU levels.

- A comprehensive Signal Generator capable of producing White and Pink Noise, as well as a tunable Sine Wave can be used to flatten a system with a standard analog equalizer

- RTA mode lets you see the frequency response of your system in real time.

- Pristine audio quality thanks to the high quality Analog-to-Digital and Digital-to-Analog I/O audio converter boards with 24-bit resolution and sample rates up to 96kHz.

- XLR Balanced Microphone Input with phantom power for connecting a measurement microphone.

- Configure larger systems using multiple D class units… read more which communicate over standard MIDI

- A steel and aluminum chassis makes the D1500 eminently road-worthy.

The Samson D1500 Digital Real Time Analyzer uses high quality audio converters along with state of the art 32-bit floating point DSP running powerful digital measurement algorithms to provide a powerful solution for a variety of audio measurement applications. read less
