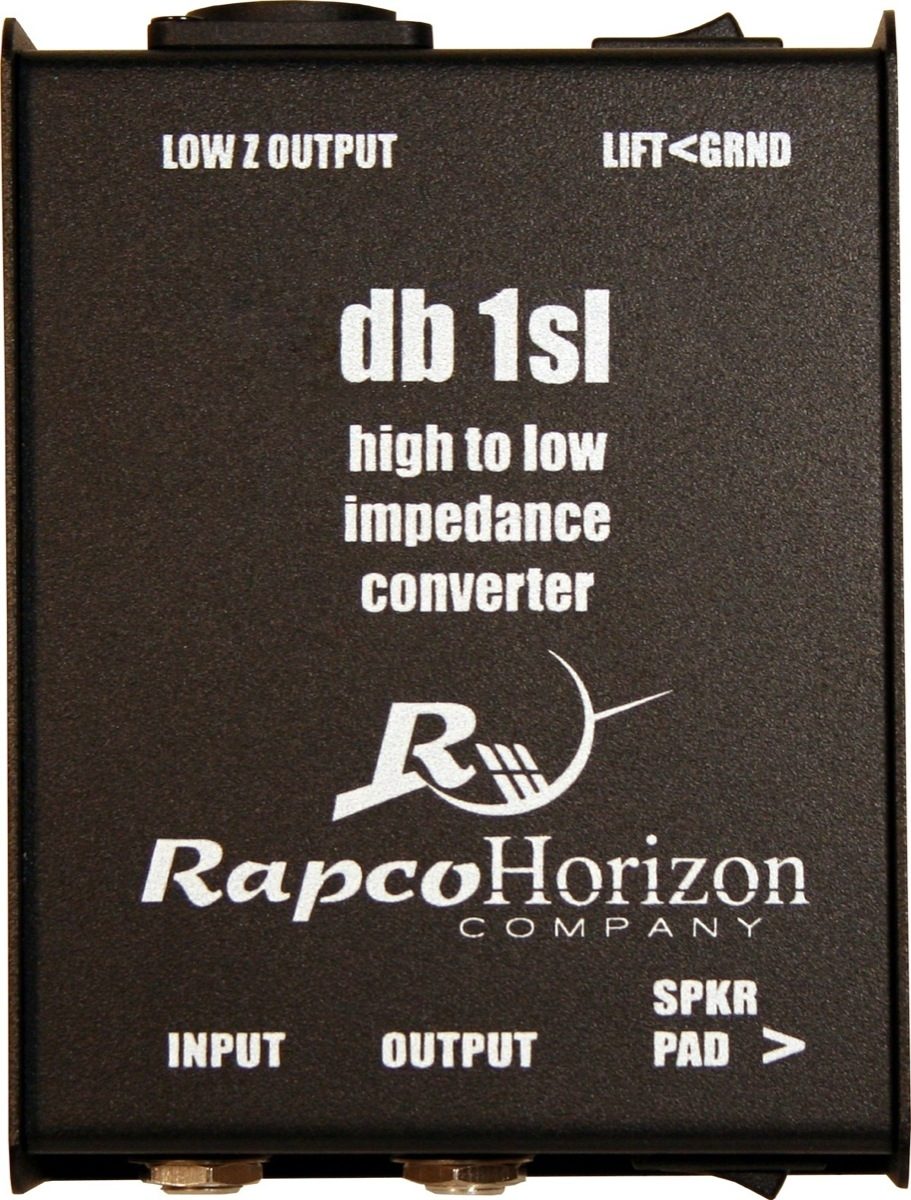

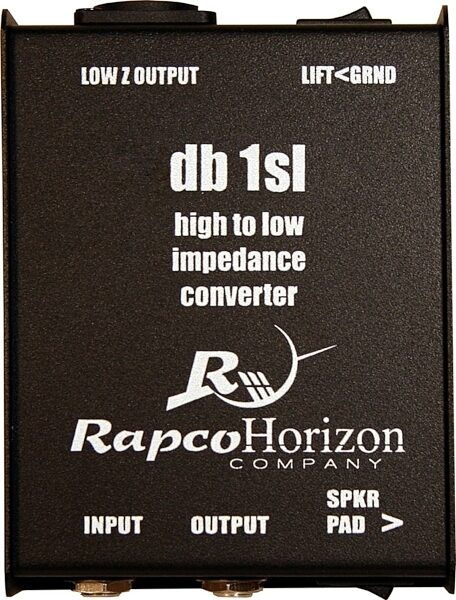

RapcoHorizon DB-1SL Speaker Level Direct Box

Plug high-impedance instruments or speaker-level inputs into the RapcoHorizon DB-1SL direct box to convert the Hi-Z signal to a low-impedance XLR output.

The RapcoHorizon DB-1SL provides the same functions as the Rapco DB-1, as well as accepting speaker level input signals (400 watt maximum). Includes a paralleled 1/4 inch output jack for on-stage monitoring. Transforms a Hi-Z 1/4 inch input to balanced Lo-Z XLR output. A ground lift switch is provided for buzz-free operation in almost any environment.

Features:

- Accepts instrument or speaker level inputs (400 watt maximum)
- Transforms Hi-Z 1/4-inch input to balanced Lo-Z XLR output
- Heavy duty steel box
- Superior quality connectors and transformer
- Recessed connectors and switches to prevent damage
- Ground lift switch to eliminate hum
- Paralleled 1/4-inch output for on-stage monitoring
- Individually tested for performance and quality

- Dimensions (W x H x D): 3 3/4 x 5 x 1 3/4 in.

Connections:
- (1) XLRM- (2) 1/4
- (1) DBT
- (2) Switches
- XLR male panel mount
- Stereo panel mount
- Transformer
- Panel mount switches, 1 for ground lift, 1 for speaker pad
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1 lbs
Shipping Dimensions: 7 x 5 x 3 in
Manufacturer Part Number (MPN): DB-1SL

For support or warranty questions, please contact the manufacturer:
Phone: 800-253-7360
Web: https://www.rapcohorizon.com/contactus
