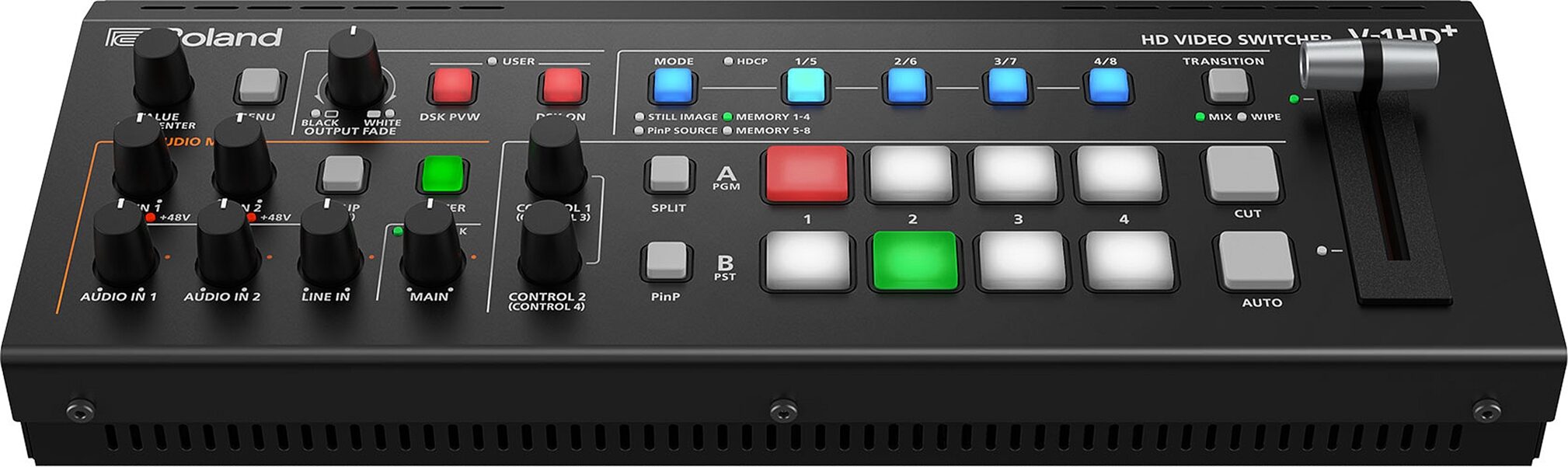

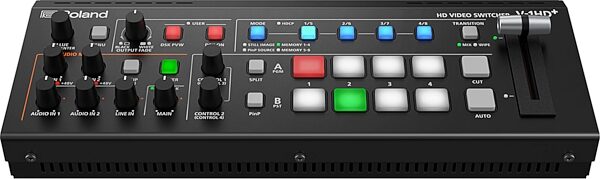

Roland V1HD Plus Video Switcher

Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors:
- INPUT 1--3: HDMI type A x 3
*HDCP Supported
- INPUT 4: HDMI type A
* HDCP Supported
* Multi-format Supported
Output Connectors: OUTPUT 1--2: HDMI type A x 2 * HDCP Supported
Video Effects: Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)
Composition: PinP (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer (Luminance key, Chroma key), DSK (Luminance key, Chroma key)
Other: Flip horizontal, Flip vertical, Still image capture, Still image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
Audio Processing:- Sample rate: 24 bits/48 kHz
Audio formats: Linear PCM, 24 bits/48 kHz, 2 ch
Input Connectors:
- INPUT 1--4: HDMI Type A x 4
- AUDIO IN 1--2: XLR-3-31 type (balanced, phantom power DC 48 V, 14 mA Max)
- LINE IN: RCA phono type
- MIC/AUX IN: Stereo miniature phone type (PLUG-IN power)
Output Connectors:
- OUTPUT 1--3: HDMI Type A x 2
- AUDIO OUT L, R: 1/4-inch TRS phone type
- PHONES: Stereo miniature phone type
Nominal Input Level:
- AUDIO IN 1--2: -60 to +4 dBu (Maximum input level: +24 dBu)
- LINE IN: -10 dBu (Maximum input level: +10 dBu)
- MIC/AUX IN: -51 to -10 dBu (Maximum input level: +10 dBu)
Input Impedance:
- AUDIO IN 1--2: 10 k ohms
- LINE IN: 15 k ohms
- MIC/AUX IN: 10 k ohms
Nominal Output Level:
- AUDIO OUT L, R: +4 dBu (Maximum output level: +24 dBu)
- PHONES: 72 mW + 72 mW (32 ohms load)
Output Impedance:
- AUDIO OUT L, R: 600 ohms
- PHONES: 10 ohms
Audio Effects:
- Delay, High pass filter, De-Esser, Compressor, Noise gate, Equalizer, Limiter, Reverb, Test tone output
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 5.25 lbs
Shipping Dimensions: 17 x 9 x 7 in
Manufacturer Part Number (MPN): V-1HD+
Switcher and Encoder Bundle
Shipping Weight: 5 lbs
Shipping Dimensions: 20 x 11 x 5 in
Manufacturer Part Number (MPN): V-1HD+ STR
