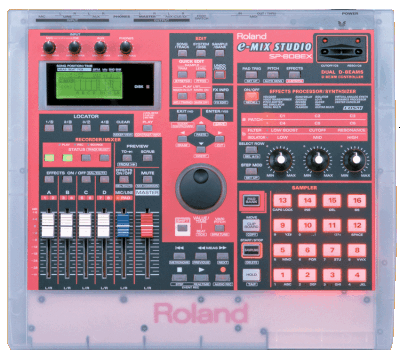

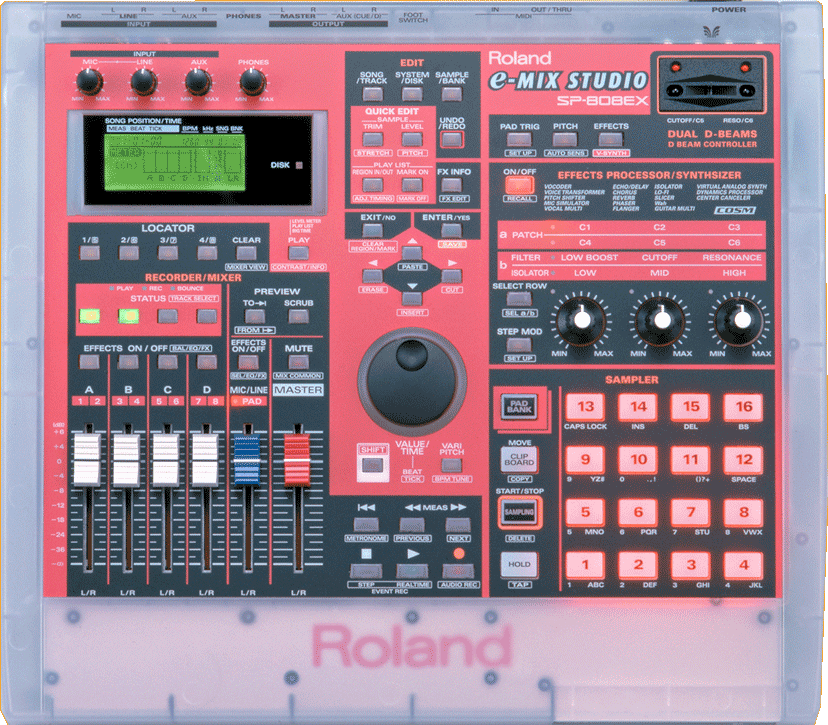

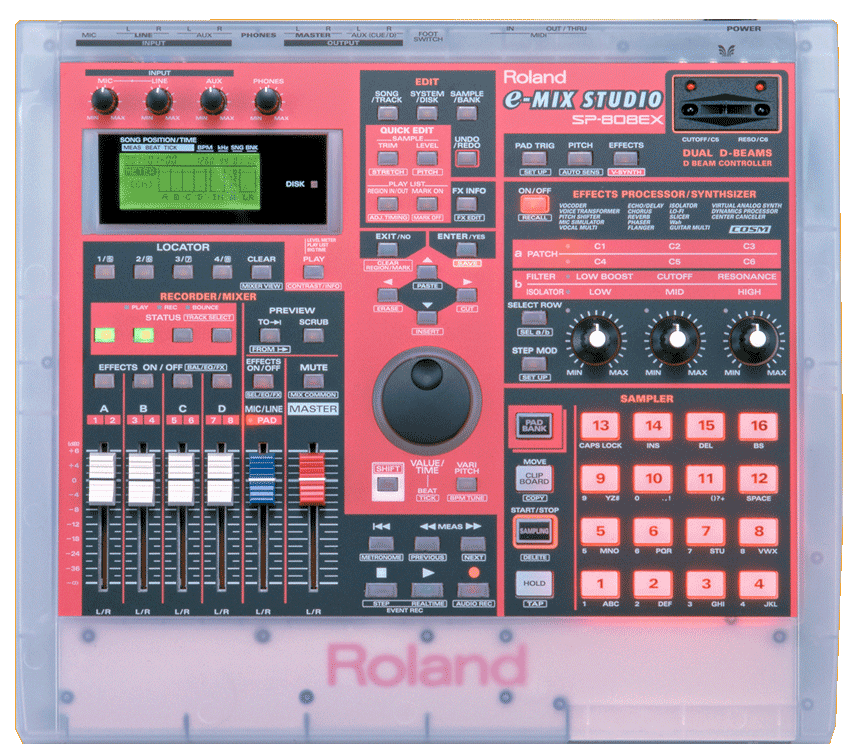

Product DescriptionThe SP808EX combines a sophisticated phrase sampler with a digital multi-track recorder, a comprehensive effects unit, and some trick time-stretching functions into a complete production studio for sampling musicians, remixers, broadcasters, and DJs.
Record onto any of 4 stereo audio tracks. Trigger your samples from the 16 assignable pads; those pads have 64 banks of memory behind them. Put your mic or guitar through the multi-effects unit, or fire up the 10-band Vocoder. Change the timbre, pitch, even gender of your voice with the Voice Transformer, and use the Mic simulator to evoke the tone of many of the world's rarest and most expensive microphones.
There's automatic tempo calculation and timestretch functions to allow you to "tweeze" your samples into beats that might not at first be a proper fit. Use the dual D-beam controllers that use hand movement over infrared light for a unique performance, or unique control.
The SP808EX has a translucent case like that popular computer, very chic, and oh-so-modern!
Remix-oriented phrase sampler/digital multitrack recorder with 4 stereo audio tracks and 16 assignable pads per bank (64 banks total).
Futuristic translucent design.
Larger 250 MB Zip drive for expanded sampling/multi-track recording time.
New vocal and guitar multi-effects, 10-band vocoder, Voice Transformer, and Mic Simulator, plus dozens of DJ-oriented groove effects.
Automatic tempo calculation, resampling, and timestretch functions.
Innovative dual D-Beam* controller for triggering samples or built-in synth via hand movement over infared beam of light.
Three assignable control knobs for tweaking Isolator, filter, or other effect parameters.
Optional SP808-OP1 and -OP2 expansion boards for expanded I/O and SCSI.
zZounds is an authorized dealer of Roland products.
Audio Data Format: SP-808 Original Format (R-DAC)
Maximum Polyphony: Stereo x 4 (Total)
Number of Tracks: Stereo Track x 4
Simultaneous Recordable Tracks: 1 stereo pair of tracks
Sample rate: 44.1 kHz/32.0 kHz (When Vari-Pitch is off.)
Sampling Memory Capacity: Zip disk 250 MB
Sampling (Recording) Time: 122 min. approx. (Sample rate: 44.1 kHz, Mono) 169 min. approx. (Sample rate: 32.0 kHz, Mono) * Varies by Vari-Pitch status and other conditions.
Signal Processing: AD Conversion: 20-bit, 64 times oversampling
DA Conversion: 20-bit, 128 times oversampling, Internal Processing: 24-bit (Digital Mixer section)
Internal Memory System: Setup: 1, Zip disk
Sample Bank: 64
Effect Patch: 149 Presets
Track Recording Method: Event Recording (Realtime, Step), Audio Recording
Phrase Event Memory: Approx. 2000 Phrase Events per song
Channel Equalizer: 3-band Parametric x 5 (Tracks A to D, Input)
MIDI Sync Method: Master: MIDI Clock, MTC & MMC, Slave: MTC & MMC
Frequency Response: 44.1 kHz: 10 Hz to 21 kHz (+0/-3 dB), 32.0 kHz: 10 Hz to 15 kHz (+0/-3 dB)
Nominal Input Level: Mic: -50 to 20 dBu, Line In, AUX In: -10 to +4 dBu
Input Impedance: Line, AUX In: 47 k, Mic: 100 k
Nominal Output Level: AUX Send, Master Out: -10 dBu
Output Impedance: AUX Send, Master Out: 2 ., Headphones: 10 .
Recommended Load Impedance: AUX Send, Master Out: 10 kor greater, Headphones: 4 to 600.
S/N Ratio: AUX Send, Master Out: 92 dB (Line, A/D - D/A, IHF-A, typ.)
Display: 69.0 x 25.0 mm (Backlit LCD)
Connectors: Mic Input (1/4" phone)
Line Input L, R (RCA phono)
AUX Input L, R (RCA phono)
Master Output L, R (RCA phono)
AUX Output L, R (RCA phono)
Headphones (Stereo 1/4" phone)
Footswitch (1/4" phone)
MDI (IN, OUT/THRU)
Power Supply: AC 117/230/240 V
Power Consumption: 21 W
Dimensions (H x W x D): 99 x 394 x 343mm (3-15/16 x 15-9/16 x 13-9/16 in.)
Weight: 4.3 kg (9 lbs. 8 oz.) (excluding SP808-OP1/-OP2)
If you have additional warranty questions, please contact the manufacturer at 323-890-3700
