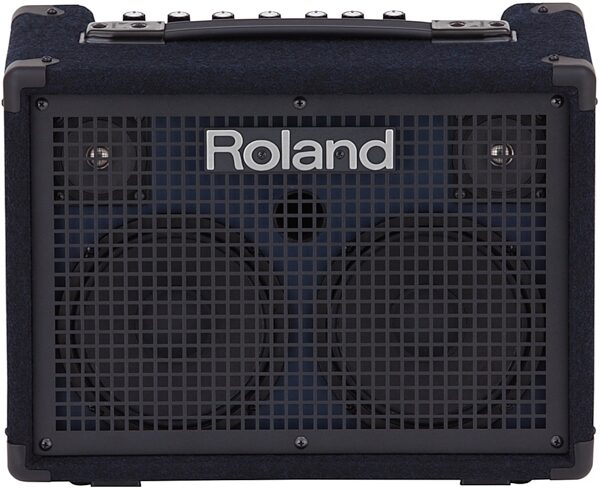

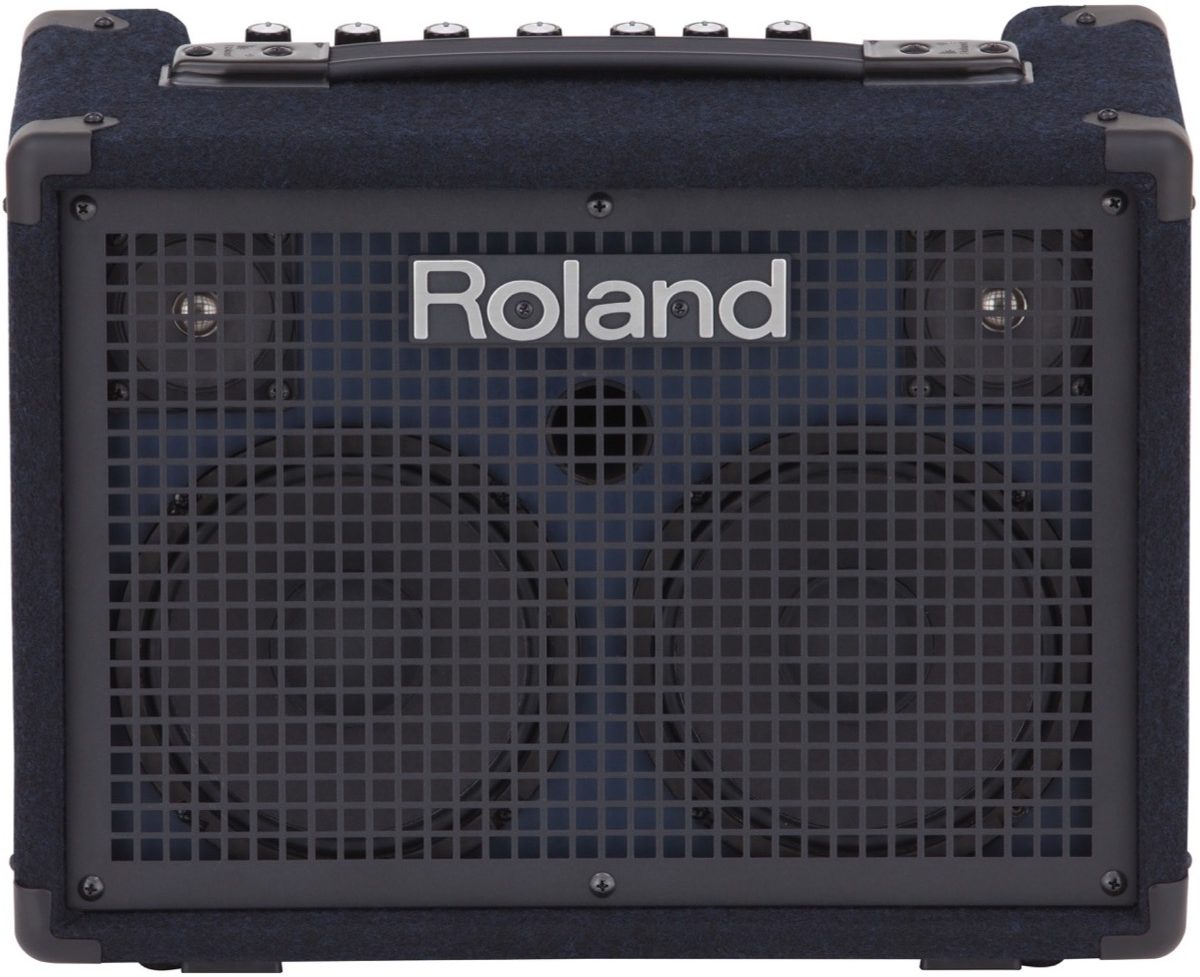

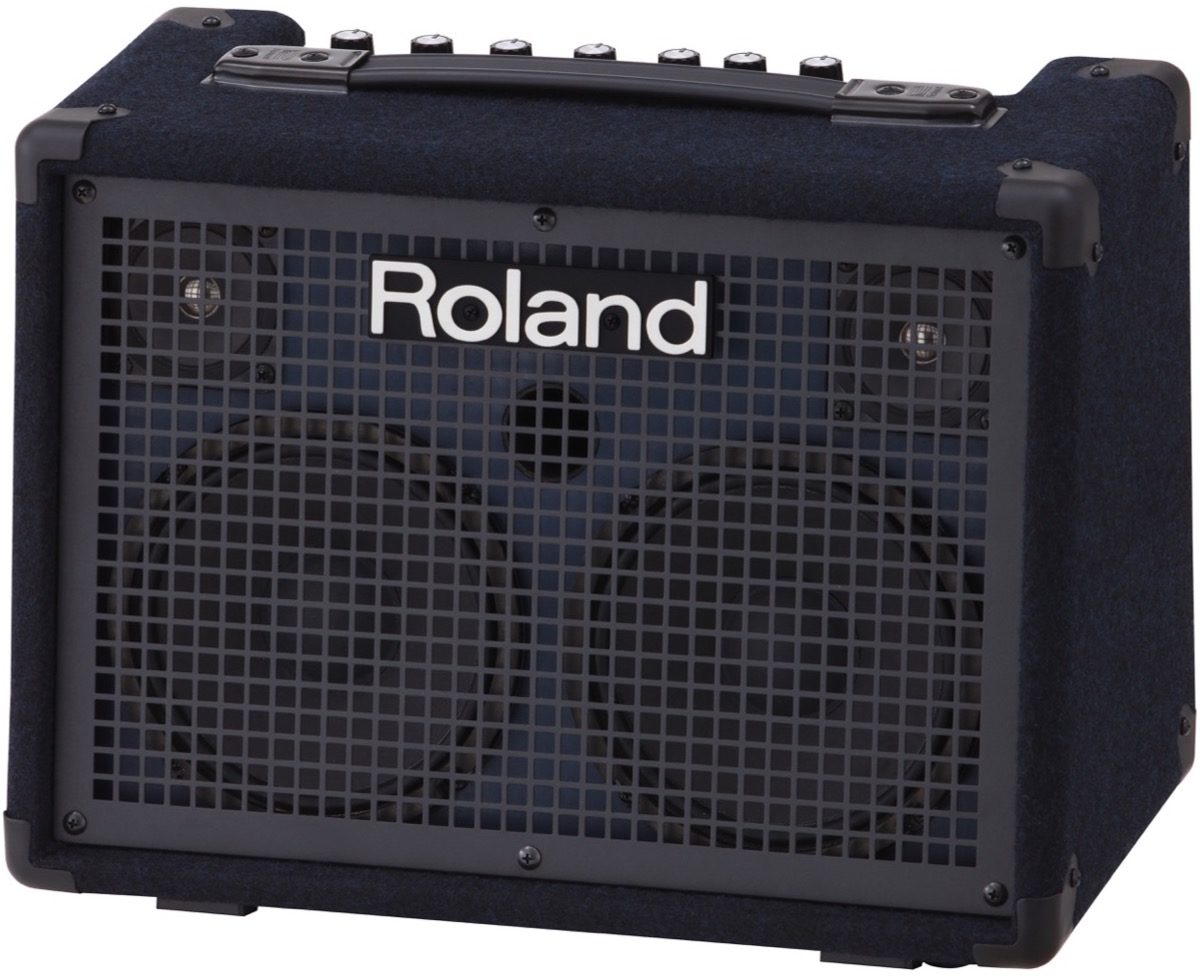

Roland KC-220 Battery-Powered Stereo Keyboard Amplifier

No outlet? No problem. This stereo keyboard amp can run on 8 AA batteries! Plug into two pairs of stereo 1/4" inputs and XLR mic input, plus a stereo aux in.
Offering full-range stereo sound and battery-powered operation, the three-channel Roland KC-220 is the ultimate mobile keyboard amp. It also excels as a mini PA, thanks to its built-in DSP effects, dedicated auxiliary input, and support for an XLR vocal mic. Delivering big sound in a super-portable package, the KC-220 is a must-have amp for rehearsals, street performances, and gigging on the go.

Roland KC Amp History

For over two decades, keyboard players everywhere have relied on Roland's KC amps for their powerful high-fidelity sound, onboard mixing features, versatile connectivity, and lasting durability. With a KC amp by your side, you're in complete control of your stage rig, so you'll always sound great and play your best. And that's worth it every time.

Features:

- Battery-powered stereo keyboard amplifier
- Highly efficient power section with 30 watts of power (15 watts x 2)
- Two custom 6.5-inch woofers and two custom tweeters
- Onboard mixing with three 1/4-inch input channels, dedicated auxiliary input with 1/8-inch and RCA jacks, and master EQ
- Built-in DSP effects: reverb and two chorus types
- XLR mic input, mono/stereo line output, and headphones output
- Metal jacks for increased durability
- Runs on eight AA batteries or included AC adapter; removable cartridge for easy battery replacement
- Built-in tilt-back stand and integrated mount for optional ST-A95 speaker stand

Full-Range Sound for Keyboards and Electronic Musical Instruments

read more The KC-220 delivers full-range stereo sound with 30 watts of power (15 watts x 2), two 6.5-inch speakers, and two custom tweeters. The compact cabinet features Roland's patented twin bass-reflex design, which provides extended low-frequency response without distortion. Paired with an advanced power section optimized for efficient battery operation, the KC-220 smoothly reproduces the wide frequency range of 88-note stage pianos, organs, and synthesizers, as well as rhythm machines and other electronic instruments.

Onboard 3+1 Mixing

Compact and convenient, the KC-220 is a complete stereo mixing system that travels everywhere you need to play. Three 1/4-inch line input channels support keyboards, drum machines, and various electronic instruments, and Channel 1 also includes an XLR input for using a vocal mic. There's a dedicated aux channel as well, with 1/8-inch and RCA inputs for connecting smartphones, music players, and other devices.

Stereo Effects and EQ

It's easy to enhance your sound with the KC-220's high-quality DSP effects. Normal and wide stereo chorus effects are provided, plus a lush stereo reverb for vocals and instruments. And for hands-free operation on stage, effects on/off can be controlled with an optional footswitch. The KC-220 also includes high and low EQ for shaping the overall sound to suit the venue.

Versatile Connectivity

The KC-220 is equipped with mono/stereo line outputs, allowing you to interface with PA systems, stage monitors, or recording devices. Plugging into the Phones jack mutes the onboard speakers, perfect for private practice sessions and checking sounds on stage with headphones.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less
Roland KC-220: BATTERY POWERED STEREO KEYBOARD AMPLIFIER

Rated Power Output:
- 30 W (15 W + 15 W) (when using the AC adaptor)
- 20 W (10 W + 10 W) (when using the Alkaline batteries)

Nominal Input Level (1kHz):
- CH1 (BALANCED, MIC/LINE): -50- -20 dBu
- CH2 (LINE): -20 dBu
- CH3 (LINE): -20 dBu
- AUX IN (L, R, STEREO): -10 dBu

Nominal Output Level: (1 kHz)
LINE OUT: +4 dBu

Speakers:
- 16 cm (6.5 inches) x 2
- Tweeter x 2

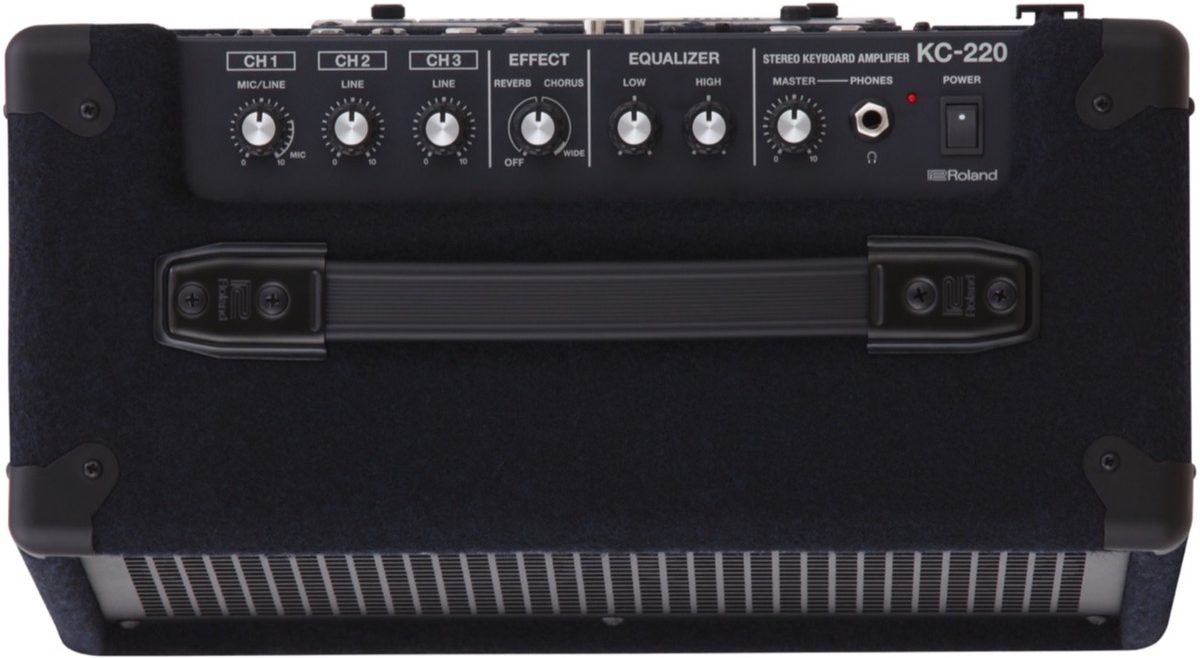

Controls:
- POWER switch

[CH1]: MIC/LINE knob
[CH2]: LINE knob
[CH3]: LINE knob

[EFFECT]: EFFECT knob
[EQUALIZER]: LOW knob, HIGH knob, MASTER knob
[AUX IN]: LEVEL knob
Indicator: Power

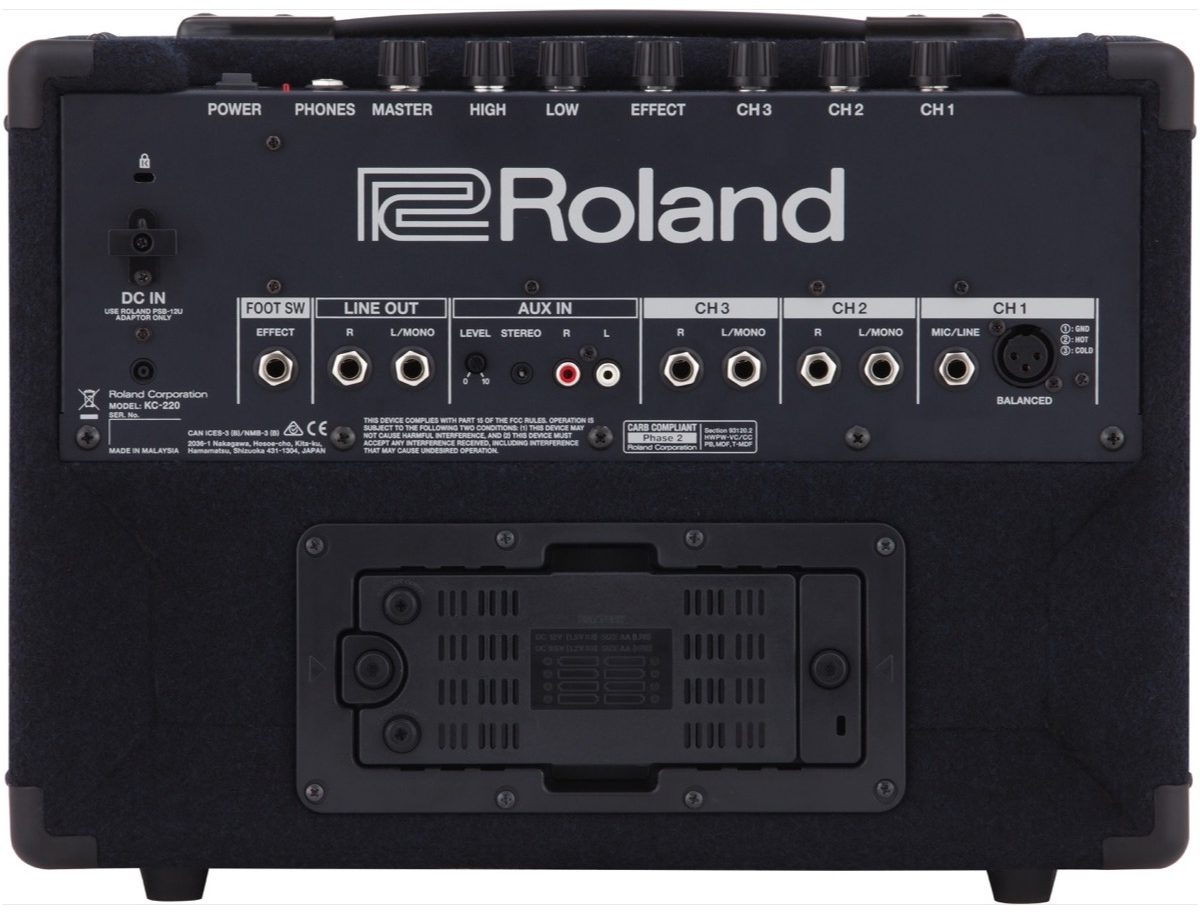

Connectors:
- CH1 (BALANCED) jack: XLR type
- CH1 (MIC/LINE) jack: 1/4-inch phone type
- CH2 (L/MONO, R) jack: 1/4-inch phone type
- CH3 (L/MONO, R) jack: 1/4-inch phone type
- AUX IN (L, R) jacks: RCA phono type
- AUX IN (STEREO) jack: Stereo miniature phone type

LINE OUT (L/MONO, R) jack: 1/4-inch phone type
PHONES jack: Stereo 1/4-inch phone type
FOOT SW jack: 1/4-inch phone type
- DC IN jack

Current Draw: 550 mA
Expected battery life under continuous use: Alkaline battery: Approximately 7 hours
Rechargeable Ni-MH battery: Approximately 8 hours
* This can vary depending on the capacity of the batteries and the conditions of use.

Dimensions: 420 (W) x 244 (D) x 320 (H) mm / 16-9/16 (W) x 9-5/8 (D) x 12-5/8 (H) inches
Weight (excluding batteries): 7.3 kg, 16 lbs 2 oz
Accessories: Owner's Manual, AC Adaptor, AC Cord
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 21 lbs
Shipping Dimensions: 21 x 15 x 13 in
Manufacturer Part Number (MPN): ROL KC220
Blemished
Shipping Weight: 21 lbs
Shipping Dimensions: 21 x 15 x 13 in
Manufacturer Part Number (MPN): MBP ROLKC220
If you have additional warranty questions, please contact the manufacturer at 323-890-3700
(2 ratings)
Submitted March 13, 2018 by Jim E in Steamboat Springs, CO
"Works well for intended use"
Verified Customer zZounds has verified that this reviewer made a purchase from us.
Very nice little amp. I got it for home practice and weddings where I have to play out in the middle of a field with no AC, as this amp can run on batteries which it does well. It’s stereo, and sounds pretty darn good for how small it is. Pianos and organs sound plenty full. The Chorus and reverb are usable. I play in a cover band and this amp would never work as a stage monitor- it’s not loud enough, but perfect for other use like small duo type venues. I'll probably see if I can come up with a gig bag for it. Overall very pleased. And it’s cute!
Musical Background:
Former pro - weekend warrior
Musical Style:
Wedding band and classic rock cover band
15 of 15 people (100%) people found this review helpful. Did you?
