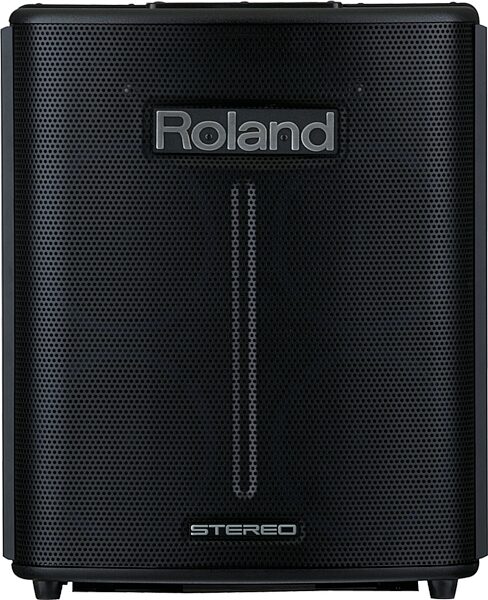

Roland BA-330 Stereo Portable Amplifier

Portable yet powerful, the Roland BA330 can run on either AC power or AA batteries -- plus it features custom-designed speakers for wide stereo sound.

Whether battery powered or plugged in, the BA-330 delivers high-performance sound that defies its size. Its digital stereo amplifier drives four 6.5-inch stereo speakers and two tweeters, positioned for wide stereo projection. It's the ideal, all-in-one portable PA solution for small music venues, worship events, conferences, seminars, business meetings, and much more.

Features:

- All-in-one portable digital PA system suitable for use anywhere
- Powerful high-quality stereo sound for audiences of up to 80 people
- No setup required, just plug in and go!

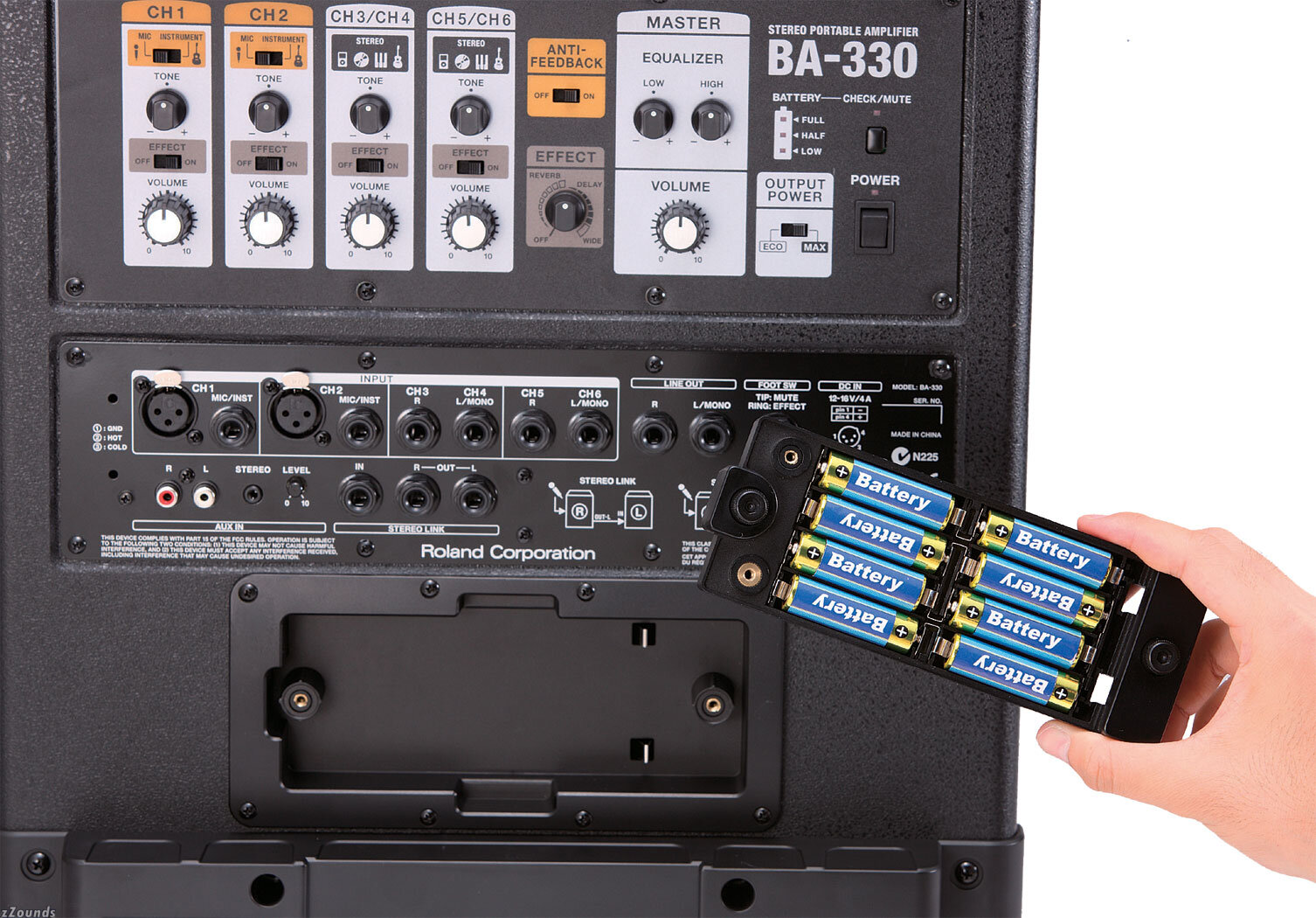

- Powered by AC power or eight AA batteries
- Four custom-designed 6.5 in. speakers and two tweeters for wide stereo projection
- Built-in effects: EQ, reverb, delay, and wide (on/off per channel)
- Four-channel configuration: two channels for mic/instruments plus two channels for stereo inputs

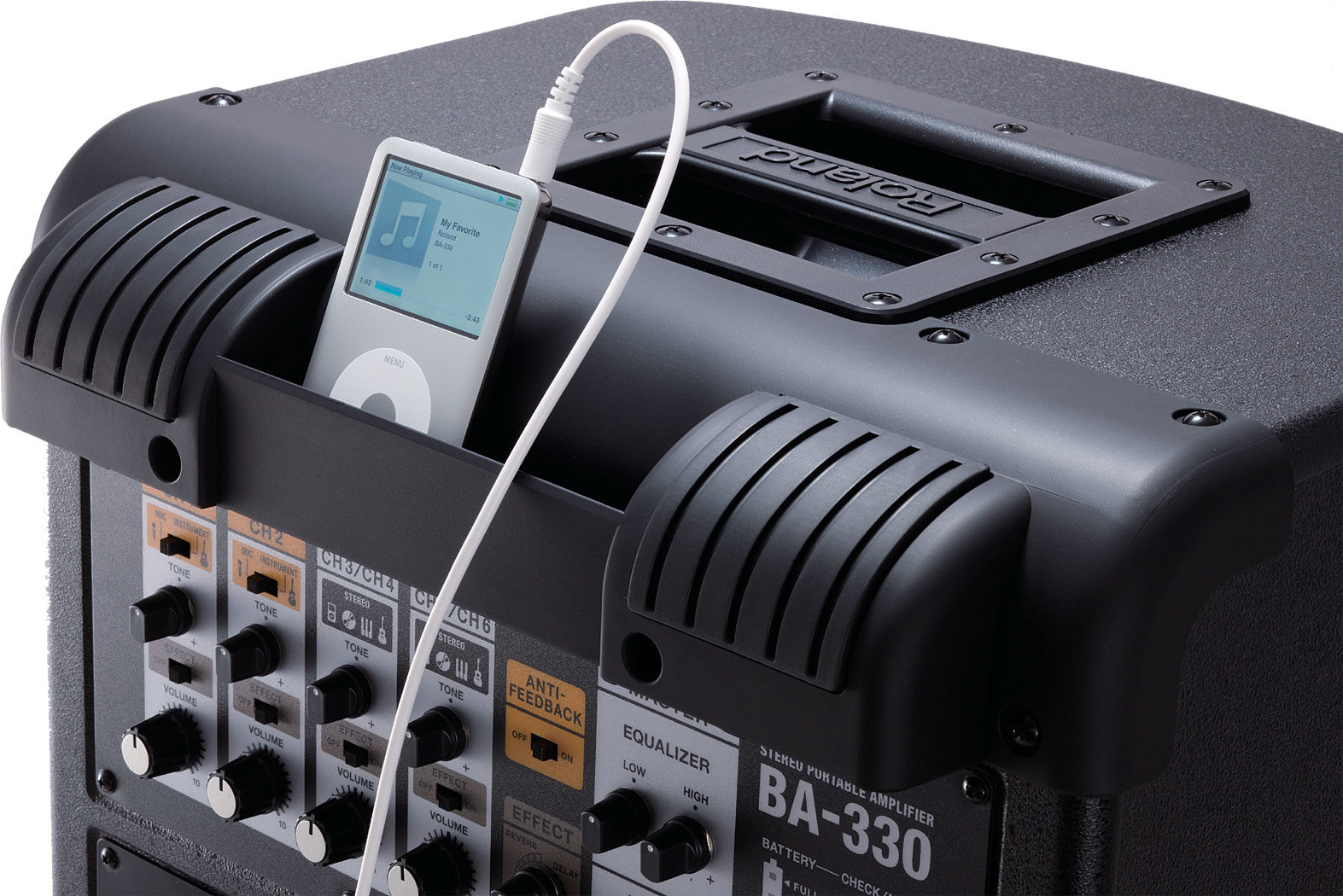

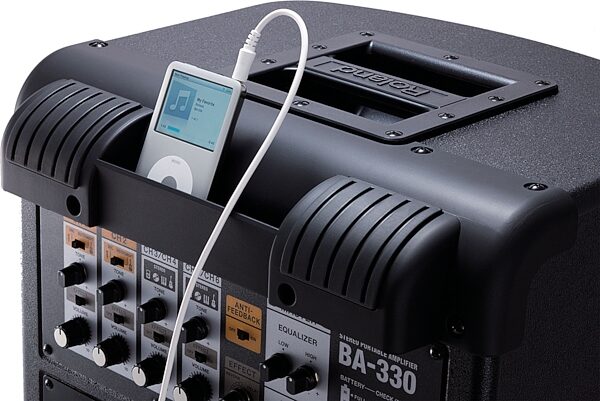

- Stereo Aux input with dedicated volume-control knob
- Advanced Intelligent Anti-Feedback function

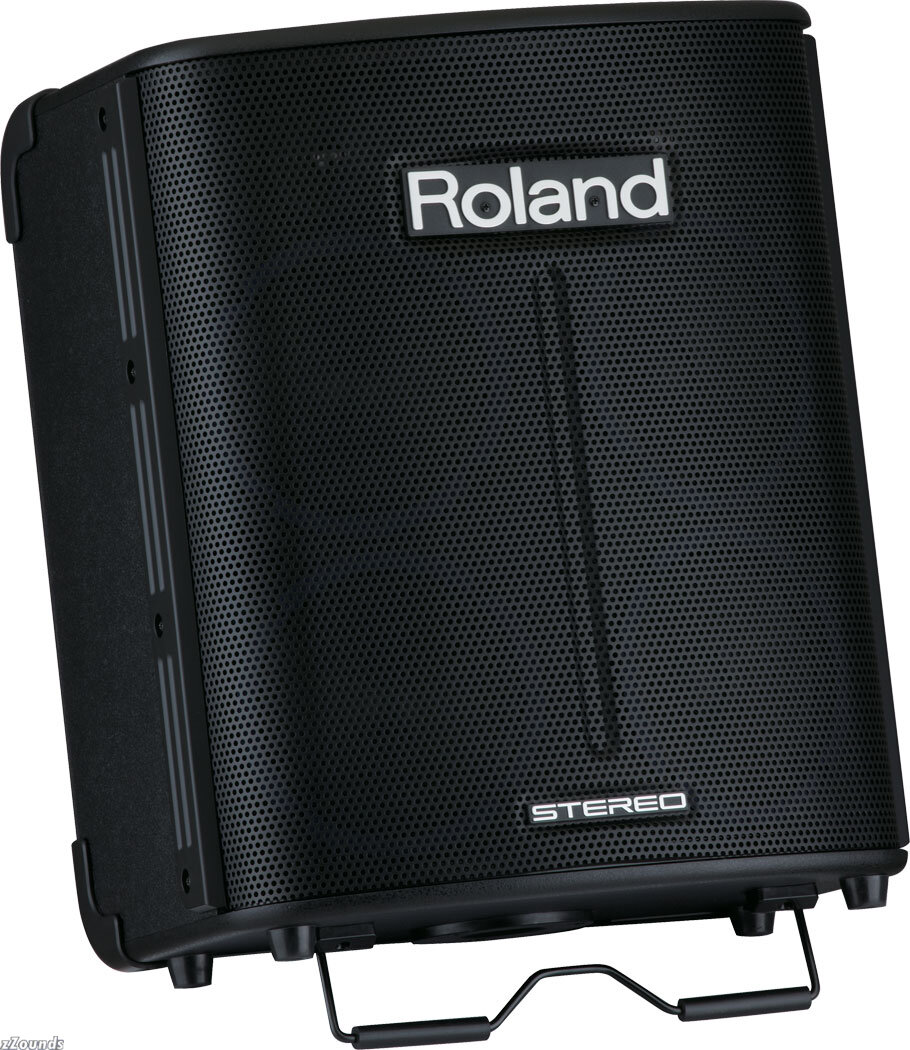

- Built-in tilt-back stand enables optimal monitoring angle

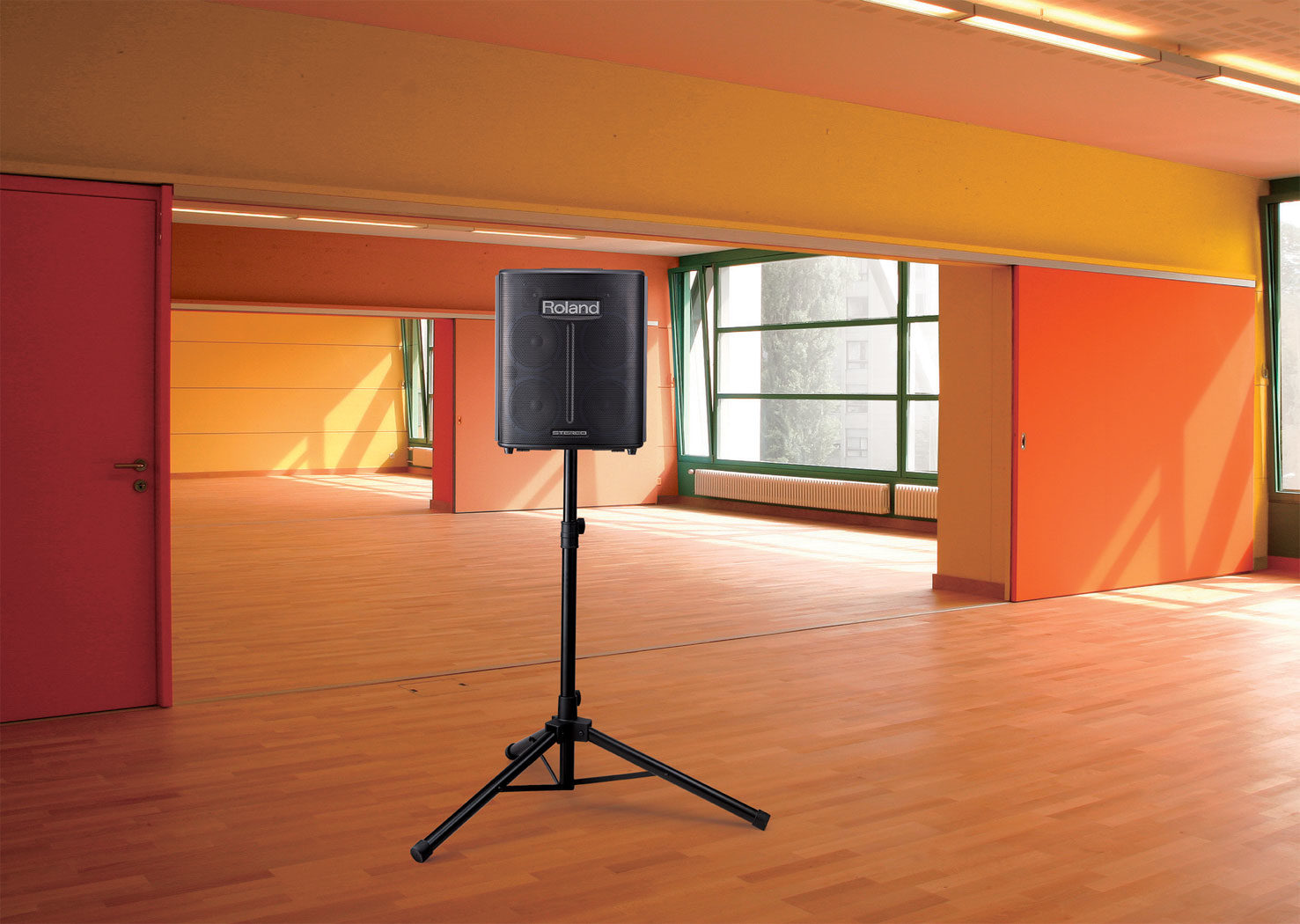

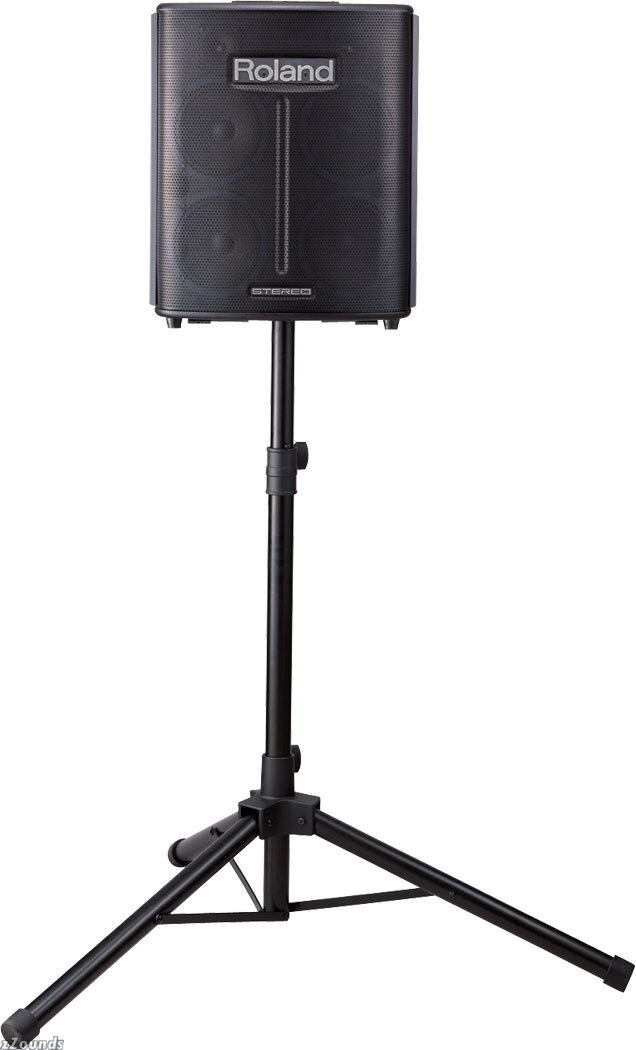

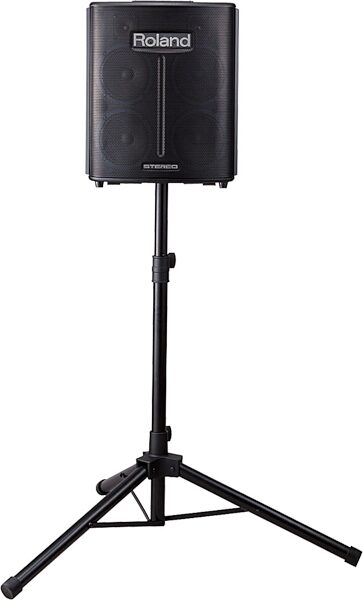

- Speaker-stand adaptor for mounting on a standard speaker stand

Advanced Anti-Feedback

If you've ever encountered embarrassing feedback onstage, you'll be pleased to know that the BA-330 is equipped with Roland's advanced Anti-Feedback technology. With a simple switch, the BA-330 automatically detects the howling point and eliminates feedback.

Onboard FX

Three high-quality effects are built-into the BA-330: Reverb, Delay, and Wide. The effects can be turned on/off read more independently for each channel. In addition, a master 2-band EQ is provided as well as EQ control for each channel.

Versatile Input

A wide range of instruments, microphones, and devices can be plugged into the BA-330 simultaneously. Two mono channels are provided for microphones or line-level instruments (XLR and 1/4" jacks), two stereo channels are provided for stereo instruments (1/4" L/R jacks), and a stereo Aux input channel is provided for CD players and other devices (RCA and TRS jacks).

Stereo Link

The BA-330's Stereo Link jack lets you cascade two units, giving you twice as many channels and the ability to position the two units on opposing sides of the stage.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less

Speakers: 16 cm (6.5 inches) x 4, Tweeter x 2

Input/Output Level:
- Nominal Input Level (1 kHz): CH 1, CH 2 MIC: -50 dBu, CH 1,CH 2 INST: -20 dBu, CH 3/CH 4, CH 5/CH 6: -20 dBu, AUX IN: -10 dBu, STEREO LINK IN: -10 dBu
Nominal Output Level (1 kHz): LINE OUT: -10 dBu, STEREO LINK OUT: -10 dBu

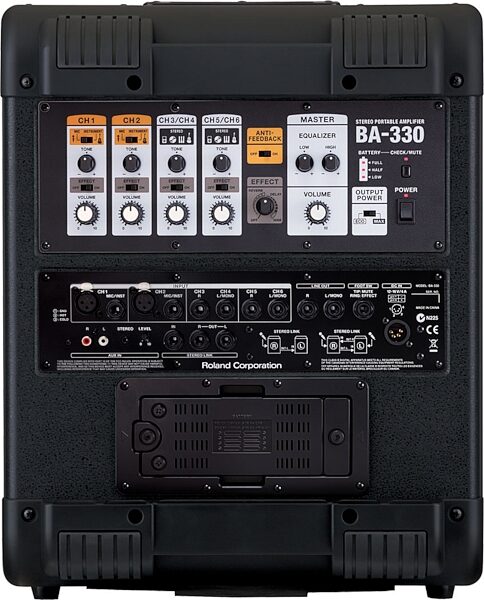

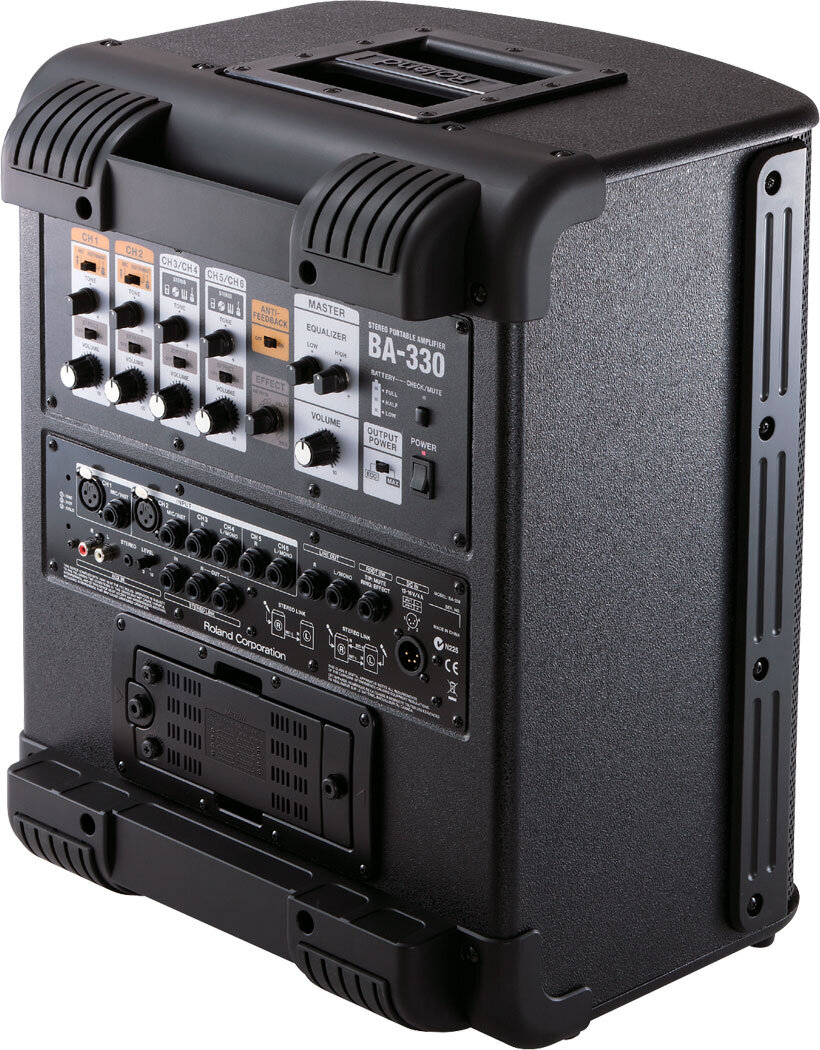

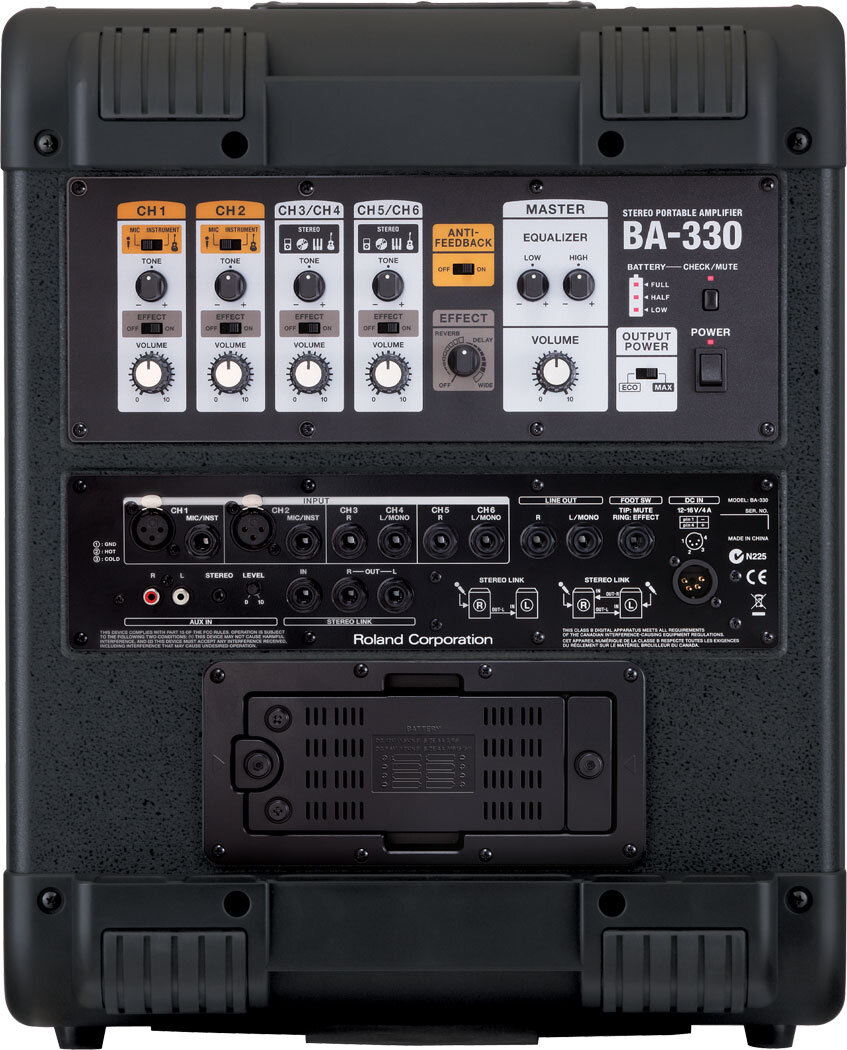

Controls:
- POWER Switch
- Channel Controls: CH1,CH2: MIC/INSTRUMENT Switch, EFFECT Switch, TONE Knob, VOLUME Knob, CH3/CH4, CH5/CH6: EFFECT Switch, TONE Knob, VOLUME Knob
Master Controls: Equalizer (LOW Knob, HIGH Knob), VOLUME Knob, ANTI FEEDBACK Switch, EFFECT Knob, BATTERY CHECK/MUTE Switch, OUTPUT POWER Switch
AUX IN Control: LEVEL Knob

Indicators:
- BATTERY
- BATTERY CHECK/MUTE
- POWER

Connectors:
- CH 1, CH 2: Input Jacks (XLR type, 1/4" TRS phone type)
- CH 3/CH 4, CH 5/CH 6: Input Jack L/MONO (1/4" phone type), Input Jack R (1/4" phone type)
- AUX IN: Input Jacks (Stereo miniature phone type, RCA phono type)
- Output: LINE OUT Jack L/MONO (1/4" phone type), LINE OUT Jack R (1/4" phone type)
STEREO LINK: STEREO LINK OUT Jacks L/MONO, R (1/4" phone type), STEREO LINK IN Jack (1/4" phone type)
- FOOT SWITCH: FOOT SWITCH Jack (1/4" phone type)
DC IN: DC IN Jack

Power Supply:
- DC 12 V
- Dry battery LR6 (AA) type (alkaline) x 8,
- Rechargeable battery HR6 (AA) type (nickel metal hydride) x 8, or AC Adaptor
- Current Draw" 410 mA

Expected battery life under continuous use:
- Alkaline: approx. 8 hours (MAX), approx. 12 hours (ECO)
- Nickel-metal hydride: approx. 10 hours (MAX), approx. 15 hours (ECO)
- These figures will vary depending on the actual conditions of use

Accessories Included:
- AC Cord
- AC Adaptor
- Owner's Manual

Optional Accessories:
- Carrying Bag (CB-BA330)
- Speaker Stand (ST-A95)
- Foot Switch: BOSS FS-5L (MUTE)
- BOSS FS-5U (EFFECT)
- BOSS FS-6
- Connection Cable: PCS-31, PCS-33

Size and Weight:
- Width: 16-3/8 inches (415 mm)
- Depth: 12-3/4 inches (323 mm)
- Height: 20-1/16 inches (509 mm)
- Weight: 30 lbs. 7 oz. (13.8 kg)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 47.75 lbs
Shipping Dimensions: 26 x 20 x 18 in
Manufacturer Part Number (MPN): BA-330

For support or warranty questions, please contact the manufacturer:
Phone: 323-890-3700

Reviewers gave this product an overall rating of 5 out of 5 stars. (14 ratings)
Submitted October 7, 2011 by a customer from COMCAST.NET
"The Company who cares about the consumer and makes Quality amps."
Overall: 5 out of 5 stars
Verified Customer zZounds has verified that this reviewer made a purchase from us.
This is the pa system for anyone out there buy it and try it you will be happy you did thanks Roland for a great Pa Sytem.
Sound
This little amp is a supprise the sound is that of a amp 3 times the size for a show setting. I have now bought a secound so that i can spread the sound to stero and for larger shows this is a amp for just about any size show and a great reinforemate sytem.
Features
with 2 of these i will have more then i will need as far as inputs for everything are small 4 piece band need any club inside or out we can be heard with no problem. If we ever play Grand park down town i may need 2 or 4 more to cover the park but as for local shows inside or out this is a great system with just 2 cabs.
Ease of Use
Plung and play what else can you say
Quality
Built to last and a solid amp not to heavy just right for a 50 plus guitar player.
Value
Worth twice as much if not more in my eyes the companys now dont seem o care about quaility ut roland and boss do.
Manufacturer Support
Had one question about set up and Roland responded within 24 hours with good future advice and sold me on the second one with there answeres and knoledge.
The Wow Factor
Nice black looks pro like and is a pro system.
Musical Background:
Active Musician
Musical Style:
Rock, Blues, Pop. Guitar And Bass
32 of 33 people (97%) people found this review helpful. Did you?
Thanks for your opinion!
