Rob Papen Blade Software Synthesizer

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for Rob Papen Blade Software Synthesizer, Main

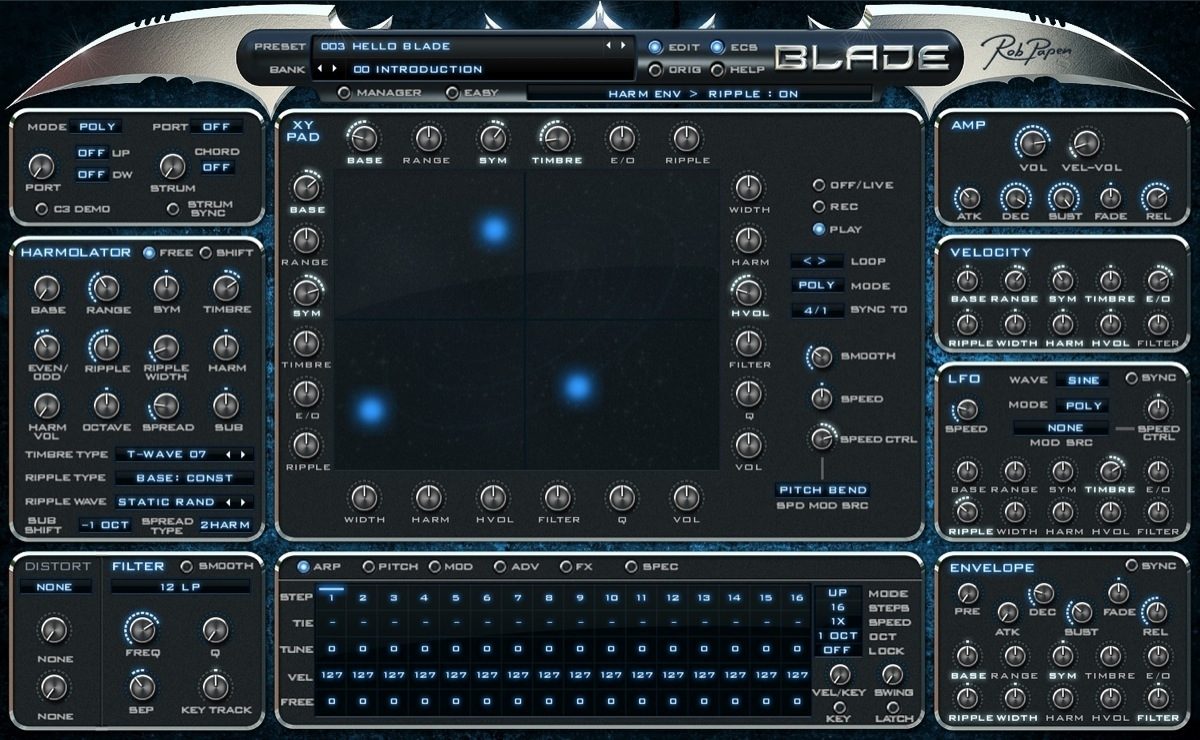

Rob Papen Blade Software Synthesizer, Main
zZounds Gear Experts Say...
Sharpen your production chops with Blade. Built around Rob Papen's Harmolator, this software synth gives you a slick X/Y controller and a sick arpeggiator.

The initial idea for Rob Papen Blade was born out of the want to have more "human input" into the sound. The classic synthesizer parts for modulation are LFOs and Envelopes. The "human input" is the keyboard we play and controllers like pitch bend or modulation wheel. A XY pad is perfect for the human input, but it controls only the filter and volume. We found this to be too limited. We wanted also to control the 'harmonics' of the oscillator changing the waveform using the XY pad.

Harmolator Oscillator System

At the heart of BLADE lies the Harmolator. This special oscillator system uses 9 global controls which change the harmonic content (partials) of the waveform.

The Harmolator allows oscillator spreading, fattening the sound and also square/sine wave sub-oscillator. What's more, the sound can be modified further by the 21 per-voice distortions types and 14 filter types. Blade offers total control of the sound over time using an array of different modulation controls.

Central XY Controller

The most significant feature of Blade is the central XY screen. Here you can either alter things directly by moving the cursor around, or you can record paths which can be replayed. The recorded path can be looped, bi-directional looped and tempo based as well. Even the speed of the XY recording can be modulated for dynamic changes!

So the XY pad is also an incredibly advanced "human input" modulation source. Furthermore, Blade has the full range of other modulation… read more sources, including a dedicated envelope, LFO and velocity as modulation source for Harmolator controls.

Rob Papen Effects

Two FX units featuring all the FX from other Rob Papen products, plus the Arp/Sequencer and an Easy page which allows you to easily control sounds, all add up to an amazingly flexible and useful instrument at the cutting edge of today's synthesizers. read less

- 16 voices, operating in poly, mono 1/2, legato 1/2 and arp modes.
- Harmolator Oscillator with 9 controls, harmolator wave settings, two types of spread functions and extended sub-oscillator.
- 21 Distortion Units operating per voice (ahead of filter).
- 14 Filter Types including 6/12/18/24 low/high pass, 12/24 band pass / notch, vocal & comb filter.
- Filter separation function for unique filter stereo soundAmp section with Volume, Velocity and Envelope control.
- XP Pad with 12 amount controls for each X and Y, which can modulate the 9 Harmolator parameters, Filter Cutoff, Filter Q and Volume.
- XY Pad which can operating either directly or with recorded paths, in poly, mono or free modes.
- XY Pad playback can be tempo synced, with different tempo settings, and with loop & bi-directional loop options.
- XY Pad movement speed control.
- XY editing options at right mouse menu
- Dedicated Harmolator velocity, LFO and envelope controls.
- Pitch LFO and Pitch Envelope, 2 Free Harmolator control sources, 2 Free Envelopes, 2 Free LFOs and 4 modulation sources.
- All of Blade's controls can be used as modulation destinations, and there are a full range of modulation sources including midi controls and internal controls.
- 2 FX units with 27 effects, including distortion, reverb and tape delay plus many more.
- 16 Step Arpeggiator with each step having its own pitch, velocity and free amount, which can also be used as a sequencer for modulation purposes.
- Easy Page allows control of the main parameters in a flexible and easy way.
- Preset handling with copy, paste, clear and compare function.
- 'Quick Browser', 'Recently Browsed' and 'Favorite' functions.
- Preset Manager screen allows you to easily find and organize presets and banks.
- Full midi control over all parameters included the X/Y Pad.
- PC: 32 & 64 bits VST and RTAS for Windows XP / Vista / Windows 7
- Mac: 32 & 64 bits AU and VST and 32 bit RTAS for OSX 10.5 or higher
- Mac: AAX for OSX 10,5 of higher very soon
- Mac: 32 bit AU, VST & RTAS for OSX 10.4 (Tiger)
- Serial/license system, 2nd serial for 2nd computer/laptop are available after you have registering the product's original serial/license.

System Requirements

- PC: 32 & 64 bits VST for Windows XP / Vista / Windows 7 / Windows 8
- Mac: 32 & 64 bits AU and VST and 32 bit AAX, RTAS for OSX 10.5 or higher
- Mac: AAX for OSX 10.5 or higher
- Mac: 32 bit AU, VST & RTAS for OSX 10.4 (Tiger)
- Serial/license system, 2nd serial for 2nd computer/laptop are available after you have registering the product's original serial/license.
