Red Panda Bit Mixer 3-Channel Pedalboard Mixer

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

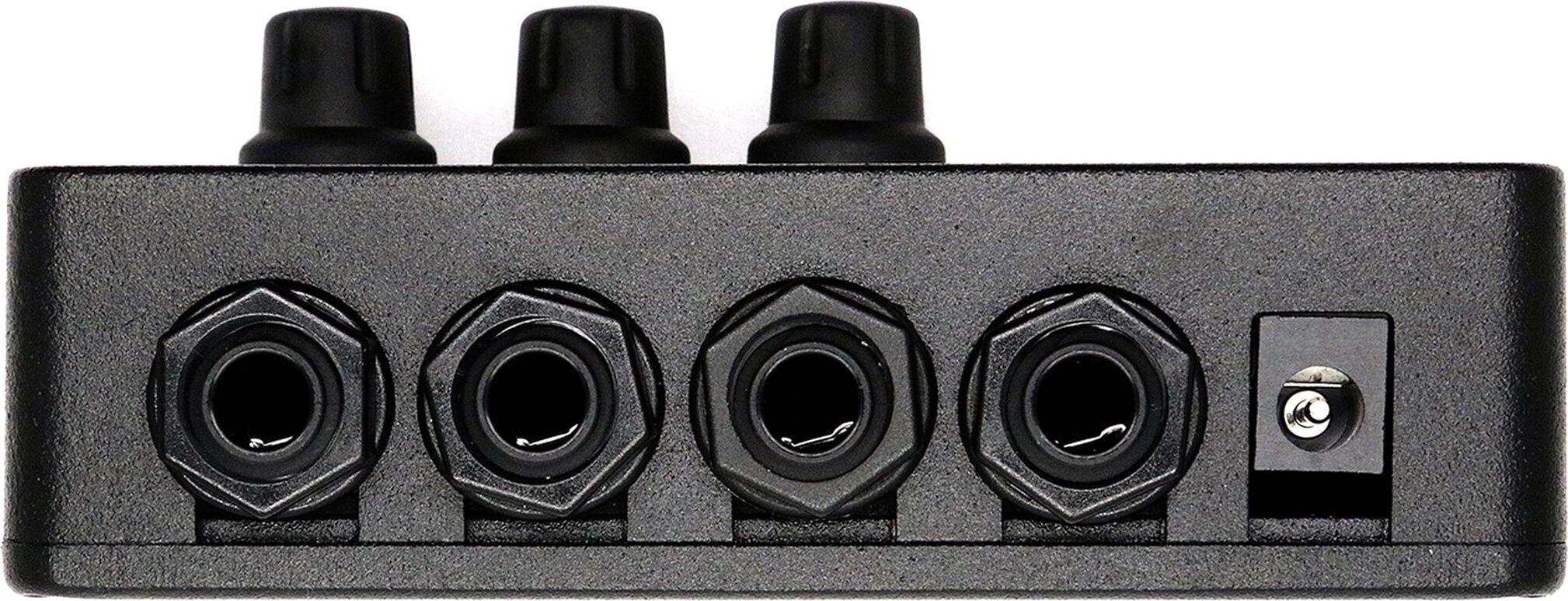

open zoom image for Red Panda Bit Mixer 3-Channel Pedalboard Mixer, Action Position Back
open zoom image for Red Panda Bit Mixer 3-Channel Pedalboard Mixer, Action Position Back
Red Panda Bit Mixer 3-Channel Pedalboard Mixer, Action Position Back Red Panda Bit Mixer 3-Channel Pedalboard Mixer, Action Position Back
zZounds Gear Experts Say...
Connect and combine your guitar pedals for sonic experimentation and parallel effects chains with the Red Panda Bit Mixer 3-channel mixing pedal.

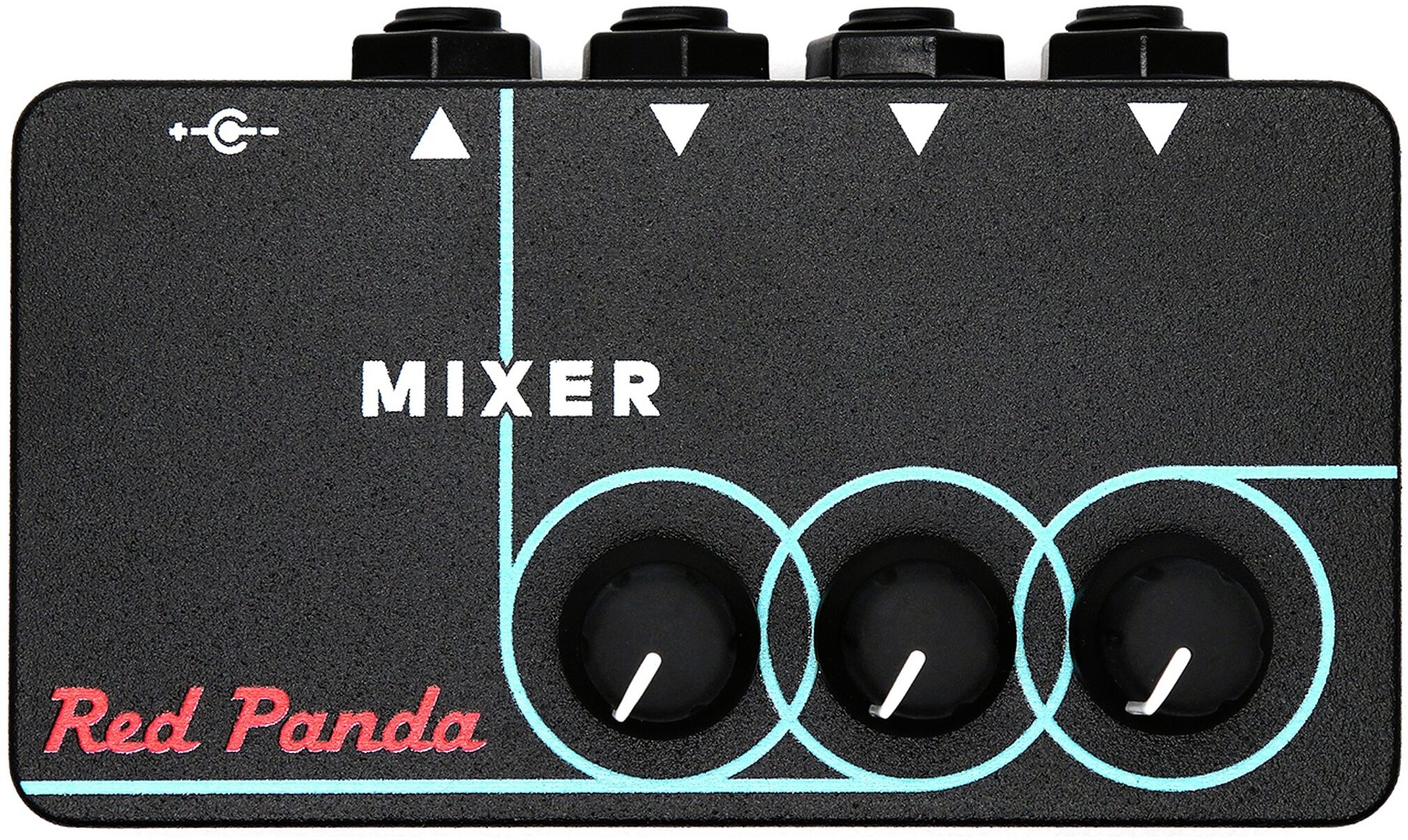

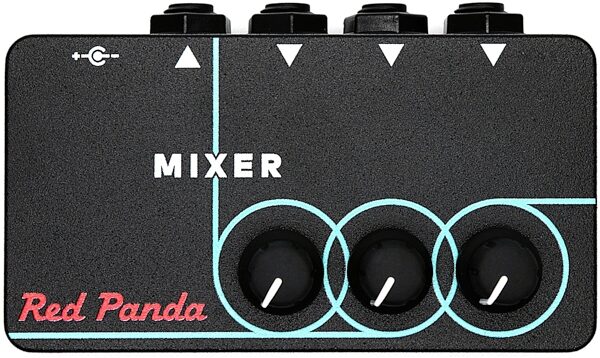

The Red Panda Bit Mixer is a small, high-quality mixer designed for pedalboards. It features ultra-low distortion, low noise op amps. High-impedance inputs are designed for guitar, but work with line level signals as well. Each input has a volume knob that goes from off to unity gain. Only 4.4" x 2.6", the Red Panda Bit Mixer works with standard pedal power supplies from 9-18 V. Designed and assembled in USA.

The Bit Mixer is always on when power is connected. An internal LED is visible below the power jack.

Features:

- Connect multiple instruments to one amp
- Combine parallel effects chains
- Clean blend or analog dry path

- Size: 4.4" x 2.6" x 1.5"
- Input impedance: 1 MO
- Output impedance: < 1 kO
- Frequency response ( 3 dB): 20 Hz - 40 kHz
- Signal-to-noise ratio: 90 dB
- Power: 9-18 VDC, center negative
- Current: 40 mA
