RCF SUB18-AX Active Subwoofer

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

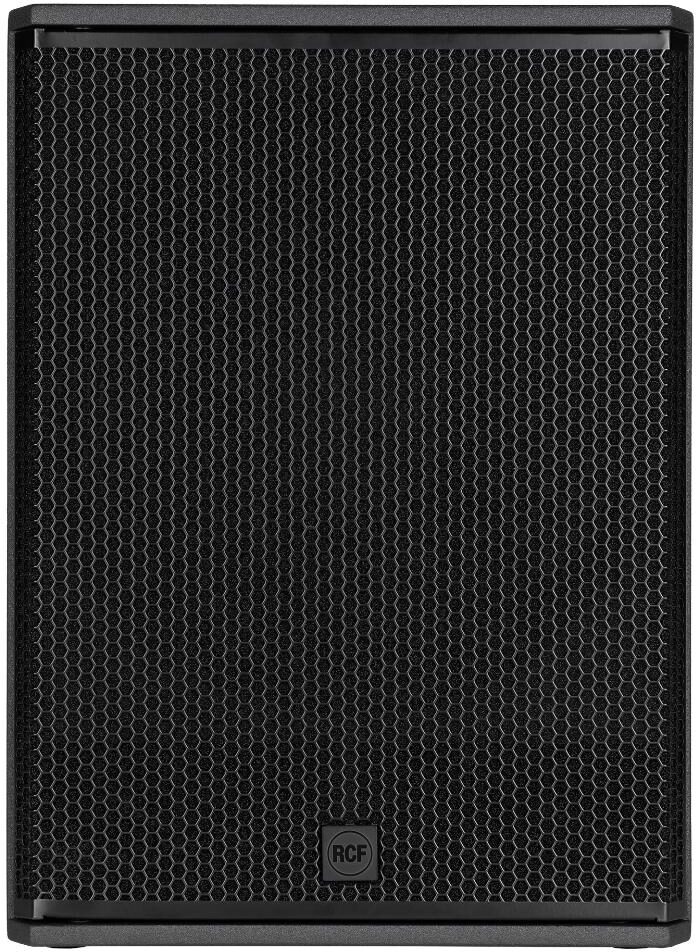

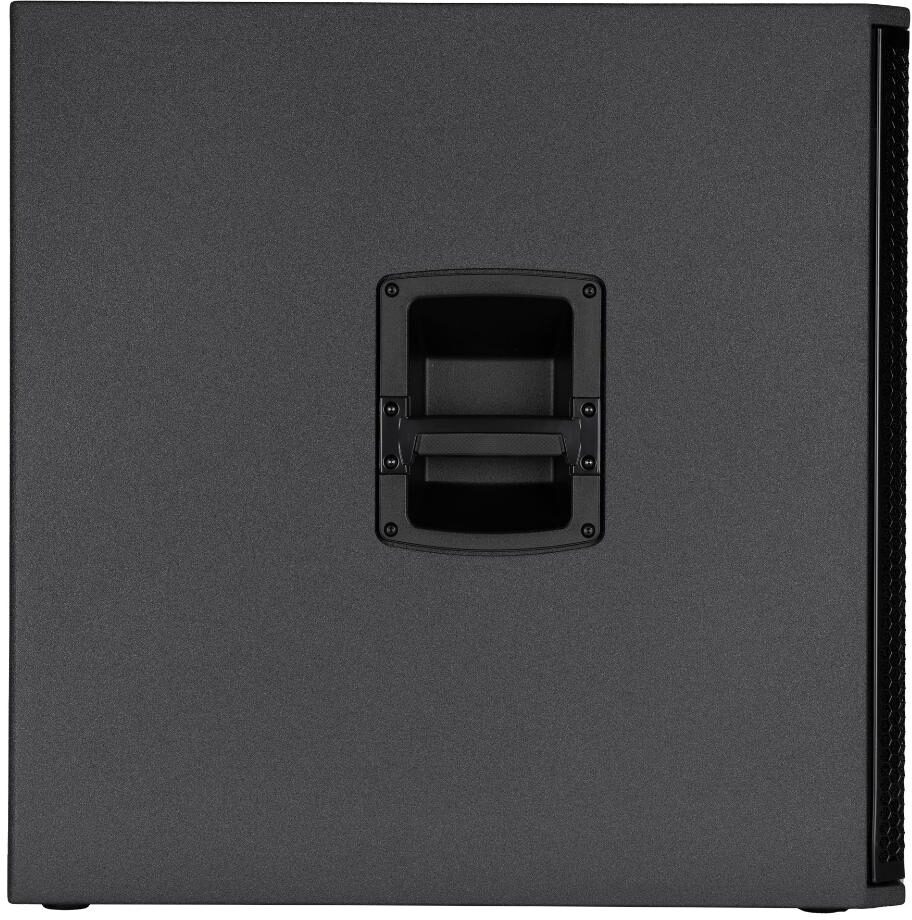

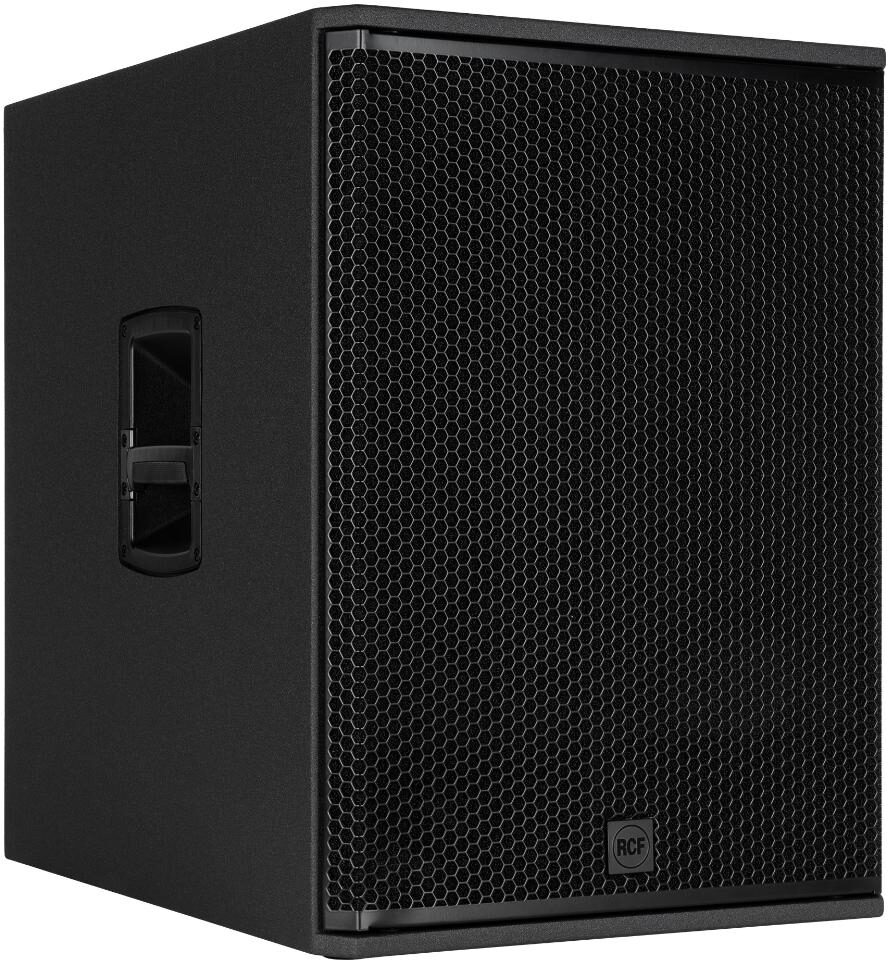

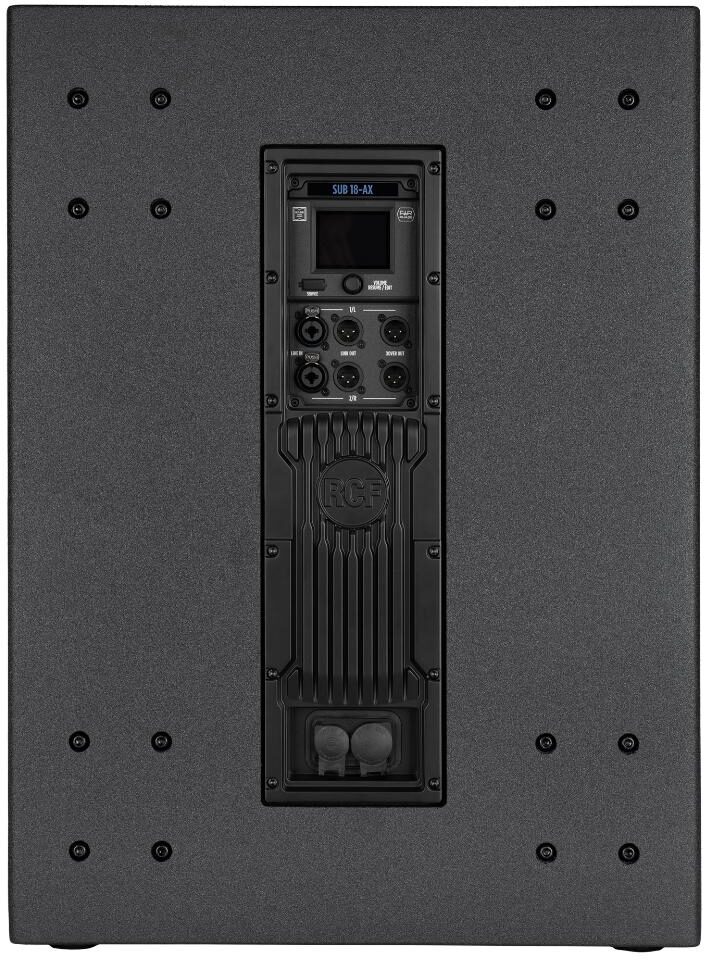

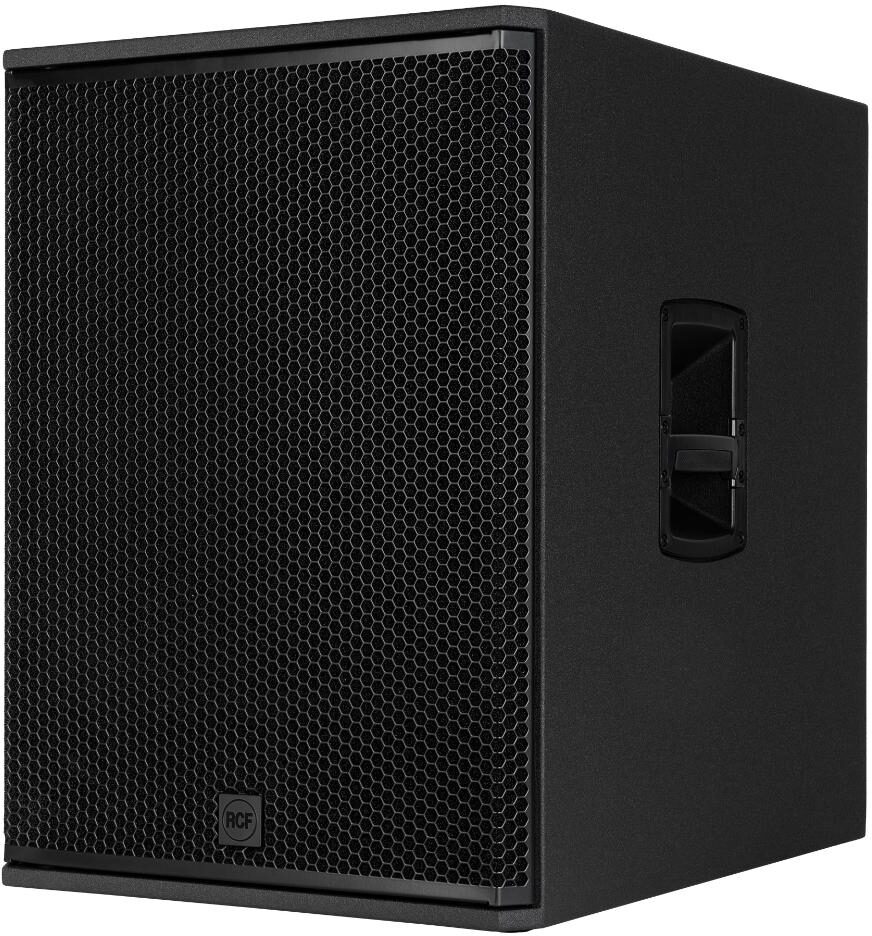

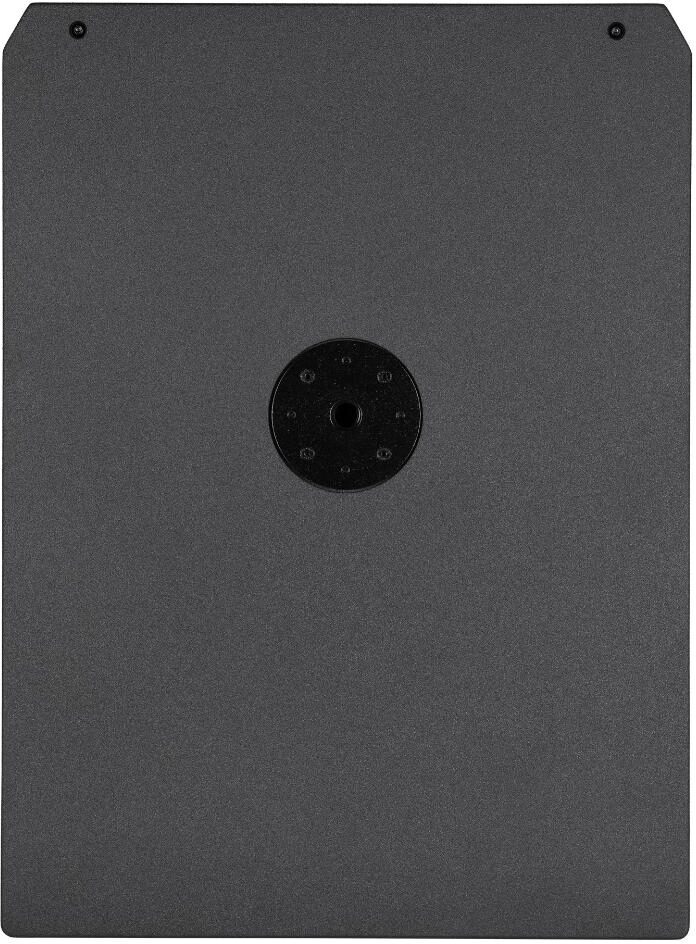

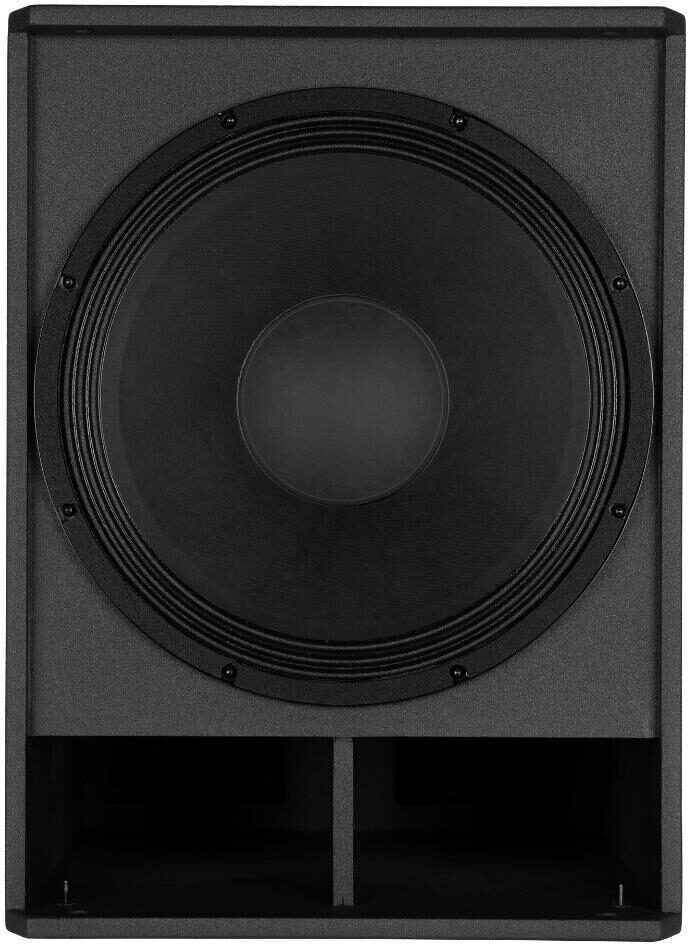

RCF SUB18-AX Active Subwoofer, New, Action Position Back
RCF SUB18-AX Active Subwoofer, New, Action Position Back
RCF SUB18-AX Active Subwoofer, New, Action Position Back
RCF SUB18-AX Active Subwoofer, New, Action Position Back
RCF SUB18-AX Active Subwoofer, New, Action Position Back
RCF SUB18-AX Active Subwoofer, New, Action Position Back
RCF SUB18-AX Active Subwoofer, New, Action Position Back
RCF SUB18-AX Active Subwoofer, New, Action Position Back RCF SUB18-AX Active Subwoofer, New, Action Position Back RCF SUB18-AX Active Subwoofer, New, Action Position Back RCF SUB18-AX Active Subwoofer, New, Action Position Back RCF SUB18-AX Active Subwoofer, New, Action Position Back RCF SUB18-AX Active Subwoofer, New, Action Position Back RCF SUB18-AX Active Subwoofer, New, Action Position Back

The SUB 18-AX is a portable 18" high-power active subwoofer for live sound applications with fully featured processing, a color touch panel, and remote control via Bluetooth(R). The combination of a latest-generation transducer with a powerful Class-D amplifier delivers sound pressure levels up to 135 dB with exceptional clarity and headroom. SUB AX subwoofers are designed specifically for small to mid-sized venues and ideal for portable applications. SUB 18-AX is the ideal complement for 10", 12" or 15" woofer-size loudspeakers; it centralizes speaker management inside the subwoofer, providing dual crossovers, 8-band EQs, routing, delays, cardioid configurations, and recallable crossover presets. The polyurea-coated all-wood cabinet features a sealed Powercon True1 Top connector.

Features:

- 2200 Watt Class-D Amplifier
- 135 dB MAX SPL
- 18" Woofer, bass reflex housing
- Digital Crossover w/ Presets
- Multi-ply hardwood polyurea-coated
- LiveRemote App
- Dual XLR/TRS combo Input + Link, Dual XLR Xover Out
- Bass Motion Control excursion management
- Powercon True1 Top Sealed AC Connector

ACOUSTICAL SPECIFICATIONS
- Frequency Response: 35 Hz / 120 Hz
- Max SPL @ 1m: 135 dB
TRANSDUCERS
- Woofer: 18", 4.0" v.c
INPUT/OUTPUT SECTION
- Input signal: balanced/unbalanced
- Input connectors: Combo XLR/Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
PROCESSOR SECTION
- Protections: Thermal
- Limiter: Soft Limiter
- Controls: Encoder for Volume control and data entry. Touch Screen for parameter management and monitor.
POWER SECTION
- Total Power: 2200 W Peak, 1100 W RMS
- Cooling: Convection
- Connections: Powercon TRUE1 TOP IN/OUT
STANDARD COMPLIANCE
- Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
- Handles: 1 handle per side
- Pole: mount/Cap Yes
- Color: Black, White
SIZE
- Height: 693 mm / 27.28 inches
- Width: 505 mm / 19.88 inches
- Depth: 685 mm / 26.97 inches
- Weight: 37.6 kg / 82.89 lbs
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 97 lbs
Shipping Dimensions: 29 x 29 x 22 in
Manufacturer Part Number (MPN): 13000834

For support or warranty questions, please contact the manufacturer:
Phone: 732-902-6100
Email: service@rcf.it or TechSupport@rcf.it
