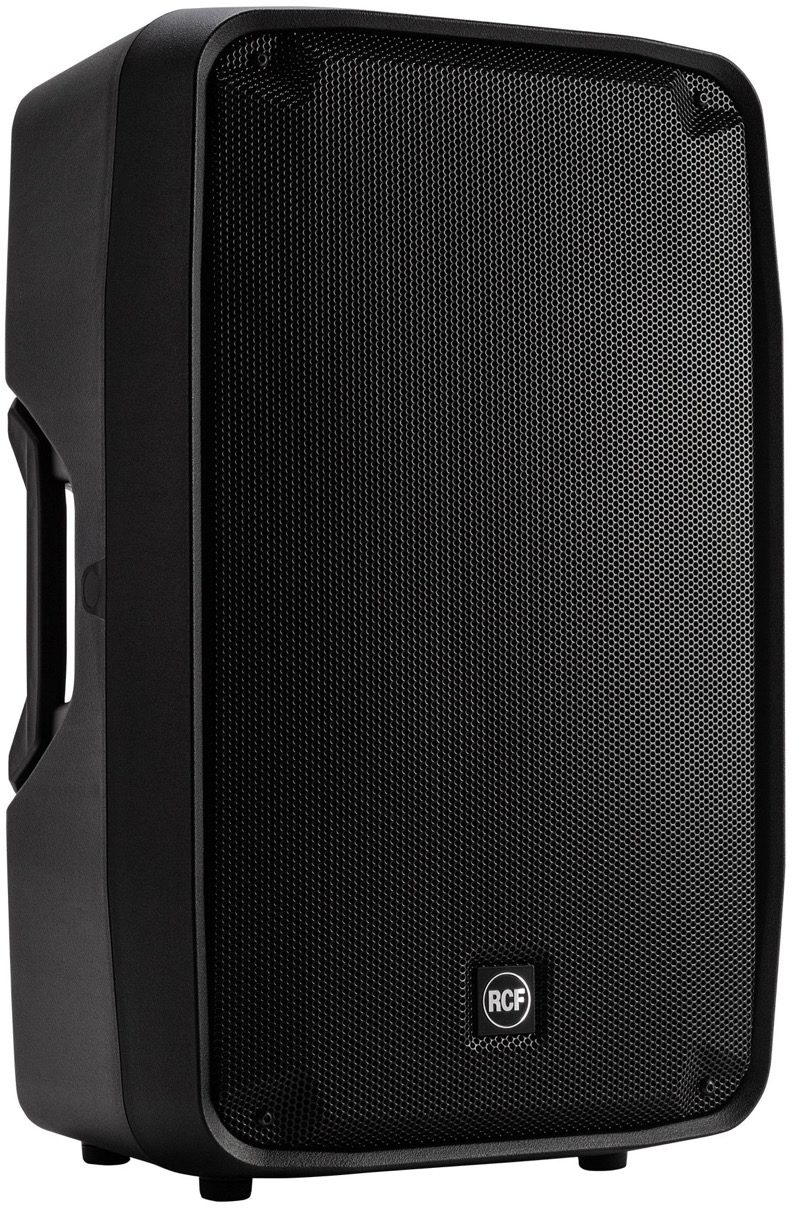

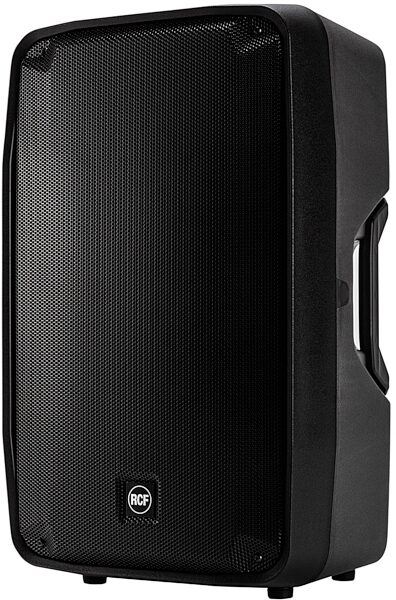

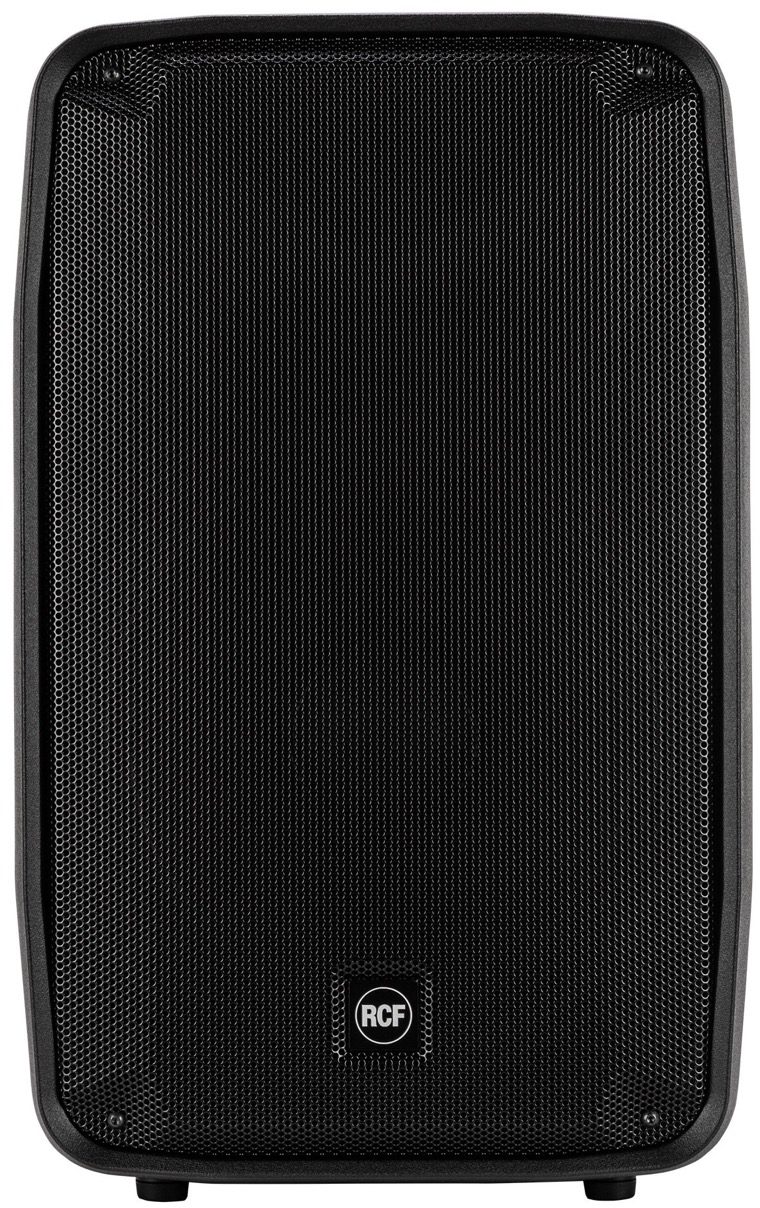

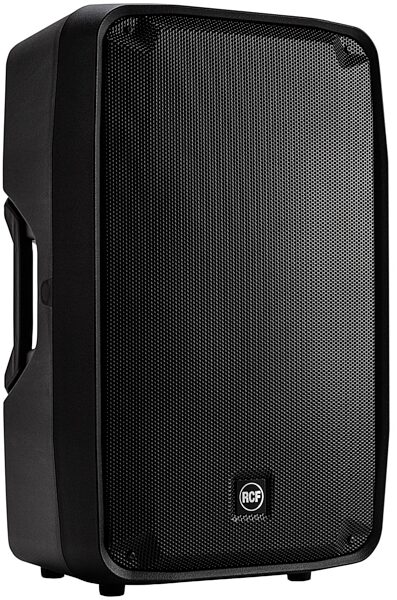

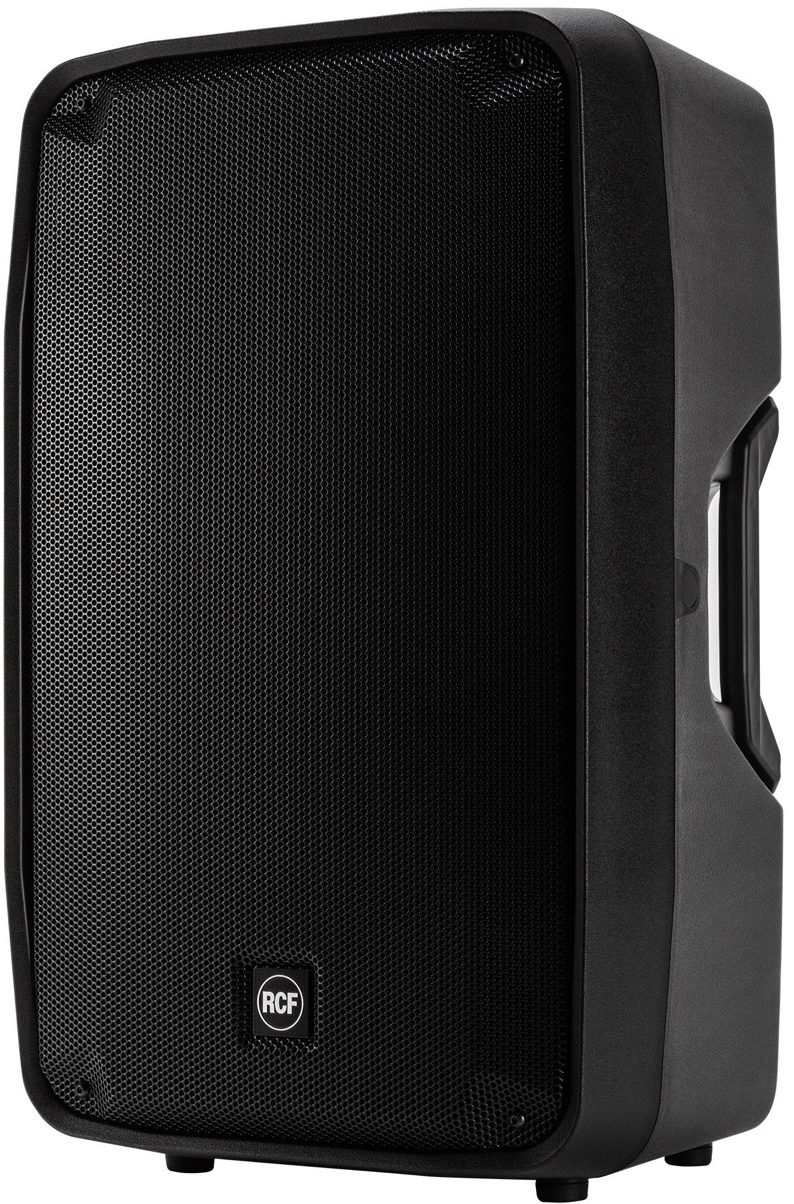

RCF HD 35-A Active Powered Speaker (1400 Watts)

With FiRPHASE processing, a low crossover point, and a titanium dome compression driver, the RCF HD 35-A delivers extremely clear, room-filling performance.
The titanium dome, 3.0" voice coil neodymium compression driver offers unique vocal clarity and sound projection on the HD 35-A. The 15" woofer offers an extremely linear response and a precise, deep low-frequency control. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalization, FiRPHASE, soft limiting, and speaker protection.

Features:

- 132 dB Max SPL
- 1400 Watts 2-way peak power
- DSP Processing with FiRPHASE
- 800 Hz crossover point for perfect vocal reproduction
- 1.4" Titanium Compression Driver, 3.0" v.c. Neodymium
- 15" Woofer, high power
- 90*x60*, wide dispersion constant directivity horn
- Silent Fanless Class-D Amplifier
Acoustical specifications
- Frequency Response: 45 Hz / 20000 Hz
- Max Spl @ 1m: 132 dB
- Horizontal Coverage Angle: 90*
- Vertical Coverage Angle: 60*

Transducers
- Compression Driver: 1.4'', 3.0'' v.c
- Woofer: 15'', 3.0'' v.c

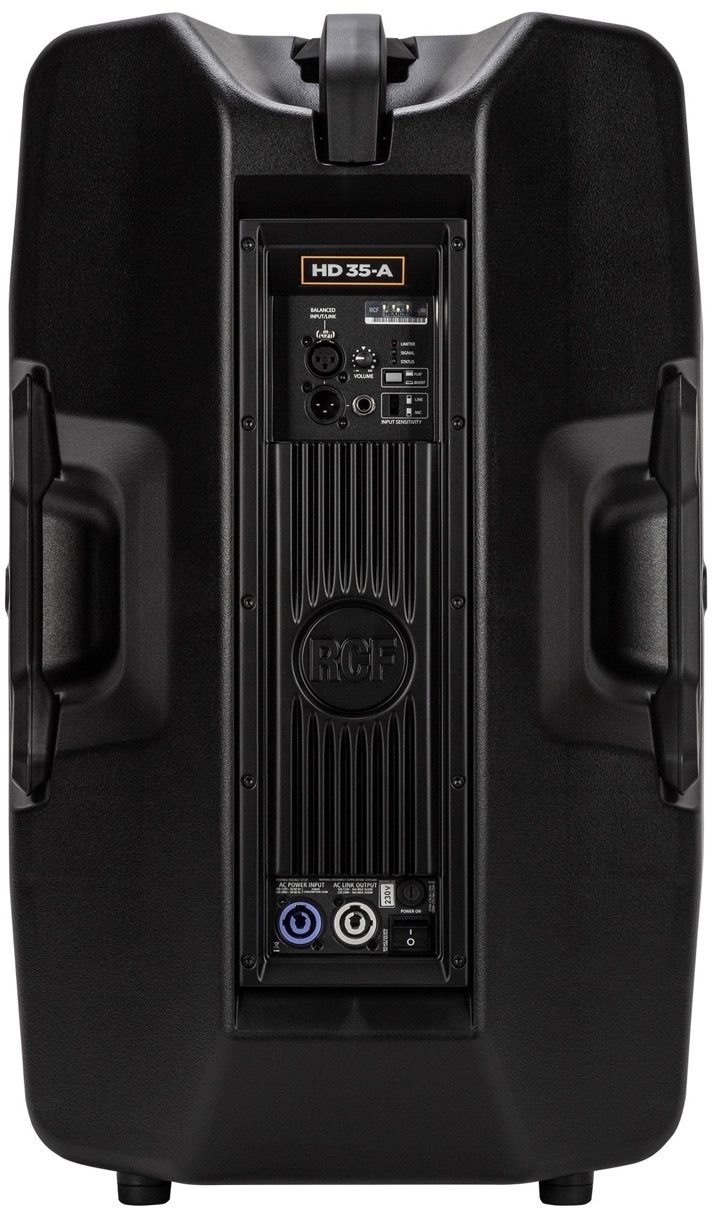

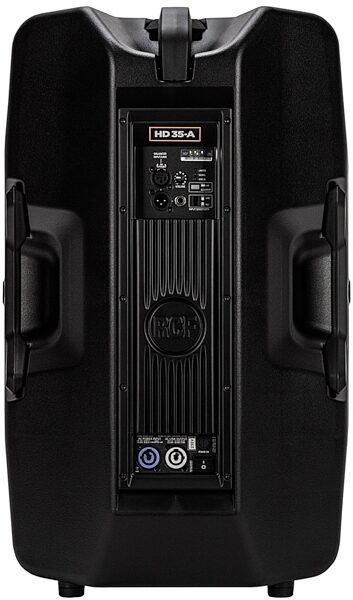

Input/Output section
- Input Signal: bal/unbal
- Input Connectors: XLR, Jack
- Output Connectors: XLR
- Input Sensitivity: -2 dBu/+4 dBu
- Mic. Input sensitivity: -32 dBu

Processor section
- Crossover Frequencies: 800 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Boost, Mic/Line

Power section
- Total Power: 1400 W Peak, 700 W RMS
- High Frequencies: 400 W Peak, 200 W RMS
- Low Frequencies: 1000 W Peak, 500 W RMS
- Cooling: Convection
- Connections: VDE

Standard compliance
- CE Marking: Yes

Physical specifications
- Cabinet/Case Material: PP Composite
- Hardware: 1 x M10 top, 1 x M10 bottom, 2 x M10 side

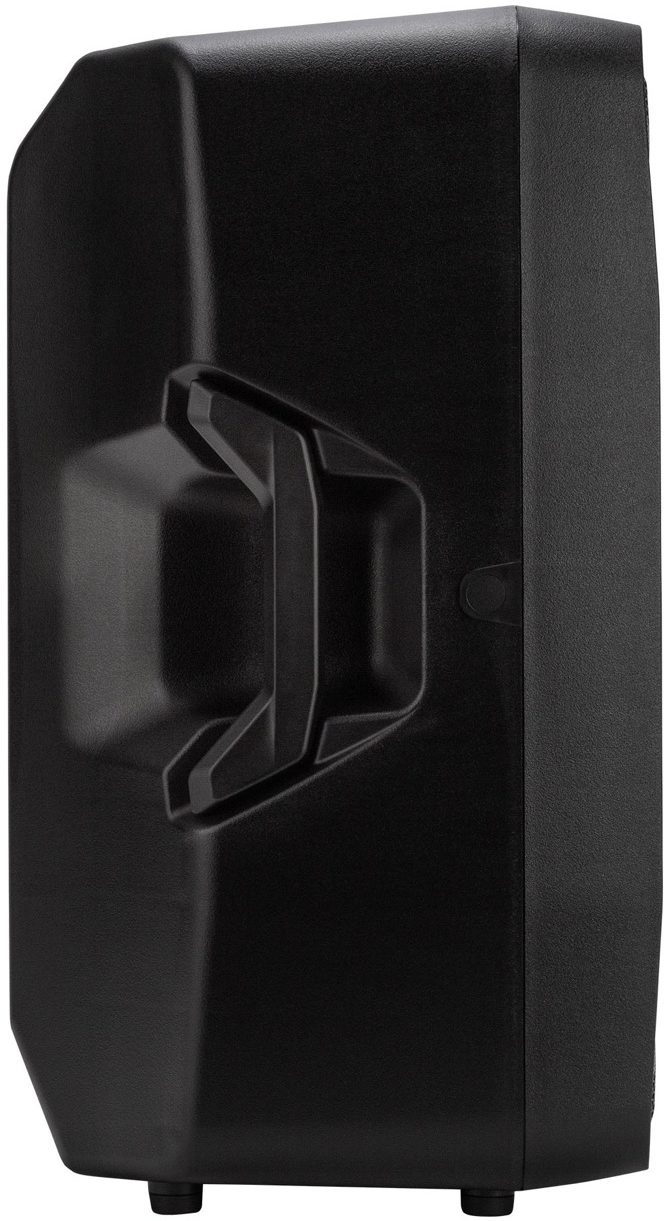

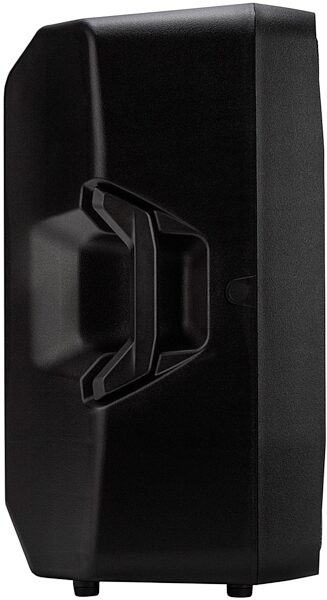

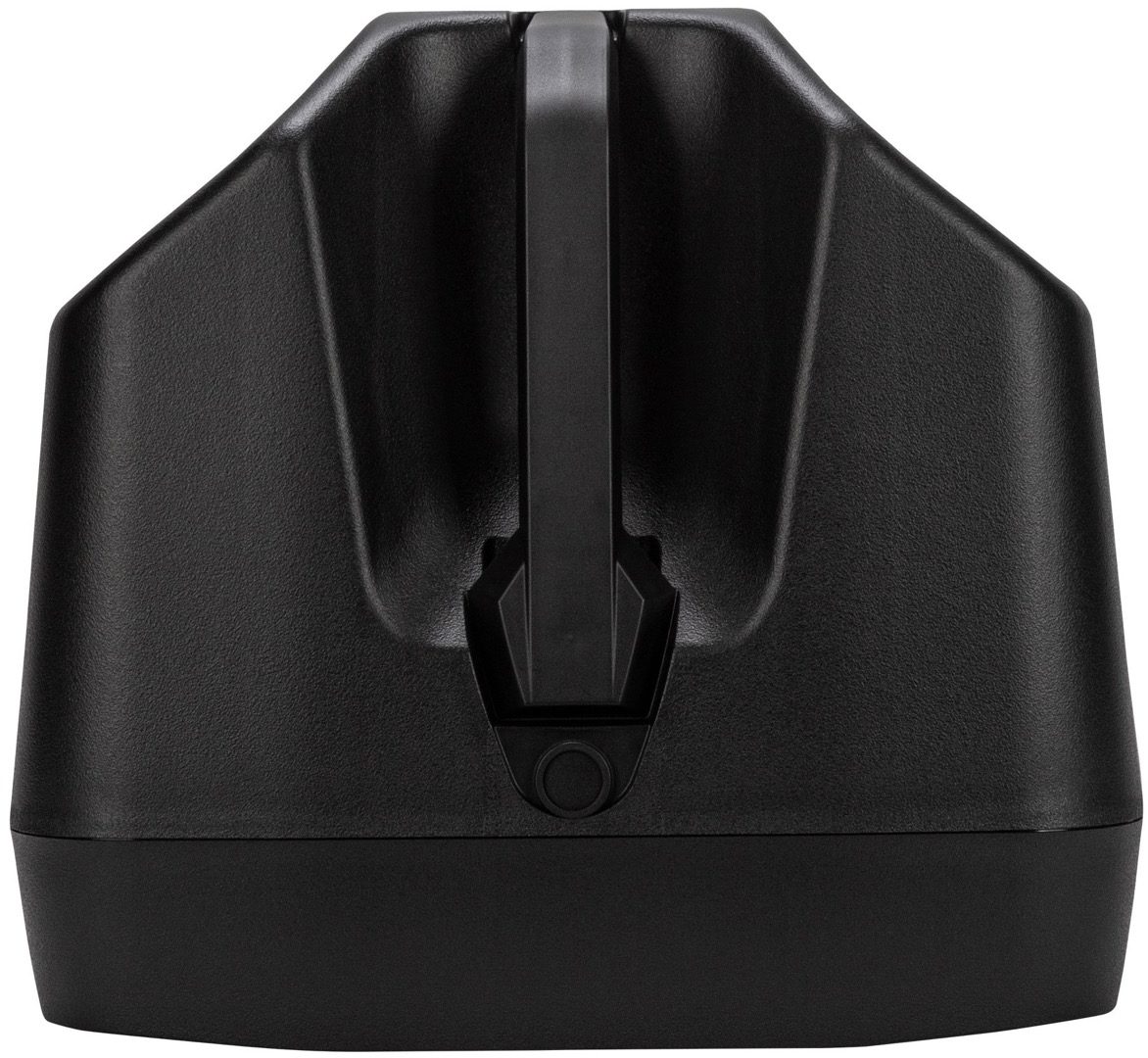

- Handles: 1 Top, 2 Side
- Pole mount/cap: Yes

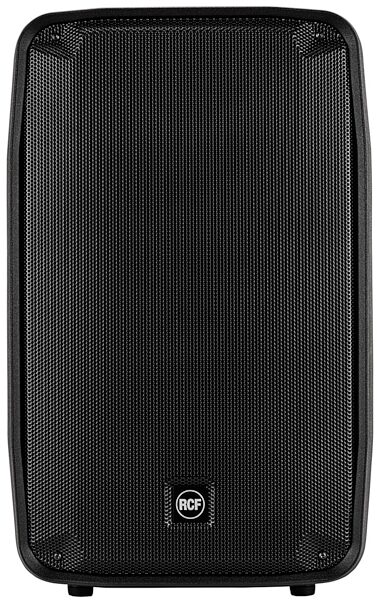

- Grille: Steel
- Color: Black

Size
- Height: 714 mm / 28.11 inches
- Width: 442 mm / 17.4 inches
- Depth: 397 mm / 15.63 inches
- Weight: 22 kg / 48.5 lbs

Shipping informations
- Package height: 750 mm / 29.53 inches
- Package width: 440 mm / 17.32 inches
- Package depth: 480 mm / 18.9 inches
- Package weight: 24.5 kg / 54.01 lbs
Dimensions and Weight in Packaging
Single Speaker
Shipping Weight: 59.5 lbs
Shipping Dimensions: 30 x 19 x 18 in
Manufacturer Part Number (MPN): RCF HD35A
