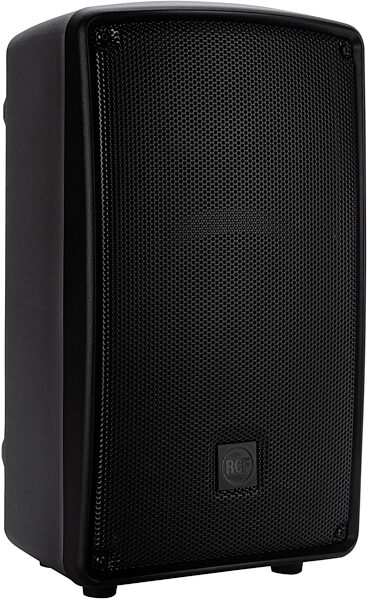

RCF HD 10-A MK5 Powered Speaker







zZounds Gear Experts Say...
With its compact size and huge sound, the RCF HD-10A Mk5 800-watt powered PA speaker fills any venue or rehearsal space with clear, phase-aligned audio.
Overview
The RCF HD 10-A MK5 active speaker boosts performance with a high-power professional 10" woofer and a 1.0" HF driver, an 800W, 2ch Class-D amplifier, and innovative FiRPHASE and Bass Motion Control processing. Vocals are natural, the sound is clear at long distances, SPL power is stable at very high levels. The strength of HD series speakers comes from decades of experience building gear for the touring industry, equipping this compact cabinet with power and reliability expected for life on the road. Elegantly designed, the lightweight polypropylene cabinet with internal reinforcement offers maximum strength. The speaker also includes a steel pole mount, threaded inserts for rigging, and rubber handgrips. D-LINE offers working DJs and musicians professional sound designed with music in mind.
- 800 Watts 2-way amplifier
- DSP Processing with FiRPHASE and Bass Motion Control
- 1.0" HF driver
- 10" woofer, high power, 2.0" voice coil
- 90 x 60 degree, wide dispersion constant directivity horn
- Silent Fan-less Class-D Amplifier
- Mylar/Ferrite driver - Kapton former coil
Features:
- 128 dB Max SPL- 800 Watts 2-way amplifier
- DSP Processing with FiRPHASE and Bass Motion Control
- 1.0" HF driver
- 10" woofer, high power, 2.0" voice coil
- 90 x 60 degree, wide dispersion constant directivity horn
- Silent Fan-less Class-D Amplifier
- Mylar/Ferrite driver - Kapton former coil
Specs
-Acoustical Specifications:
-Frequency Response: 50 Hz / 20000 Hz
-Max SPL @ 1M: 128 dB
-Horizontal Coverage Angle: 90 degree
-Vertical Coverage Angle: 60 degree
-Transducers:
-Compression Driver: 1 x 1.0", 1.0" v.c
-Woofer: 10", 2.0" v.c
-Input/Output Section:
-Input Signal: bal/unbal
-Input Connectors: XRL, Jack
-Output Connectors: XLR
-Input Sensitivity: -2 dBu/+4 dBu
-MIC. Input Sensitivity: -32 dBu
-Processor Section:
-Crossover Frequencies: 2000 Hz
-Protections: Thermal, RMS
-Limiter: Soft Limiter
-Controls: Volume, Boost, Mic/Line
-Power Section:
-Total Power: 800 W Peak, 400 W RMS
-High Frequencies: 200 W Peak, 100 W RMS
-Low Frequencies: 600 W Peak, 300 W RMS
-Cooling: Convection
-Connections: VDE
-Standard Compliance:
-CE Marking: Yes
-Physical Specifications:
-Cabinet/Case Material: PP Composite
-Hardware: 1 x M10 top, 1 x M10 bottom
-Handles: 1 Top, 1 Side
-Pole Mount/Cap: Yes
-Grille: Steel
-Color: Black
-Size:
-Height: 527 mm / 20.75 inches
-Width: 303 mm / 11.93 inches
-Depth: 303 mm / 11.93 inches
-Weight: 11.8 kg / 26.01 lbs
-Shipping Informations:
-Package Height: 640 mm / 25.2 inches
-Package Width: 400 mm / 15.75 inches
-Package Depth: 380 mm / 14.96 inches
-Package Weight: 12.12 kg / 26.72 lbs
-Frequency Response: 50 Hz / 20000 Hz
-Max SPL @ 1M: 128 dB
-Horizontal Coverage Angle: 90 degree
-Vertical Coverage Angle: 60 degree
-Transducers:
-Compression Driver: 1 x 1.0", 1.0" v.c
-Woofer: 10", 2.0" v.c
-Input/Output Section:
-Input Signal: bal/unbal
-Input Connectors: XRL, Jack
-Output Connectors: XLR
-Input Sensitivity: -2 dBu/+4 dBu
-MIC. Input Sensitivity: -32 dBu
-Processor Section:
-Crossover Frequencies: 2000 Hz
-Protections: Thermal, RMS
-Limiter: Soft Limiter
-Controls: Volume, Boost, Mic/Line
-Power Section:
-Total Power: 800 W Peak, 400 W RMS
-High Frequencies: 200 W Peak, 100 W RMS
-Low Frequencies: 600 W Peak, 300 W RMS
-Cooling: Convection
-Connections: VDE
-Standard Compliance:
-CE Marking: Yes
-Physical Specifications:
-Cabinet/Case Material: PP Composite
-Hardware: 1 x M10 top, 1 x M10 bottom
-Handles: 1 Top, 1 Side
-Pole Mount/Cap: Yes
-Grille: Steel
-Color: Black
-Size:
-Height: 527 mm / 20.75 inches
-Width: 303 mm / 11.93 inches
-Depth: 303 mm / 11.93 inches
-Weight: 11.8 kg / 26.01 lbs
-Shipping Informations:
-Package Height: 640 mm / 25.2 inches
-Package Width: 400 mm / 15.75 inches
-Package Depth: 380 mm / 14.96 inches
-Package Weight: 12.12 kg / 26.72 lbs
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 26.75 lbs
- Shipping Dimensions: 23 x 15 x 14 in
- Manufacturer Part Number (MPN): HD10-A-MK5
