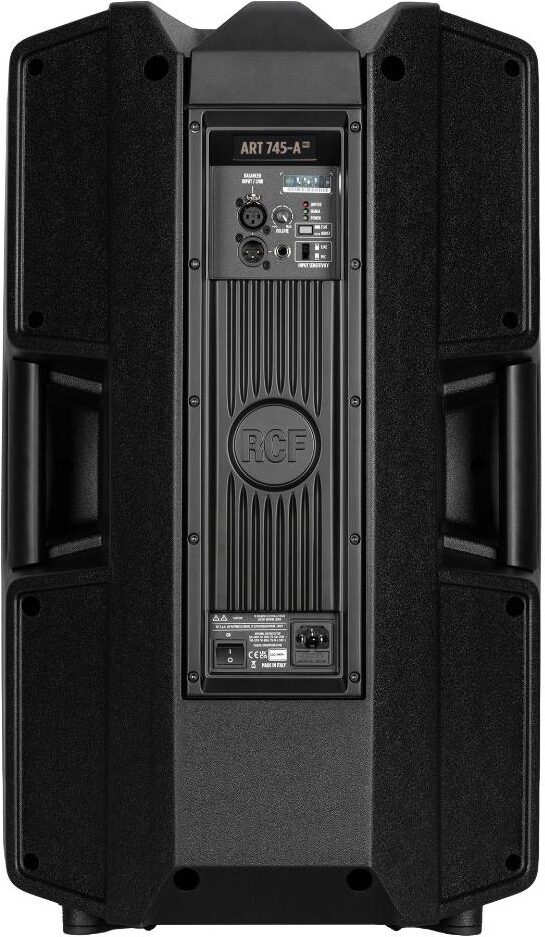

open zoom image for RCF ART 745-A MK5 Active Loudspeaker, New, Action Position Back
open zoom image for RCF ART 745-A MK5 Active Loudspeaker, New, Action Position Back
open zoom image for RCF ART 745-A MK5 Active Loudspeaker, New, Action Position Back
open zoom image for RCF ART 745-A MK5 Active Loudspeaker, New, Action Position Back
open zoom image for RCF ART 745-A MK5 Active Loudspeaker, New, Action Position Back
open zoom image for RCF ART 745-A MK5 Active Loudspeaker, New, Action Position Back
open zoom image for RCF ART 745-A MK5 Active Loudspeaker, New, Action Position Back
RCF ART 745-A MK5 Active Loudspeaker, New, Action Position Back RCF ART 745-A MK5 Active Loudspeaker, New, Action Position Back RCF ART 745-A MK5 Active Loudspeaker, New, Action Position Back RCF ART 745-A MK5 Active Loudspeaker, New, Action Position Back RCF ART 745-A MK5 Active Loudspeaker, New, Action Position Back RCF ART 745-A MK5 Active Loudspeaker, New, Action Position Back RCF ART 745-A MK5 Active Loudspeaker, New, Action Position Back
zZounds Gear Experts Say...
Deliver beautifully clear audio to your audience with the ART 745-A MK5, a 1400-watt active speaker with smart DSP and cutting-edge cabinet design.

The ART 745-A MK5 is RCF's flagship speaker in its category. The titanium dome, 4.0" voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15" neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by innovative DSP that takes care of crossover, equalization, phase control, soft limiting and speaker protections.

Features:

- 133 dB Max SPL
- 1400 WATT 2-way peak power
- 90 x 60, Wide dispersion constant directivity horn
- Innovative DSP Processing
- 4" Compression Neodymium Driver with Titanium diaphragm
- 15" Neodymium Woofer
- FiRPHASE Technology
- XBOOST Low Frequencies Enhancer


Take a closer look at the story behind the ART 7 MK5 series in RCF's video:

- Speaker Type: 2-way active loudspeaker
- Frequency Response (-3dB): 45 Hz - 20,000 Hz
- Coverage Pattern: 90° horizontal x 60° vertical
- Max SPL (Peak): 133 dB @ 1m
- LF Transducer: 15" neodymium woofer with 3.5" voice coil
- HF Transducer: 1" neodymium compression driver with 4" voice coil, titanium dome (1.4" exit throat)
- Crossover Frequency: 650 Hz
- Amplifier Type: Class-D bi-amplifier with DSP processing
- Amplifier Power (LF): 1000W Peak
- Amplifier Power (HF): 400W Peak
- Input Connectors: XLR, Jack
- Output Connectors: XLR
- Power Supply: SMPS (Switched Mode Power Supply)
- Enclosure Material: Polypropylene composite
- Grille Material: Steel
- Mounting Options: Pole mount/cap, handles, monitor position

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 48.5 lbs
  • Shipping Dimensions: 30 x 20 x 17 in
  • Manufacturer Part Number (MPN): 13000858

For support or warranty questions, please contact the manufacturer:
Phone: 732-902-6100
Email: service@rcf.it or TechSupport@rcf.it
Web: https://www.rcf.it/en/support
