The ideal pedalboard patchbay for acoustic guitarists who sing, the RockBoard MOD 3 V2 offers three 1/4" and three XLR thru jacks.

RockBoard MOD 3 V2 - All-in-One TRS & XLR Patchbay for Vocalists & Acoustic Players.

Features:

- All-in-one patchbay for pedalboards
- Fits MOD slots in RockBoard pedalboards
- Compatible with a wide variety of other pedalboards
- Acts as central access point to your effects setup
- Establishes clean cable paths to and from the pedal board

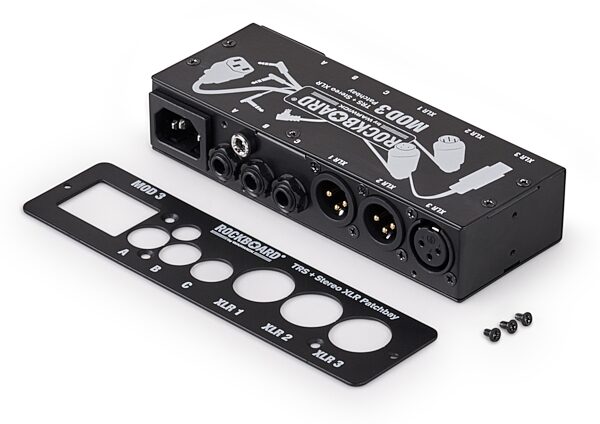

- Detachable front plate for mounting on top or underneath pedalboards
- 3 x 6,3 mm / 1/4" TRS thru
- 2 x XLR thru (male front / female back)
- 1 x XLR thru (female front / male back)
- 1 x DC 2,1 x 5,5 mm barrel thru
- 1 x AC IEC thru (male front / female back)

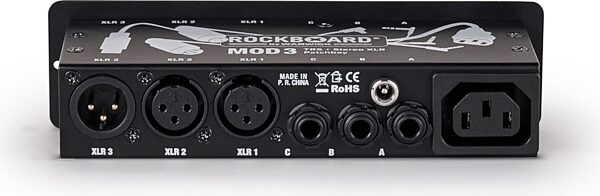

- All connections mirrored on backside
- Dimensions with front plate (W x D x H) 175 x 85 x 47 mm / 6 7/8" x 3 3/8" x 3 15/16"
- Dimensions without front plate (W x D x H) 160 x 85 x 33 mm / 6 5/16" x 3 3/8" x 1 5/16"
- Weight 450 g / 0.99 lbs
- Incl. mounting screws, counter nuts and TX wrench
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1.25 lbs
Shipping Dimensions: 7 x 3 x 2 in
Manufacturer Part Number (MPN): RBO B MOD 3 V2
