Radial JX44 V2 Guitar and Amp Switching System

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

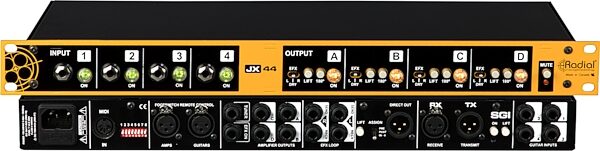

open zoom image for Radial JX44 V2 Guitar and Amp Switching System, New, Action Position Back

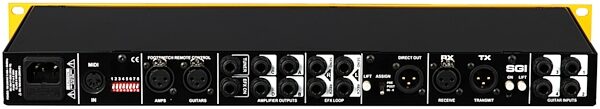

open zoom image for Radial JX44 V2 Guitar and Amp Switching System, New, Action Position Back
Radial JX44 V2 Guitar and Amp Switching System, New, Action Position Back Radial JX44 V2 Guitar and Amp Switching System, New, Action Position Back
zZounds Gear Experts Say...
Route your rig like a pro! The Radial JX44 V2 allows you to easily connect and manage up to four guitars and four amplifiers with a stereo effects chain.

The Radial JX44 V2 is a guitar & amp switching and routing system for professional concert touring, providing you with the ability to connect and manage up to four guitars & four amplifiers, a stereo effects chain and a remote pedalboard with seamless integration throughout.

Optional JR-5 remote footswitches or MIDI controllers can be used to select the inputs and outputs or activate FX. A local stereo effects loop can be used to connect rackmount signal processors and assign each channel to individual amplifiers, and an SGI line driver is built-in to feed distant pedalboards with ease when used with the SGI-44 remote guitar interface.

An assignable direct box output is also featured for simultaneous studio-quality recording during a live performance, while a switching 120/240V power supply allows for easy international use with world touring acts.

Features:

- Switch between 4 instrument inputs and 4 amp outputs
- Assignable stereo effects loop simplifies FX routing
- Connect to a local or remote pedalboard with SGI-44
- Remote switching control with optional JR-5 or MIDI
- Gold-contact i/o connections, and premium Jensen transformers
- Built-in 120/240V power supply for worldwide touring

- Input Connectors: 4 x 1/4" TS (front and rear panel redundancy on channels 1-2)
- Output Connectors: 4 x 1/4" TS (amp outputs), 1 x XLR (balanced direct output), 1 x 1/4" TS (tuner output)
- Switching Type: Electronic switching with Jensen transformer isolation
- Channels: 4 input channels, 4 output channels
- Frequency Response: 20Hz-20kHz +/-0.2dB, 10Hz-100kHz +/-1dB (0dBv)
- Power Requirements: Internal switching power supply 120/240V, 50/60Hz with IEC connection
- Construction Material: 1U rackmount chassis

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 9 lbs
  • Shipping Dimensions: 23 x 10 x 4 in
  • Manufacturer Part Number (MPN): R800 6502
