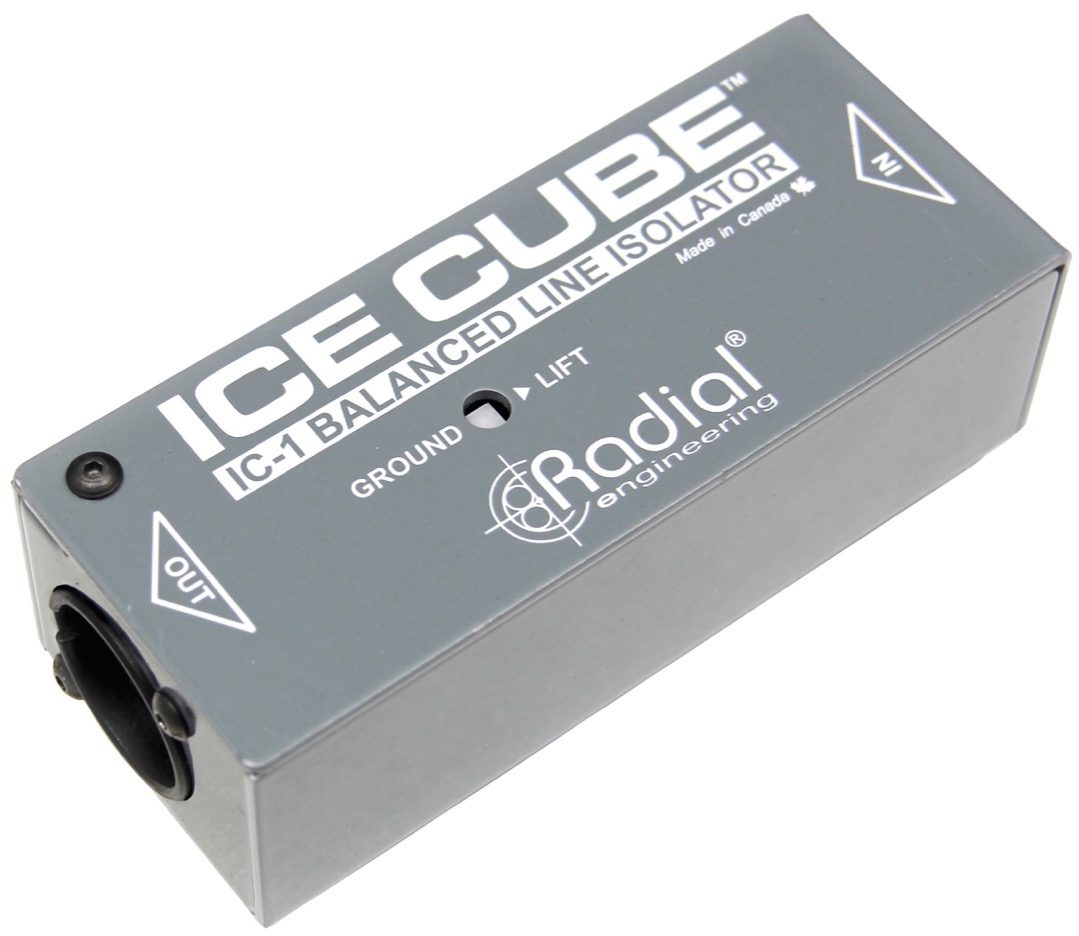

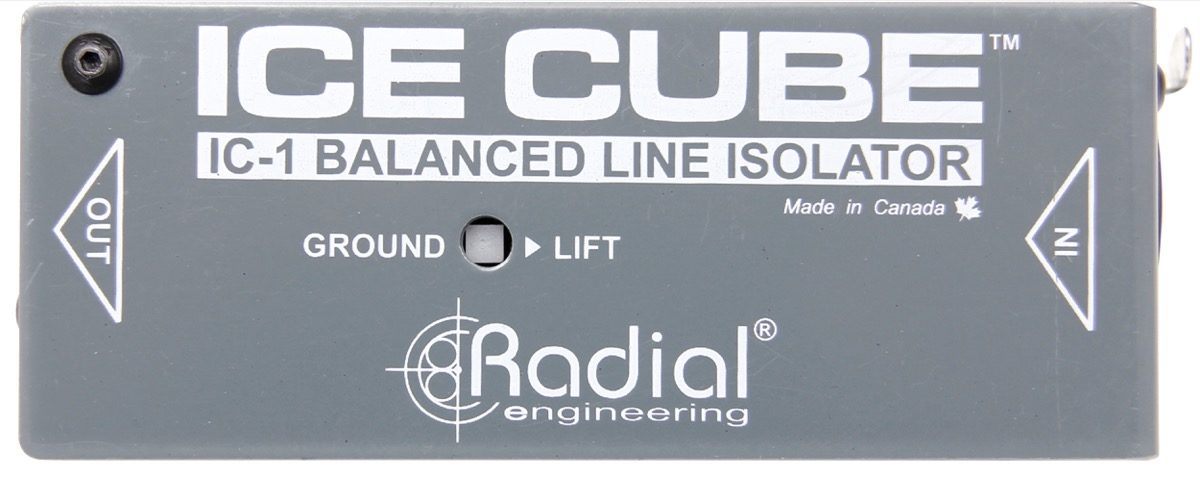

Radial IceCube IC-1 Passive Line Level Isolator

- Audio circuit type: Passive, transformer based
- Frequency response: 20Hz ~ 20 KHz (+/- 1dB)
- Dynamic range: >135dB
- Maximum input: 15dBu
- Gain: 0dB / -5.7dB 10K / 600 Ohm Load
- Clip level: 25dBu
- Equivalent input noise: 110dBu
- Intermodulation distortion: 0.002% @ -10dBu
- Total harmonic distortion: <0.0006% 1KHz @ -10dBu
- Input impedance: 8.66k with 10k load
- Output impedance: 600 Ohm nominal
- Transformer: Custom made Eclipse
- Ground lift: Disconnects pin-1 at XLR output
- XLR configuration: AES standard: Pin-1(Gnd), Pin-2(+), Pin-3(-)

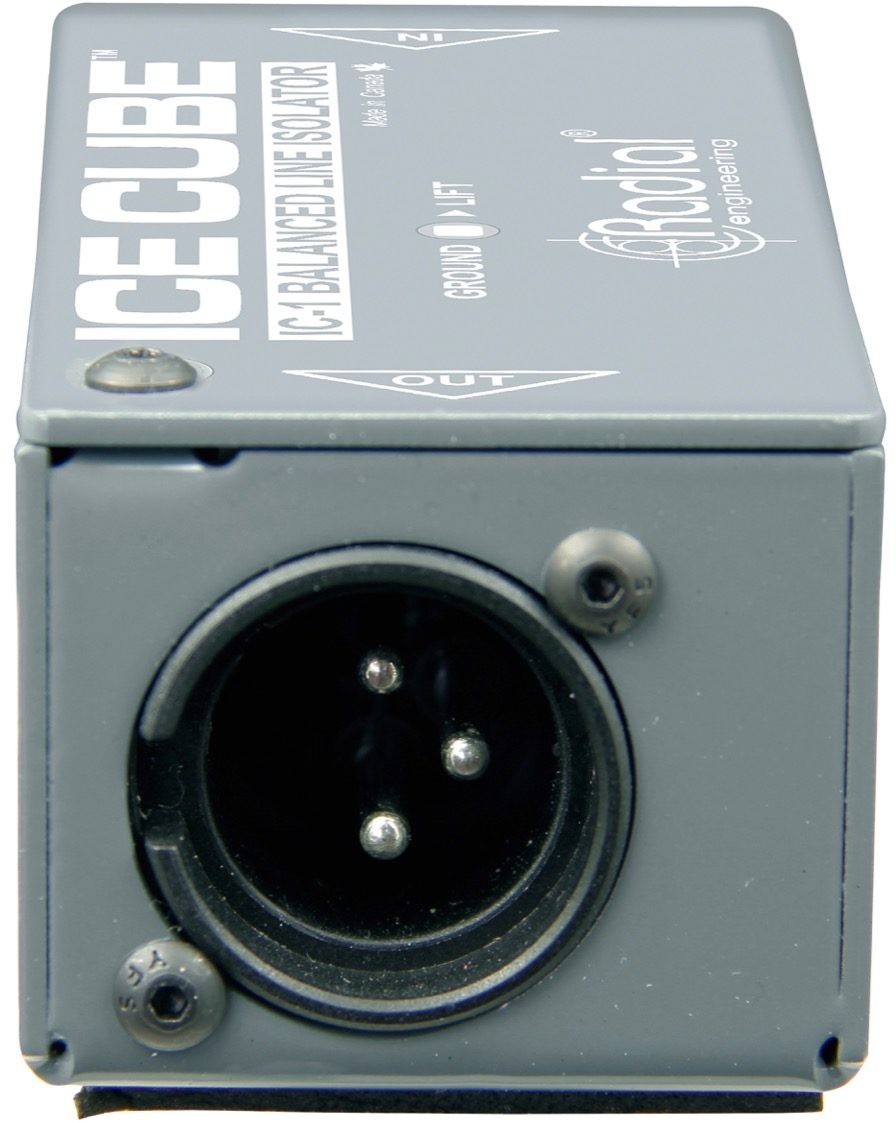

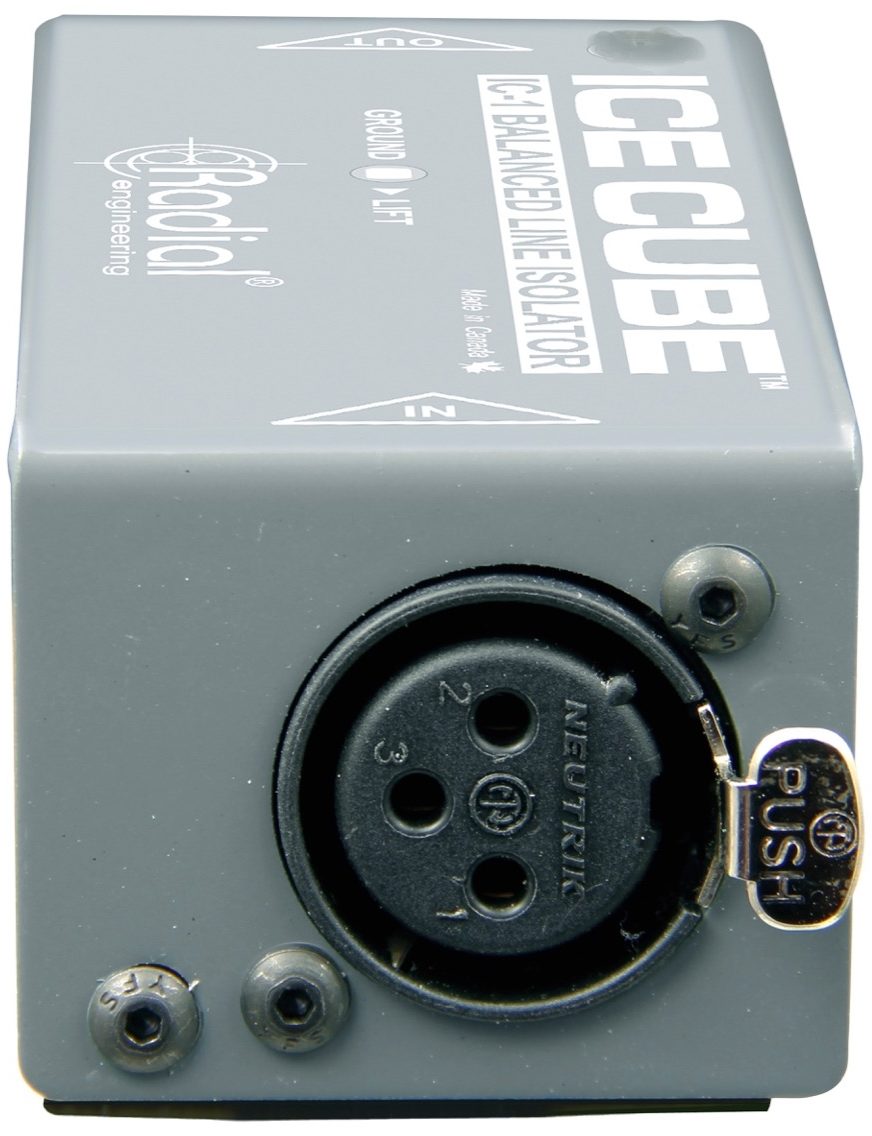

- Connectors: XLR-FEMALE input; XLR-MALE output
- Construction: 16 gauge steel chassis & outer shell
- Finish: Durable powder coat
- Size: (L x W x D) 4.2 x 1.32 x 1.6" (107 x 34 x 41mm)
- Weight: 0.40lbs (0.18kg)
- Power: Passive, no power required
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.5 lbs
Shipping Dimensions: 8 x 5 x 2 in
Manufacturer Part Number (MPN): R800 1031
