QSC PLX3002 Power Amplifier
No longer available at zZounds



zZounds Gear Experts Say...
3000 Watt power amplifer.
Overview
A line of amplifiers that defines high impact. Up to 3,400 watts in a 2 rack-unit chassis that's only 13 in. deep and 21 lbs. It includes the exclusive PowerWave Technology used in the award-winning PowerLightÈ Series for chest-pounding bass and crystal-clear highs. It also features hum-free noise floor and ultra-low distortion of .03% THD.
To keep the PLX Series running under the most demanding conditions, the Advanced Thermal Management System has been added. PLXs offer the reliability of a company that's been building professional amplifiers for over 30 years. With PowerWave technology, the PLX Series takes your music to a whole new level. Not only does it deliver bigger bass and cleaner highs, PowerWave also cuts wasted heat and boosts reliability. PowerWave is a switching power supply that provides ample current to the audio power circuitry by charging the supply rails 230,000 times a second through and ultra-low impedance circuit. So unlike other amps with conventional supplies, the audio signal is never starved prematurely and remains crisp and clean. It virtually eliminates hum and greatly reduces noise, providing a vast dynamic range that can handle any music without running out of headroom.
The Advanced Thermal Management system ensures PLXs run cool and reliable even under harsh conditions. Using a high-output variable speed fan, ATM pulls cool air from the rear of the amp and propels it through a heat shroud precision-fitted to flow air over the heat sinks and… read more out of the amplifier. read less
To keep the PLX Series running under the most demanding conditions, the Advanced Thermal Management System has been added. PLXs offer the reliability of a company that's been building professional amplifiers for over 30 years. With PowerWave technology, the PLX Series takes your music to a whole new level. Not only does it deliver bigger bass and cleaner highs, PowerWave also cuts wasted heat and boosts reliability. PowerWave is a switching power supply that provides ample current to the audio power circuitry by charging the supply rails 230,000 times a second through and ultra-low impedance circuit. So unlike other amps with conventional supplies, the audio signal is never starved prematurely and remains crisp and clean. It virtually eliminates hum and greatly reduces noise, providing a vast dynamic range that can handle any music without running out of headroom.
The Advanced Thermal Management system ensures PLXs run cool and reliable even under harsh conditions. Using a high-output variable speed fan, ATM pulls cool air from the rear of the amp and propels it through a heat shroud precision-fitted to flow air over the heat sinks and… read more out of the amplifier. read less
Specs
Watts Stereo Mode (both channels driven)
8 ohms 20 Hz-20 kHz 0.03% THD: 550W
4 ohms 20 Hz-20 kHz 0.05% THD: 00W
2 ohms 1 kHz 1% THD: 1500W
Watts Bridge Mono Mode
16 ohms 20 Hz-20 kHz 0.01% THD: 1100W
8 ohms 20 Hz-20 kHz 0.01% THD: 2000W
4 ohms 1 kHz 1% THD: 3000W
Noise (20 Hz-20 kHz): <-1.7 dB
Input Sensitivity @ 8 ohms: 1.7 Vrms
Input Sensitivity @ 4 ohms: 1.5 Vrms
Output Circuitry: 2-Step
Power Requirements (1/8 power pink noise @ 4ohms): 10A
Distortion (SMPTE-IM) Less than 0.01%
Distortion (typical)20 Hz-20 KHz(10 dB below rated power1.0 kHz and below full rated power: Less than 0.01% THD
Frequency Response: 20 Hz-20 kHz, ± 0.2 dB/8 Hz-50 kHz, +0, -3 dB
Damping Factor: greater than 500
Input Impedance: 6 K ohms unbalanced, 12 K ohms balanced
Input Clipping: 10 Vrms (+22dB)
Cooling: Variable-speed fan, rear-to-front air flow

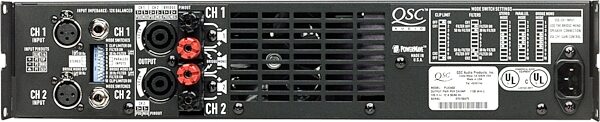

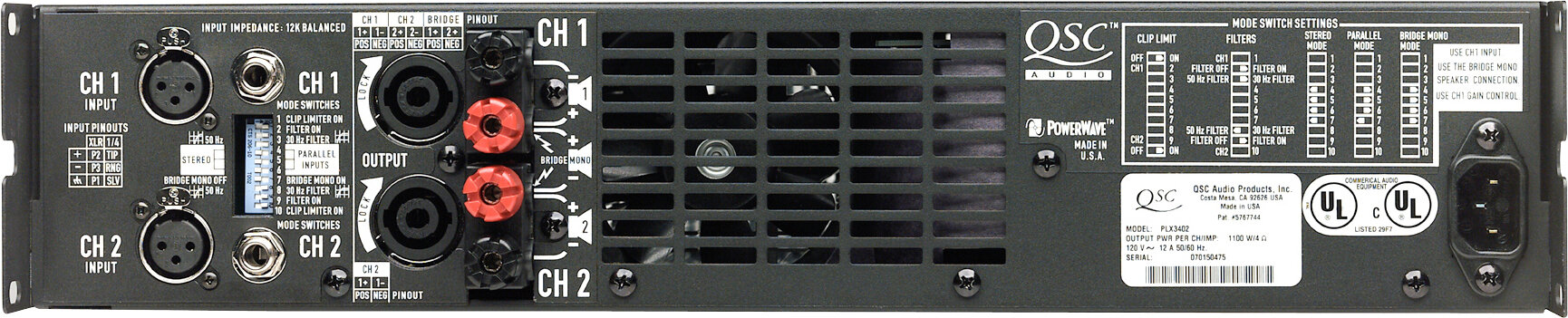

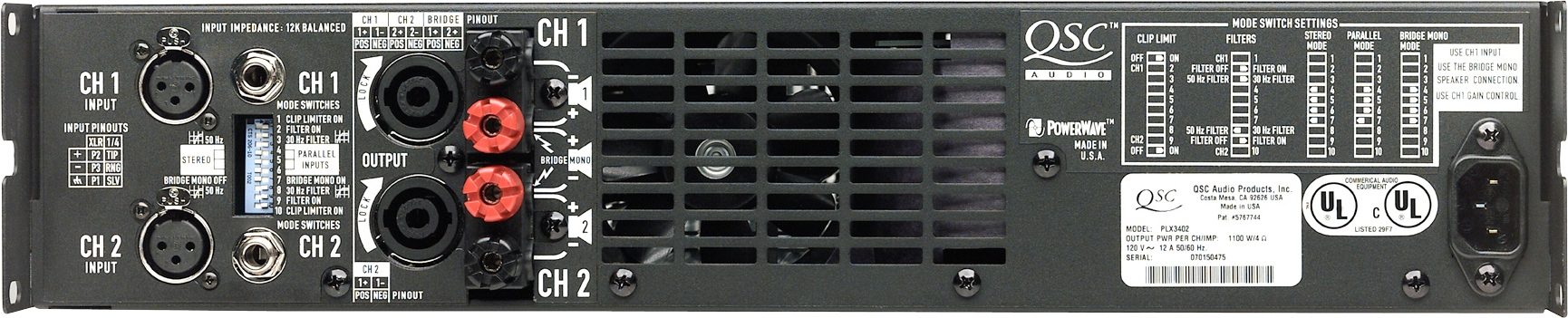

Connectors: (each channel) Input: 3-pin XLR and 1/4 in. TRS balanced
Output: Neutrik Speakon and touch-proof binding posts
Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic, and protection.
Stable into reactive or mismatched loads.
Load Protection On/off muting, DC-fault power supply shutdown
Dimensions: 19 in. (48.3 cm) rack mounting, 3.5 in. (8.9 cm) tall (2 rack spaces), 13.25 in. (33.7 cm) deep (from front mounting rails)
Gain: 40x (32 dB)
Weight: 21 lbs. (9.5 kg) net
8 ohms 20 Hz-20 kHz 0.03% THD: 550W
4 ohms 20 Hz-20 kHz 0.05% THD: 00W
2 ohms 1 kHz 1% THD: 1500W
Watts Bridge Mono Mode
16 ohms 20 Hz-20 kHz 0.01% THD: 1100W
8 ohms 20 Hz-20 kHz 0.01% THD: 2000W
4 ohms 1 kHz 1% THD: 3000W
Noise (20 Hz-20 kHz): <-1.7 dB
Input Sensitivity @ 8 ohms: 1.7 Vrms
Input Sensitivity @ 4 ohms: 1.5 Vrms
Output Circuitry: 2-Step
Power Requirements (1/8 power pink noise @ 4ohms): 10A
Distortion (SMPTE-IM) Less than 0.01%
Distortion (typical)20 Hz-20 KHz(10 dB below rated power1.0 kHz and below full rated power: Less than 0.01% THD
Frequency Response: 20 Hz-20 kHz, ± 0.2 dB/8 Hz-50 kHz, +0, -3 dB
Damping Factor: greater than 500
Input Impedance: 6 K ohms unbalanced, 12 K ohms balanced
Input Clipping: 10 Vrms (+22dB)
Cooling: Variable-speed fan, rear-to-front air flow
Connectors: (each channel) Input: 3-pin XLR and 1/4 in. TRS balanced
Output: Neutrik Speakon and touch-proof binding posts
Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic, and protection.
Stable into reactive or mismatched loads.
Load Protection On/off muting, DC-fault power supply shutdown
Dimensions: 19 in. (48.3 cm) rack mounting, 3.5 in. (8.9 cm) tall (2 rack spaces), 13.25 in. (33.7 cm) deep (from front mounting rails)
Gain: 40x (32 dB)
Weight: 21 lbs. (9.5 kg) net
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 800-772-2834
Web: http://qsc.com/support
Phone: 800-772-2834
Web: http://qsc.com/support
Reviews
Reviewers gave this product an overall rating of 4.5 out of 5 stars.
(34 ratings)
Submitted April 2, 2006 by RappinKim
"QSC PlX: "Light in weight, and light in the sound!""
Sound
Do not kid yourself. This amp kicks butt. However, it is more of a amp made for your main cabinets. Because of the tight bass features with this amp (higher damping factor), the bass lags. The best thing to do, if you are a qsc fan like me, is to mix and match. I use the plx for my mains, and the rmx 5050 for all 4 of my subs. Remember, you do not need a real high damping factor for subs. Otherwise, your punch will always lag
Ease of Use
Bass lags is all
Quality
Very light. It would take two plx's to match the weight of one rmx.
The Wow Factor
Good for main cabinets. But don't forget about its fellow rmx friend too. Then you will truly get a fuller sound
11 of 19 people (58%) people found this review helpful. Did you?
