QuikLok ZMWS34 Mixer Workstation for Mixers 35 Inches to 46 Inches Wide

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for QuikLok ZMWS34 Mixer Workstation for Mixers 35 Inches to 46 Inches Wide, Main
open zoom image for QuikLok ZMWS34 Mixer Workstation for Mixers 35 Inches to 46 Inches Wide, Main
QuikLok ZMWS34 Mixer Workstation for Mixers 35 Inches to 46 Inches Wide, Main QuikLok ZMWS34 Mixer Workstation for Mixers 35 Inches to 46 Inches Wide, Main
zZounds Gear Experts Say...

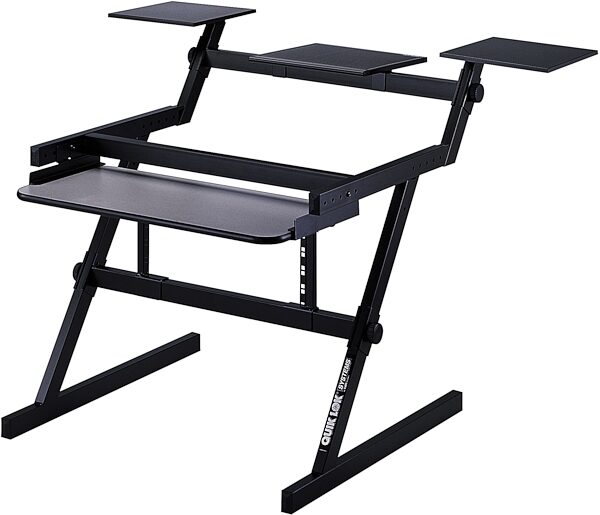

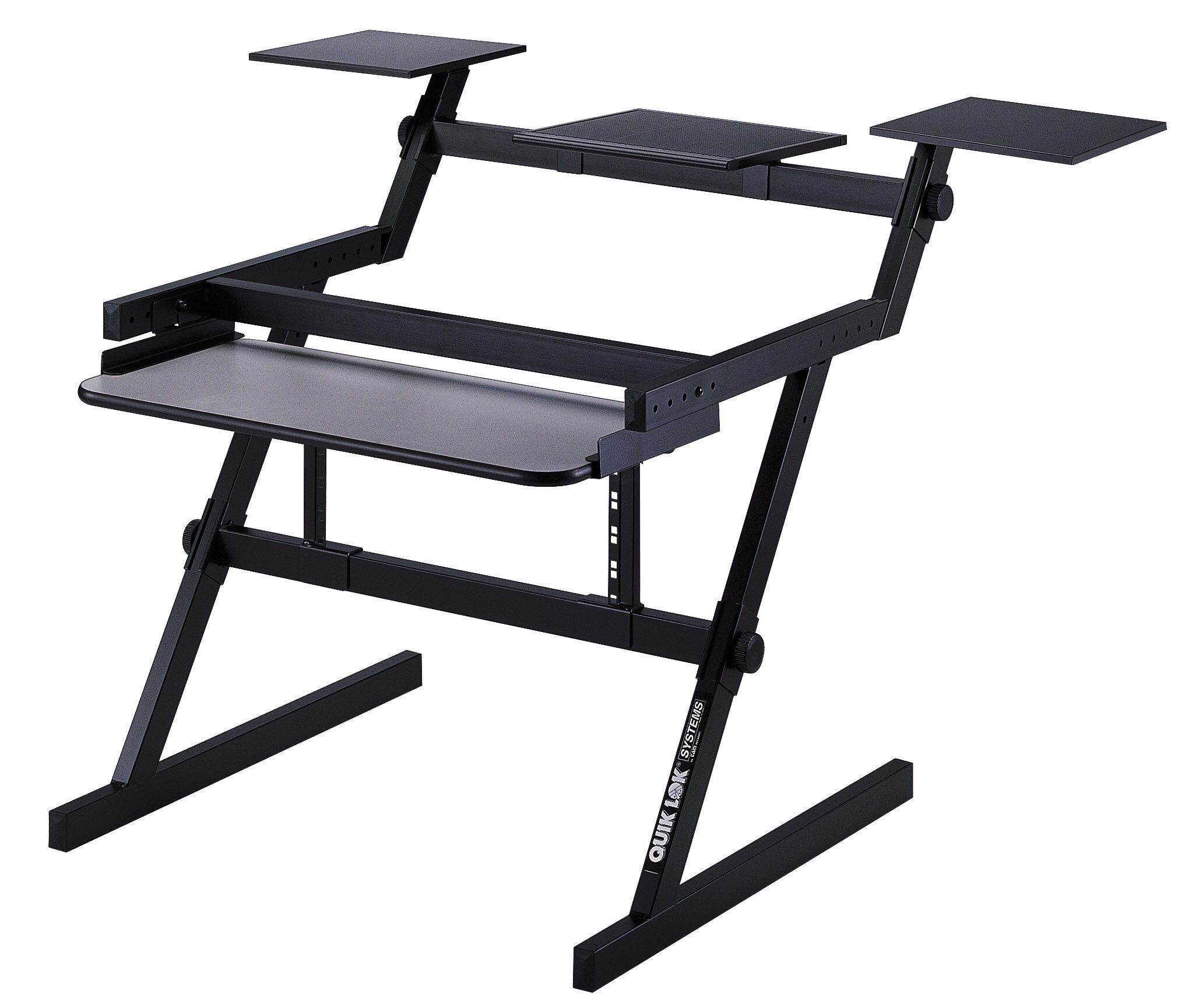

Complete ZM mixer workstation for mixers 35 to 46 in. wide.

This complete mixer workstation is perfect for home or project studios. The ZM-WS34 comes with shelves for computer monitor, speakers, CPU, and computer keyboard, plus a 4-space rack holder for the mixer power supply and speaker power amp. Its sturdy, attractive Z-shaped design will complement any music making environment.

The ZMWS34 consists of the following components:
ZM2034 "ZM" Mixer stand

ZMX34 Expansion Kit

Z711 Computer monitor shelf

Z712 Pull-out computer keyboard shelf

ZM93 4-pace rack holder

ZM2034
Top tier depth: 23 in. (58.4 cm)

Bottom leg depth: 31.6 in. (80.3 cm)

Height: 27.5 in. (69.9 cm)

Width: 34 in. (86.4 cm)

Frame tube size: 30 x 50 mm

Weight Capacity: 350 lbs. (158.4 kg)

Weight: 16.6 lbs. (7.5 kg)

ZMX34
Shelf dimensions
Depth: 11.8 in. (30 cm)
Width: 11.8 in. (30 cm)
Shelf height positions (measured from top of shelf to floor): 36 in. (91.4 cm), 37.5 in. (95.3 cm), 39 in. (99.1 cm)

Crossbar height positions (measured from top of shelf to floor): 32 in. (81.3 cm), 33.5 in. (85.1 cm), 35 in. (88.9 cm)

Total width shelves turned outward: 44.6 in. (113.3 cm)

Weight Capacity: 80 lbs. (36.2 kg)

Z711
Shelf dimensions
Front to back depth: 13 in. (33 cm)
Side to side width: 13.9 in. (35.5 cm)
Weight capacity: 75 lbs. (33.7 kg)
Weight: 3.3 lbs. (1.5 kg)

Z712
Shelf dimensions
Front to back depth: 14 in. (35.5 cm)

Side to side width: 30 in. (76.5 cm)

Thickness: 0.71 in. (18 mm)

Clearance (measured from top of main tier to top of sliding shelf): 2.5 in. *(6.4 cm)

Weight capacity: 25 lbs. (11.3 kg)

Weight: 11.1 lbs. (5 kg)

ZM93
Frame size:
Side to side width: 20.7 in. (52.5 cm)

Top to bottom height: 9 in. (23 cm)

Weight Capacity: 80 lbs. (36.2 kg)

Weight: 3.3 lbs. (1.5 kg)
