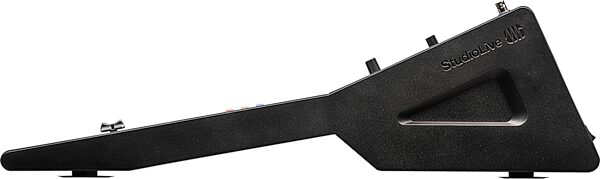

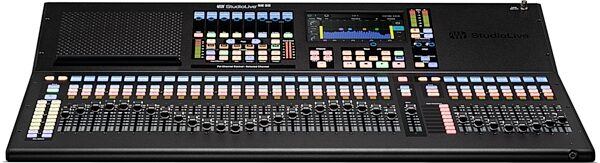

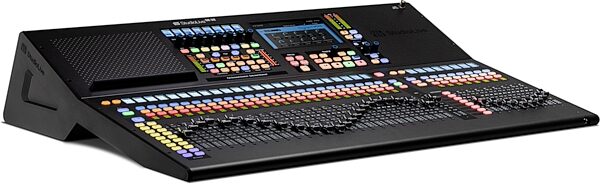

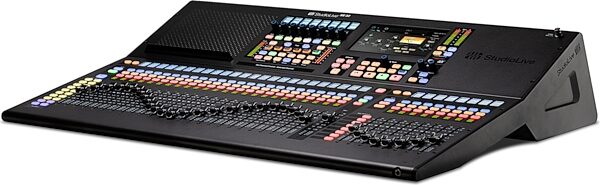

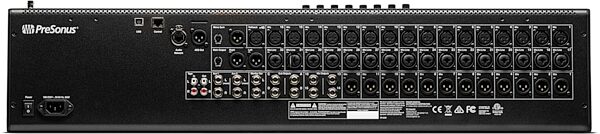

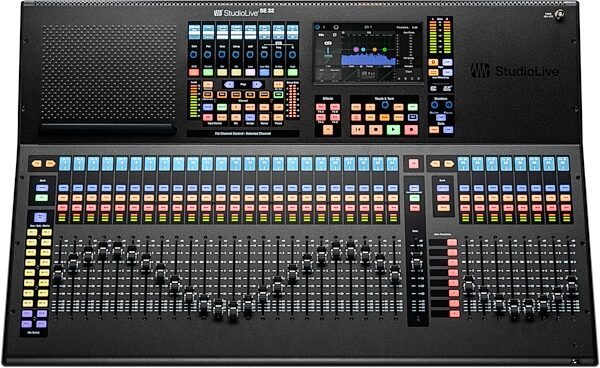

PreSonus StudioLive Series III SE 32 Digital Mixer

PreSonus StudioLive Series III SE 32 Digital Mixer, New, Action Position Back

zZounds Gear Experts Say...

Mix hands-on with 33 motor faders on this 32-preamp, 40-channel StudioLive, loaded with upgraded Fat Channel FX, Metro remote mixing, built-in AVB, and more.

Overview

A 40-channel powerhouse with one-to-one channel control, the StudioLive SE 32 is a small-format digital mixer with large-format mixing power. Studio-grade, fully recallable, XMAX-R preamps and vintage-style EQ and compression options on every channel and bus will make your mixes sound better, faster. Managing large channel counts has never been easier thanks to 16 FlexMixes that can be configured as subgroups, auxes, or matrix mixes on a per mix basis. Matrix mixes include all 40 input channels and every bus making it easy to create the perfect front- and side-fill mixes for large venues or producer mixes for broadcast applications. You also get 24 DCA groups, 4 dedicated subgroup mixes, and 4 FX mixes, each with a stereo return and dedicated processing with lush reverbs and delays.

Features:

- Powerful and flexible 40-channel digital console available with 26 mix buses, integrated recording, advanced audio networking, and a complete professional software suite.
- Flexible onboard 32 mic/line inputs with recallable XMAX preamps, 16 mix outputs, and dedicated Main LR outputs plus a Mono sum output.
- 33 Fully recallable touch-sensitive motorized faders.
- Milan-certified AVB audio networking ecosystem makes it easy to connect PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, other Studiolive Series III mixers, and AVB-D16 Dante bridge.
- Continuously bidirectional 64x64 USB 2.0 interface with deep integration and included PreSonus Capture multitracking software… read more with automated Virtual Soundcheck.
- 7 State-Space modeled EQ and 8 vintage-inspired compressors options available on every input and bus
- Onboard 34x34 multitrack SD Card recording.
- Take charge of your mix with 16 FlexMixes (aux mixes, subgroups, or matrix mixes), 4 dedicated FX mixes, 4 dedicated subgroups, and 24 DCA Groups.
- Free Universal Control lets you remotely control your mixer, dial in mixes of line, or listen in and control your mixer over the Internet using PreSonus
- Includes both Fender Studio Pro DAW and Capture multitrack recording software

When you're ready to integrate backing tracks, record your show, or mix your next album, the StudioLive SE 32 has you covered with an integrated, continuously bidirectional 64x64 USB 2.0 audio interface and onboard 34x34 SD recorder plus a complete suite of integrated software that features both Capture multitracking and virtual soundcheck software as well as a perpetual license of Fender Studio Pro DAW software. Each channel can easily switch between analog, USB, SD, and AVB sources, making integrating your analog and digital gear easier than ever before.

More than a mixer, StudioLive SE 32 is part of a complete ecosystem of hardware and software. Remotely control your mixer or dial in an Offline mix with Universal Control from your computer or tablet. Launch PreSonus Metro and you can control your mixer over the internet from anywhere in the world with real-time audio monitoring. Built-in, Milan-certified AVB audio networking, makes it easy to integrate with stage boxes, personal monitor mixers, switches, and powerful accessories like the AVB-D16 AVB-to-Dante bridge that lets you add 16x16 Dante networking when you need it.

Fat Channel plug-ins bring your mix to life for stage or studio
The dynamic Fat Channel on the StudioLive SE 32 digital mixer puts critical EQ and dynamics processing beneath your fingertips while giving you fast access to every parameter. The 21 included vintage EQ and classic compressor Fat Channel plug-in models can be inserted on every input and bus.

Specs

Microphone Preamplifier
- Type: 32 XLR Female, balanced (16 XLRF, 16 Combo)
- Frequency Response to Main Output (at unity gain): 20-20 kHz, +/-0.5 dBu
- Input Impedance: 1 kOhm
- THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
- S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
- Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
- Gain Control Range (+/-1 dB): 0 dB to +60 dB
- Maximum Input Level (unity gain): +12 dBu
- Phantom Power (+/-2 VDC): 48 VDC, switchable per channel

Line Inputs
- Type: (16) 1/4" TRS Female, balanced (Combo connectors)
- Frequency Response to Main Output (at unity gain): 20-20 kHz, +/-0.5 dBu
- Input Impedance: 10 kOhm
- THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
- S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd):94 dB
- Maximum Input Level: +18 dBu

Tape Inputs
- Type: RCA Female, unbalanced (stereo pair)
- Maximum Input Level: +12 dBu, +/-0.5 dBu

FlexMix Outputs
- Type: 16 (12 XLRM, 4 1/4" TRS, balanced)
- Maximum Output Level: +24 dBu, +/-0.5 dBu
- Output Impedance: 100Ohm

Subgroup Outputs
- Type: (4) 1/4" TRS balanced (Stereo Left/Right, Main Mono)
- Maximum Output Level: +24 dBu, +/-0.5 dBu
- Output Impedance: 100Ohm

Main Outputs
- Type: 3 XLR Male, balanced (Stereo Left/Right, Main Mono/Center)
- Maximum Output Level: +24 dBu, +/-0.5 dBu
- Output Impedance: 100Ohm

Monitor Outputs
- Type: 1/4" TRS Female, balanced (stereo pair)
- Maximum Output Level: +18 dBu, +/-0.5 dBu
- Output Impedance: 100Ohm

Tape Outputs
- Type: RCA Female, unbalanced (stereo pair)
- Maximum Output Level: +18 dBu, +/-0.5 dBu
- Output Impedance: 100Ohm

Headphone Output
- Type: 1/4" TRS Female, active stereo
- Maximum Output: 100 mW/ch. @ 60Ohm load
- Frequency Response: 20 Hz - 20 kHz (+/- 0.5 dB)
- THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
- S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

System Crosstalk
- Input to Output: -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
- Adjacent Channels: -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)

Digital Audio and Control
- ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
- DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
- USB Recording Port: USB 2.0, Type-B
- Bluetooth Input: 4.1, stereo
- AES/EBU Output: XLR Male
- Network Control Port: RJ-45
- AVB Audio Network Port: Locking XLR Ethernet
- Internal Processing: 32-bit, floating point
- DSP Engine: Quad-core FLEX DSP
- Sampling Rate: 44.1 and 48 kHz
- A/D/A Bit Depth: 24
- Reference Level for 0 dBFS: +18 dBu
- Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)
- Jitter: <20 ps RMS (20 Hz - 20 kHz)
- Jitter Attenuation: >60 dB (1 ns in, 1 ps out)

Power / Environmental
- Connector: IEC
- Input-Voltage Range: 90 to 230 VAC (+/-10%)
- Power Requirements (continuous): 85W
- Recommended Ambient Operating Temperature: 0* to 40* Celsius / 32* to 104* Fahrenheit

Physical
- Height: 6.51" (165.36 mm)
- Width: 32.37" (822.21 mm)
- Depth: 22.97" (583.48 mm)
- Weight: 37.2 lbs. (16.9 kg)
