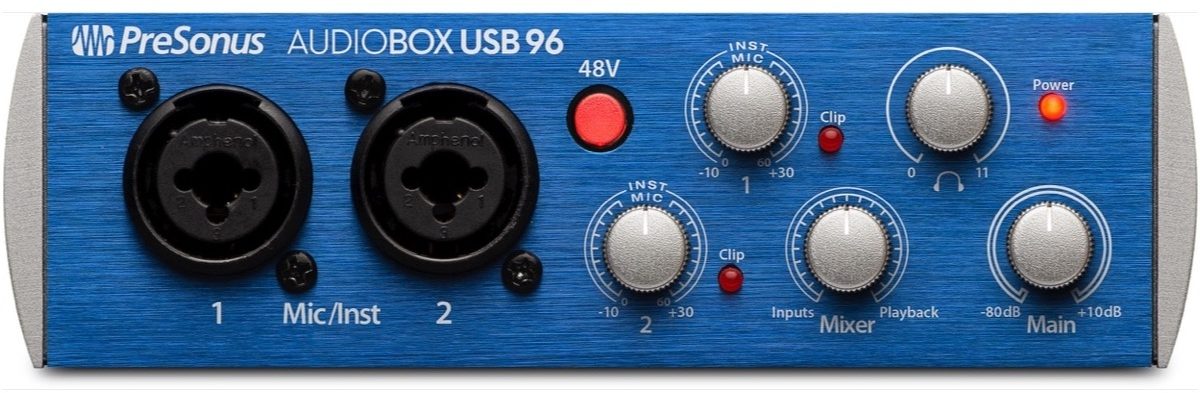

PreSonus AudioBox USB 96 Digital Audio Interface

Microphone Preamp
- Type: XLR Female Balanced
- Frequency Response (+/-3.0 dB): 20 Hz to 20 kHz
- Input Impedance (Balanced): 1200 ohm
- THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain): < 0.008%
- S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz): > 95 dB
- Common Mode Rejection Ratio (1 kHz, 55 dB Gain): > 45 dB
- Gain Control Range (+/- 1 dB): 0 dB to 35 dB
- Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N): -3 dBu
- Phantom Power (+/- 2 VDC): 48 VDC
Instrument Input
- Type: 1/4" TS Female Unbalanced
- Input Impedance: 0.5 M ohms
Line Outputs
- Type: 1/4" Balanced
- Output Impedance: 51 ohms
Headphone Output
- Type: 1/4" TRS Active Stereo
- Maximum Output: 60 mW/Ch @ 60 ohm Load
- Frequency Response (+/- 1.0 dB): 20 Hz - 30 kHz
MIDI I/O
- Type: Dual 5-pin Female DIN
Digital Audio
- ADC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
- DAC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
- Bit Depth: 24
- Reference Level for 0 dBFS: Plus 4 dBu
- Internal Sample Frequency Selections (kHz): 44.1, 48, 88.2, 96
- Power: USB 2.0 bus-powered
Physical
- Dimensions: 1/3U (steel chassis)
- Height: 5.5" (139.7 mm)
- Depth: 1.75" (44.45 mm)
- Width: 5.5" (139.7 mm)
- Weight: 5 lbs (2.27 kg)

Computer system requirements:
Below are the minimum computer-system requirements for AudioBox USB 96.

Mac
- Mac OS X 10.8.5 or later
- Intel Core Duo processor (Intel Core# 2 Duo or Intel Core i3 or better recommended)
- 2 GB RAM (4 GB or more recommended)

Windows
- Windows 7x 64/x86 SP1 or Windows 8/8.1 x64/x86 or Windows 10 x64/x86
- Intel Core 2 processor (Intel Core i3 processor or better recommended)
- 4 GB RAM (8 GB or more recommended)

Windows and Mac Systems
- USB 2.0 Port
- Internet connection (for activation)
- Monitor with at least 1024x768 resolution
- 20 GB hard-disk space
- Internal or external 7200 RPM storage drive highly recommended
- The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.

Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system.
Dimensions and Weight in Packaging
Black
Shipping Weight: 2.25 lbs
Shipping Dimensions: 10 x 7 x 4 in
Manufacturer Part Number (MPN): 96K BLK
Blue
Shipping Weight: 2.25 lbs
Shipping Dimensions: 10 x 7 x 4 in
Manufacturer Part Number (MPN): AudioBox USB 96
PreSonus Warranty Presonus offers a one year warranty (parts and labor) on all new products. All non-new Presonus products are not covered by any warranty.
If you have additional warranty questions, please contact the manufacturer at 225-216-7887
