Pioneer DJ VM-80 8" Powered Studio Monitor

Put some serious speakers in your studio or listening space. Pioneer DJ VM-80 monitors feature Vortex Bass Accelerator technology for tight bass performance.
The Pioneer DJ VM-80 couples slick, professional design with flexible DSP settings to deliver artists a clear, low-distortion listening experience, suitable for any setting.

With music production and performance now centered in the home, high-performing and aesthetically pleasing monitor speakers are proving to be a staple for artists looking to integrate the club and studio atmosphere into their own spaces. Pioneer created the VM Series to look great in any space while providing studio-quality sound, at an affordable price.

Featuring a 4mm-thick aluminum front baffle, flat voicing, Class-D amplifier, Aramid fiber cones and Vortex Bass Accelerator, the VM Series accurately reproduces sounds, including deep low-end frequencies while cutting out unwanted vibrations. The VM series also features DSP control and 16 EQ settings allowing artists to easily tune their speakers to their preferred setting, from compact home spaces to large, professional studios.

High-Quality Components

Each speaker in the VM Series includes a Class-D amplifier with 96 kHz sampling DSP to enable wide-bandwidth audio reproduction, low audio distortion and increased sound output. The 4 mm-thick rigid aluminum front baffle also suppresses resonance and reduces vibrations, helping the speaker deliver sound that is authentic to the original source.

Aramid Fiber Woofer Cones and Vortex Bass Accelerator

From minimum to maximum volume, Aramid fiber woofer cones deliver an outstanding read more punch for artists to feel the bass and low-mid frequencies. The specially designed fiber woofer cones are 30-percent lighter than conventional paper-lined Aramid cones, resulting in a deep, rich sound and a more durable speaker. With the Vortex Bass Accelerator, low-end audio remains tight and free from unwanted vibrations, while ribs in the bass reflex port allow free air flow from the speaker to deliver pure sound.

Constant Directivity Horn

The VM Series also features a constant directivity horn to help create a broad, uniform listening space while simultaneously transmitting powerful mid and high-frequency sounds. The horn shape and woofer edge are specially designed so the flat playback frequency crosses over to the tweeter easily, resulting in a natural sound.

DSP Control: Easily Adjustable Sound to Suit Any Room

The VM Series speakers are voiced flat to ensure artists hear the music's natural sound. Considering listening environments can react differently to audio waves, the speakers also feature a DSP setting, allowing artists to tweak the output and find the perfect sound for their space.

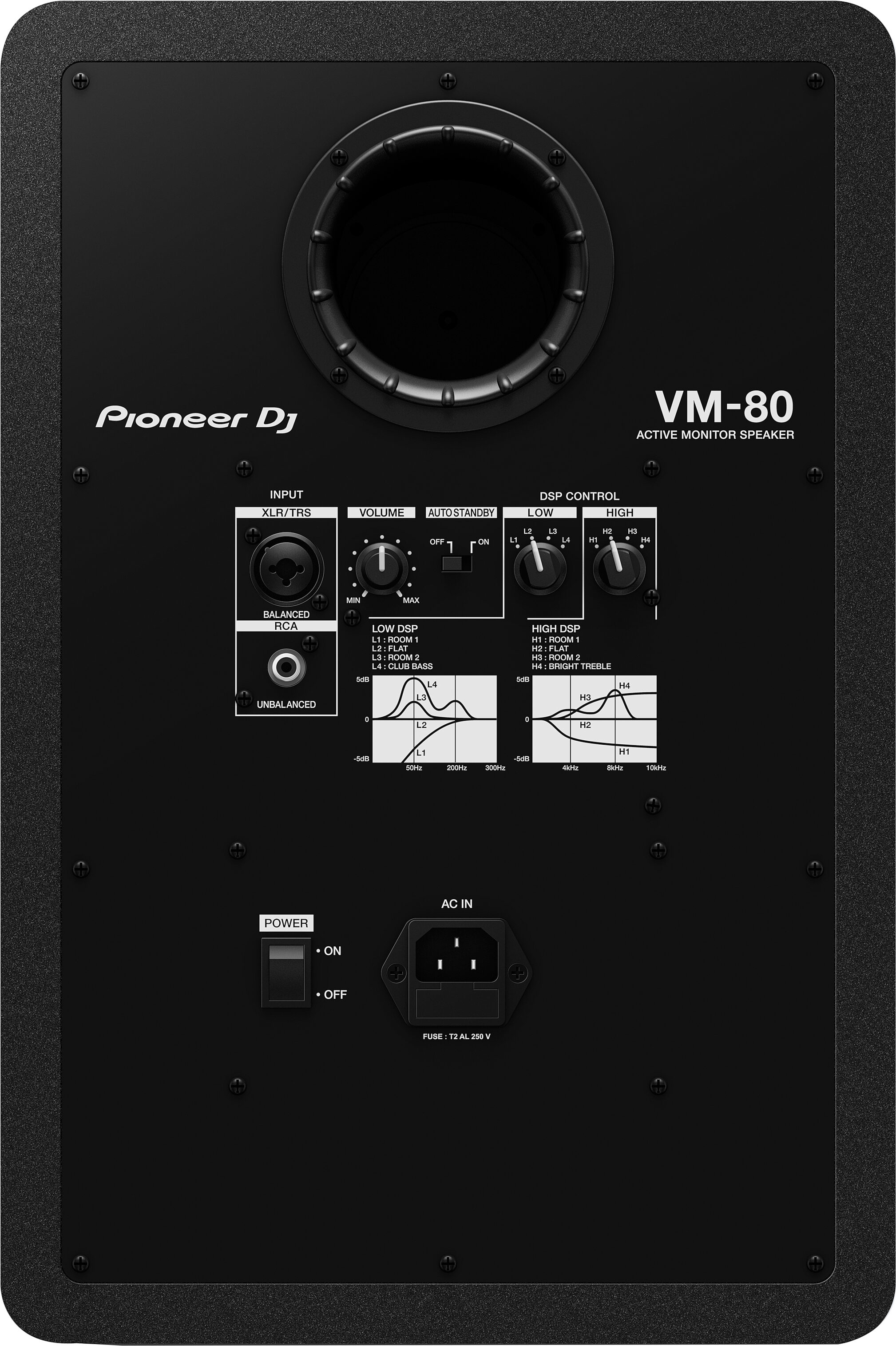

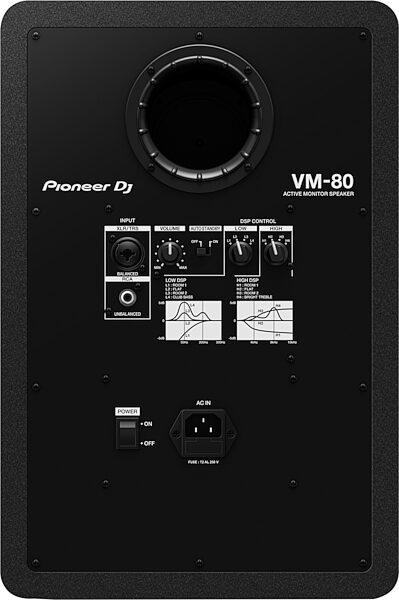

Fixed on the back of the speakers are Low EQ and High EQ knobs. Without looking at the rear panel, artists can click the knobs into four different positions to unlock 16 intuitive EQ settings. The expanded setting set enables artists to tune the speakers in accordance to the room's shape, size and construction.

Fresh, Professional Design: Enhance the Setup Look and Sound

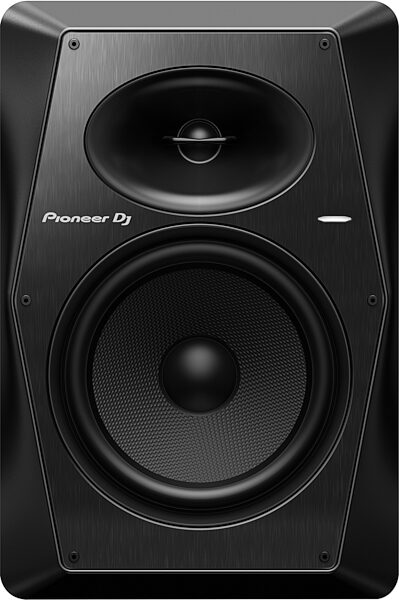

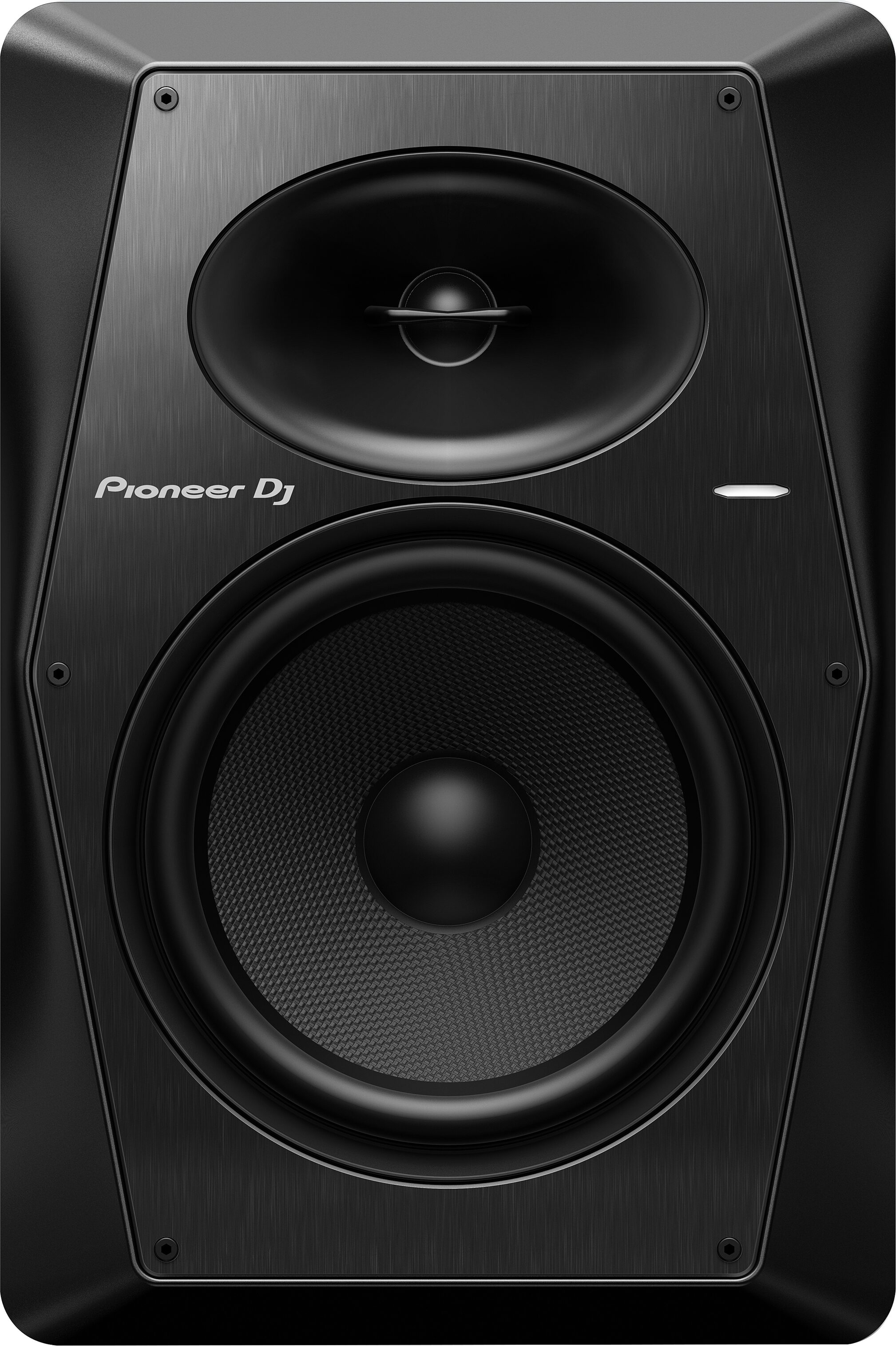

The design of the hexagonal aluminum front baffle offers not only a clean look, but improved sound quality and durability. With a 4 mm thickness, the baffle helps cut down unwanted vibrations for lower distortion, while the tweeter protective guard reduces the risk of damage to the high-frequency diaphragm. Completing the VM Series is an Alumite treated brushed texture, giving the speakers a professional finish to beautifully accompany any Pioneer DJ gear.
read less
Model: VM-50 / VM-50-W
Type: Bi-amp 2-way active speaker
Tweeter: 1" (25 mm) SILK soft dome
Woofer: 8" (203 mm) ARAMID cone
Auto Standby: Yes
Maximum Dimensions (W x D x H): 10.51" x 15.75 x 12.80" (267 x 400 x 325 mm)
Weight: 9.7 kg / 21.4 lbs.
Maximum Sound Pressure: 115 dB
Amplifier Output: Class D with 96 kHz DSP
- LF: 90 W / 4 ohms
- HF: 30 W / 4 ohms
Frequency Range: 34 Hz - 36 kHz
Impedance: 10 kOhms
High EQ: 4 selective EQs
Low EQ: 4 selective EQs
Crossover Frequency: 3 kHz
Terminal Inputs:
- XLR / TRS combo x 1 (balanced input)
- RCA x 1 (unbalanced input)
Enclosure: Bass reflex with Vortex Bass Accelerator
Enclosure material: MDF vinyl laminate
Baffle material: HIPS with 4mm Aluminum Plate
Supported voltages: AC 100 V - 240 V, 50 Hz / 60 Hz
Accessories:
- Power cable x 1
- Precautions for Use x 1
- Instruction Manual x 1
Cushioned feet pads x 1 (4pcs / 1sheet)
- Warranty (for some regions)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 28 lbs
Shipping Dimensions: 21 x 16 x 15 in
Manufacturer Part Number (MPN): VM-80
