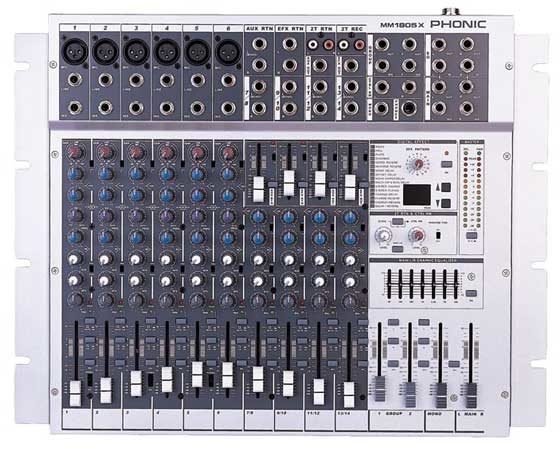

Phonic MM1805X Rackmount Mixer with EFX

No longer available at zZounds

zZounds Gear Experts Say...

6 balanced microphone/line input channels. Mid/side decoding. Mid swept 3-band EQ plus low cut filter. On-board effects.

Overview

The Phonic MM1805X was designed by sound engineers for sound engineers. The MM1805X offers superior performance and functions, but more importantly great sound quality. The MM1805X employs extremely low noise mic pre-amps (130dBm EIN) on all six mic inputs with insert points connecting of external signal processing devices. Uniquely, the Phonic MM1805X is capable of MS recording, offering selector switches on channels 1 to 6 that allow standard MS recording on channels 1/2 and enable channels 3/4 and 5/6 for MS pairs.

The MMX1805X has 255-programmed digital effects on-board, to ensure that you have access to the effect you want when you need it. Its 7-band graphic EQ takes care of any room acoustic anomalies. With a total of 18 inputs and 5 outputs consisting of 2 groups, one summed mono and a stereo L/R main output, the MM1805 series is a powerful, flexible yet compact mixing solution.

Features
6 balanced microphone/line input channels with insert points

Unique M/S setting for CH1+2, CH3+4, CH5+6 pair switchable

Individual phantom power switches with master on/off switch

Mid swept 3-band EQ plus low cut filter

1 aux + 1 FX mixing buses per input channel (pre/post selectable)

Peak indicators on all inputs

Channel on/mute buttons

60mm high quality linear faders

Auto mono function for stereo input channels

Patchable built-in stereo 7-band graphic equalizer

Insert points on groups and main stereo output

Balanced outputs on groups, main stereo and mono outputs

Dual… read more 13 segment LED level meter

MS metering mode

Large writing area under each channel fader

Built-in 255 program digital effects

Specs

Inputs:
-- Balanced mono mic/line channels: 6

-- Balanced stereo line channels: 4

-- 2T input: 1

-- Aux returns: 2 stereo

Outputs:
-- Main L/R stereo: TRS, balanced

-- Main mono: TRS, balanced

-- Aux sends: 2, TRS, balanced

-- Submaster: 2, TRS, balanced

-- Phones: 1

-- Control RM: TRS, unbalanced

Channel strips:
-- 10 total

-- Aux controls: 2

-- Pan/balance control: yes

-- Channel mute: yes

-- Channel solo (PFL) with metering: yes

-- LED indicators: on, peak

-- Bus assign switches: 1/2, L/R

-- Volume controls: 60mm faders

-- MS matrix: 3

-- Inserts: 6

Master section:
-- Aux send masters: 2

-- Master aux send solo (AFL): 2

-- Stereo aux returns (efx return): 2

-- Global aux return (efx return) solo (PFL): yes

-- Phones/control RM level control: yes

-- Phones/control RM source switching: yes

-- Faders: main, group, mono

Metering:
-- MS/ST

-- Number of channels: 2

-- Segments: 13

Phantom power supply: +48VDC
-- Switches: master + 6

Built-in effect processor: 255 programs

Built-in graphic EQ: stereo, 7-band

Noise 20Hz to 20KHz bandwidth, line inputs to main L/R outputs, all channels assigned, panned L/R:
-- Master @ unity, channel fader down: -89dBu

-- Master @ unity, channel fader @ unity: -86dBu

-- S/N ratio, ref to +4: >90dB

THD any output, 1KHz @ +14dBu, 20Hz to 20KHz, channel inputs: <0.005%

CMRR 1 KHz @ -60dBu, gain at maximum: 80dB

Crosstalk 1KHz @ 0dBu, 20Hz to 20KHz bandwidth, channel in to main L/R outputs:
-- Channel fader down, other channels at unity: <-86dB

-- Channel muted, other channels at unity: <-85dB

Frequency response:
-- 20Hz - 20KHz (gain min.): +/- 1dB

-- 20Hz - 20KHz (gain max.): +/- 2dB

Maximum Levels:
-- Mic preamp input: +10dBu

-- All other inputs: +22dBu

-- Balanced outputs: +28dBu

-- Unbalanced outputs: +22dBu

Impedance:
-- Mic preamp input: 2 kilohms

-- All other inputs (except inserts): 10 kilohms

-- RCA 2T outputs: 1.1 kilohm

-- All other outputs: balanced: 440 ohms, unbalanced: 220 ohms

Equalization:
-- 3-band, +/-15dB

-- Low EQ: 80Hz

-- Swept mid: EQ 100~8KHz

-- Hi EQ: 12KHz

-- Low cut filter: 75Hz (-18dB/oct)

Microphone preamp E.I.N. (150 ohms terminated, max gain): <129.5dBm

Power consumption: 40 watts

Weight: 13.2 lbs. (6 kg)

Dimensions (WxHxD): 17.3 in. x 2.4 in. x 15.4 in. (440 x 60 x 390mm)
