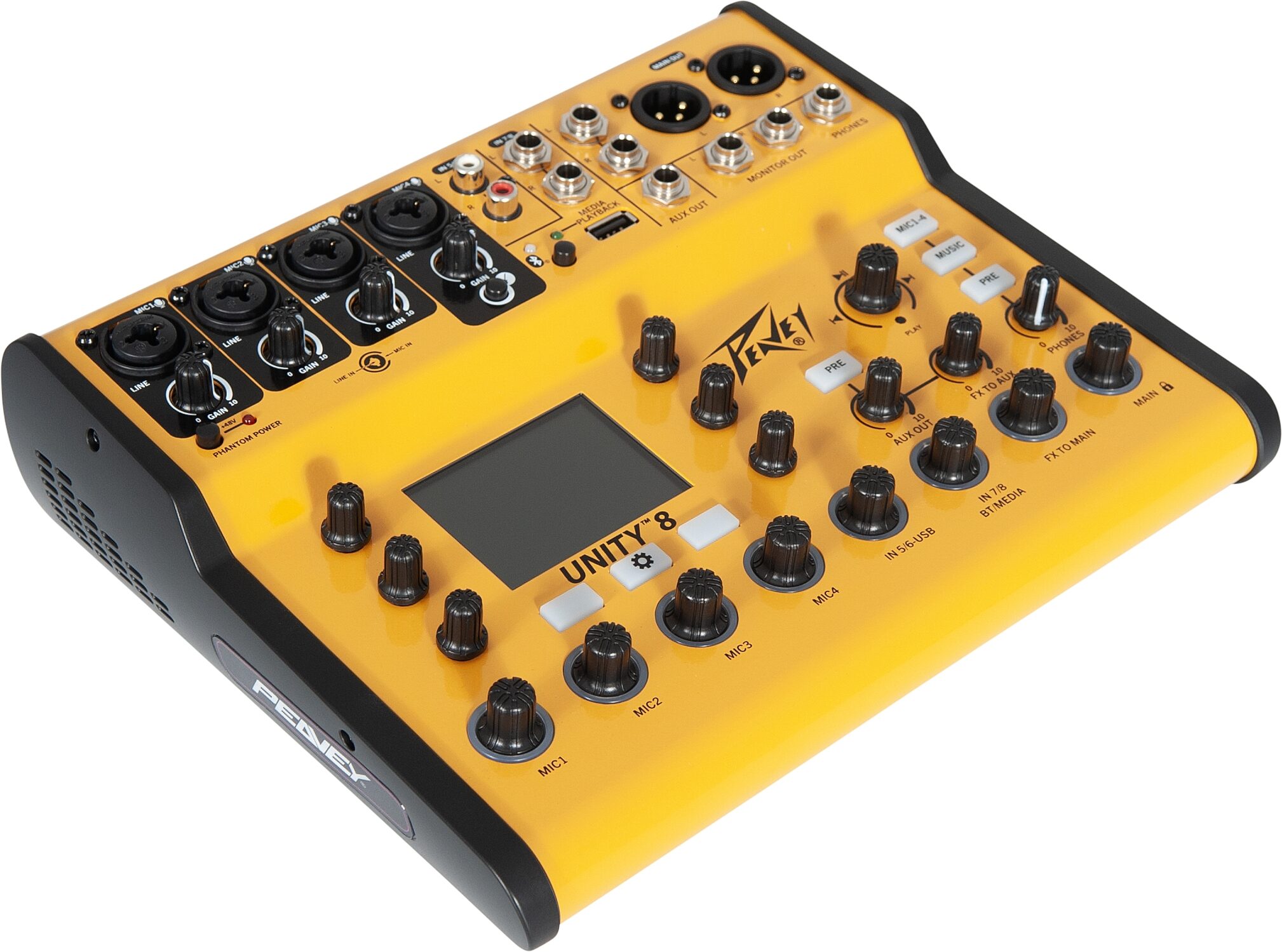

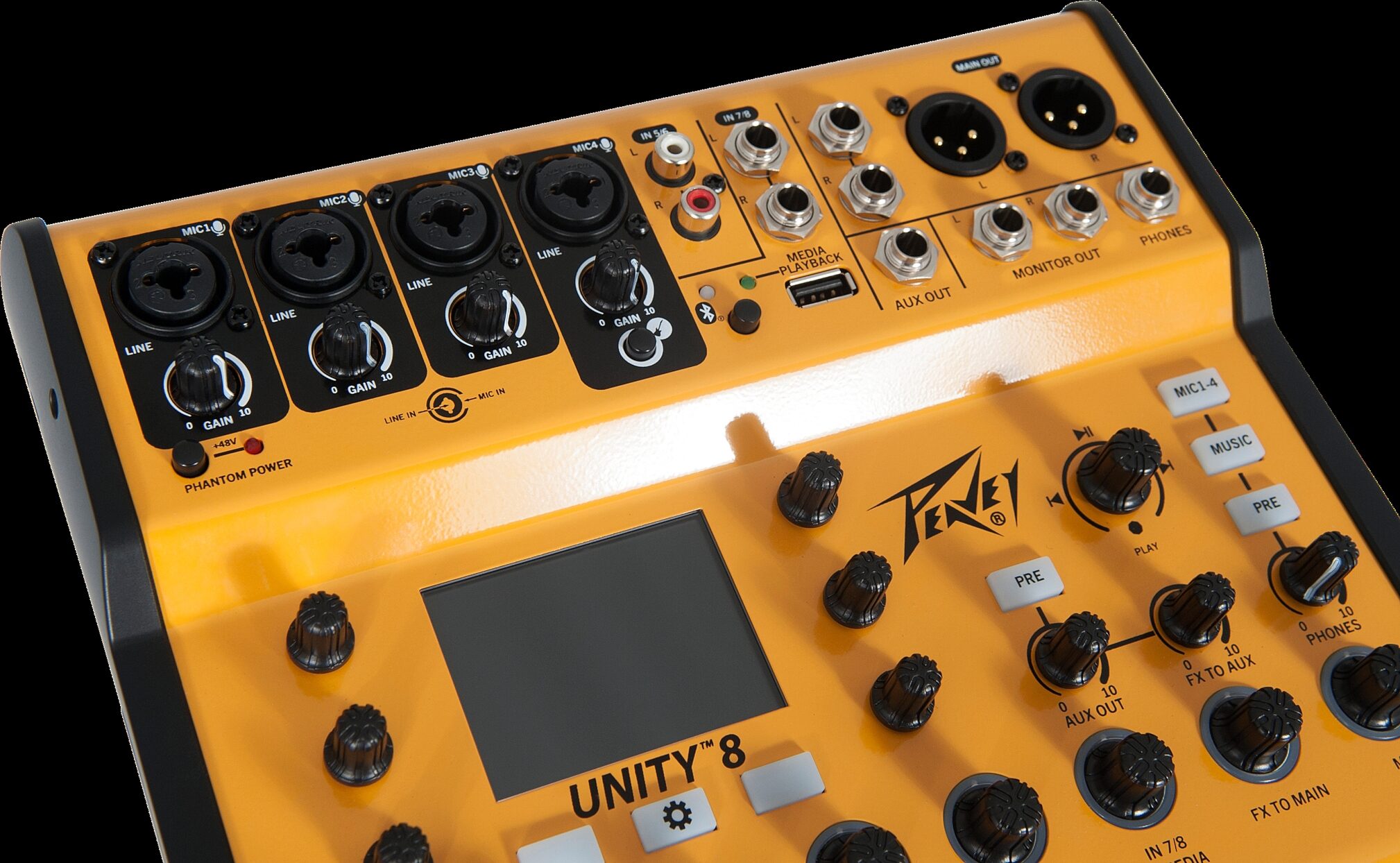

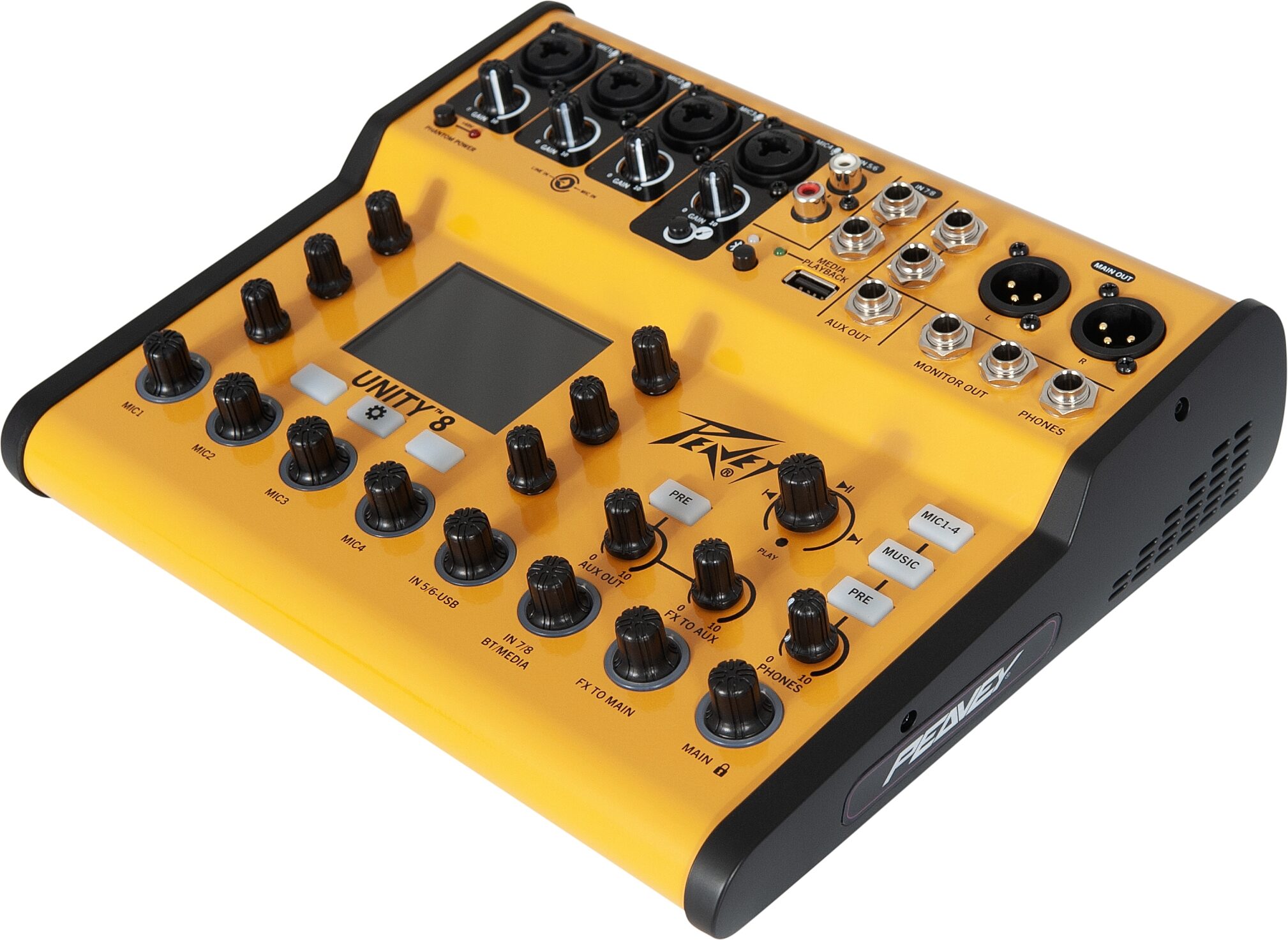

Peavey Unity 8 Compact USB Digital Mixer

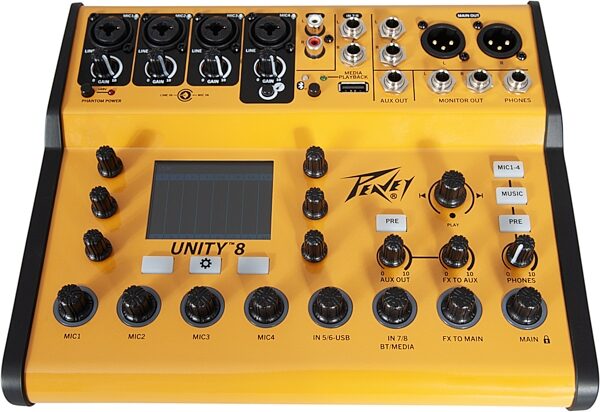

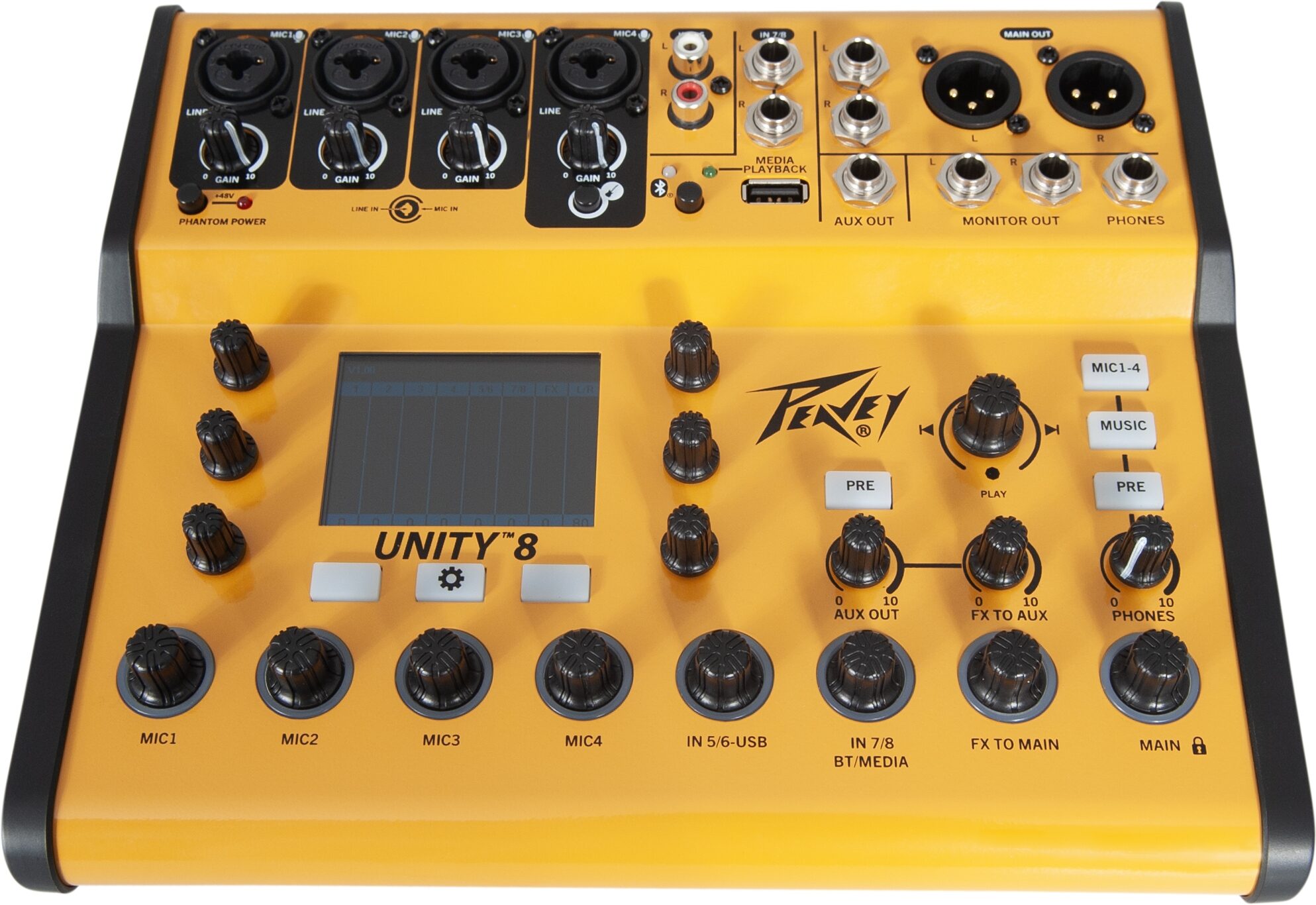

Peavey Unity 8 Compact USB Digital Mixer, Open Box (Very Good), Main

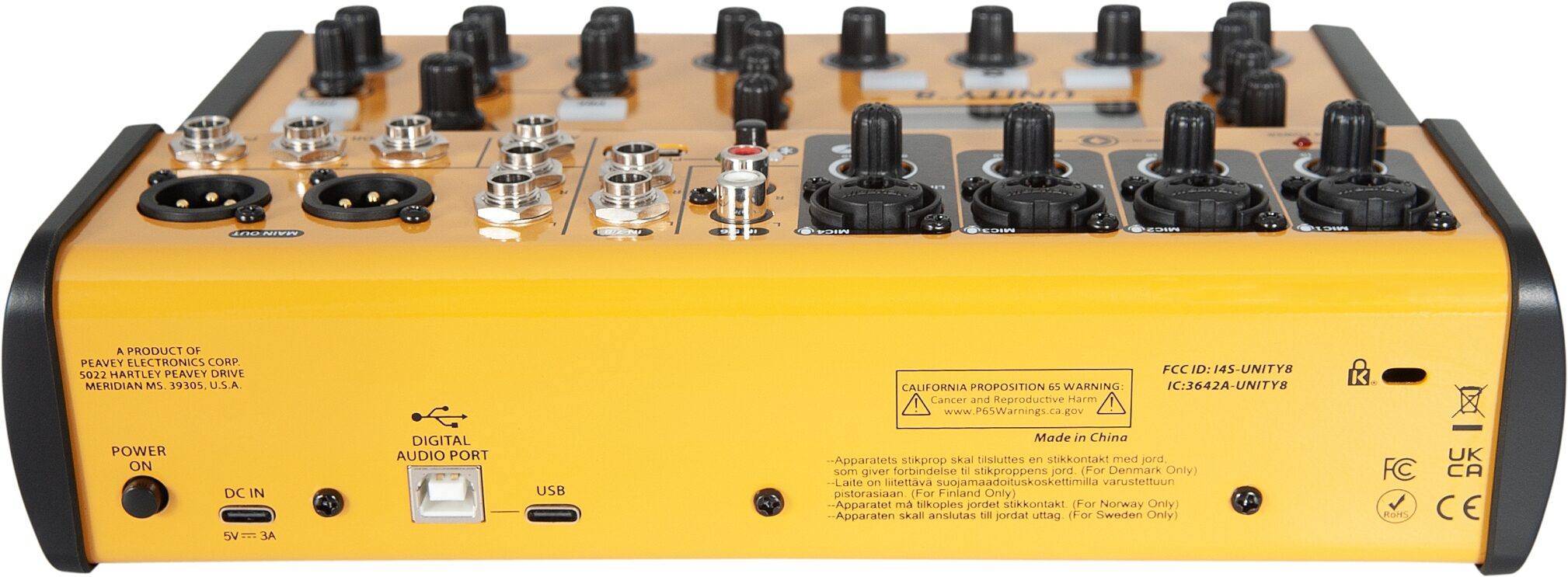

Peavey Unity 8 Compact USB Digital Mixer, Open Box (Very Good), Action Position Back

zZounds Gear Experts Say...

Mix live shows, record, podcast, and livestream at a pro level with the feature-packed Peavey Unity 8 compact digital USB mixer.

Overview

The Unity 8 Digital Mixer is designed for expanded live sound and production needs, combining USB-C computer audio, Bluetooth input, phantom power, and studio-quality EQ and effects with built-in feedback suppression for live use.

Ideal for performers, events, houses of worship, content creators, and small venues, Unity 8 delivers increased capability and control while maintaining the simple, intuitive operation the Unity series is known for.

Features:

- Expanded Mixing Capability - Designed to handle larger live sound and production setups with greater input and control.

- USB-C & Bluetooth Audio - Seamlessly integrate computer audio and wireless devices into your mix.

- Built-In Feedback Suppression - Helps prevent feedback in live environments for clearer, more reliable sound.

- Studio-Quality EQ & Effects - Shape and polish your mix with professional-grade processing built in.

- Phantom Power Ready - Supports condenser microphones for vocals, instruments, and spoken word.

- Intuitive Unity Workflow - Powerful features with a simple, easy-to-learn interface for fast setup and operation.

Specs

- Input Connections:
- MIC/LINE (mono): Combo female XLR/ 1/4" jack (Balanced or unbalanced)
- Guitar (mono): 1/4" phone jack (Balanced or unbalanced)
- Line 5/6-7/8 (stereo): RCA,1/4" phone jacks (Balanced or unbalanced)
- USB Media (stereo): USB-A
- USB (stereo): USB-B and USB-C
- Bluetooth (stereo): Yes

- Output Connections:
- Main Out (stereo): 1/4" phone jacks (Balanced or unbalanced)
- Monitor Out (mono): 1/4" phone jack (Balanced or unbalanced)
- Aux Out (mono): 1/4" phone jack (Balanced or unbalanced)
- Headphone Out (stereo): 1/4" phone jack (Unbalanced)
- Headset Out (stereo): 3.5mm jack (Unbalanced)
- USB 1-2 (stereo): USB-B and USB-C

- Channel Function:
- Mic1-4: Low-cut, Noise gate, Feedback Suppressor, Compressor (1-2), 3-band EQ, Aux, EFX's, Volume, Mute
- Line 5/6-USB: Noise gate, 3-band EQ, Aux, EFX's, Volume, Mute
- Line 7/8-BT-Media: Noise gate, 3-band EQ, Aux, EFX's, Volume, Mute

- Nominal Frequency Response: +0, -1 dB from 10 Hz to 23 kHz
- Hum and Noise: < -90 dBu
- Phantom Power Voltage: +48 V DC
Power requirements: 5V DC, 3 Amp
Dimensions (W x D x H): 9.875 x 8.25 x 2.75 in. / 251 x 210 x 70 mm
- Net Weight: 3.19 lbs / 1.45 kg

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 4.51 lbs
Shipping Dimensions: 14 x 10 x 4 in
Manufacturer Part Number (MPN): 03622380

Open Box (Very Good)

Shipping Weight: 4.51 lbs
Shipping Dimensions: 14 x 10 x 4 in
Manufacturer Part Number (MPN): 03622380
