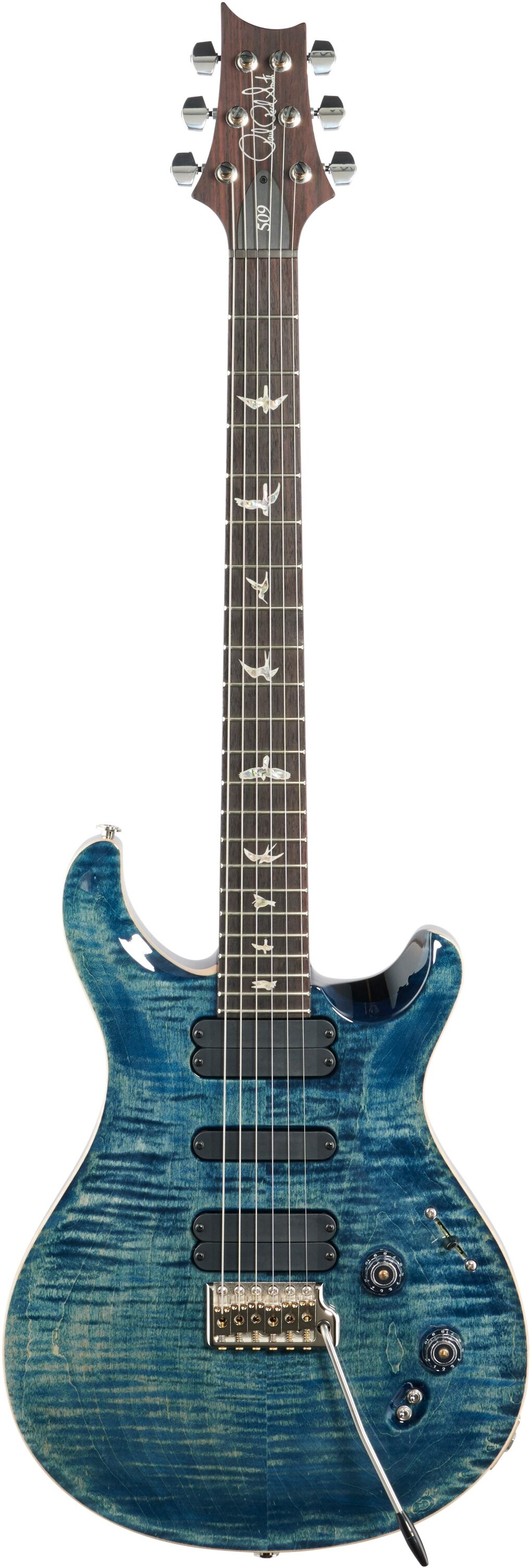

PRS Paul Reed Smith 509 Electric Guitar (with Case)
No longer available at zZounds


zZounds Gear Experts Say...
One of the most versatile guitars in the core PRS lineup, the PRS 509 features a 5 single-coil pickup platform with outside coils grouped as humbuckers.
What's special about this item?
Feature: | What it does: |
---|---|
Carved figured maple top | Impeccable feel, enhanced body contours |
Mahogany neck | Warm, focused and present midrange |
Rosewood fretboard | Open, warm tone and smooth playing feel |
PRS Phase III locking tuners | Striking open-back design; preserves tone |
Overview
One of the most versatile guitars in the PRS Core line up, the 509 with a Trampas Green flame maple non-10 Top starts with a 5 single coil platform - with the outside two coils grouped as humbuckers. The addition of the 509's innovative switching system, which consists of a 5-way blade switch and two mini coil-tap switches, gives players an array of humbucking, single-coil, and blended tones. While the 5-way blade switch gives players the expected pickup selection, the mini coil-tap switches work to split the outside grouped coils and add some much appreciated in-between tones. Additional unique appointments include a longer 25.25" scale length, which adds some upper harmonic sparkle, and the PRS Gen III Patented Tremolo.
"The 509 is a "Swiss-army-knife" five pickup/nine sound instrument with a highly-usable switching system that has evolved in recent years through experimentation, feedback, and experience. I believe the 509 will feel right at home to players who want a longer 251/4" scale guitar with this pickup configuration, but also want several more musical sounds" said Paul Reed Smith.
The 509 model was first introduced as the Private Stock May 2016 Guitar of the Month, celebrating Private Stock's 20th Anniversary. With its longer scale length (25.25"), middle single coil pickup, and easy-to-use integrated electronics control package, the 509 is perfect for single coil players who want the added tonal versatility of humbucking and humbucking + single coil sounds in one… read more guitar.
- Five Pickups, Nine Sounds:
- 5-Way Blade Position 1, Mini-Toggle Up: Treble Pickup Single Coil
- 5-Way Blade Position 1, Mini-Toggle Down: Treble Pickup Humbucker
- 5-Way Blade Position 2, Mini-Toggle Up: Treble Pickup Single Coil + Middle Pickup
- 5-Way Blade Position 2, Mini-Toggle Down: Treble Pickup Humbucker + Middle Pickup
- 5-Way Blade Position 3: Middle Pickup
- 5-Way Blade Position 4, Mini-Toggle Up: Middle Pickup + Bass Pickup Single Coil
- 5-Way Blade Position 4, Mini-Toggle Down: Middle Pickup + Bass Pickup Humbucker
- 5-Way Blade Position 5, Mini-Toggle Up: Bass Pickup Single Coil
- 5-Way Blade Position 5, Mini-Toggle Down: Bass Pickup Humbucker read less
"The 509 is a "Swiss-army-knife" five pickup/nine sound instrument with a highly-usable switching system that has evolved in recent years through experimentation, feedback, and experience. I believe the 509 will feel right at home to players who want a longer 251/4" scale guitar with this pickup configuration, but also want several more musical sounds" said Paul Reed Smith.
The 509 model was first introduced as the Private Stock May 2016 Guitar of the Month, celebrating Private Stock's 20th Anniversary. With its longer scale length (25.25"), middle single coil pickup, and easy-to-use integrated electronics control package, the 509 is perfect for single coil players who want the added tonal versatility of humbucking and humbucking + single coil sounds in one… read more guitar.
- Five Pickups, Nine Sounds:
- 5-Way Blade Position 1, Mini-Toggle Up: Treble Pickup Single Coil
- 5-Way Blade Position 1, Mini-Toggle Down: Treble Pickup Humbucker
- 5-Way Blade Position 2, Mini-Toggle Up: Treble Pickup Single Coil + Middle Pickup
- 5-Way Blade Position 2, Mini-Toggle Down: Treble Pickup Humbucker + Middle Pickup
- 5-Way Blade Position 3: Middle Pickup
- 5-Way Blade Position 4, Mini-Toggle Up: Middle Pickup + Bass Pickup Single Coil
- 5-Way Blade Position 4, Mini-Toggle Down: Middle Pickup + Bass Pickup Humbucker
- 5-Way Blade Position 5, Mini-Toggle Up: Bass Pickup Single Coil
- 5-Way Blade Position 5, Mini-Toggle Down: Bass Pickup Humbucker read less
Specs
- Top Wood: Carved Figured Maple
- Back Wood: Mahogany
- Number of Frets: 22
- Fret Wire: Jumbo
- Scale Length: 25.25"
- Neck Wood: Mahogany
- Neck Shape: Pattern Regular
- Neck Depth at The Nut: 27/32"
- Width of Fretboard at the Body: 2 1/4"
- Width of Fretboard at the Nut: 1 21/32"
- Fretboard Wood: Rosewood
- Fretboard Inlay: Birds
- Bridge: PRS Patented Tremolo, Gen III
- Tuners: PRS Phase III Locking
- Hardware Type: Nickel
- Treble Pickup: 509 Humbucker
- Middle Pickup: 509 Singlecoil
- Bass Pickup: 509 Humbucker
- Controls: Volume and Tone Controls with 5-Way Blade Pickup Selector and 2 Mini Toggles
- Strings: 10's
- Back Wood: Mahogany
- Number of Frets: 22
- Fret Wire: Jumbo
- Scale Length: 25.25"
- Neck Wood: Mahogany
- Neck Shape: Pattern Regular
- Neck Depth at The Nut: 27/32"
- Width of Fretboard at the Body: 2 1/4"
- Width of Fretboard at the Nut: 1 21/32"
- Fretboard Wood: Rosewood
- Fretboard Inlay: Birds
- Bridge: PRS Patented Tremolo, Gen III
- Tuners: PRS Phase III Locking
- Hardware Type: Nickel
- Treble Pickup: 509 Humbucker
- Middle Pickup: 509 Singlecoil
- Bass Pickup: 509 Humbucker
- Controls: Volume and Tone Controls with 5-Way Blade Pickup Selector and 2 Mini Toggles
- Strings: 10's
