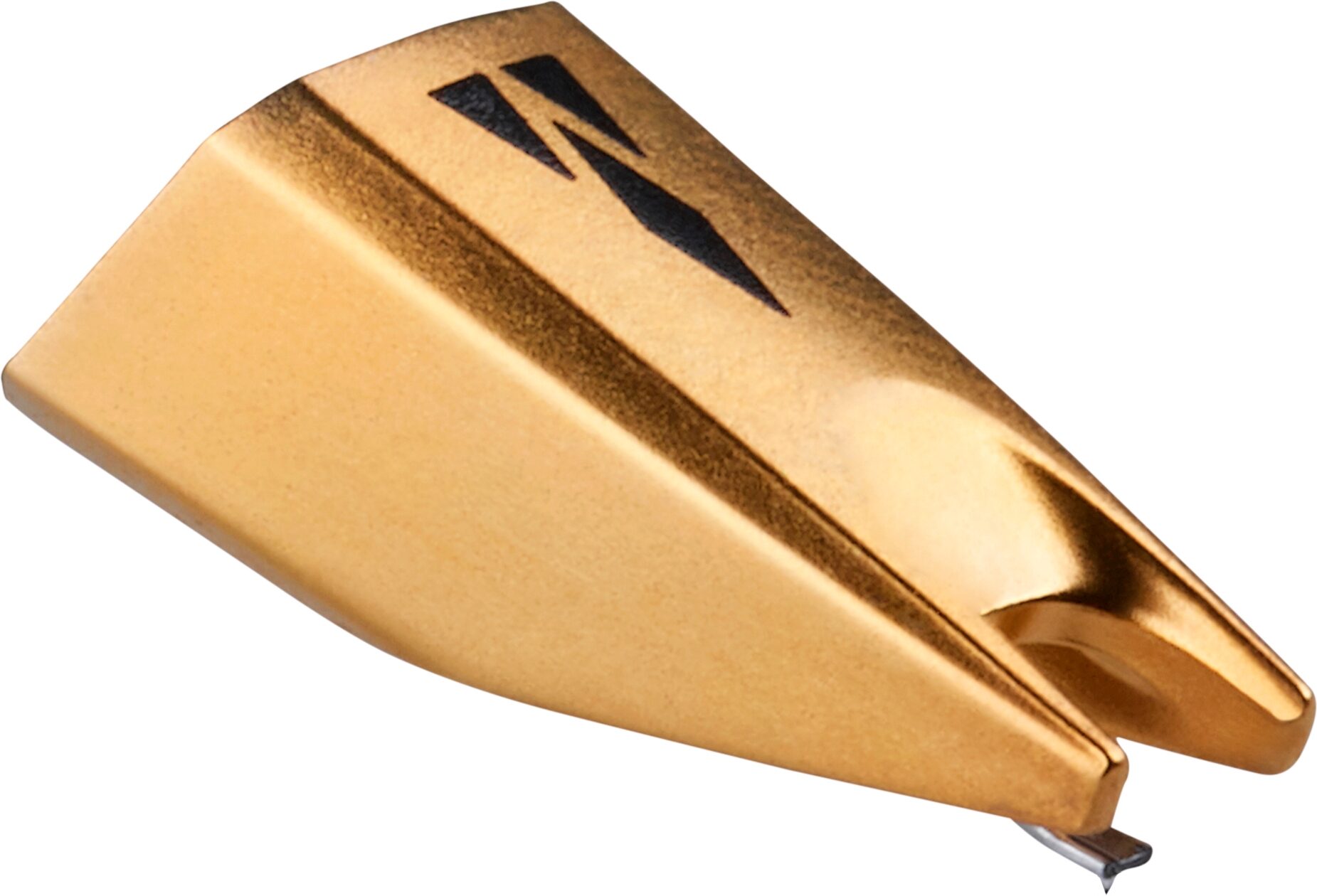

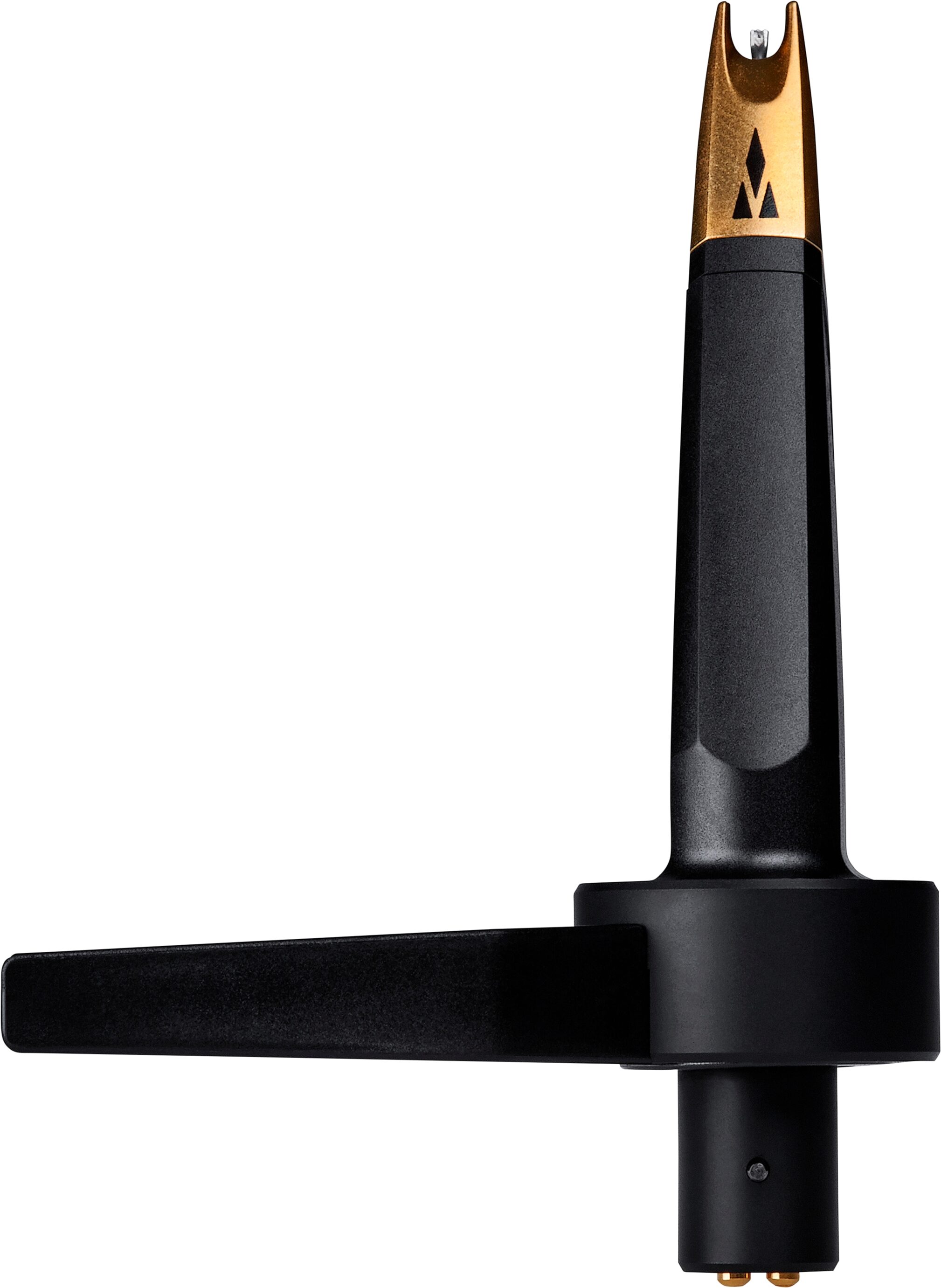

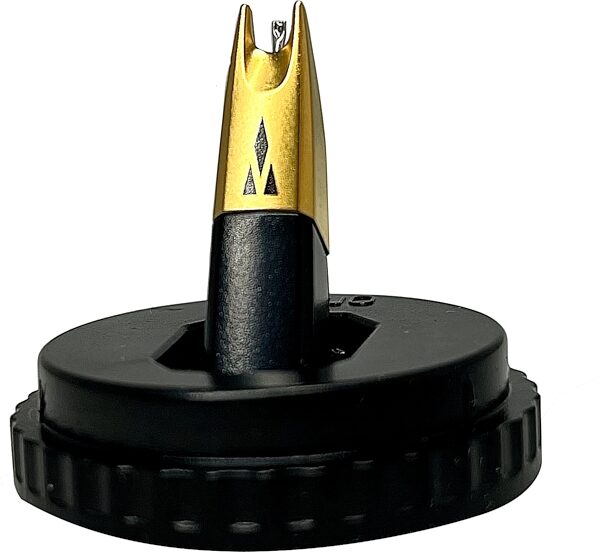

Ortofon Replacement Stylus for Concorde Elite

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
Ortofon Replacement Stylus for Concorde Elite, New, Action Position Back
Ortofon Replacement Stylus for Concorde Elite, New, Action Position Back
Ortofon Replacement Stylus for Concorde Elite, New, Action Position Back
Ortofon Replacement Stylus for Concorde Elite, New, Action Position Back Ortofon Replacement Stylus for Concorde Elite, New, Action Position Back Ortofon Replacement Stylus for Concorde Elite, New, Action Position Back
zZounds Gear Experts Say...
Looking to rehabilitate your Concorde Elite cartridge? This replacement stylus will fit the ticket, equipped with a precise nude elliptical diamond stylus.

The Ortofon Replacement Stylus for the Concorde Elite features a special-molded stylus body with real gold plating. Encased by the gold is a nude elliptical diamond mounted on a rigid aluminum cantilever. The nude elliptical diamond stylus, normally used in Hi-Fi cartridges, delivers a sound so powerful and detailed that you will experience a remarkable level of live performance.

The addition of a nude elliptical diamond allows a smaller moving mass, which guarantees an improved and detailed sound quality. The slim profile of the nude elliptical diamond makes it able to follow the groove oscillations more accurately, extract more intricate details, and track even the highest frequency information.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Channel Balance at 1 kHz: 1 dB
Output Voltage at 1 kHz, 5cm/sec: 8,5 mV
Channel Separation at 1 kHz: 25 dB
Tracking Ability At 315Hz: 100 um
Compliance, Dynamic, Lateral: 13 um/mN
Stylus Type: Nude Elliptical
Stylus Tip Radius: r/R 8/18 um
Tracking Force Range: 2.0-4.0 g
Tracking Force, Recommended: 3.0 g
Tracking Angle: 20*
Cartridge Weight: stylus = 1 g
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.03 lbs
Shipping Dimensions: 1 x 1 x 1 in
Manufacturer Part Number (MPN): STYLUS ELITE

For support or warranty questions, please contact the manufacturer:
Phone: 914-762-8646
