Ortofon Replacement Stylus for DigiTrack Catridges

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

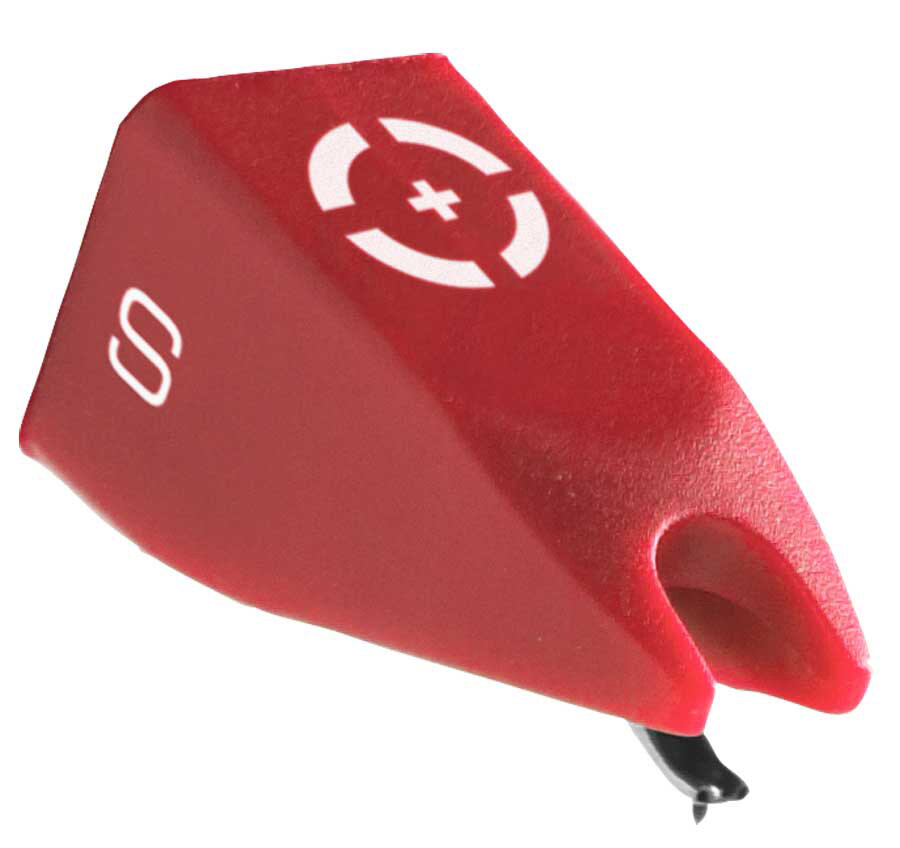

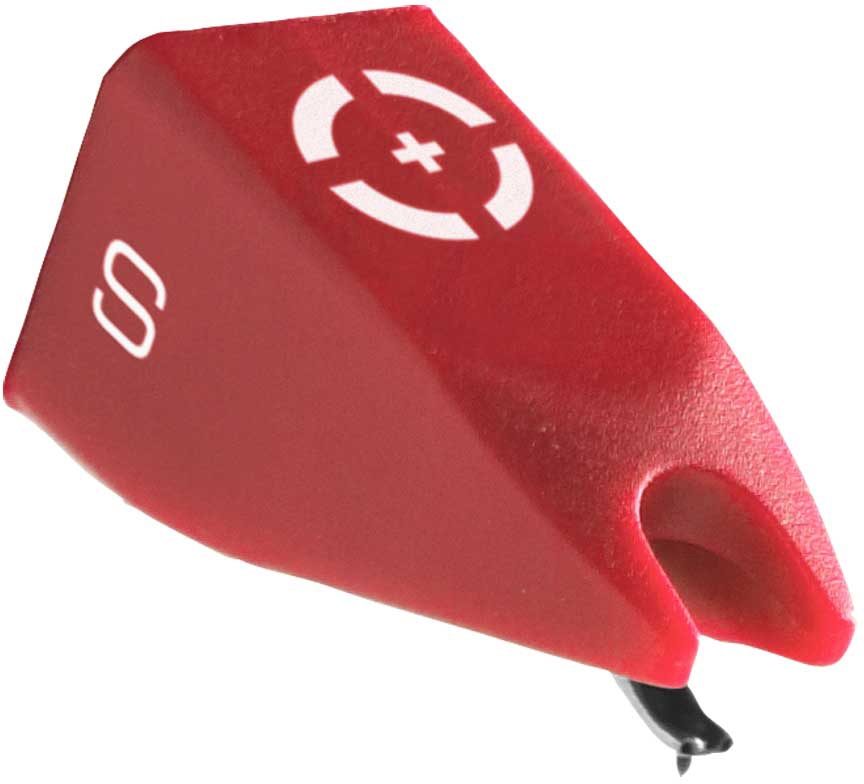

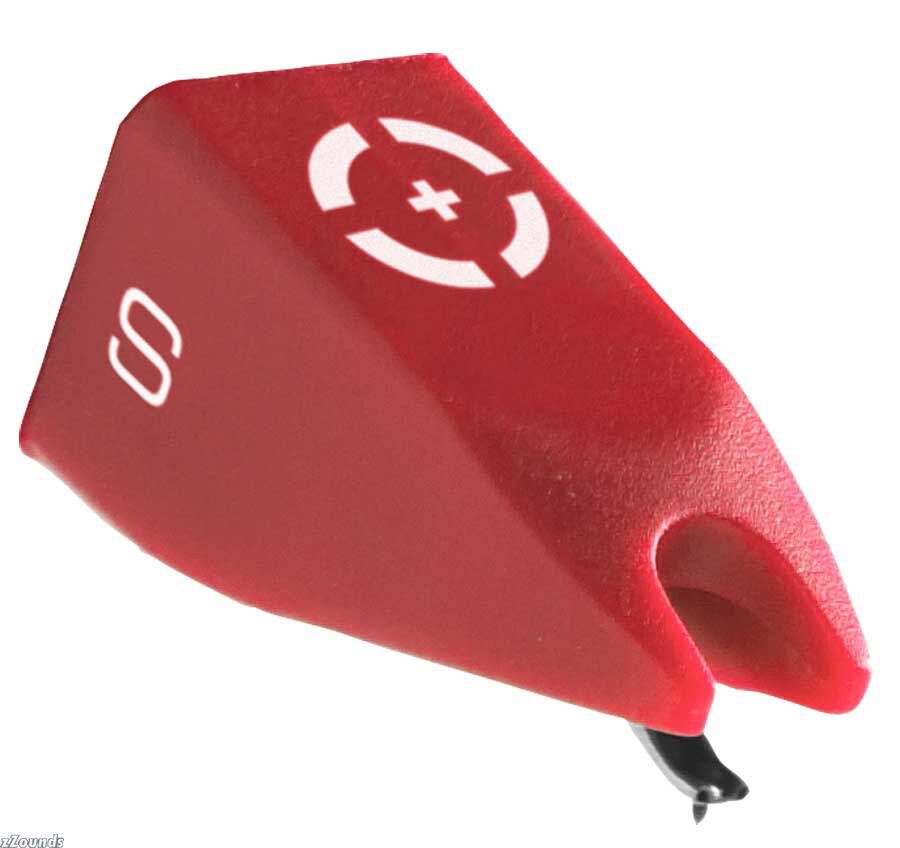

open zoom image for Ortofon Replacement Stylus for DigiTrack Catridges, Main
open zoom image for Ortofon Replacement Stylus for DigiTrack Catridges, Main
Ortofon Replacement Stylus for DigiTrack Catridges, Main Ortofon Replacement Stylus for DigiTrack Catridges, Main
zZounds Gear Experts Say...
This Ortofon DigiTrack stylus is a genuine replacement part for Ortofon DigiTrack series cartridges -- ideal DJ cartridges for timecoded vinyl applications.

This Ortofon Replacement Stylus is made for use with DigiTrack Cartridges.

Output voltage at 1000Hz, 5cm/sec.: 8 mV
Channel balance at 1kHz: 1.5 dB
Channel separation at 1kHz: 22 dB
Channel separation at 15 kHz: 15 dB
Frequency range at -3dB: 20-22,000 Hz
Frequency response: 20-18,000 Hz -3dB/-2dB
Tracking ability at 315 Hz at recommended tracking force: 90 micrometers
Compliance, dynamic lateral: 12 micrometers/mN
Stylus type: Spherical
Stylus tip radius: R 18 micrometers
Tracking force range: 2.0g-4.0g (20-40mN)
Tracking force recommended: 3.0 g (30 mN)
Tracking angle: 20 degrees
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-600 pF
Cartridge weight: 18.5 g
Replacement stylus unit: DigiTrack

For support or warranty questions, please contact the manufacturer:
Phone: 914-762-8646

Be the first to rate and review this product.

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
