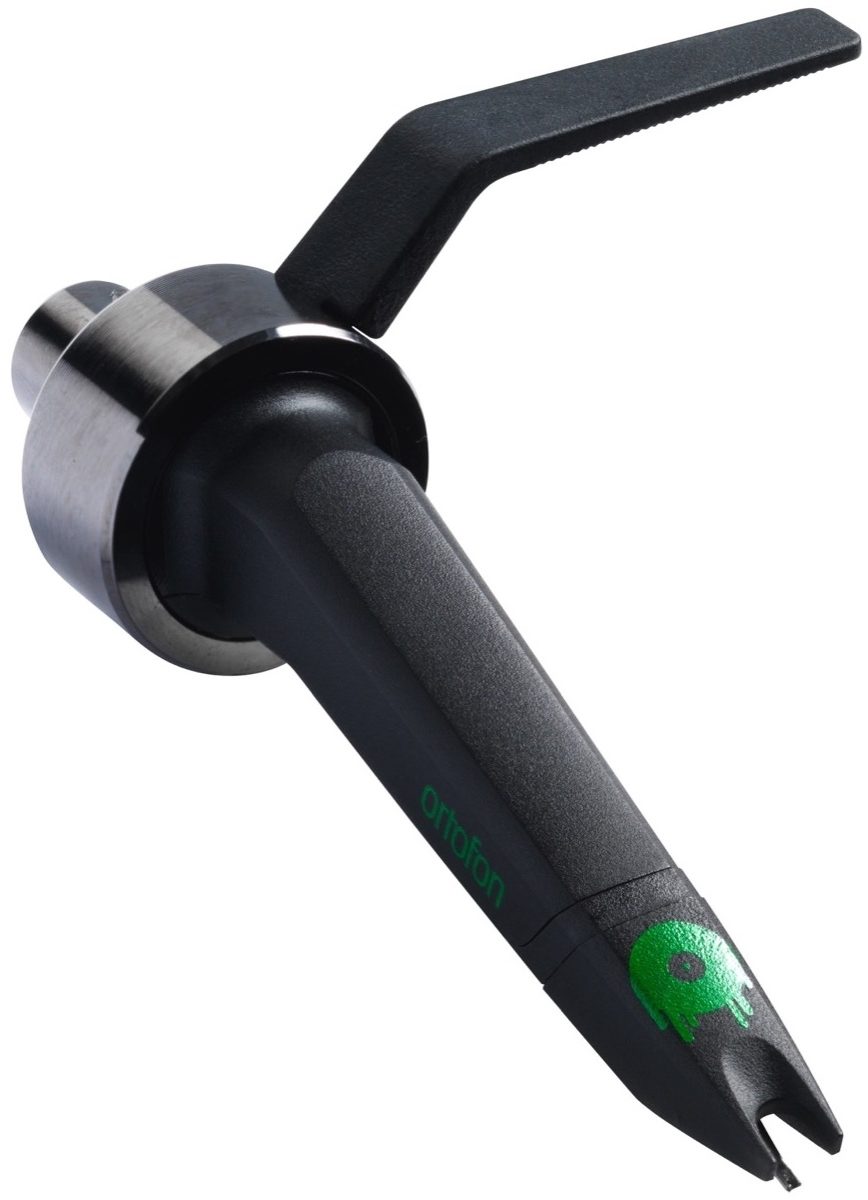

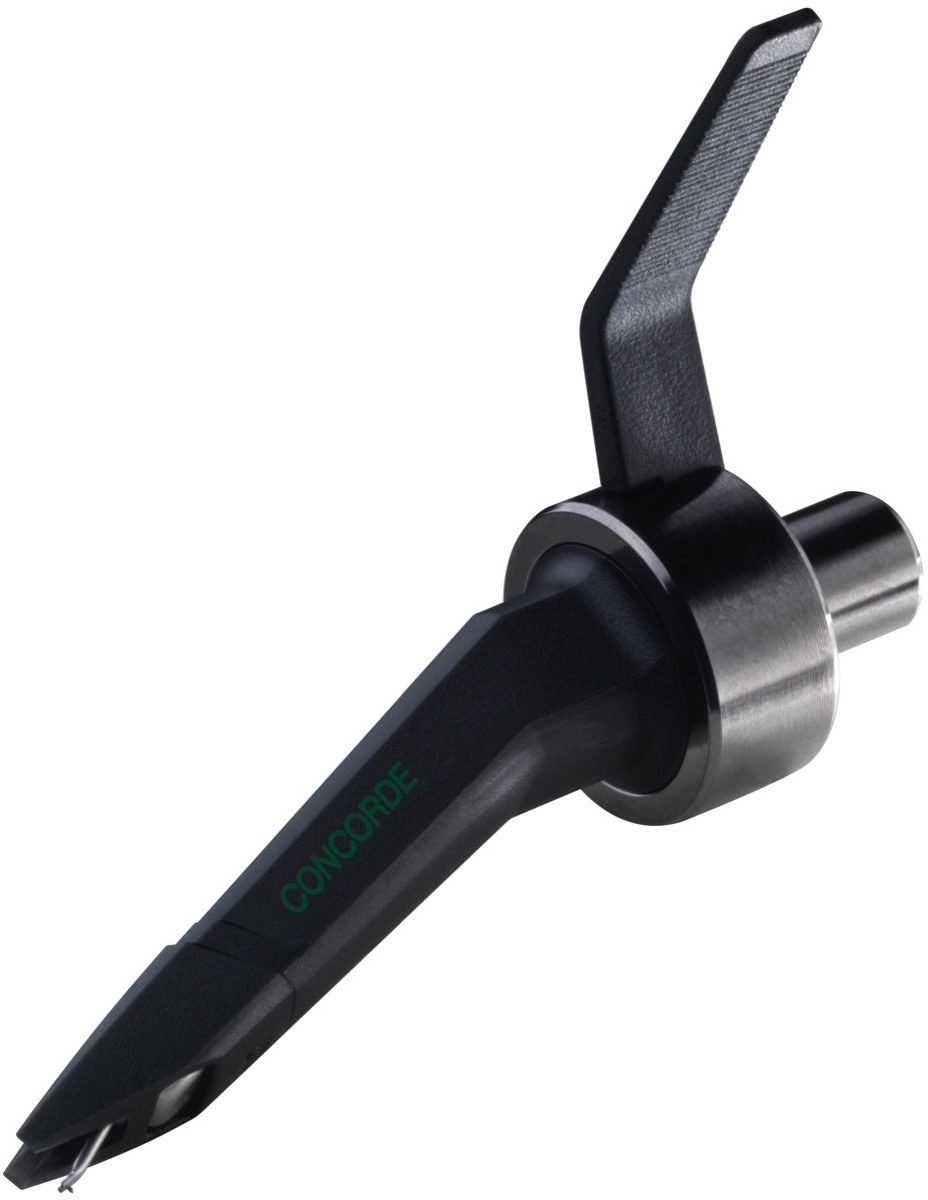

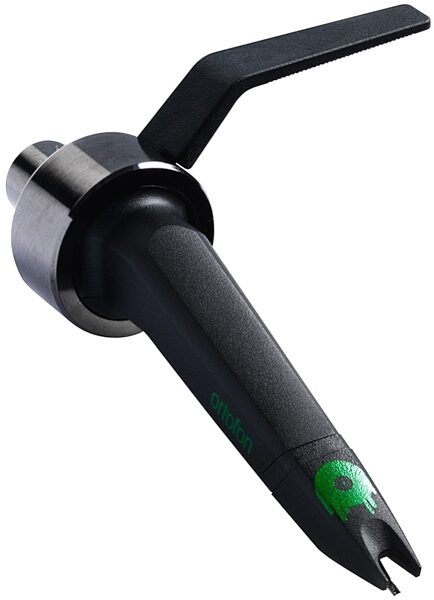

Ortofon Concorde MKII Mix Cartridge





zZounds Gear Experts Say...
A great place to start exploring custom turntable cartridges, the Ortofon Concorde MKII Mix is an all-around performer with solid tracking and balanced tone.
Overview
With the launch of the Concorde MKII Mix Cartridge, Ortofon has listened to the demands of vinyl DJs of all types to develop a superior cartridge series with an unprecedented level of durability, groove holding, and sound quality. The Concorde, which is redesigned from the ground-up, features a more robust stylus tip with larger cut-out, as well as a replaceable textured grip and handle. The Concorde Mix cartridge is a basic all-rounder for newbies and veteran DJs alike, offering a fine balance between output and balance of sound quality and tracking ability. Easy connectivity to the tonearm makes setup quick and easy in any performance scenario.
- More robust stylus tip with larger cut-out
- Wider grip area for easier handling

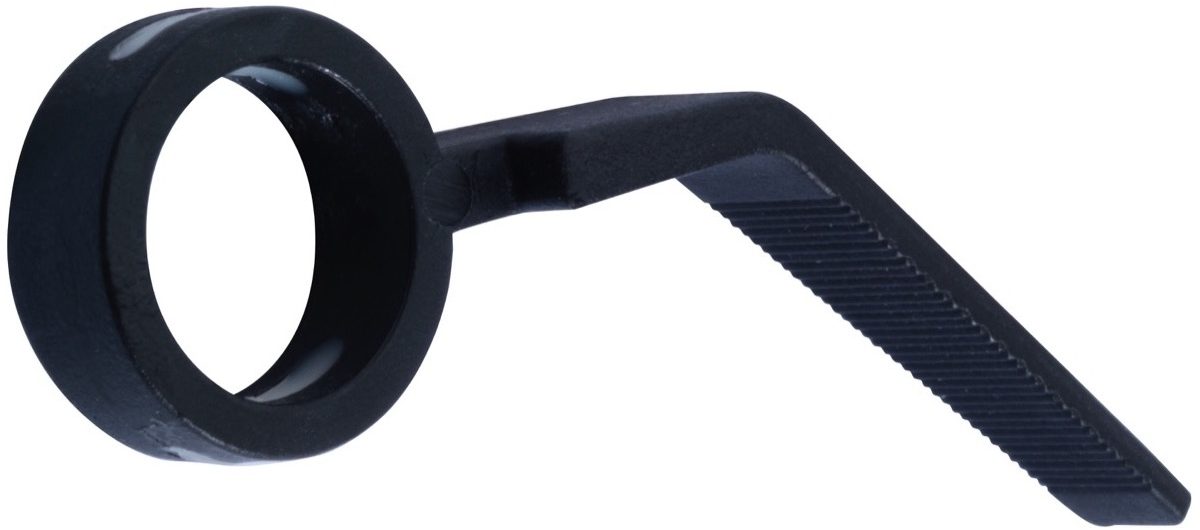

- Replaceable textured grip and tapered handle

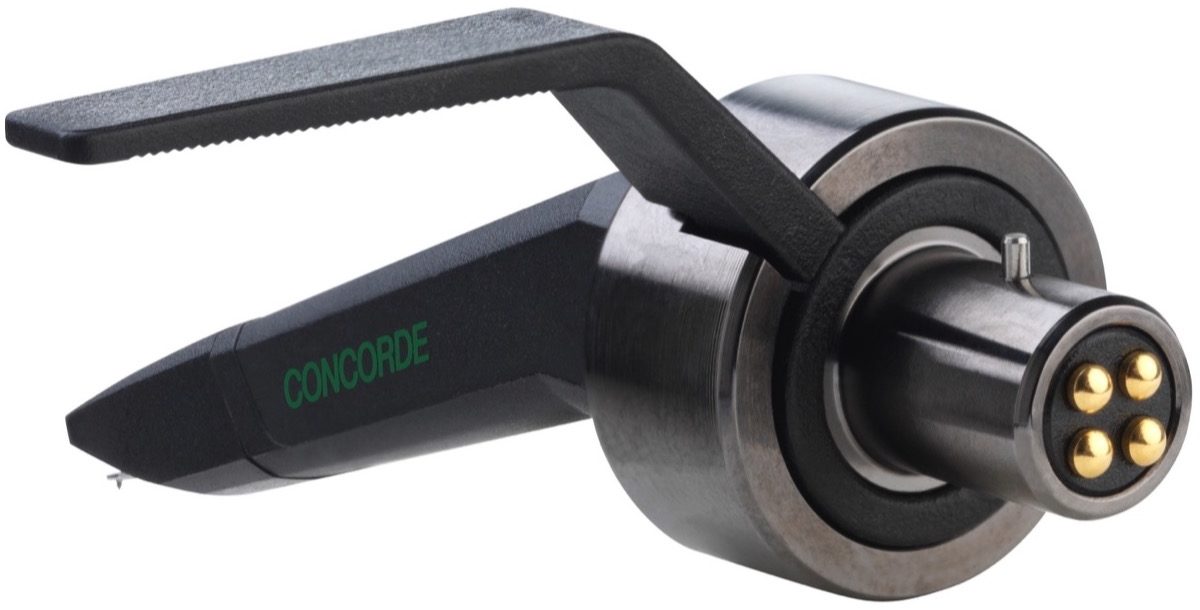

- Quick and convenient tonearm connection
- Attractive split housing and one-piece metal tonearm fitting
- Stylus seats tightly onto cartridge body with tactile feedback
- All-round performance, balance between output, sound quality, and tracking ability

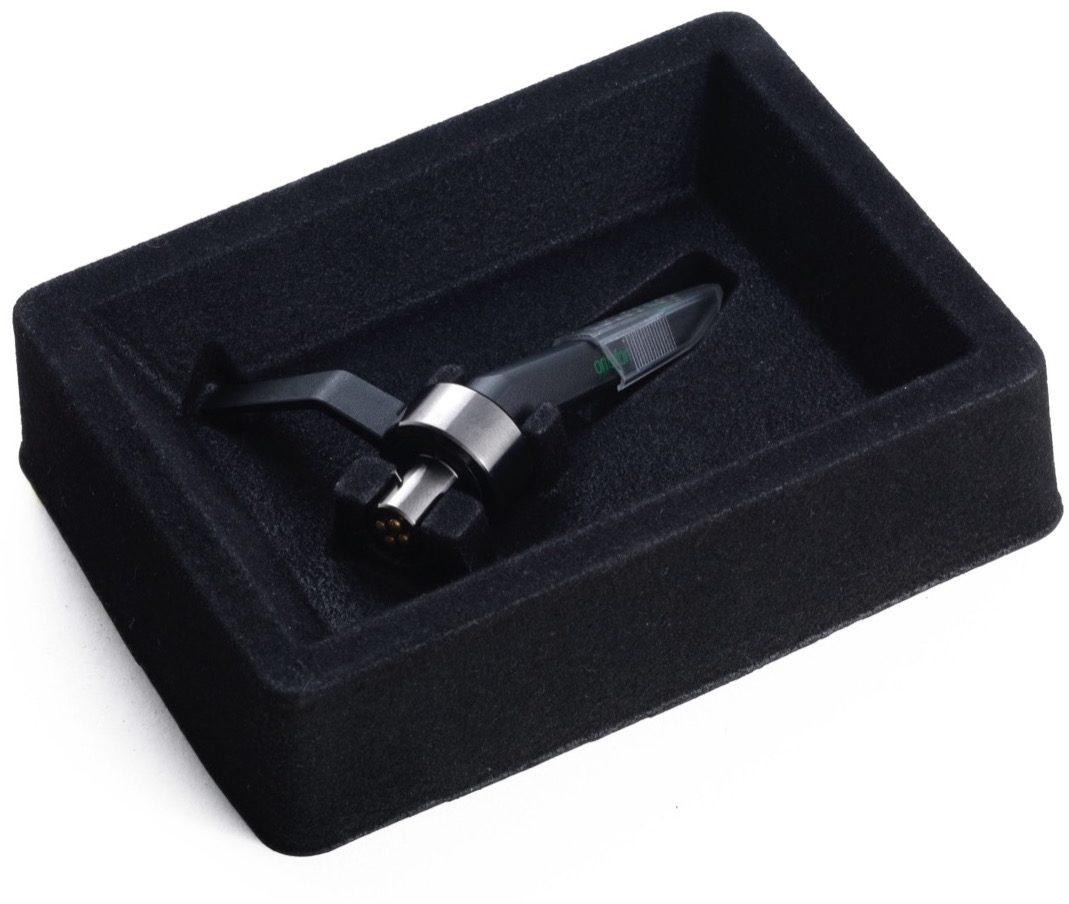

The Concorde Mix Twin Pack includes 2 cartridges and a metal flight case for easy transportation.
Features:
- Fully redesigned for better durability, groove holding, and sound quality- More robust stylus tip with larger cut-out
- Wider grip area for easier handling
- Replaceable textured grip and tapered handle
- Quick and convenient tonearm connection
- Attractive split housing and one-piece metal tonearm fitting
- Stylus seats tightly onto cartridge body with tactile feedback
- All-round performance, balance between output, sound quality, and tracking ability
The Concorde Mix Twin Pack includes 2 cartridges and a metal flight case for easy transportation.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
- Output Voltage at 1,000 Hz, 5 cm/sec: 6 mV
- Channel Balance at 1 kHz: 1.5 dB
- Channel Separation 1 kHz: 20 dB
- Channel Separation 15 kHz: 15 dB
- Frequency Range at -3 dB: 20 - 20,000 Hz
- Tracking Ability at 315 Hz at Recommended Tracking Force: 100 um
- Compliance, Dynamic Lateral: 14 um/mN
- Stylus Type: Spherical
- Stylus Tip Radius: R 18 um
- Tracking Force Range: 2.0-4.0 g (20-40 mN)
- Tracking Force Recommended: 3.0 g (30 mN)
- Cartridge Weight: 18.5 g
- Replacement Stylus Unit: Mix
- Channel Balance at 1 kHz: 1.5 dB
- Channel Separation 1 kHz: 20 dB
- Channel Separation 15 kHz: 15 dB
- Frequency Range at -3 dB: 20 - 20,000 Hz
- Tracking Ability at 315 Hz at Recommended Tracking Force: 100 um
- Compliance, Dynamic Lateral: 14 um/mN
- Stylus Type: Spherical
- Stylus Tip Radius: R 18 um
- Tracking Force Range: 2.0-4.0 g (20-40 mN)
- Tracking Force Recommended: 3.0 g (30 mN)
- Cartridge Weight: 18.5 g
- Replacement Stylus Unit: Mix
- Dimensions and Weight in Packaging
- Single
- Shipping Weight: 0.25 lbs
- Shipping Dimensions: 5 x 4 x 1 in
- Manufacturer Part Number (MPN): CC MIX SINGLE
- Twin (with Case)
- Shipping Weight: 0.58 lbs
- Shipping Dimensions: 7 x 5 x 2 in
- Manufacturer Part Number (MPN): CC MIX TWIN
