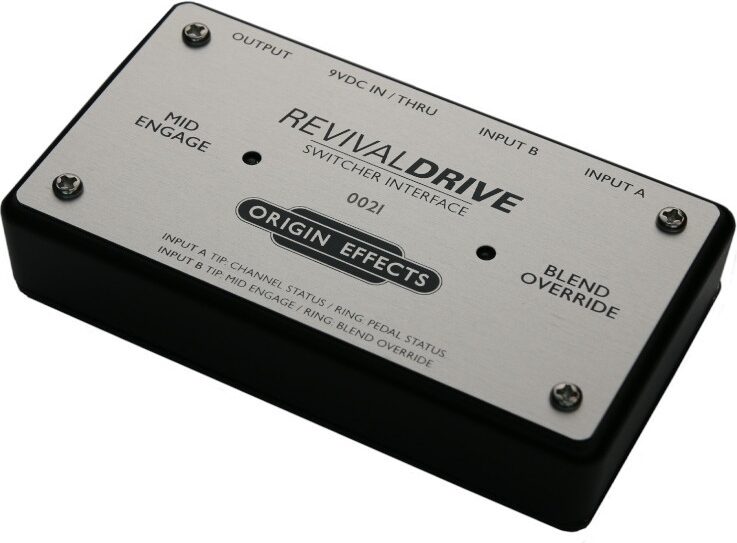

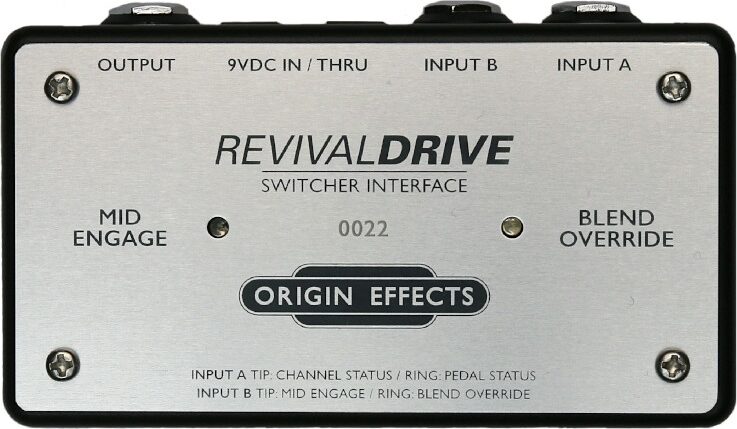

Origin Effects RevivalDRIVE Switcher Interface

Designed to pair with the RevivalDRIVE series, this switcher will remotely toggle the pedal's channel, bypass, mid engage or blend override functions.
Take full control of the Origin Effects RevivalDRIVE by combining the Switcher Interface with your existing remote switcher.

Connect a latching switch jack to the Switcher Interface to remotely toggle the RevivalDRIVE's CHANNEL, BYPASS, MID ENGAGE or BLEND OVERRIDE - connect to two TRS jacks to toggle all functions or recall any combination in your loop switcher's presets.

The Switcher Interface allows four functions to be remotely switched via the single TRS footswitch connection on the RevivalDRIVE. The unit plugs into a GigRig G2, Boss ES-8, or other remote switcher, and converts the signal from four latching control switches into the formats used by the RevivalDRIVE's internal circuitry (a mix of latching and momentary).

Features:

- Designed to pair with the RevivalDRIVE
- Remotely toggle CHANNEL, BYPASS, MID ENGAGE or BLEND OVERRIDE functions
- LEDs display MID ENGAGE and BLEND OVERRIDE state THRU DC power connection
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.5 lbs
Shipping Dimensions: 5 x 4 x 2 in
Manufacturer Part Number (MPN): ORI REVSI
