Nord Stage 3 Compact Semi-Weighted Synthesizer Keyboard, 73-Key

For a powerhouse synth in a portable package, try the Nord Stage 3 Compact. Smooth program transitions and hands-on effects create live performance nirvana.
The Nord Stage 3 is the fifth generation of Nord's successful Stage series, continuing their vision of the ultimate instrument for the performing musician. This outstanding new flagship instrument features Nord's latest award-winning technologies including the Nord Lead A1 Synth Engine with sample playback, the acclaimed Nord C2D organ, a greatly enhanced Piano Section and extensive hands-on Effects -- all in one exceptional performance keyboard.

Features:

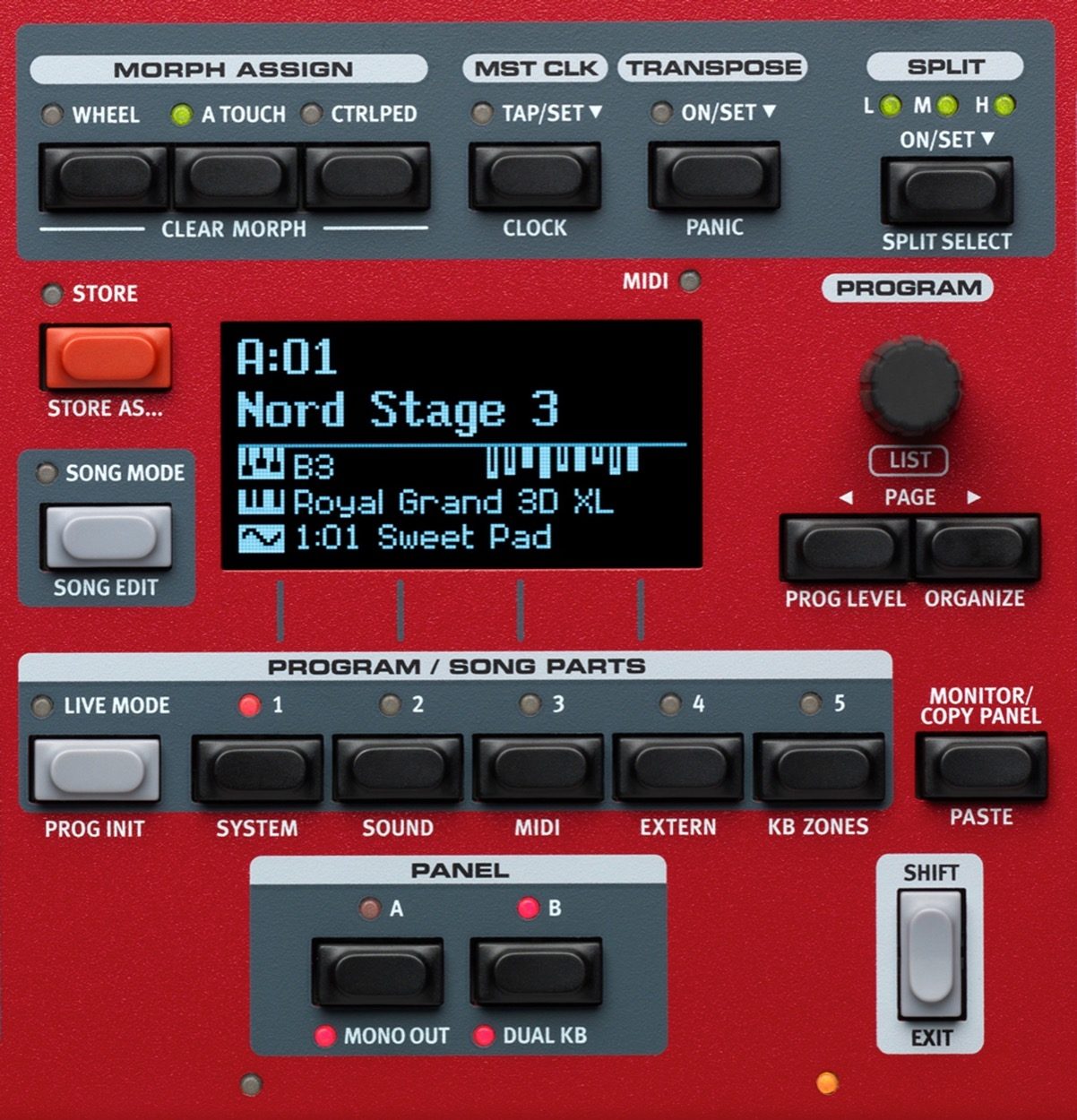

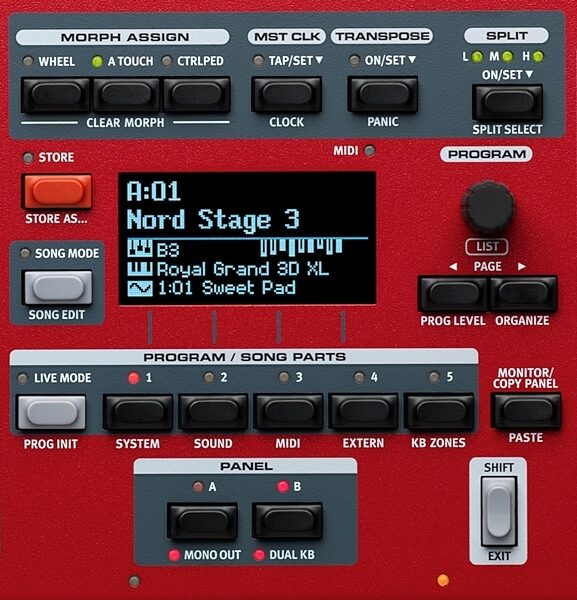

Performance/General:
- OLED-displays for Program and Synth section
- Seamless transitions when changing programs
- Extended Split functionality with optional Crossfade
- Song List Mode
- Extended Morph Destinations

Piano section:
- Doubled memory (2GB) for the Nord Piano Library
- Greatly expanded polyphony (120 voices)
- Creative Filter presets
- Layer category

Synth section:
- Nord Lead A1 Synth Engine with Sample playback
- Dedicated OLED display for Oscillator functions
- Expanded Memory (480 MB) for the Nord Sample Library 3.0 (coming soon)
- Extended Polyphony
- Super Wave category (S-wave)

Organ section:
- Nord C2D Organ Engine
- 2 new Pipe Organ models
- Model 122 Vintage Rotary Speaker - available per Slot
- Physical Drawbars for Nord Stage 3 Compact

Effects:
- Improved Delay with added Feedback filters and Analog Mode
- Filter Mode with Resonance
- Separate Compressor per Slot with Amount and Fast mode
- Separate Reverb per Slot with Bright mode
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
GENERAL
- Master Level Control
- Wooden Pitch Stick
- Modulation Wheel
- 400 Programs - 8 Banks with 10 Pages each. Each Page has 5 Program locations
- Song Mode - 8 Banks with 50 Songs, 5 Programs per Song
- 5 Live Buffers
- 2 Individual Slot Setups
- 3 Morph sources (Modulation Wheel, Control Pedal, Aftertouch)
- Global Mono output
- Programmable Transpose +/- 6 semitones
- Master Clock functionality with manual, external and tap-tempo rate control
- Internal and MIDI clock source
- MIDI over USB functionality
- Level control
- Aftertouch
- Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones
- 3 Split Point width (crossfade) options: Lrg, Sml or Off
- Keyboard Zones editor mode
ORGAN SECTION
- Nord C2D B3 Tone wheel Organ simulation
- Vox Continental and Farfisa models
- 2 Digital Pipe Organ models
- 9 digitally controlled Drawbars
- Physical Drawbars (Compact model only)
- Drawbar Live mode (Compact model only)
- Percussion controls
- Vibrato / Chorus control
- Two Drawbar Presets per Slot
- 2-Part Multitimbral (2 manuals)
PIANO SECTION
- 2 GB memory for Piano sounds
- All sounds can be replaced using Nord Sound Manager (Mac/Win)
- 120 Voice Polyphony
- Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord
- 4 Selectable Velocity Curves
- Dedicated Piano filters
- Clavinet EQ controls
- String Resonance (Generation 2) on acoustic Grand Pianos and Uprights
- Selectable Soft Piano Release
- Pedal Noise when used with Nord Triple Pedal (optional accessory) on selected acoustic and electric pianos
- Layer (Slot) Detune functionality
- 2-Part Multitimbral
SYNTH SECTION
- Nord Lead A1 Synth Engine with Sample Playback
- Dedicated OLED Display for Oscillator section
- 480 MB Memory for Nord Sample Library 3.0
- All samples can be replaced using Nord Sound Manager (Mac/Win)
- 34 Voice polyphony
- Oscillator Types: Classic, Wavetable (Wave), Formant, Super Wave (S-Wave) and Sample
- Oscillator Configurations: Pitch, Detune*, Shape*, Sync*, Sine, Triangle, Square, Saw, Bell and Noise Mix, FM* and Ring Mod
- *=Not available for Sample/Superwave
- Classic Transistor Ladder Filter (LP M), 12 & 24 dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter
- Filter Drive: Off, 1, 2 and 3
- Filter Tracking: Off, 1/3, 2/3 and Full
- 3 Unison modes
- Amplitude envelope (Attack, Decay, Sustain) with Velocity control
- Modulation envelope (Attack, Decay, Sustain) with Velocity control
- LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold
- 400 (8x50) Synth Preset locations with Synth Preset categories
- Arpeggiator (Up, Down, Up-Down and Random). Range: 1, 2, 3 or 4 octaves.
- LFO and Arpeggiator synchronizable to Master Clock
- 2-Part Multitimbral

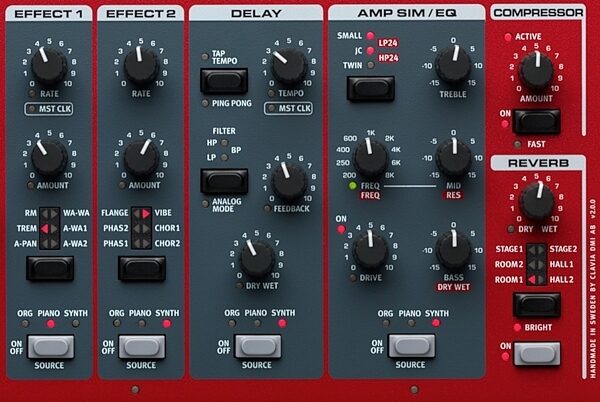

EFFECTS
- Effect 1: Ring Modulator, Tremolo, Auto Pan, Wah-Wah, AutoWah 1, Autowah 2
- Effect 2: Flanger, Vibe, 2 Phasers, 2 Choruses
- Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP) and panel selectable Analog mode.
- 3 types of Speaker simulations, JC, Twin and Small
- Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls
- Tube amp simulation with adjustable overdrive
- 3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz
- Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive
- Extended Morphable Parameters - (Filter Resonance, Reverb Dry/Wet, Delay Feedback, Amp Drive)
- Effect rates/tempo can be synchronized to the Master Clock
- Compressor with Fast Mode
- Reverb - 6 algorithms with Bright Mode
KEYBOARD
- Nord Stage 3 88: 88-key Velocity sensitive Hammer Action keyboard with Aftertouch. Range: A-C
- Nord Stage 3 HP76: 76-key Velocity sensitive Hammer Action Portable keyboard with Aftertouch. Range: E-G
- Nord Stage 3 Compact: 73-key Velocity sensitive Semi Weighted Waterfall keyboard with Aftertouch. Range: E-E

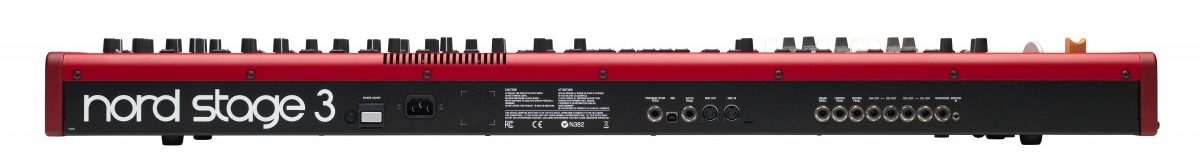

- CONNECTIONS
- 4 Assignable Audio Outputs - \0xBC", 6,35 mm jacks, unbalanced
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 28.5 lbs
Shipping Dimensions: 46 x 15 x 7 in
Manufacturer Part Number (MPN): Nord Stage 3 Compact
