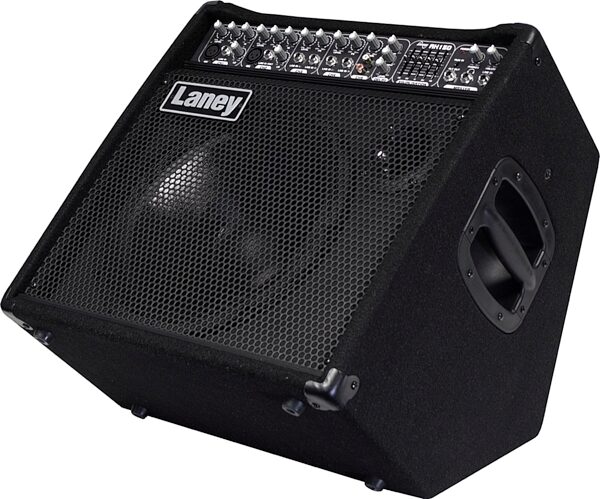

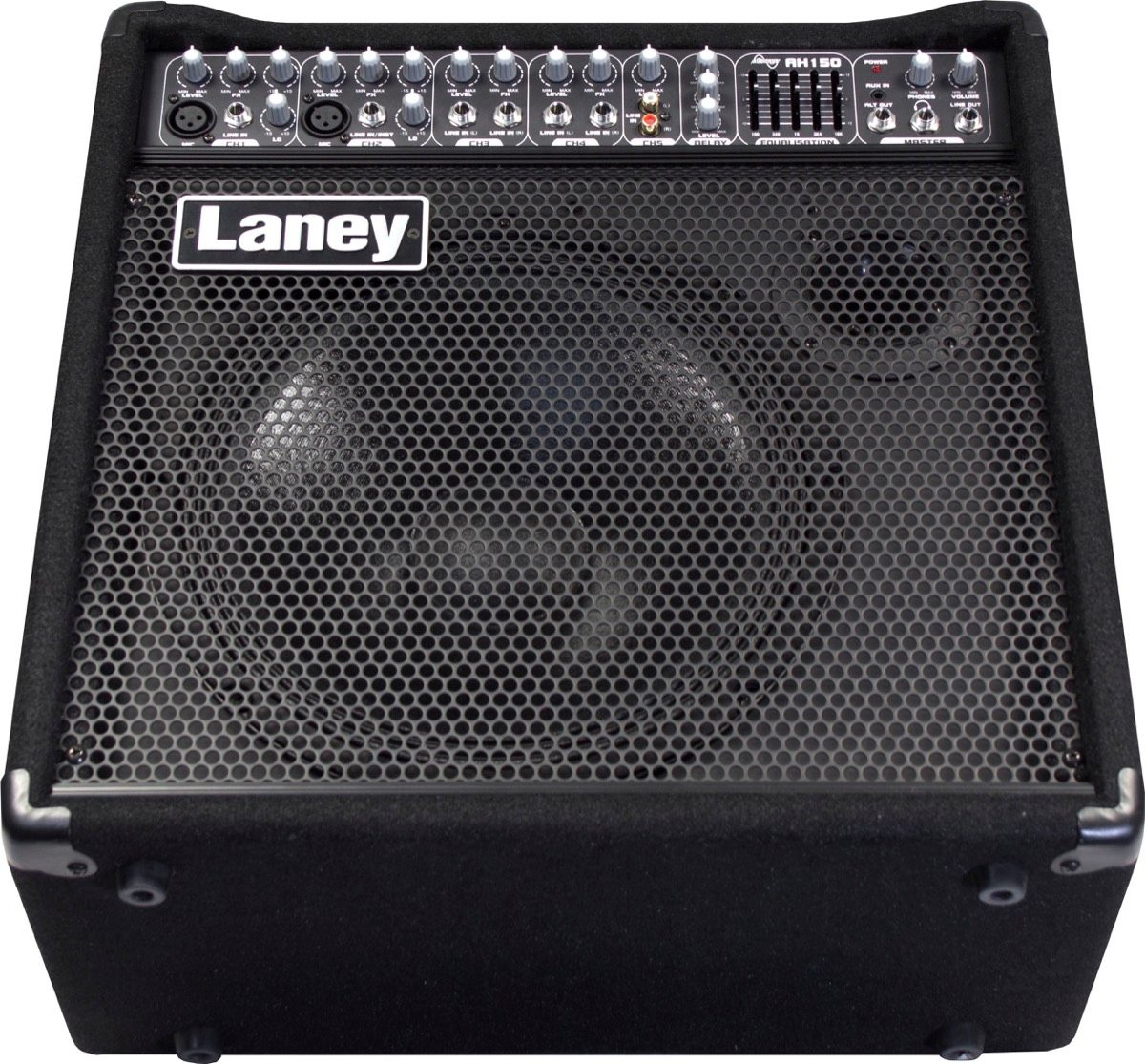

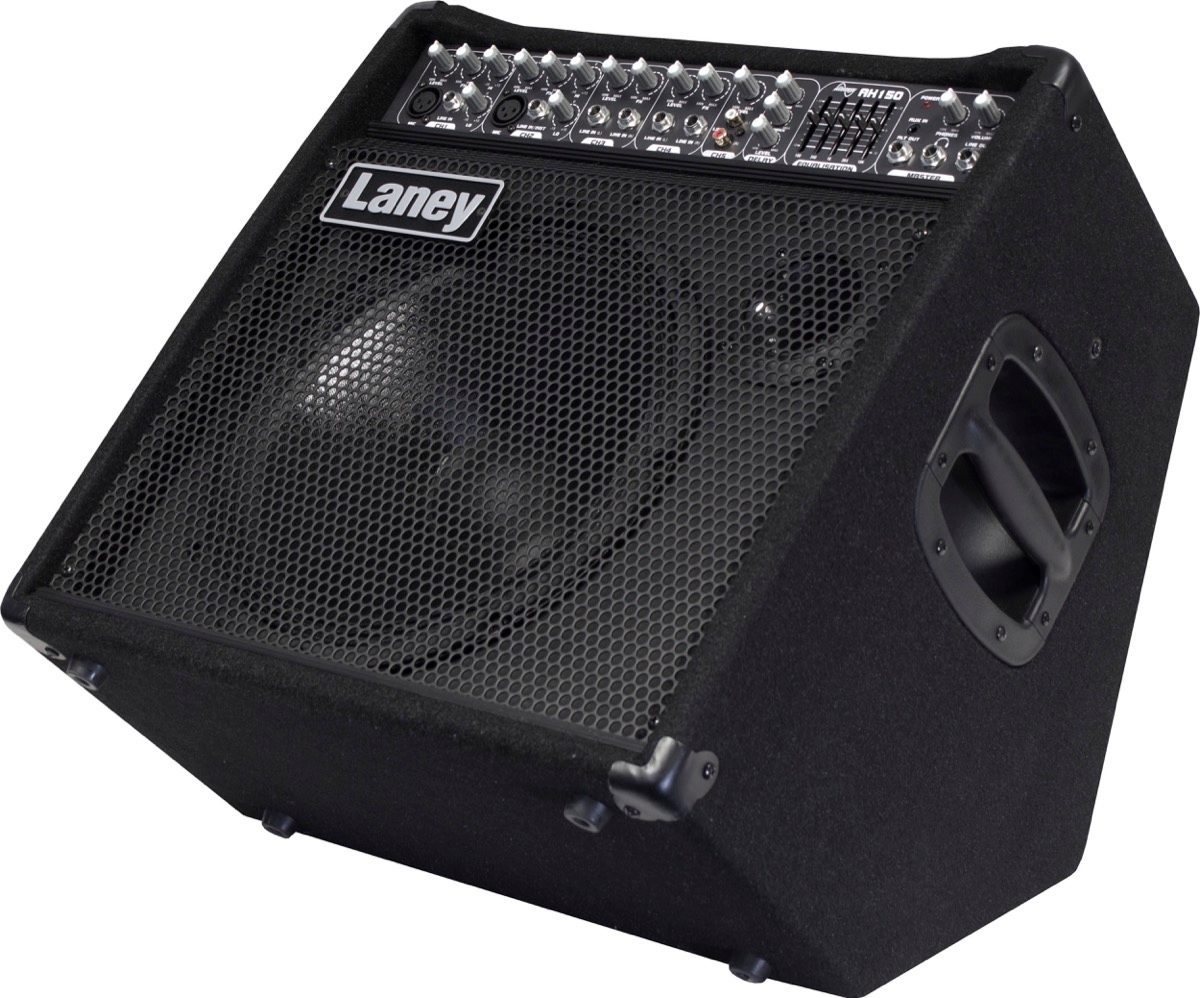

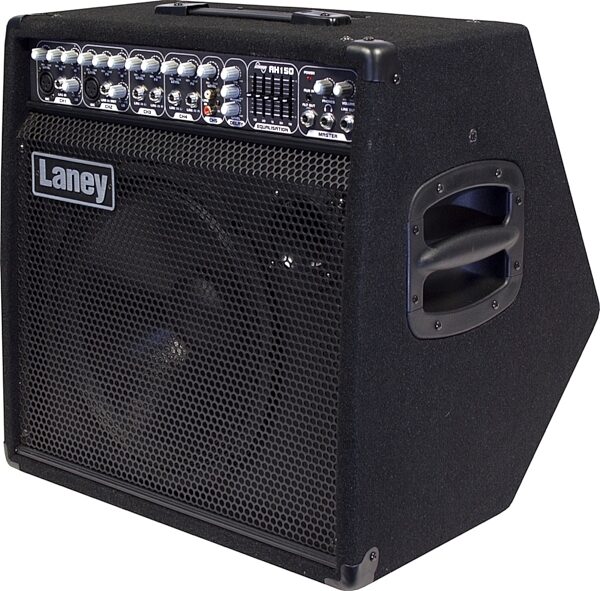

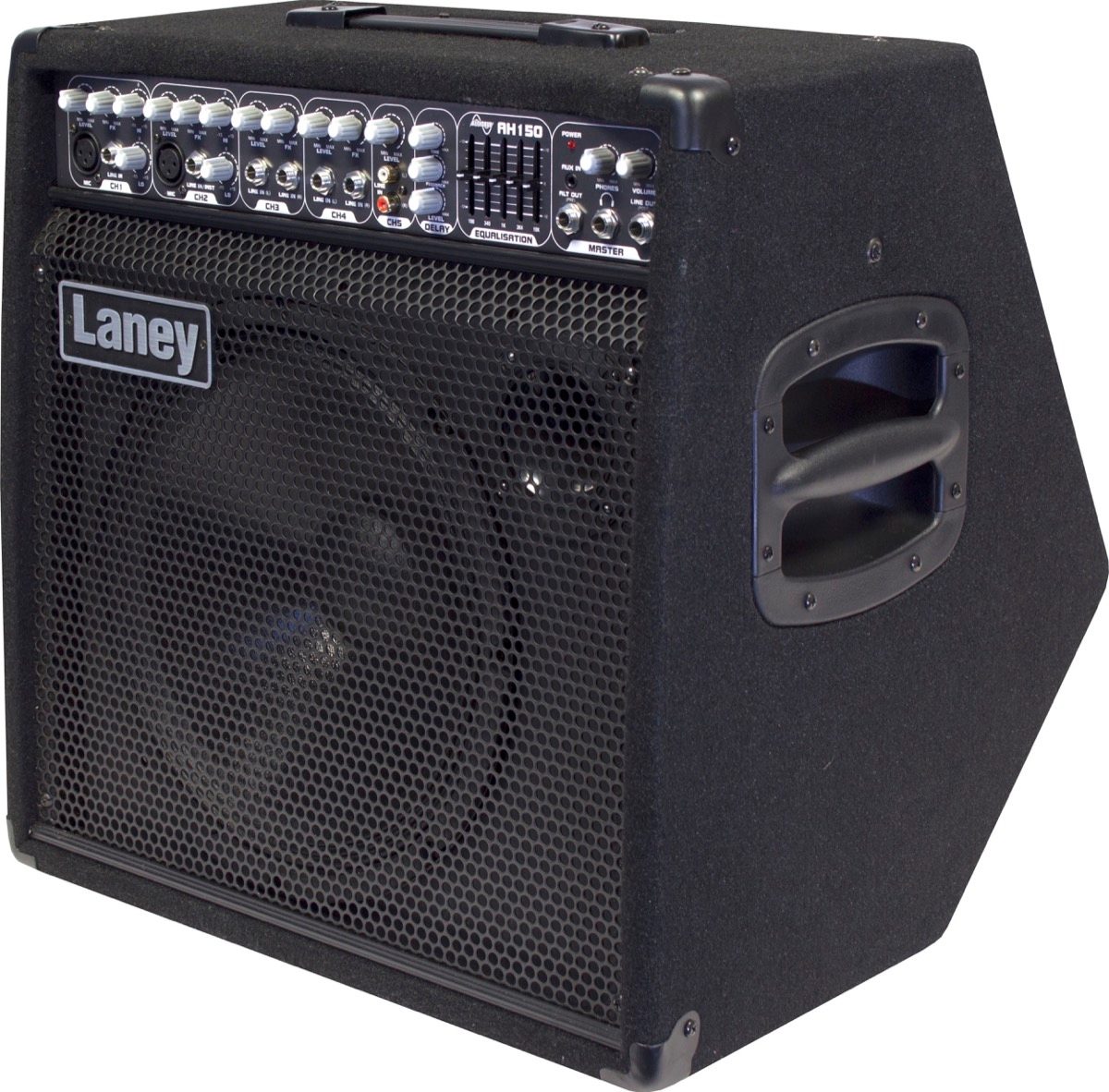

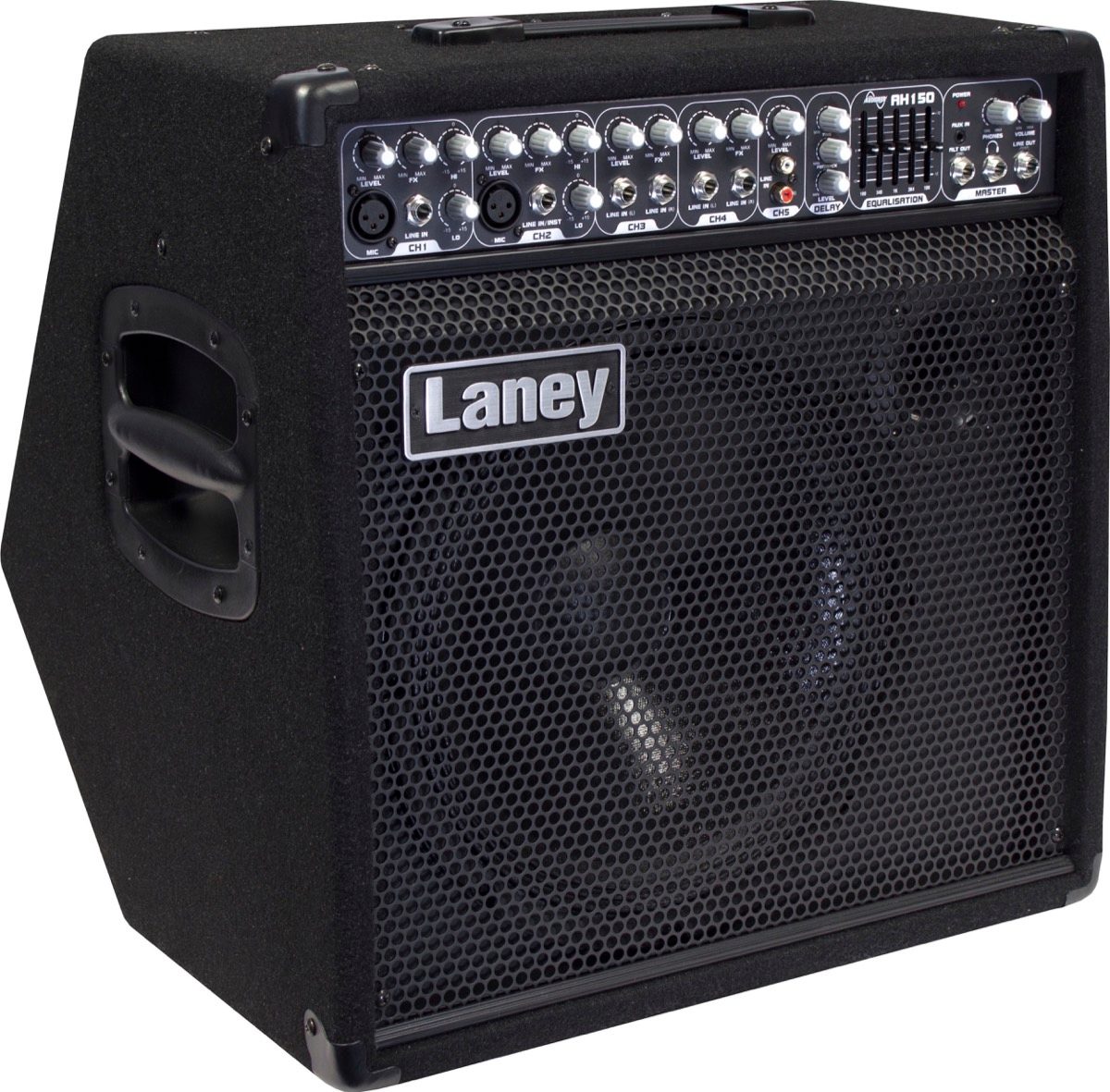

Laney AH150 Audiohub Full Range Amp
The principle behind the Audiohub range is simple: ALL INSTRUMENTS WELCOME! Audiohub combos deliver optimum performance, flexibility and sound quality for a wide array of audio inputs: Keyboards, e-drums, mics, acoustic and electric instruments and playback are all at home with an Audiohub combo.

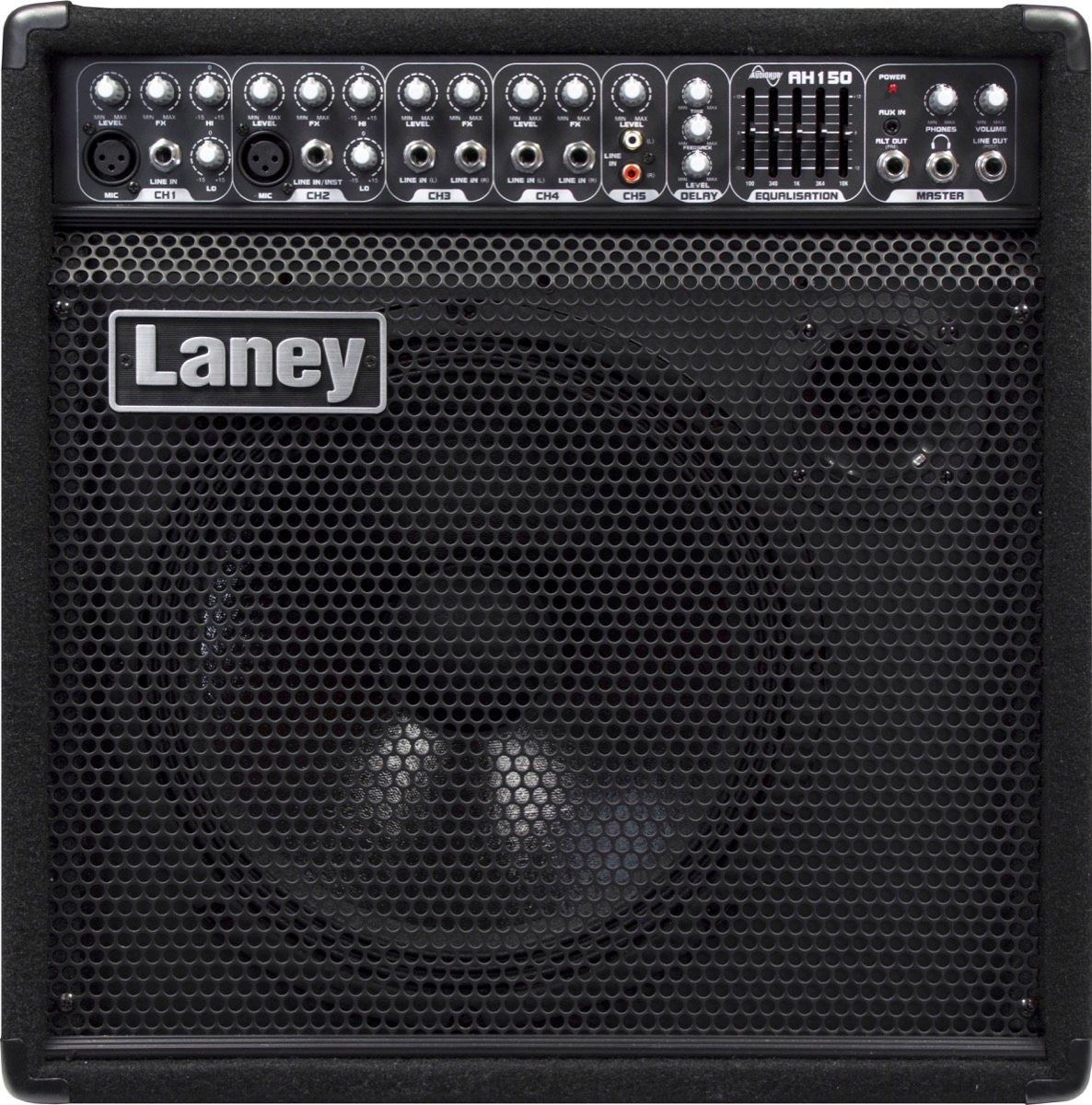

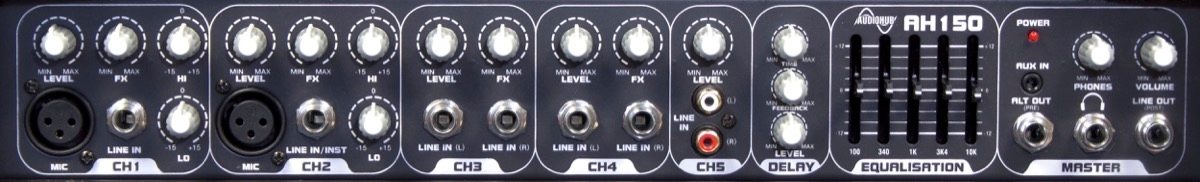

Designed with flexibility in mind, the AH150 has 5 channels with a variety of input options including XLR, Jack, RCA and Mini Jack. Each channel has a Level control and CH 1-4 also feature two-band EQ and FX send. The 5-band Master Graphic EQ provides control of the overall mix.
The AH150 features on board Digital Delay with comprehensive control over Delay Time, Feedback and Level. In addition Digital Delay level can be adjusted independently on CH 1-4 via their FX send controls.

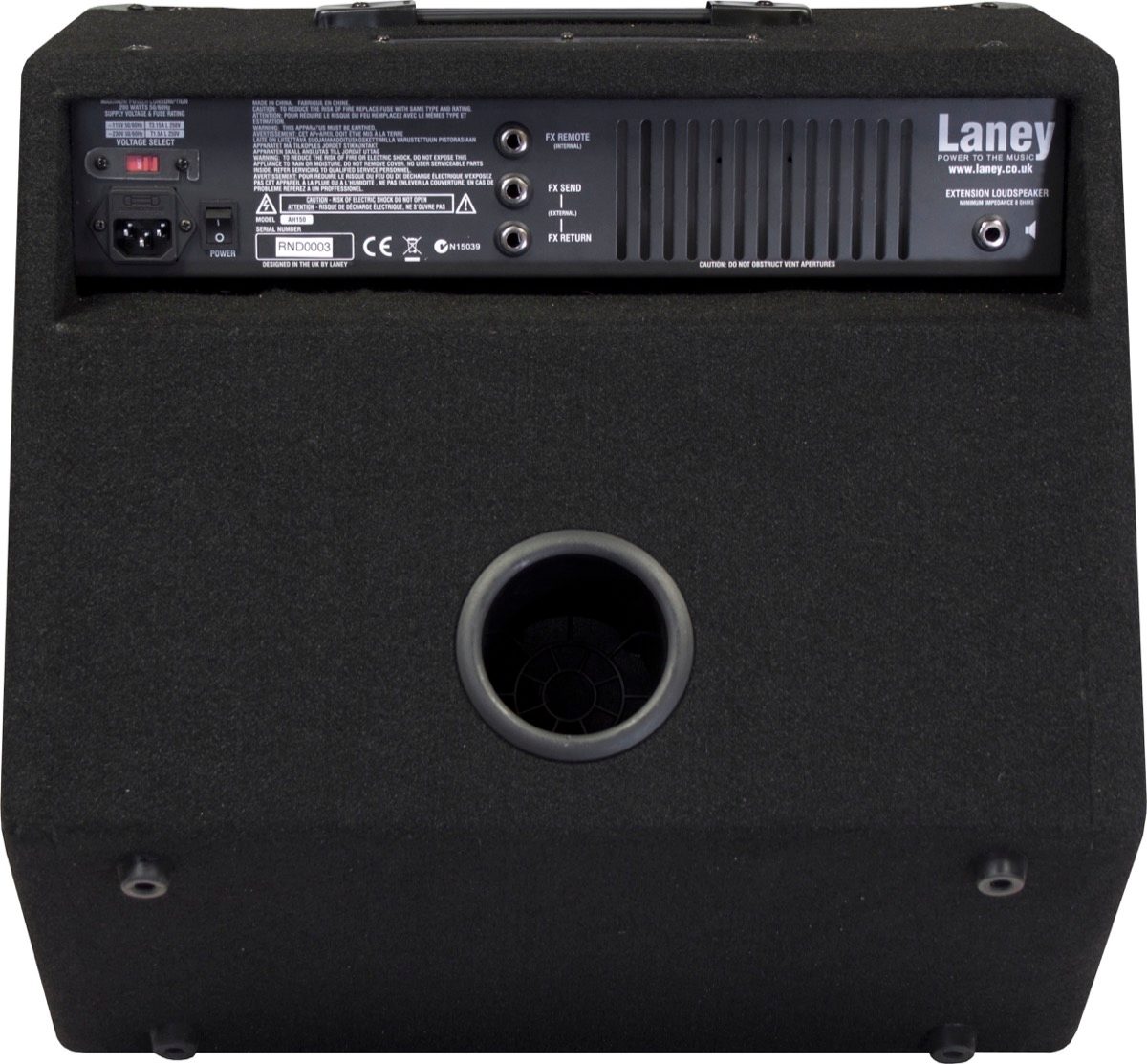

The AH150 has a comprehensive selection of output options: Line Out is post master volume, so is ideal for linking to another amplifier or PA whilst retaining control from the AH150. Alt Out sends the mix pre Graphic EQ, Master Volume and Aux in. This defers master control to front of house or works as a record out without including the backing tracks. A Phones connection with Level control allows headphones for silent use or performance monitoring.

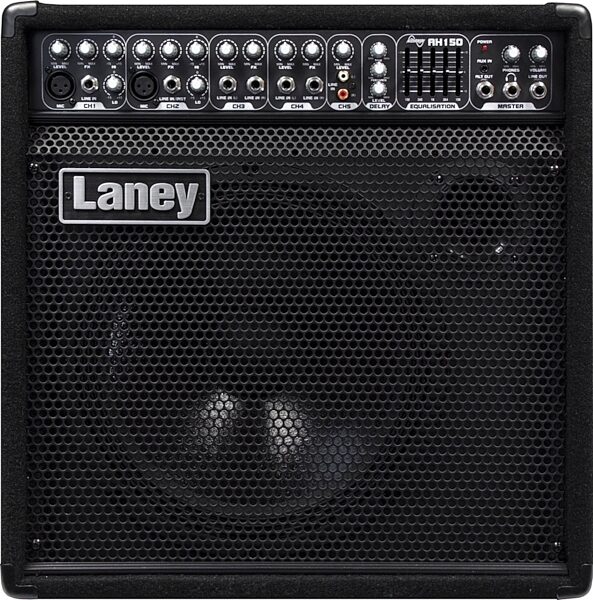

Rated at 150 Watts RMS and housing a 1 x 12" Custom Designed Driver and HF Horn the AH150 cuts an imposing line.
zZounds is an authorized dealer of Laney products.
- AUX IN: MINI JACK FOR EXTERNAL SOUND SOURCE

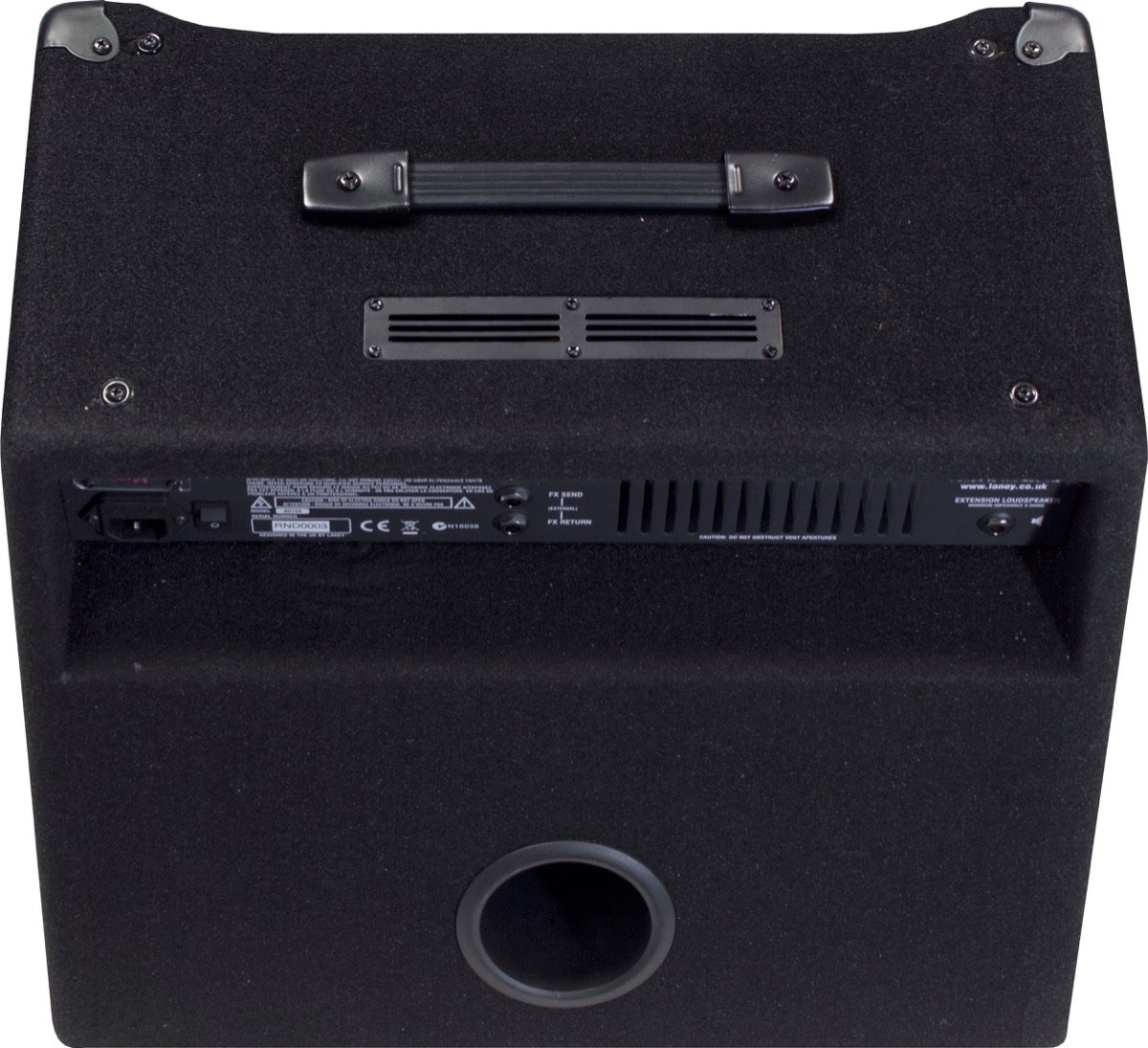

- CABINET DESIGN: CARPET COVERED, DUAL POSITION KICKBACK CABINET
- CD INPUT: AUX/CD INPUT 3.5MM STEREO JACK
- CHANNELS5 CHANNELS: - CH 1: BALANCED XLR/UNBALANCED LINE, CH 2: BALANCED XLR/HI-Z INSTRUMENT, CH 3 & 4: STEREO UNBALANCED LINE AND CH 5: RCA LINE INPUT.
- CHANNEL CONTROLS: LEVEL, TREBLE (CH 1 & 2), BASS (CH 1 & 2), FX LEVEL (CH 1 - 4)
- DRIVERS: 1 X 12" CUSTOM DESIGNED LOUDSPEAKER & HF HORN
- EFFECTS: ON-BOARD DIGITAL DELAY WITH FEEDBACK, TIME & LEVEL CONTROLS
- EQUALISATION: MASTER 5 BAND GRAPHIC EQ (+/-12DB)
- FOOTSWITCH: FOOTSWITCH OPTION FS 1 (NOT SUPPLIED)
- FX LOOP(S): YES
- HEADPHONE SOCKET: YES WITH LEVEL CONTROL
- INPUTS: JACK INPUTS ON ALL CHANNEL - XLR INPUT ON CH1 & CH2
- KICK PROOF METAL GRILL: YES
- LINE IN: YES
- LINE OUT: YES
- PACKED DIMENSIONS (HXWXD MM): 540 X 515 X 425
- POWER: 150 WATTS
- SPEAKER CONNECTIONS: MINIMUM 8 OHMS
- UNIT DIMS - FOR INT. CASE (HXWXD MM): 480X470X395
- RECORD OUT: YES
- MASTER EFFECTS LEVEL CONTROLS: YES
- MASTER SECTION: MASTER SECTION CONSISTING OF MASTER FX, VOLUME AND PHONO LEVELS
