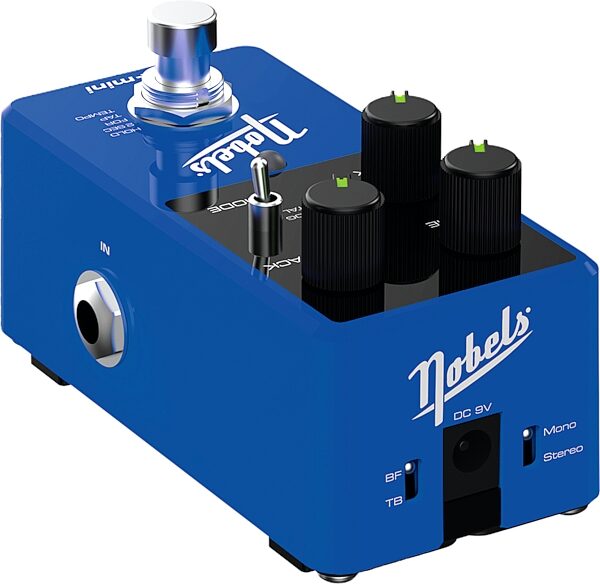

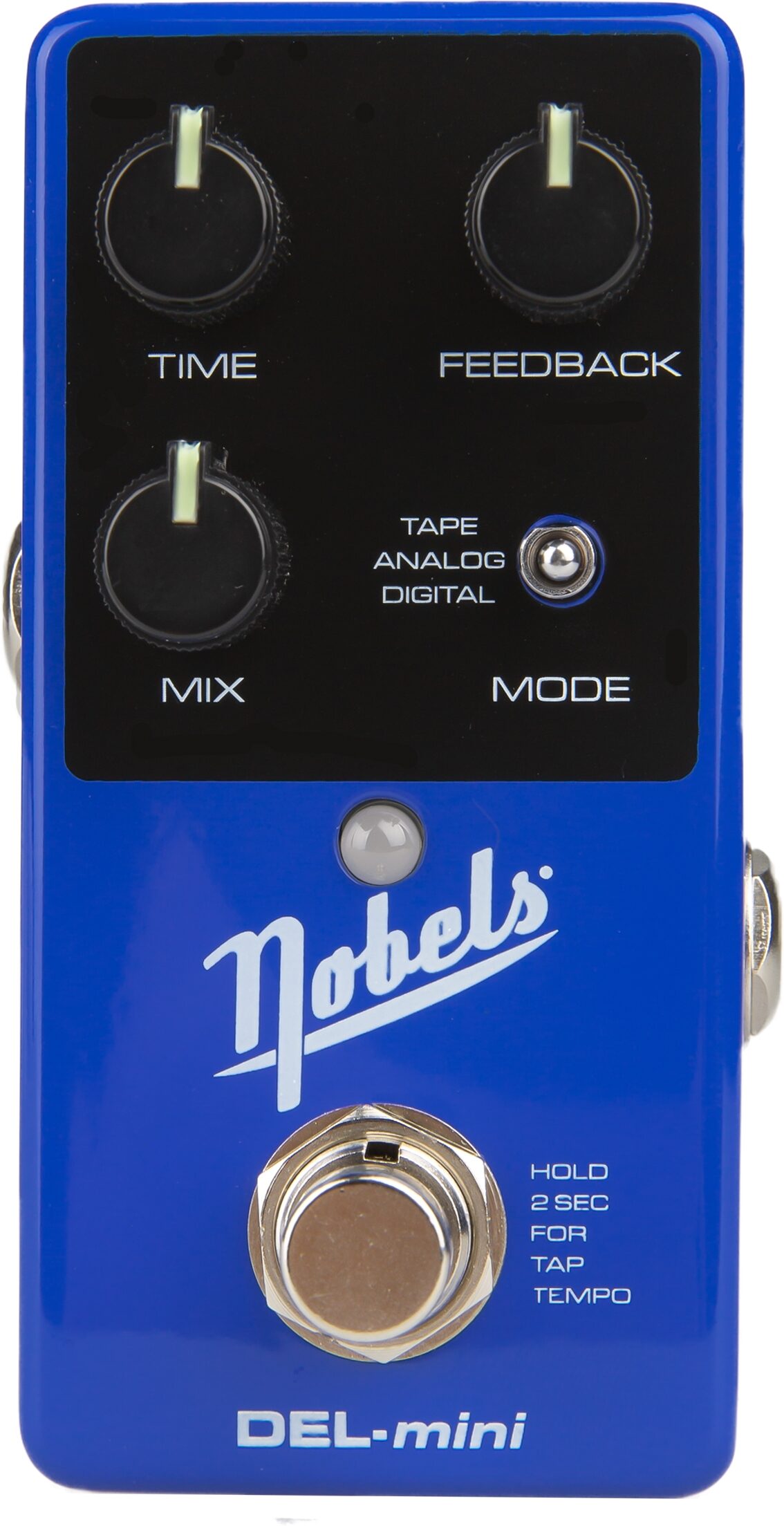

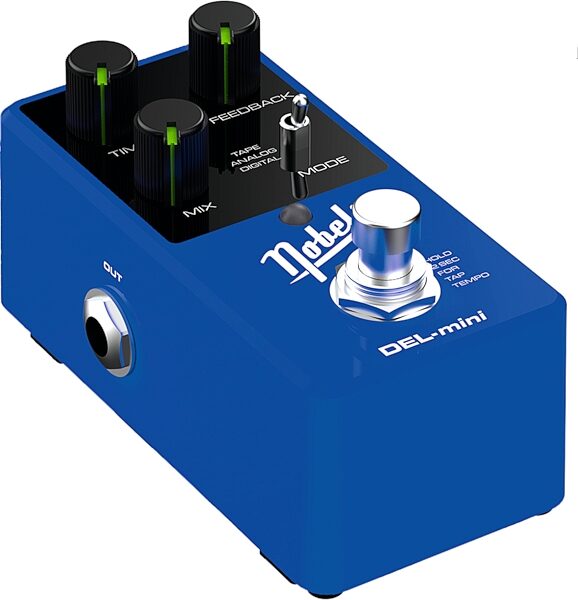

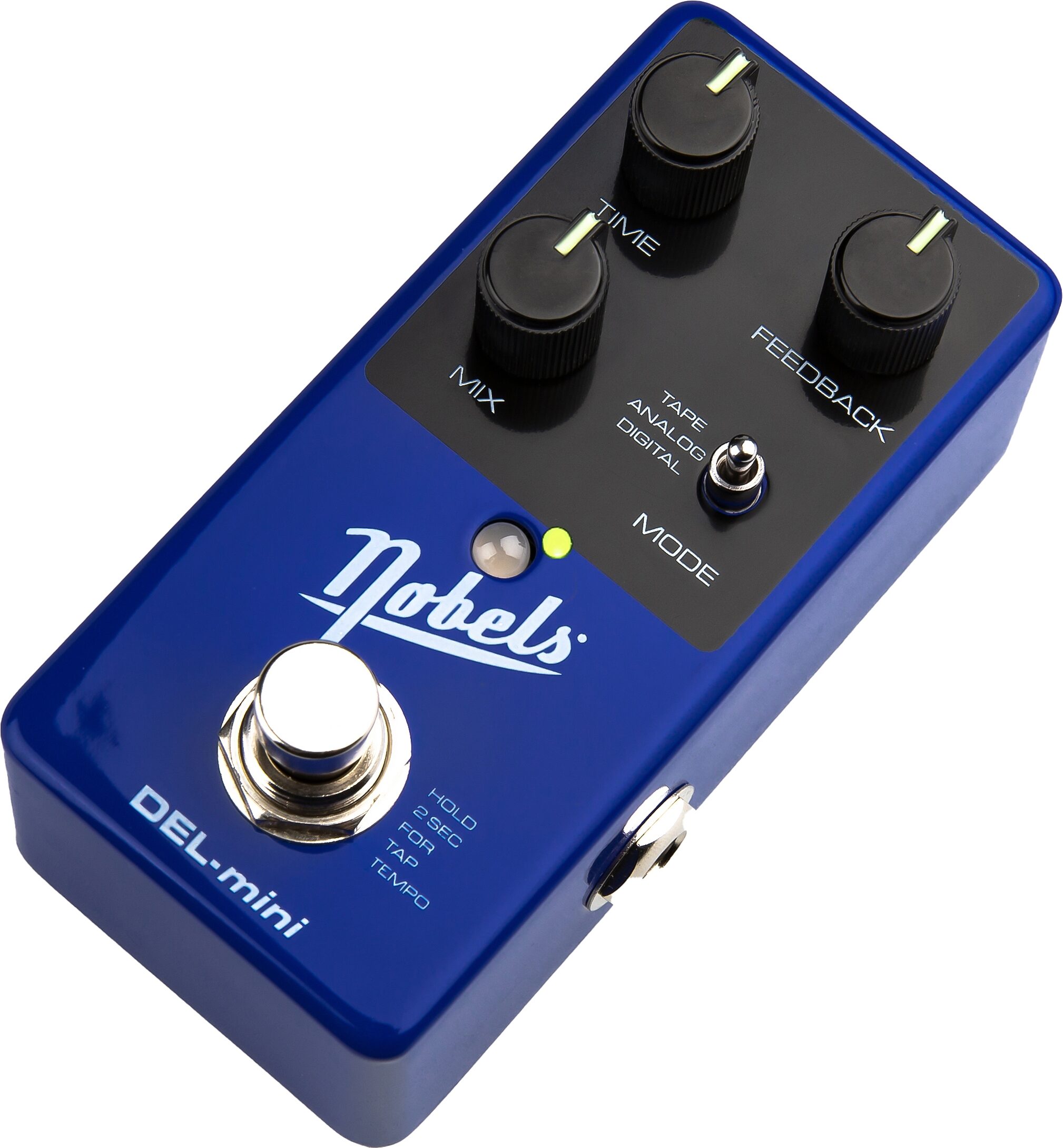

Nobels DEL-mini Delay Pedal

zZounds Gear Experts Say...
Dial in tape, analog, and digital delay voicings with ease! Nobels' DEL-mini packs a ton of vintage and modern delay tones into one compact pedal.

The Nobels DEL-mini digital delay pedal combines an outstanding sound selection of legendary echoes, practical and simple switching and application options in a space-saving housing. Plus that little Nobels extra in the form of fold-out Mounty-P mounting plates or "Glow in the Dark" pointer knobs. Everything at an extremely attractive price!

Features:

- Tape, Analog, and Digital modes
- Tap Tempo
- Mono or Stereo operation
- True Bypass or Buffered Bypass modes
- "Glow in the Dark" knob indicators
- Mounty-P mounting plates
- Small compact size
- Light weight

Small, practical, and big sound was the goal when developing the DEL-mini. The 3 Echo types offer a wide spectrum of sound variations in mono or wide stereo. The dry signal always remains in the center. The tap tempo function opens up extreme possibilities for shaping the sound, especially in tape or analog operation. The tempo is displayed visually via the LED. The tape echo and classic analog echo offer the warm sounds like the good old days. The digital mode is clear and high quality. Depending on the situation, you can select true or buffered bypass mode. mode. The DEL-mini combines a selection of the best echoes in one pedal at a musician-friendly price.

The DEL-mini comes equipped with Mounty-P mounting brackets. Mounty-Ps are an excellent choice for securely mounting your pedals. They keep your valuable pedals in place during transportation and shows.

Power: stabilized and filtered power supply 9 Volts DC (not included)
DC plug: 2.1 mm / negative center
Consumption: max. 58 mA
Input impedance: 1M ohm
Output impedance: 10K Ohm
Dynamic range: 103 dB
DSP Processing: 48 kHz / 32 bit - A/D D/A Sampling Rate 48 kHz / 24 bit
Controls: Time, Feedback, Mix

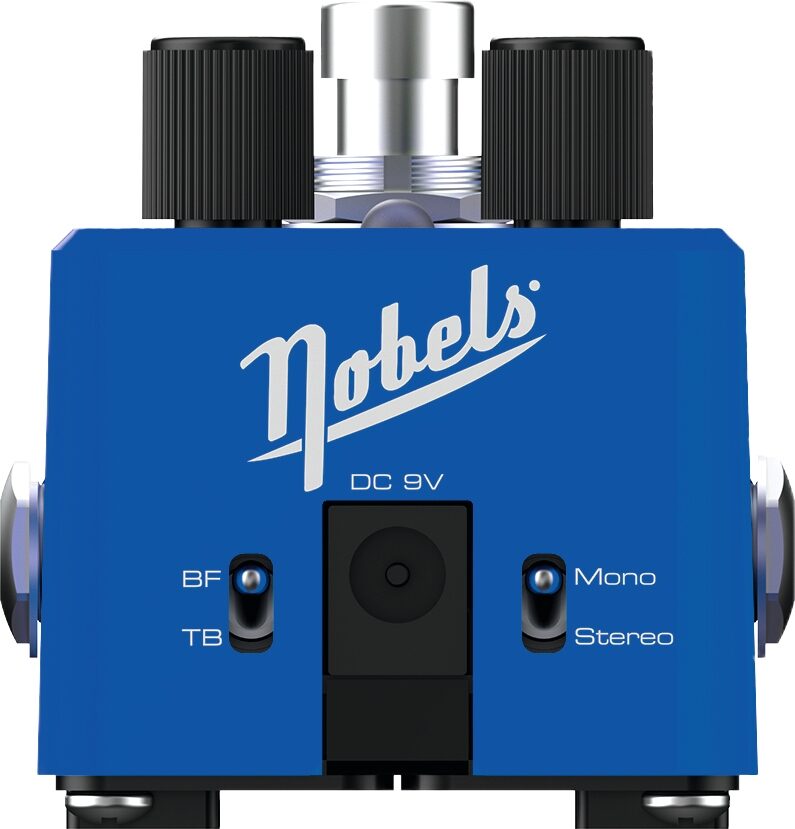

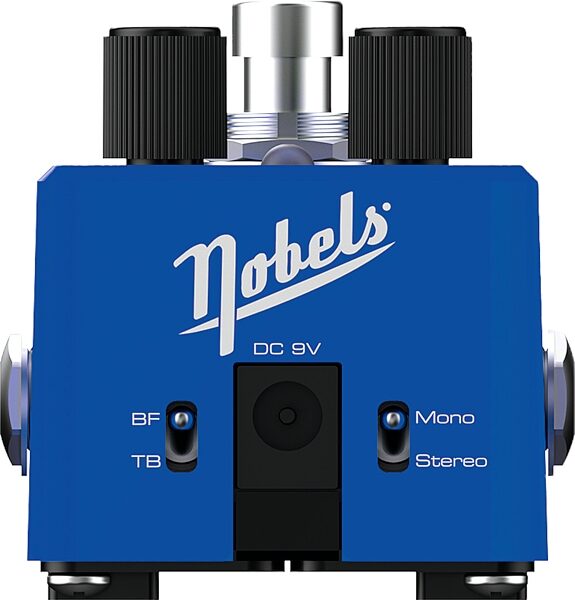

Switches: Mode, Bypass, Mono-Stereo Signal, On/Off (Tap Tempo)
Jacks: DC, Input TRS 1/4" (6.3 mm), Output TRS 1/4" (6.3 mm)
Indicator (LED): 1x Multicolor LED (On/Off, Mode and Tap Tempo)
Tape Delay Time: up to 553 ms
Analog Delay Time: up to 402 ms
Digital Delay Time: up to 1000 ms
Mounty-P: 4x fold-out mounting plates
Dimensions (cm): LxWxH 9.37 x 4.85 x 5.13; 12 x 6.95 x 6.5 (boxed)
Weight (gr): 210 / 301 (boxed)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.64 lbs
Shipping Dimensions: 5 x 3 x 3 in
Manufacturer Part Number (MPN): DEL-mini
