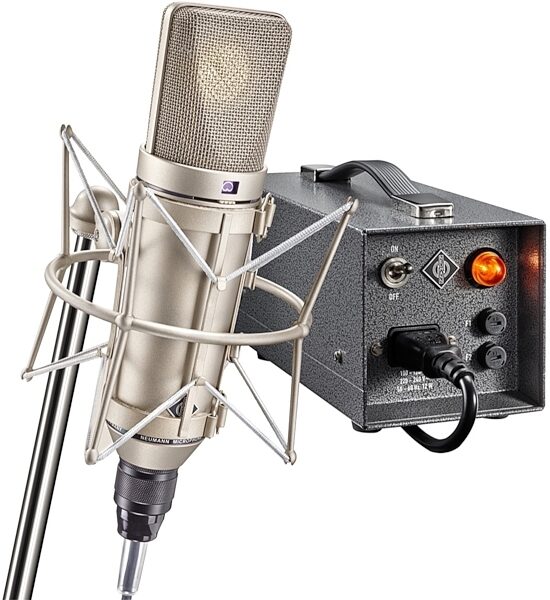

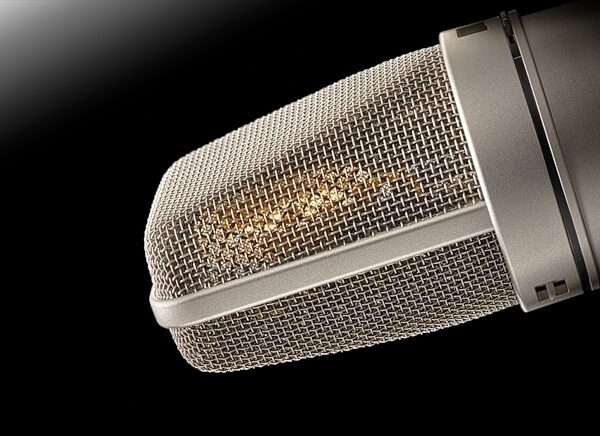

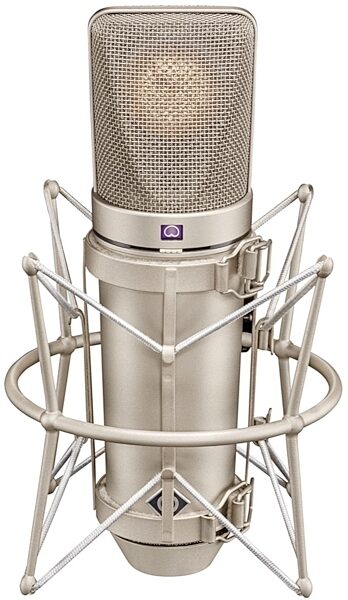

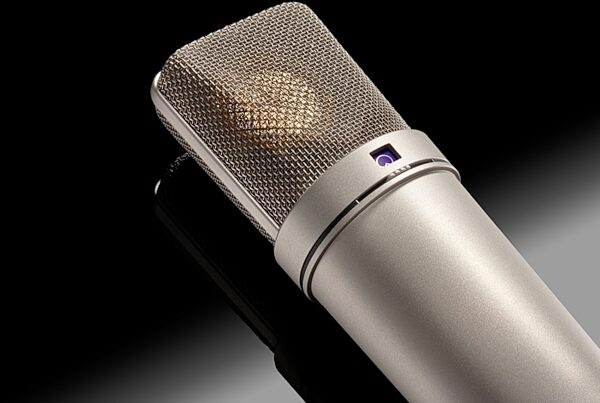

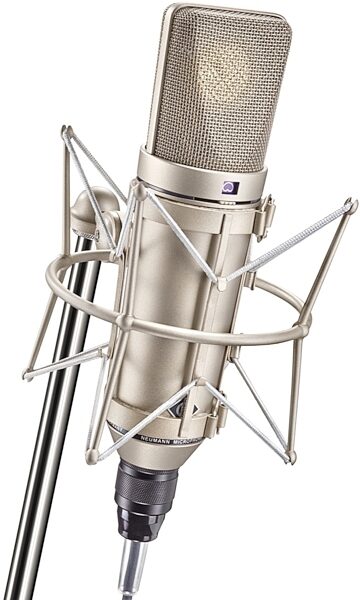

Neumann U67 Tube Condenser Microphone Reissue Pack








It's finally back! Hand-made in Germany, Neumann's reissue of the classic U67 tube condenser microphone is sonically identical to the 1960-1971 original.
Overview
Introduced in 1960, the U 67 was the quintessential studio workhorse throughout the formative years of modern music. Today, more than ever, its inimitably smooth sound continues to be in high demand. To this day, many top level engineers and artists would choose the U 67 as their "desert island" microphone for its extraordinary versatility and unmatched sound quality. The original Neumann U 67 is often imitated, never duplicated!

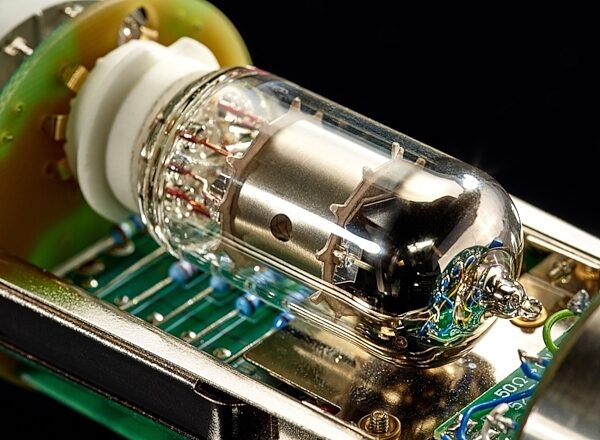

Sonically, the current reissue is identical to the U 67 made from 1960-1971. It uses the same capsule and electronic design. Key parts, such as the BV 12 output transformer, are meticulously reproduced according to original documentation. EF86 tubes are carefully selected for optimal characteristics and lowest noise in a dedicated measurement facility. The power supply was redesigned to meet today's strict safety requirements and to accommodate the slightly higher filament current of newer premium grade tubes. The new power supply NU 67 V is fully compatible with older U 67 microphones.
- Meticulously reproduced to the original specifications
- New power supply NU 67 V automatically adapts to the local mains voltage
- Handmade and hand soldered in Germany
Sonically, the current reissue is identical to the U 67 made from 1960-1971. It uses the same capsule and electronic design. Key parts, such as the BV 12 output transformer, are meticulously reproduced according to original documentation. EF86 tubes are carefully selected for optimal characteristics and lowest noise in a dedicated measurement facility. The power supply was redesigned to meet today's strict safety requirements and to accommodate the slightly higher filament current of newer premium grade tubes. The new power supply NU 67 V is fully compatible with older U 67 microphones.
Features:
- Reissue of the legendary Neumann U 67 tube microphone- Meticulously reproduced to the original specifications
- New power supply NU 67 V automatically adapts to the local mains voltage
- Handmade and hand soldered in Germany
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs

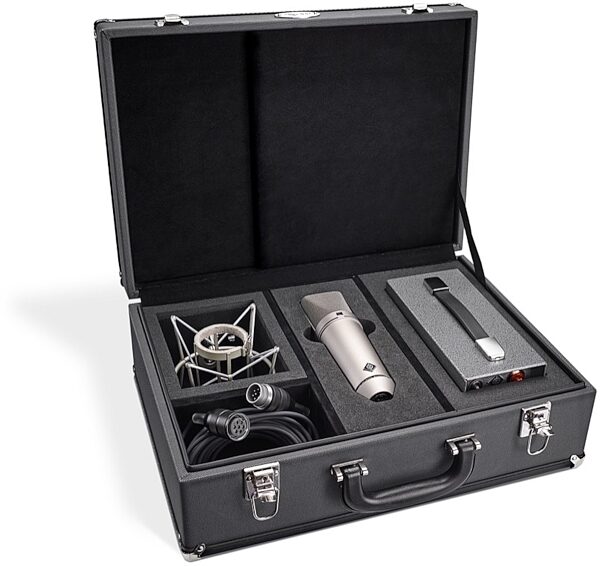

- Includes:
- (1) U 67 Microphone with K 67 Capsule (omnidirectional/cardioid/figure 8)

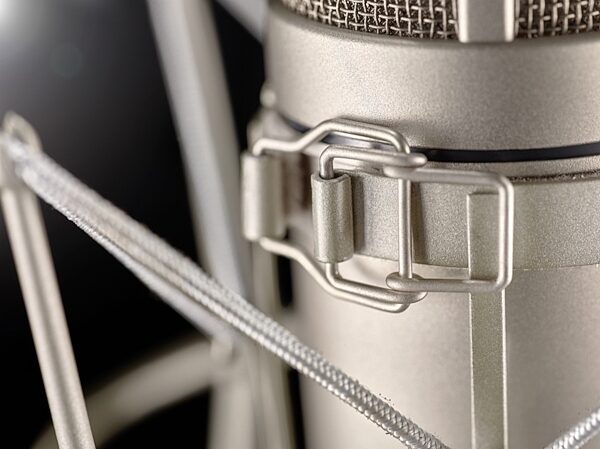

- (1) Z 48 Elastic Suspension
- (1) NU 67 V Power Supply
- (1) UC 5 Connection Cable
- (1) Vintage Neumann Aluminum Case
- Acoustical Operating Principle: Pressure gradient transducer
- Directional Pattern: Omnidirectional, cardioid, figure-8
- Frequency Range: 20 Hz ... 20 kHz
- Sensitivity at 1 kHz into 1 kohm: 15/24/16 mV/Pa1
- Rated Impedance: 200 ohms
- Rated Load Impedance: 1 kohms
- Equivalent Noise Level, CCIR: 32/28/31 dB1
- Equivalent Noise Level, A-weighted: 21/17/20 dB-A1
- Signal-to-Noise Ratio, CCIR: (rel. 94 dB SPL) 62/66/63 dB1
- Signal-to-Noise Ratio, A-weighted: (rel. 94 dB SPL) 73/77/74 dB1
- Maximum SPL for THD 0.5%: 114 dB (cardioid)
- Maximum SPL for THD 0.5%: with preattenuation 124 dB
- Maximum Output Voltage: -9.8 dBu
- Power Supply: NU 67 V
- Matching Connectors:
- Microphone: Spec. 7pin
- Power Supply: XLR 3 F
- Weight: 560 g
- Diameter: 56 mm
- Length: 200 mm
- (1) U 67 Microphone with K 67 Capsule (omnidirectional/cardioid/figure 8)
- (1) Z 48 Elastic Suspension
- (1) NU 67 V Power Supply
- (1) UC 5 Connection Cable
- (1) Vintage Neumann Aluminum Case
- Acoustical Operating Principle: Pressure gradient transducer
- Directional Pattern: Omnidirectional, cardioid, figure-8
- Frequency Range: 20 Hz ... 20 kHz
- Sensitivity at 1 kHz into 1 kohm: 15/24/16 mV/Pa1
- Rated Impedance: 200 ohms
- Rated Load Impedance: 1 kohms
- Equivalent Noise Level, CCIR: 32/28/31 dB1
- Equivalent Noise Level, A-weighted: 21/17/20 dB-A1
- Signal-to-Noise Ratio, CCIR: (rel. 94 dB SPL) 62/66/63 dB1
- Signal-to-Noise Ratio, A-weighted: (rel. 94 dB SPL) 73/77/74 dB1
- Maximum SPL for THD 0.5%: 114 dB (cardioid)
- Maximum SPL for THD 0.5%: with preattenuation 124 dB
- Maximum Output Voltage: -9.8 dBu
- Power Supply: NU 67 V
- Matching Connectors:
- Microphone: Spec. 7pin
- Power Supply: XLR 3 F
- Weight: 560 g
- Diameter: 56 mm
- Length: 200 mm
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 16.5 lbs
- Shipping Dimensions: 22 x 15 x 8 in
- Manufacturer Part Number (MPN): 008678
