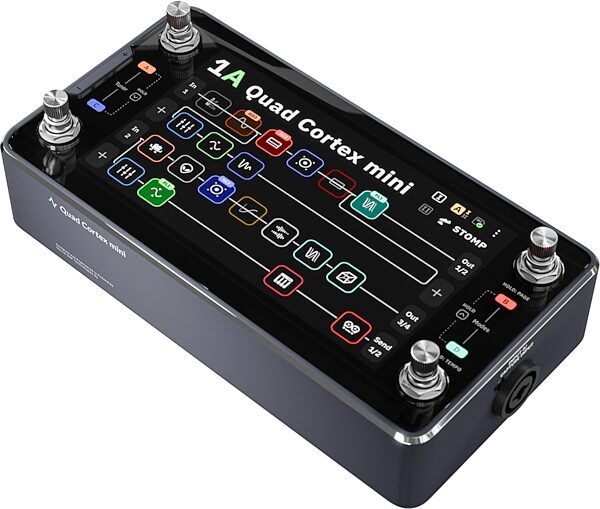

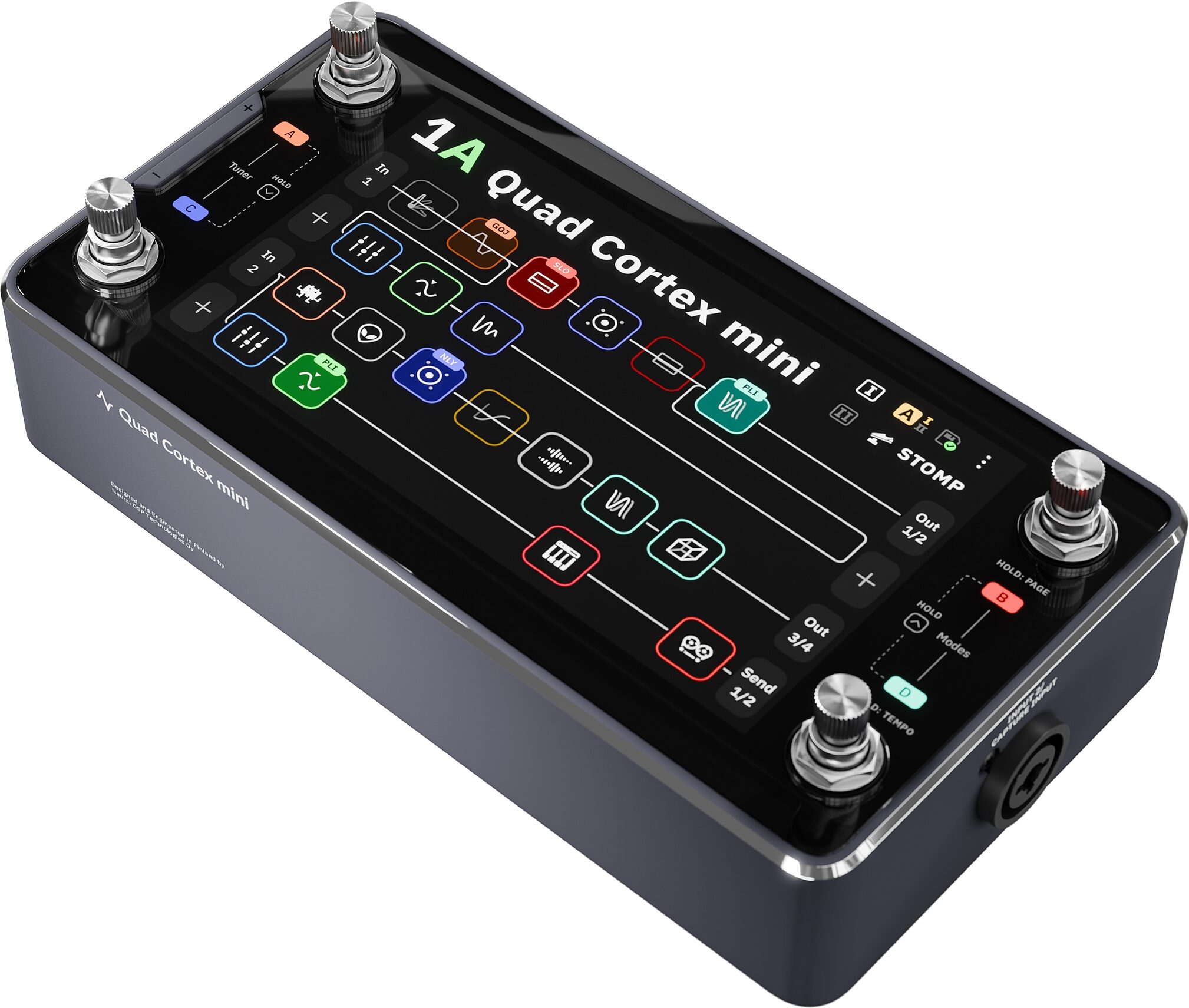

Neural DSP Quad Cortex Mini Multi-Effects Modeler/Profiler Pedal
zZounds Gear Experts Say...
Want the full Quad Cortex experience in a compact box? Neural DSP's Quad Cortex Mini packs 90+ amps, 100+ effects, Neural Capture, and a 7" touchscreen.
Overview
Quad Cortex Mini delivers the full Quad Cortex experience in Neural DSP's most compact, usable format yet, without cutting corners.
It brings the same processing power, audio quality, Neural Capture technology, and 7" touchscreen in a footprint that fits effortlessly into pedalboards, modern rigs, or on your desktop.
Built for exceptional performance at its size and price, Quad Cortex mini makes it easy to dial in world-class sounds, explore a vast range of amps, effects, and Captures, and build rigs without creative limits wherever you play.
Whether you're stepping into the Quad Cortex platform for the first time or already feel at home, Quad Cortex mini shares the same platform and workflow, making great sounds fast, intuitive, and deeply rewarding from the first note.

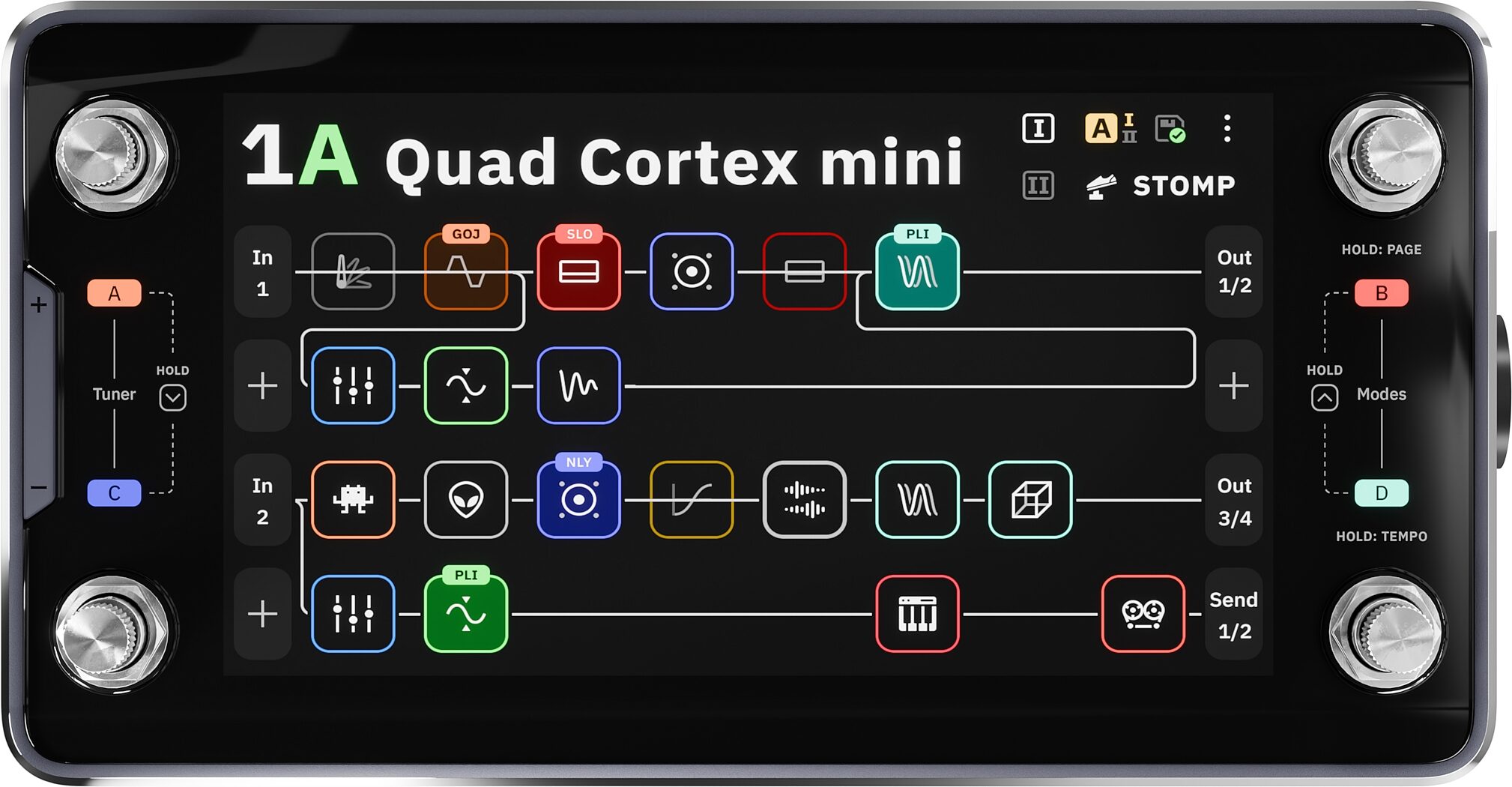

- Intuitive visual workflow: 7-inch touchscreen with grid-based signal flow
- Neural Capture technology: Create and play ultra-accurate digital replicas of real amps, cabs, drive pedals, and compressors
- More than 50% smaller footprint: All the power of Quad Cortex, ready anywhere
- 90+ amp models spanning classic, modern, and contemporary designs
- 100+ effects and utilities for building complete signal chains
- 1000+ cabinet IRs with flexible mic placement
It brings the same processing power, audio quality, Neural Capture technology, and 7" touchscreen in a footprint that fits effortlessly into pedalboards, modern rigs, or on your desktop.
Built for exceptional performance at its size and price, Quad Cortex mini makes it easy to dial in world-class sounds, explore a vast range of amps, effects, and Captures, and build rigs without creative limits wherever you play.
Whether you're stepping into the Quad Cortex platform for the first time or already feel at home, Quad Cortex mini shares the same platform and workflow, making great sounds fast, intuitive, and deeply rewarding from the first note.
Features:
- Full Quad Cortex processing power: Flagship performance in a compact format- Intuitive visual workflow: 7-inch touchscreen with grid-based signal flow
- Neural Capture technology: Create and play ultra-accurate digital replicas of real amps, cabs, drive pedals, and compressors
- More than 50% smaller footprint: All the power of Quad Cortex, ready anywhere
- 90+ amp models spanning classic, modern, and contemporary designs
- 100+ effects and utilities for building complete signal chains
- 1000+ cabinet IRs with flexible mic placement
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs

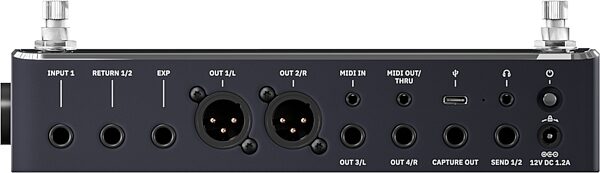

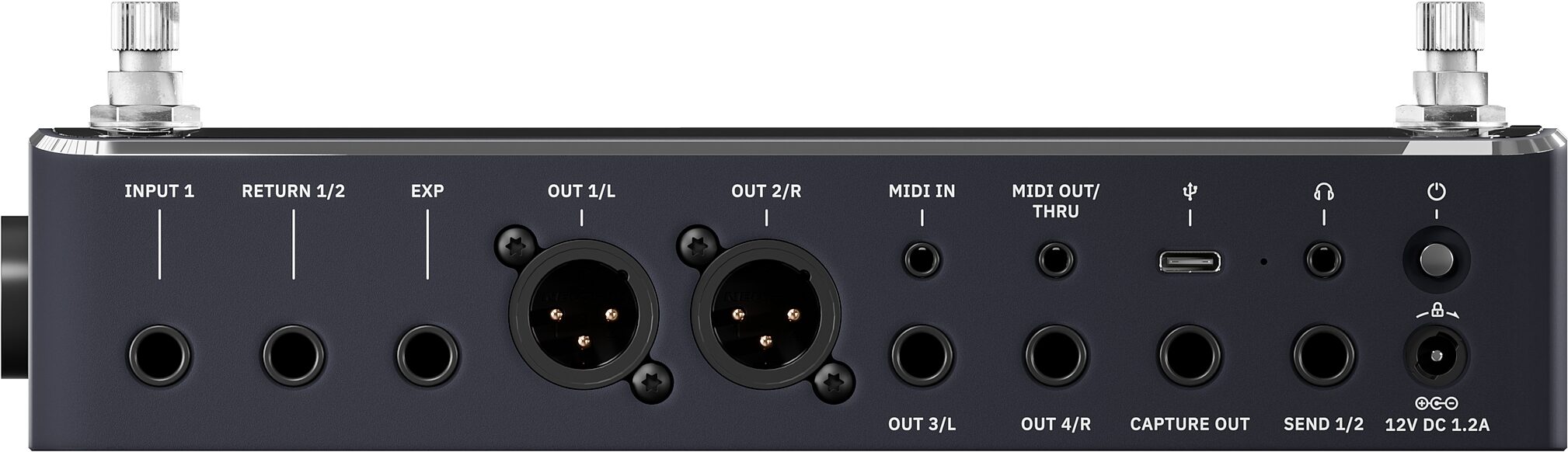

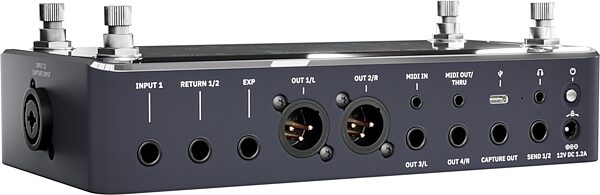

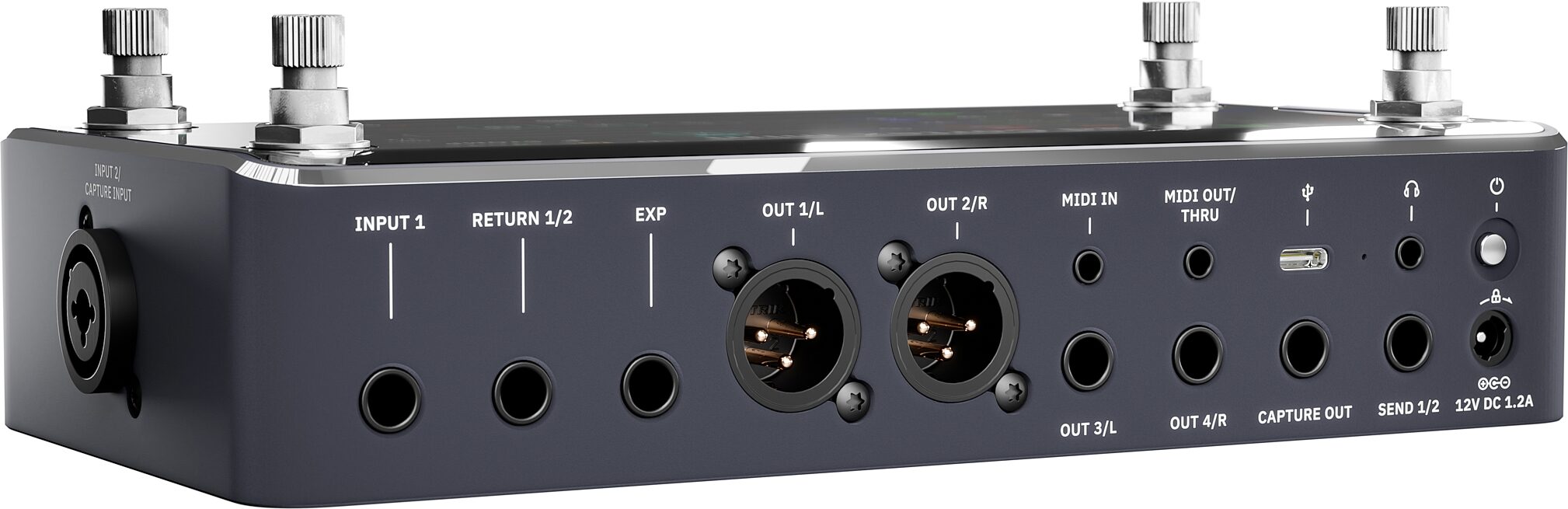

- Audio Inputs:
- 1x 1/4" TS (Input 1)
- 1x Combo XLR + 1/4" TRS (Input 2)
- 1x 1/4" TRS (Returns 1/2)
- Audio Outputs:
- 2x XLR (Outs 1/2)
- 2x 1/4" TS (Outs 3/4)
- 1x 1/4" TRS (Sends 1/2)
- 1x 1/4" TRS (Capture Out)
- 1x 1/8" TRS (Headphones)
- Headphones: Yes (1/8" TRS)
- USB Audio:
- Yes (USB-C)
- USB Audio Class Compliant (24bit - 48kHz)
- 8 in / 8 out
- MIDI:
- In (1/8" TRS Type-A)
- Out (1/8" TRS Type-A)
- MIDI Over USB
- Expression Pedal:
- Expression 1: 1/4" TRS
- Expression 2: MIDI
- Power:
- 12V DC 1.2A
- Center Negative
- 2.1/5.5mm DC Locking Connector
- Power Supply Included
- Wireless Connectivity:
- Yes
- IEEE 802.11 b/g/n Wi-Fi module (2.4GHz ISM band)
- Power Switch: Yes
- Master Volume: Yes (+/- Buttons)
- Footswitches: x4 stainless steel + rotary footswitches
- Display: 7" Color touch Screen
- Chassis: Anodized aluminum
- Dimensions: 22.8 x 11.8 x 6.5 cm / 8.9 x 4.6 x 2.5"
- Weight: 1.5 kg / 3.3 lbs
- 1x 1/4" TS (Input 1)
- 1x Combo XLR + 1/4" TRS (Input 2)
- 1x 1/4" TRS (Returns 1/2)
- Audio Outputs:
- 2x XLR (Outs 1/2)
- 2x 1/4" TS (Outs 3/4)
- 1x 1/4" TRS (Sends 1/2)
- 1x 1/4" TRS (Capture Out)
- 1x 1/8" TRS (Headphones)
- Headphones: Yes (1/8" TRS)
- USB Audio:
- Yes (USB-C)
- USB Audio Class Compliant (24bit - 48kHz)
- 8 in / 8 out
- MIDI:
- In (1/8" TRS Type-A)
- Out (1/8" TRS Type-A)
- MIDI Over USB
- Expression Pedal:
- Expression 1: 1/4" TRS
- Expression 2: MIDI
- Power:
- 12V DC 1.2A
- Center Negative
- 2.1/5.5mm DC Locking Connector
- Power Supply Included
- Wireless Connectivity:
- Yes
- IEEE 802.11 b/g/n Wi-Fi module (2.4GHz ISM band)
- Power Switch: Yes
- Master Volume: Yes (+/- Buttons)
- Footswitches: x4 stainless steel + rotary footswitches
- Display: 7" Color touch Screen
- Chassis: Anodized aluminum
- Dimensions: 22.8 x 11.8 x 6.5 cm / 8.9 x 4.6 x 2.5"
- Weight: 1.5 kg / 3.3 lbs
Dimensions and Weight in Packaging
Base Item
- Shipping Weight: 1 lbs
- Shipping Dimensions: 6 x 3 x 3 in
- Manufacturer Part Number (MPN): 140001
